Rocker Switch Wiring 3 Way | 30X22MM KCD4 6 Pin DPDT 15A Power Control | FILN

Rocker Switch Drawing

What is Rocker Switch Wiring 3 Way?

Rocker switch wiring 3 way refers to a Double Pole Double Throw (DPDT) electrical configuration that allows a single switch to control two separate circuits or reverse the direction of a motor. The FL3-KCD4-010-23 model is a professional-grade 30X22MM rectangular switch featuring a 6-pin terminal base. It is designed to bridge power from a central input to two different outputs, with a dedicated center-off position to ensure complete circuit isolation. This architecture is essential for industrial machinery and automotive systems requiring precise multi-state control.

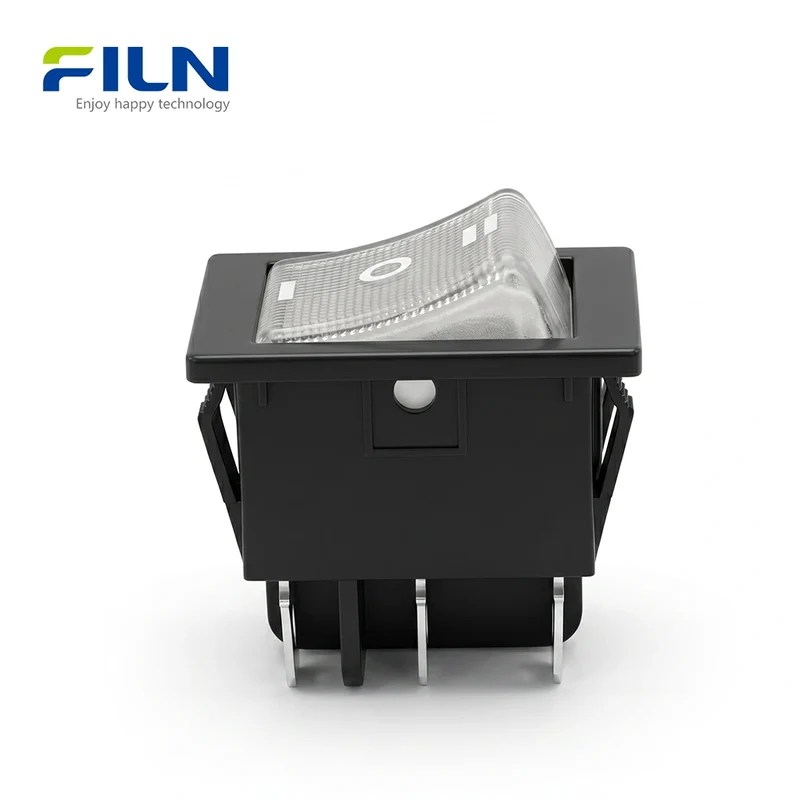

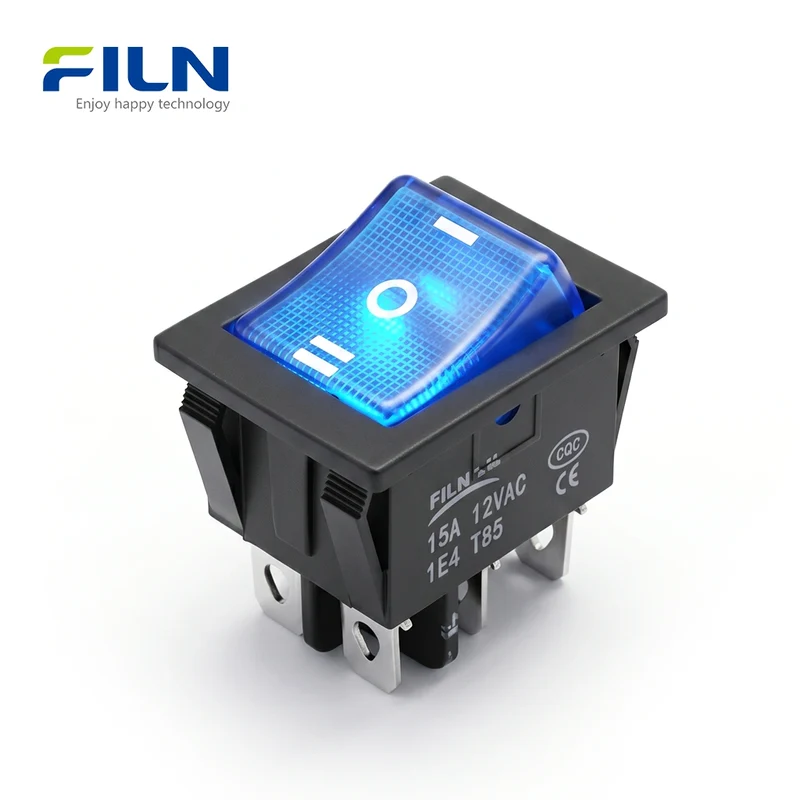

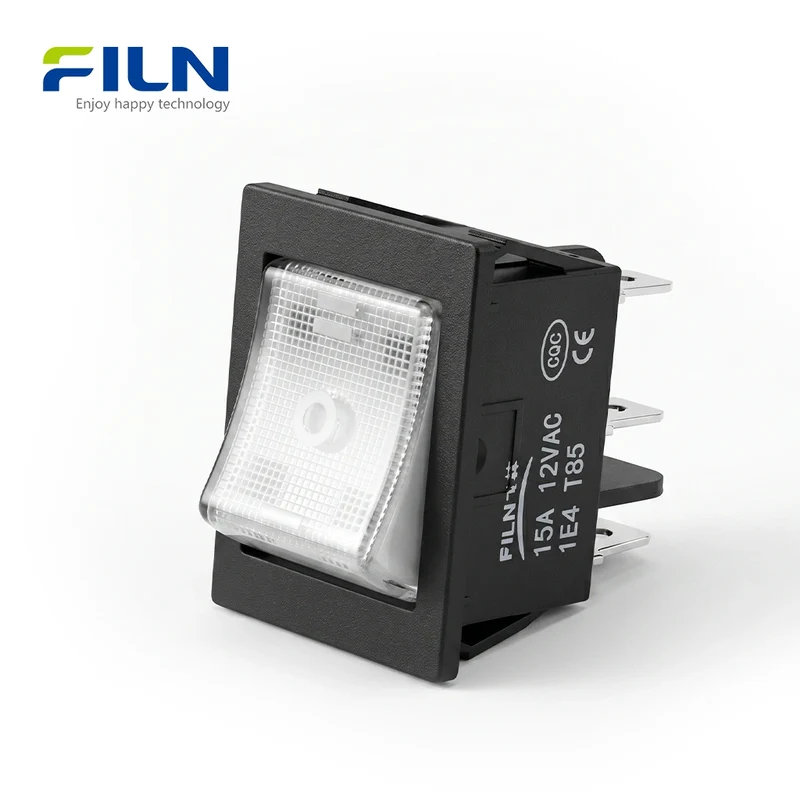

Product Overview

The FILN KCD4 3-way rocker switch is a market-standard rectangular power control component. Engineered with a high-capacity 15A rating, this switch handles heavy-duty electrical loads across 5-24V DC or 110-220V AC systems. The 6-pin insert-terminal design ensures secure rocker switch wiring 3 way connections. Our products are fully certified with ISO9001, CE, VDE, RoHS, SGS, and UL standards. The illuminated plastic face provides clear visual status in low-light conditions, while the snap-in mounting system allows for rapid installation on any compatible panel.

View All FILN Professional Rocker Switch Collections →

Circuit Function Comparison: ON-OFF-ON Logic

Function Mode	Mechanical Behavior	Typical Application
ON-OFF-ON	Latching: Stays in all three positions manually.	Dual-speed fans, Lighting mode selectors.
ON-OFF-(ON)	One side latching, one side momentary (spring back).	Hydraulic pumps with manual/auto modes.
(ON)-OFF-(ON)	Momentary: Returns to center-OFF from both sides.	Winch controls, Polarity reversal, Motor jogging.

Quick Specifications

Model Specification	FL3-KCD4-010-23
Installation Size	30X22MM (Snap-in)
Circuit Configuration	ON-OFF-ON (DPDT)

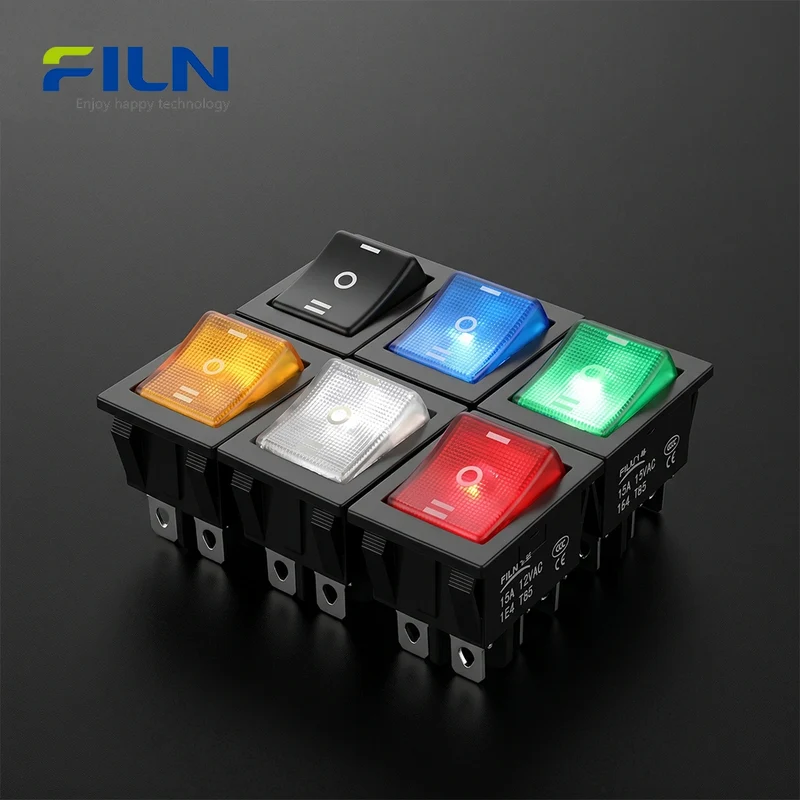

LED Color Options	Red, Green, Yellow, Blue, White

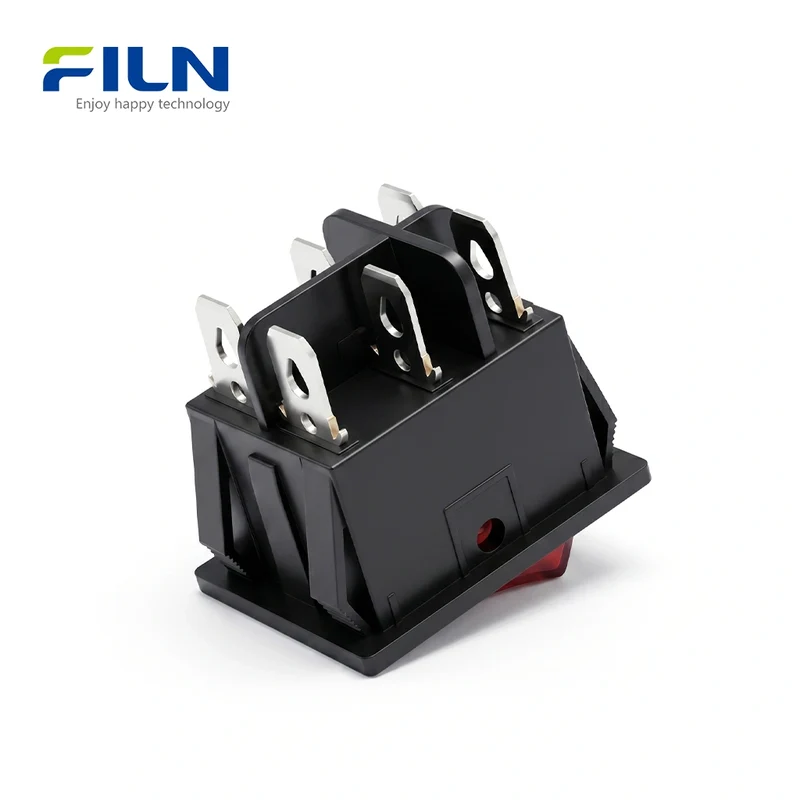

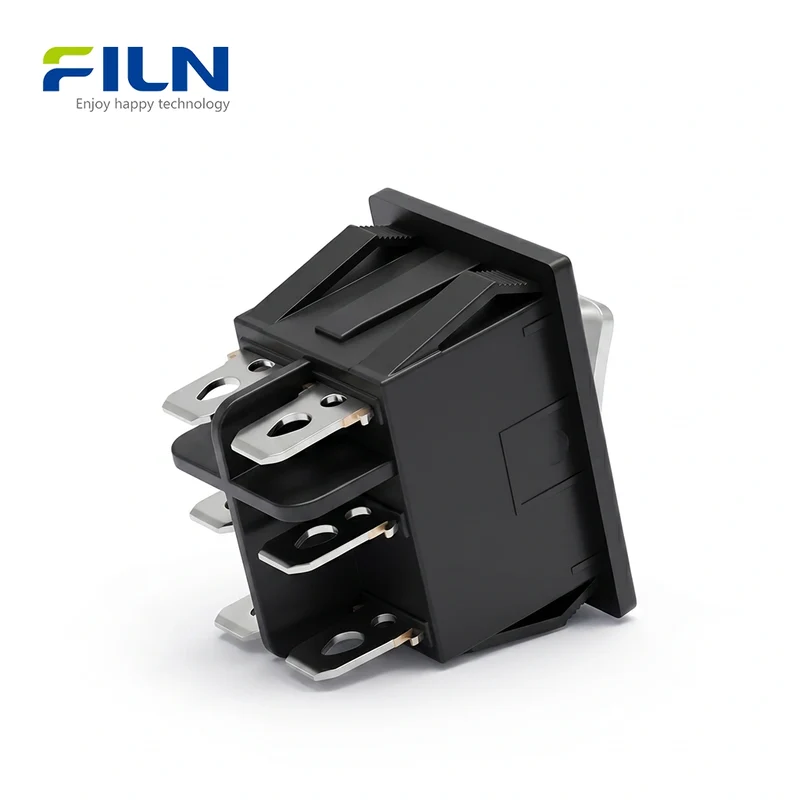

Interface Style	Rectangular 6-Pin Spade Terminal

Electrical Performance Parameters

Parameter Item	Technical Requirement
Rated Load	15A 250VAC / 20A 125VAC
Initial Contact Resistance	≤50mΩ
Insulated Resistance	≥100mΩ / 500VDC
Dielectric Strength	1500VAC / 5mA 60s
Electrical Endurance	10,000 Operations
Ambient Temperature	-40°C to +125°C
Protection Level	Indoor Use (Non-Waterproof)

Component Materials

Accessory Part	Industrial Material
Transparent Sheet / Light Guide	Polycarbonate (PC)
Housing Base	PA66 / ABS High-Impact Plastic
Pin / Spring Board	H62 Brass (Silver-Plated)
Contact System	AgCdO12 (Silver Alloy)
Internal Spring	72# Spring Steel

Global Application Scope

From 3-way rocker switch wiring in automotive dashboards to high-voltage industrial power distribution, these components are vital. They are used in beverage dispensers, medical diagnostic machines, and office servers to provide reliable toggling between multiple functional states.

Snap-In Installation Steps

1. Cutout Preparation: Mill a precise 30X22MM hole into your mounting panel.
2. Panel Insertion: Align the 6-pin base and push the switch into the hole from the front.
3. Self-Locking: The side-mounted spring clips will expand to lock the switch housing against the panel.
4. Wiring: Attach 6.3mm spade connectors to the terminals according to your 3-way circuit logic.

Complete 6 Pin Rocker Switch Wiring Diagram and Connection Guide

A 6 pin rocker switch wiring diagram is a vital resource for complex electrical systems requiring the simultaneous control of two separate circuits or the reversal of motor polarity. This 6-pin configuration typically functions as a Double Pole Double Throw (DPDT) switch. It is frequently used in industrial machinery, automotive power windows, and marine equipment where multi-device management is required from a single control point. This wiring schematic is universal and applies to both illuminated (lighted) and non-illuminated 6-pin rocker switches.

How to Wire a 6 Pin Rocker Switch: Connection Steps

According to the technical schematic, a 6-pin switch features two independent columns of terminals. Follow these steps to ensure a correct and safe connection for both lighted and non-lighted models:

• 1. Central Power Input: Connect the positive (+) wires from your power source to the middle pair of pins. These terminals act as the common feed for the entire switch.
• 2. Device 1 Connection (Up Position): Connect the top pair of pins to the terminals of your first device (Device 1). When the rocker is toggled to the "Up" position, the circuit to Device 1 is closed.
• 3. Device 2 Connection (Down Position): Connect the bottom pair of pins to your second device (Device 2). Toggling the switch to the "Down" position redirects power to this device.
• 4. Grounding and Illumination:
  • For Illuminated Switches: The negative (-) wire must be connected to the dedicated ground pin (often indicated by a different color or label) to power the internal LED. In many DPDT configurations, the lamp remains lit to act as a locator light.
  • For Non-Illuminated Switches: Connect the negative (-) wires from both Device 1 and Device 2 directly back to the negative terminal of the power supply. The switch body itself does not require a ground connection.

Switch Operation and Load Logic

Switch State	Device 1 Status	Device 2 Status	LED Status (If Lighted)
UP Position	ON (Active)	OFF	ON
Normal (Middle)	OFF	OFF	ON (Constant)
DOWN Position	OFF	ON (Active)	ON

Technical Considerations and Precautions

• DPDT Versatility: Because a 6-pin switch handles two independent poles, it can be used for dual-circuit control or to create a polarity-reversal circuit (enabling forward and reverse motor directions).
• Voltage and Amperage: Ensure the switch is rated for your load. Industrial 6-pin switches (like the KCD4 series) are often rated for 15A 250VAC. Overloading terminals can lead to contact welding.
• Internal Lamp Compatibility: If using an illuminated rocker switch, confirm whether the lamp is rated for DC (12V/24V) or AC (110V/220V) to avoid damaging the internal indicator.
• Terminal Security: Use insulated crimp connectors. Given the pin density, insulation is critical to prevent accidental bridging and short circuits between the two poles.

Figure 1: Connection Schematic for 6-Pin Rocker Switches (Applicable to Illuminated & Non-Illuminated Versions)

Technical Mechanism of 3-Way Switching

The rocker switch wiring 3 way configuration utilizes a DPDT internal contact bridge. Unlike standard ON-OFF switches, the 3-position mechanism allows for a neutral "Dead Zone" where no electricity flows. This is critical for motor reversal circuits, preventing simultaneous forward/reverse signals that could damage hardware. FILN's 15A high-current design ensures that even during rapid toggling, the silver alloy contacts provide low resistance and minimal heat generation.

FILN Factory Direct Supply

• ✅ Zero MOQ: Supporting prototypes and mass production alike.
• ✅ Rapid Lead Time: Direct global shipping from our ISO facility.
• ✅ Full Customization: Custom wire harnesses, voltages (5V-220V), and laser-etched symbols.

Get Free Engineering Samples

Official Site: www.filn.com
Inquiries: [email protected]

Frequently Asked Questions (FAQ)

1. How do I start the rocker switch wiring 3 way for a 6-pin model?
Always connect your main power supply to the middle set of pins. The top and bottom sets are used for the two independent circuit outputs.

2. Is the 6-pin illuminated rocker switch compatible with 12V DC?
Yes, FILN provides custom LED configurations for 12V, 24V DC, and 110V-220V AC systems.

3. What is the benefit of the ON-OFF-ON function?
It allows you to switch between two different devices (like a slow and fast motor speed) while having a safe middle "OFF" state.

4. Can this 15A switch be used in wet environments?
No, this is a non-waterproof model. For moisture exposure, please use a version with an IP65 rubber boot.

5. What terminal size should I use for 6-pin rocker switch wiring?
Most KCD4 series switches use 6.3mm (1/4 inch) female spade connectors for secure termination.

6. Does the light work in all three positions?
Typically, the light is wired to illuminate when the switch is in either the top or bottom "ON" state, depending on your wiring configuration.

7. How does the snap-in mounting work for 30X22MM?
The switch features flexible plastic wings that compress during insertion and spring out to lock against the back of the panel.

8. What is the maximum current rating for this 3-way switch?
The FILN FL3-KCD4-010-23 is rated for a high-capacity current of 15A at 250VAC.

9. Can I customize the colors of the LED light?
Yes, we offer Red, Green, Yellow, Blue, and White LED options to match your equipment's aesthetic.

10. Are these switches certified for industrial use in the USA?
Yes, they carry UL and CE certifications, meeting the rigorous safety requirements for industrial power control.
