Button Switch DrawingProduct Overview

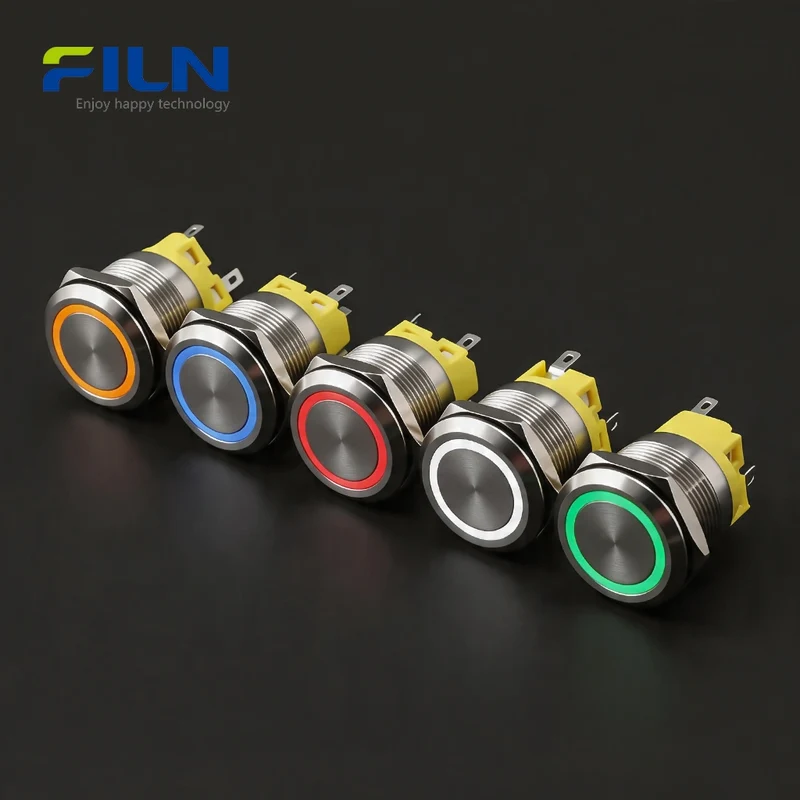

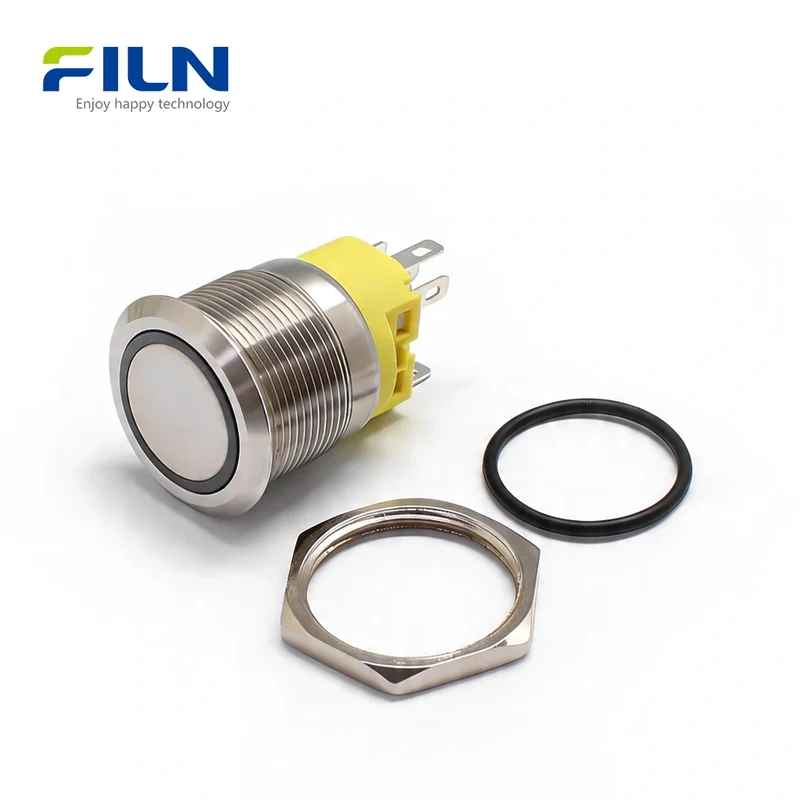

The FLM22-FJ-1-E is a premium 22mm push button 12 volt switch designed for durability and precision. As a professional FILN factory product, it carries multiple certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. These waterproof metal LED buttons are essential for industrial control panels, CNC machines, and marine systems. Featuring a robust 5-pin terminal design, this switch provides both momentary and latching functions. Whether you choose the elegant 304 stainless steel or the black zinc-aluminum alloy housing, these switches ensure reliable circuit control for any powered equipment.

Quick Specifications

Model Number	FLM22-FJ-1-E
Mounting Size	22mm / 0.87"
Function	Momentary / Latching (Self-Locking)
LED Color	R/G/Y/B/W (Custom bi-color/tri-color available)
Button Head	Flat Head with Ring LED

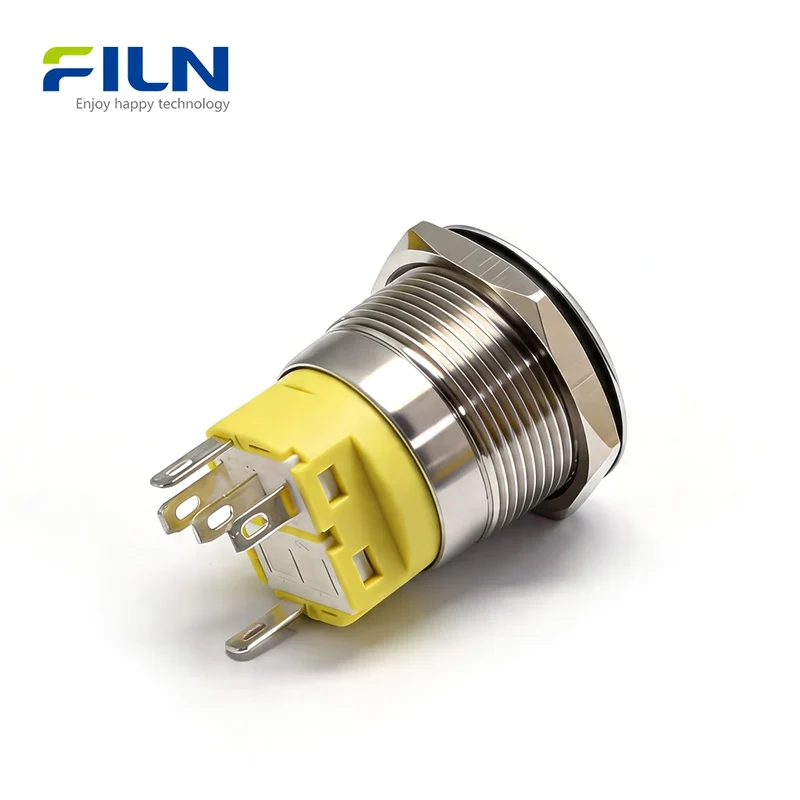

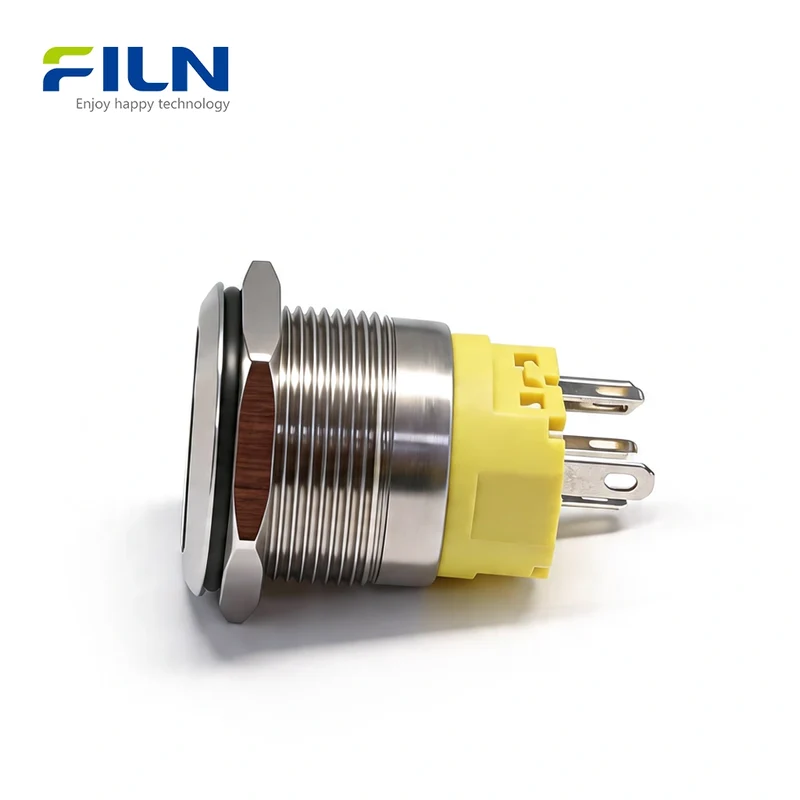

Wiring Type	5-Pin Solder Terminal (Plug-in)

🛒 Browse Full Range of FILN Push Button Switches →

Electrical Performance Parameters

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)
Insulation Voltage	1800V
Contact Resistance	< 50mΩ
Insulation Resistance	≥ 1000MΩ
Indicator Voltage	3V - 220V (12-24V / 110-220V Typical)
Product Certifications	ISO9001, CE, VDE, RoHS, SGS, UL, IP65

Component Materials

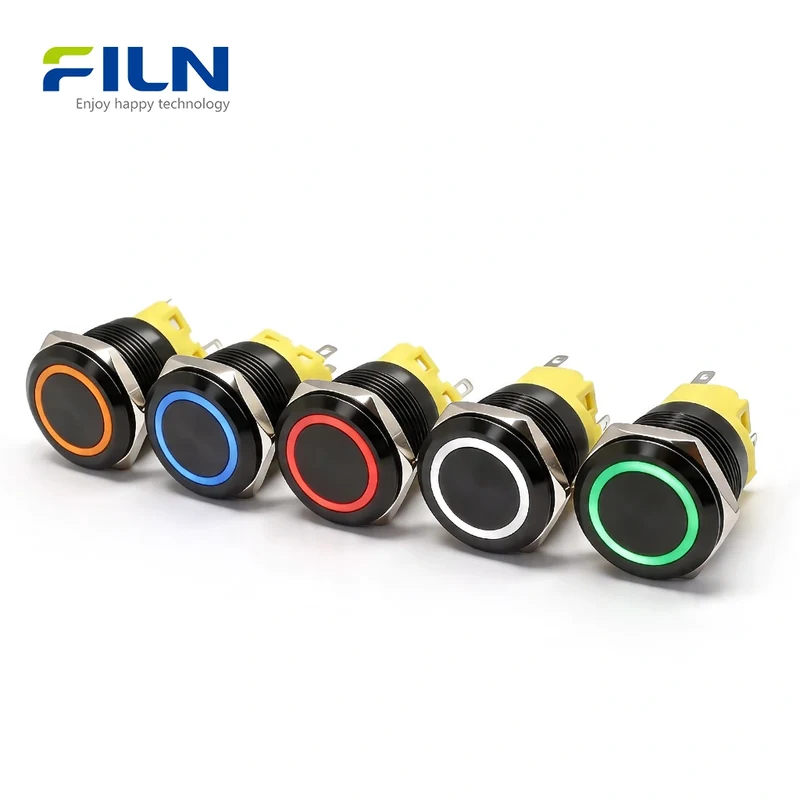

Button	304 Stainless Steel / 6063 Aluminum Alloy
Shell Case	H59 Brass / 304 Stainless Steel / Zinc-Aluminum Alloy (Black)
Light Diffuser	PC Plastic
Pins	H62 Copper Alloy
Base	PA66+GF20% Flame Retardant Nylon
Contacts	Silver Contacts (AgCdO12)

General Characteristics

Work Environment	-25°C to +85°C
Protection Grade	IP65 Waterproof, IK08 Impact Resistance
Mechanical Life	500,000 Cycles
Electrical Life	100,000 Cycles (3A) / 50,000 Cycles (5A)

LED Specification & Visual Meanings

Illuminated switches provide critical status feedback in industrial environments:

• Red: Critical stop, emergency, or system failure.
• Green: System ready, normal operation, or power ON.
• Yellow/Amber: Warning, standby mode, or caution.
• Blue: Manual control mode or specialized function.
• White: Power indicator or neutral state indication.

LED Current	20mA (Max 25mA)
Luminous Flux	4.8 lm
Typical Voltage	12V - 24V DC

Key Features

1. Exceptional Durability (IP65 & IK08): Built to withstand harsh conditions, these 22mm metal push button switches are resistant to water, dust, and heavy impacts.

2. High Current Capacity (5A): Unlike common 2A switches, this 5A rated model can control larger loads directly, simplifying circuit design.

3. Versatile Material Selection: Choose 304 stainless steel for corrosion resistance or black aluminum for a modern aesthetic.

4. Wiring Flexibility: The 5-pin plug-in terminal allows for fast assembly and secure connections, ensuring a long service life.

5. Ring LED Advantage: The bright ring illumination provides clear visibility for operators, enhancing safety and usability in any powered device.

Applications

These push button 12 volt switches are widely used in:

• Industrial control panels
• CNC machinery
• Automation equipment
• Marine electrical systems
• Medical monitoring devices
• Distribution cabinets

Installation Guide

1. Panel Cutout: Create a 22mm diameter hole on the mounting panel.
2. Insert Switch: Place the button through the hole from the front side.
3. Fix Nut: Tighten the metal hex nut from the back to secure the switch (thread mounting).
4. Wiring: Perform standard wiring to the 5 pins (C, NO, NC, +, -).

5 Pin Push Button Switch Wiring Diagram

For fast and secure connection, this switch can be used with a dedicated push button wire connector

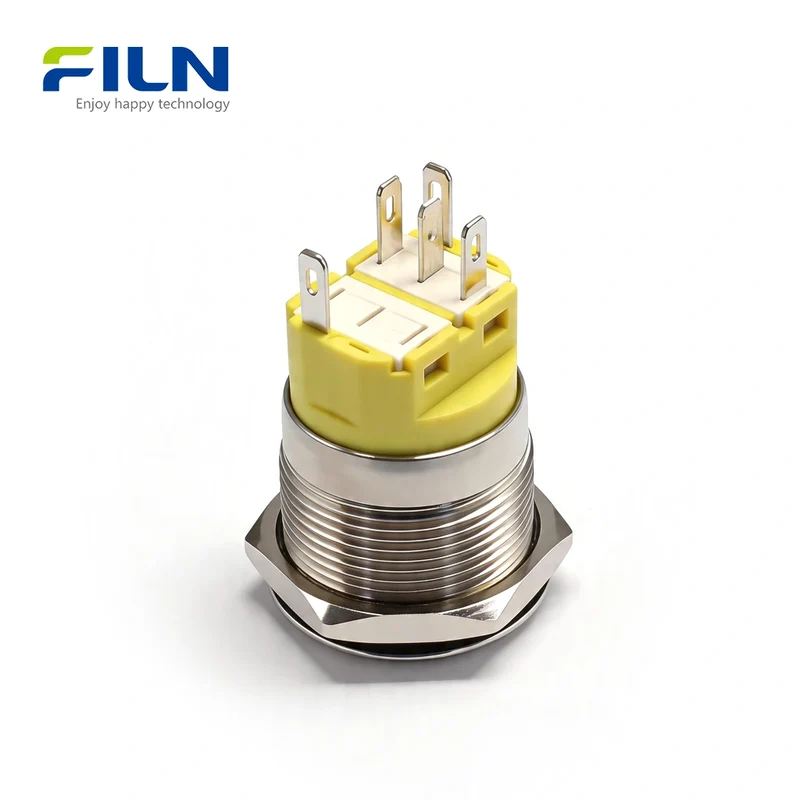

A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.

1. Normal OFF, Sync LED (NO Connection)

Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.

• Application: Standard start switches where the light indicates the system is running.
• State: Static (LED Out, Device Off) → Pressed (LED On, Device On).

2. Normal ON, Sync LED (NC Connection)

Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.

• Application: Stop buttons or emergency cut-off switches.
• State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).

3. Normal OFF, Constant LED (NO Connection)

Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.

• Application: Power switches in dark environments or access control buttons.
• State: Static (LED On, Device Off) → Pressed (LED On, Device On).

4. Normal ON, Constant LED (NC Connection)

Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.

• Application: Monitoring systems or security alarms that require constant power indication.
• State: Static (LED On, Device On) → Pressed (LED On, Device Stop).

Mode	LED Behavior	Device (Idle)
NO Sync	Lights up when pressed	OFF
NC Sync	Turns off when pressed	ON
Constant	Always ON (Backlight)	User Choice

Industry Knowledge

What is a 22mm Push Button Switch?

A push button switch is a control mechanism used to open or close an electrical circuit. In industrial machinery, it serves as the primary interface for humans to interact with power systems, allowing for precise control of automation and equipment operations.

Momentary vs. Latching: The Key Differences

Feature	Momentary	Latching
Mechanism	Returns to original state when released.	Stays in the pressed position (Click-ON).
Typical Use	Starting engines, horns, reset.	Power switches, lighting, fans.

FILN Factory Direct Supply

• ✅ No MOQ: 1pc order accepted.
• ✅ Fast Delivery: Global shipping from stock.
• ✅ Global Standard: CE / RoHS / UL.
• ✅ Customization: Voltage, Wire, Connector.

GET FREE SAMPLES

FILN Official Website: www.filn.com | Email: [email protected]

Frequently Asked Questions

Q1: Is this 5-pin 22mm switch waterproof?
A: Yes, it features an IP65 rating, making it highly resistant to water splashes and dust.

Q2: Can I use this push button 12 volt switch for a 220V system?
A: Yes, we provide customized LED voltages from 3V to 220V to suit your power supply.

Q3: What is the difference between stainless steel and zinc-aluminum alloy?
A: Stainless steel offers superior corrosion resistance (ideal for marine), while zinc-aluminum alloy provides a high-quality aesthetic in various finishes like black.

Q4: How do I wire a 5-pin switch with an LED?
A: You can wire the LED to turn on with the device (Sync) or stay on as a backlight (Constant).

Q5: Do you provide the matching wire connector?
A: Yes, we recommend using our quick-connect sockets for faster and safer installation.

Q6: Is this 22mm button latching or momentary?
A: Both functions are available; please specify when purchasing based on your application needs.

Q7: What does the '5-pin' stand for?
A: It includes 1 Common (C), 1 Normally Open (NO), 1 Normally Closed (NC), and 2 LED terminals (+/-).

Q8: Can I get a customized wire length?
A: Yes, FILN factory offers full customization for wiring harnesses and connector types.

Q9: Is there a minimum order quantity (MOQ)?
A: No, FILN supports B2B customers with no MOQ for standard models.

Q10: What certification does the FILN button have?
A: Our switches are CE, UL, RoHS, and ISO9001 certified for global industrial standards.
