Latching Switch Push Button 25mm Metal 5-Pin with LED Ring 12V 220V Wiring FILN

Button Switch DrawingPRODUCT OVERVIEW

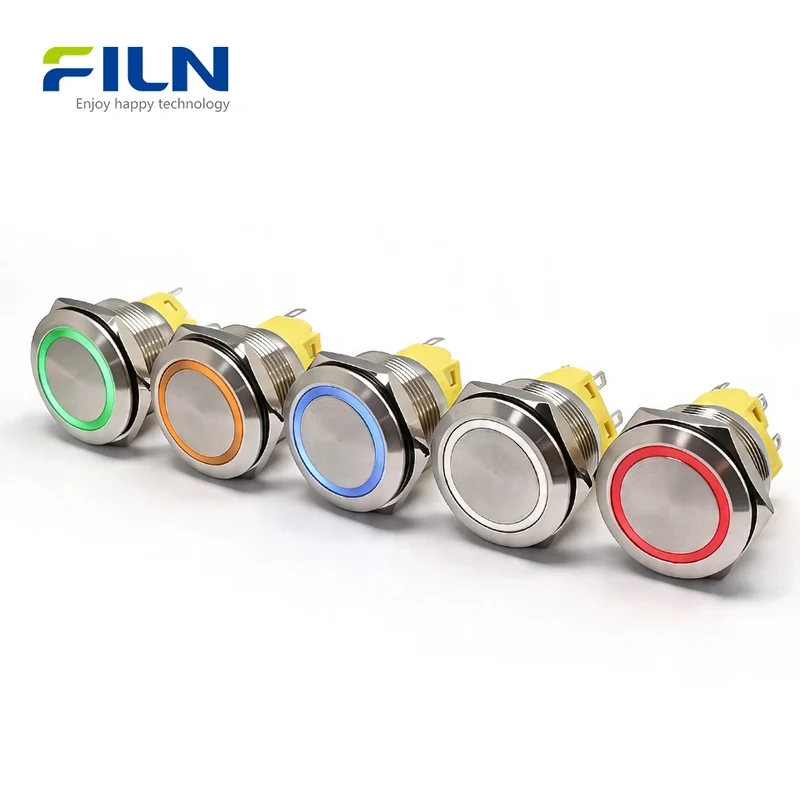

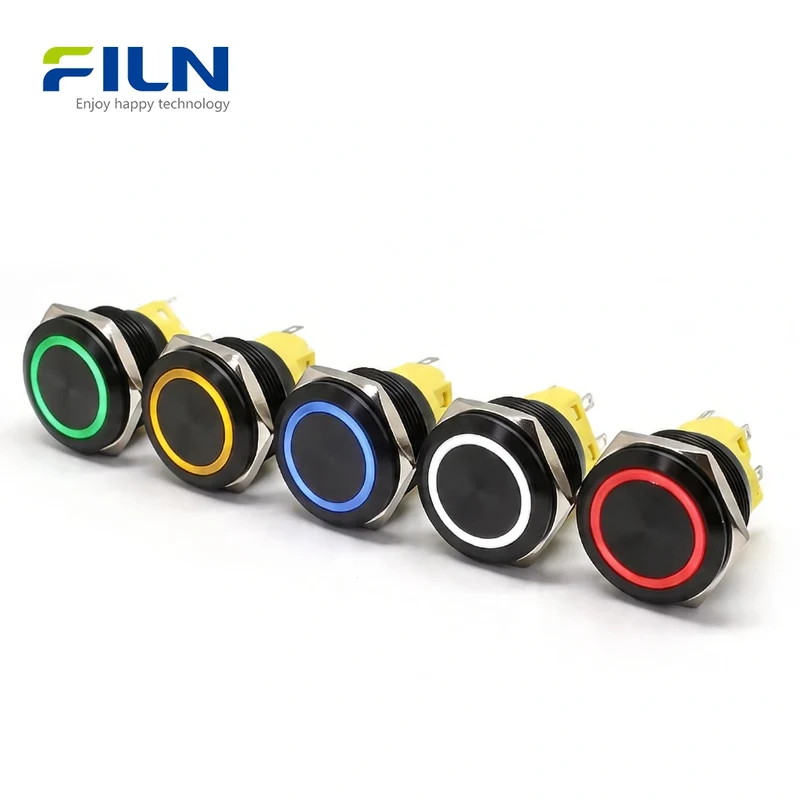

The latching switch push button FLM25-FJ-1-E by FILN is a premium 25mm industrial-grade control component designed for high-performance environments. Crafted from 304 stainless steel or black anodized aluminum, this waterproof LED push button switch offers superior durability and aesthetic appeal. With certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it is engineered for safety and reliability. Whether used in industrial control panels, CNC machines, or marine systems, our 5-pin illuminated push button wiring system ensures a stable connection. As a leading manufacturer, FILN provides metal push button switch 220v and 12v options with customizable LED colors (R/G/Y/B/W) to meet specific industrial-control-panel-push-switch requirements.

QUICK SPECIFICATIONS

Specification Item	Details
Model Number	FLM25-FJ-1-E
Mounting Size	25mm (approx. 1 inch)
Operation Function	Latching (Self-locking) / Momentary (Self-reset)
LED Color Options	Red, Green, Yellow, Blue, White (Dual/Triple Color Custom)
Button Head Type	Flat Head with Ring LED
Terminal Type	5-Pin Solder/Plug-in Terminal

🔗 View All Professional FILN Push Button Switch Collections

ELECTRICAL PERFORMANCE PARAMETERS

Rated Voltage	36V DC / 250V AC	Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)	Insulation Voltage	1800V
Contact Resistance	< 50mΩ	LED Voltage Range	3V - 220V (12V/24V/110V/220V)
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL, IP65

COMPONENT MATERIALS

Component	Material Selection
Button Head	304 Stainless Steel / 6063 Aluminum Alloy
Shell Sleeve	H59 Brass / 304 Stainless Steel / 6063 Aluminum Alloy
Contact Point	Silver Contact (AgCdO12) for high conductivity
Base Material	PA66+GF20% Flame Retardant Nylon
Seal Ring	SIL Silicone (IP65 Grade)

LED SPECIFICATIONS & OPTICAL CHARACTERISTICS

Light Intensity	1000 mcd	Main Wavelength	520.7 nm
Luminous Flux	4.8 lm	Color Temperature	8400K
Luminous Power	0.32 mW	Forward Current	20.00 mA

KEY FEATURES & ADVANTAGES

• 1. Superior Protection (IP65 & IK08): Unlike standard IP40 switches, FILN's waterproof led push button switch is rated IP65 and IK08, making it resistant to water, dust, and physical impact.
• 2. High Electrical Load: Rated at 5A 250V, this 25mm latching switch push button handles higher power directly without needing additional relays.
• 3. Premium Material Variety: Available in stainless-steel-momentary-push-button or aluminum versions, providing excellent corrosion resistance for medical and marine industries.

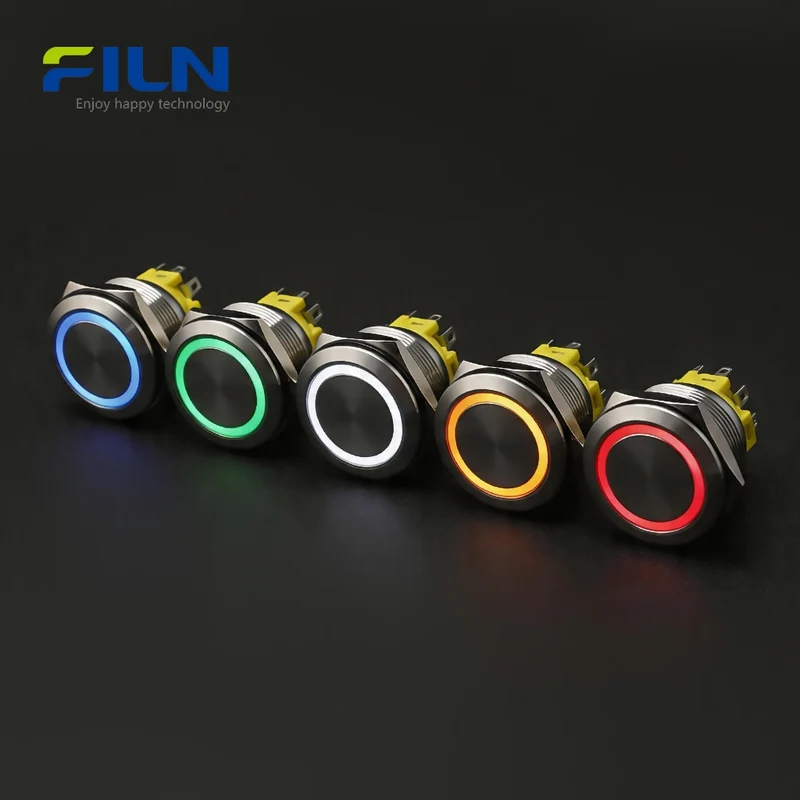

• 4. Visual Ring LED Feedback: The 12v led ring light button provides clear status indication, essential for dark industrial environments or complex control boards.

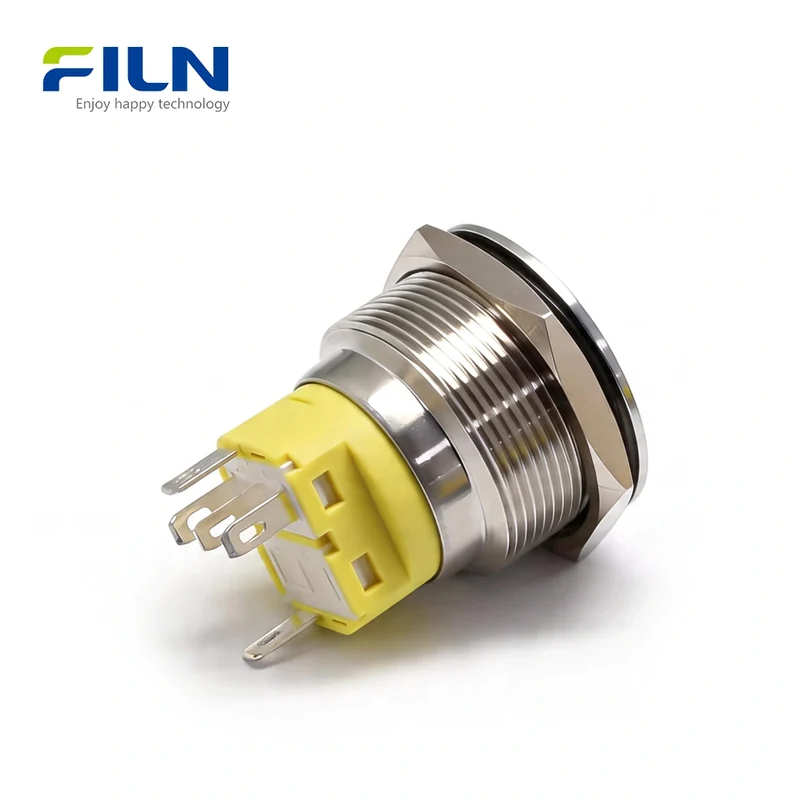

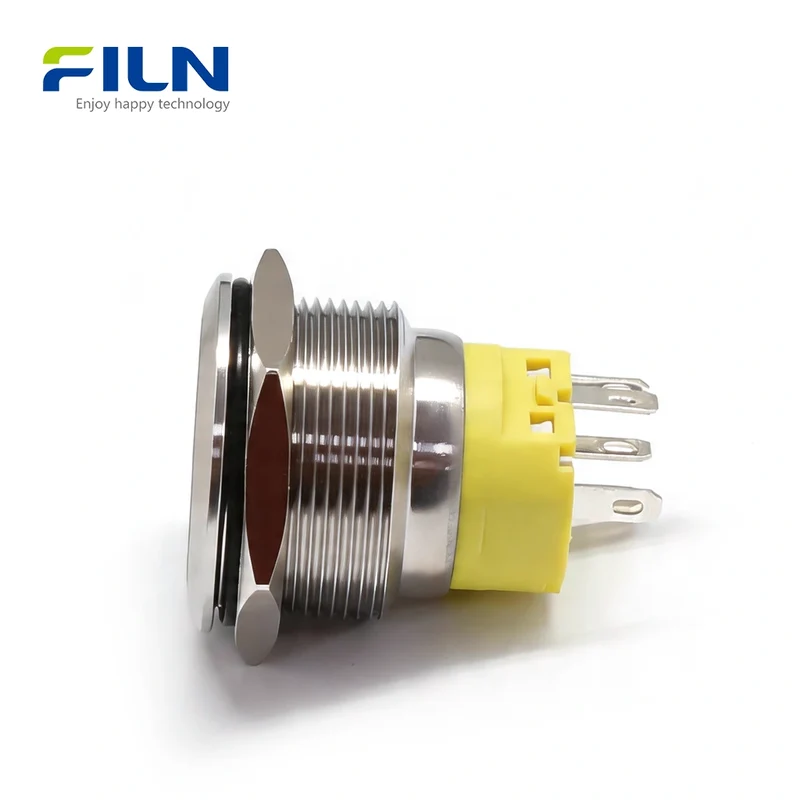

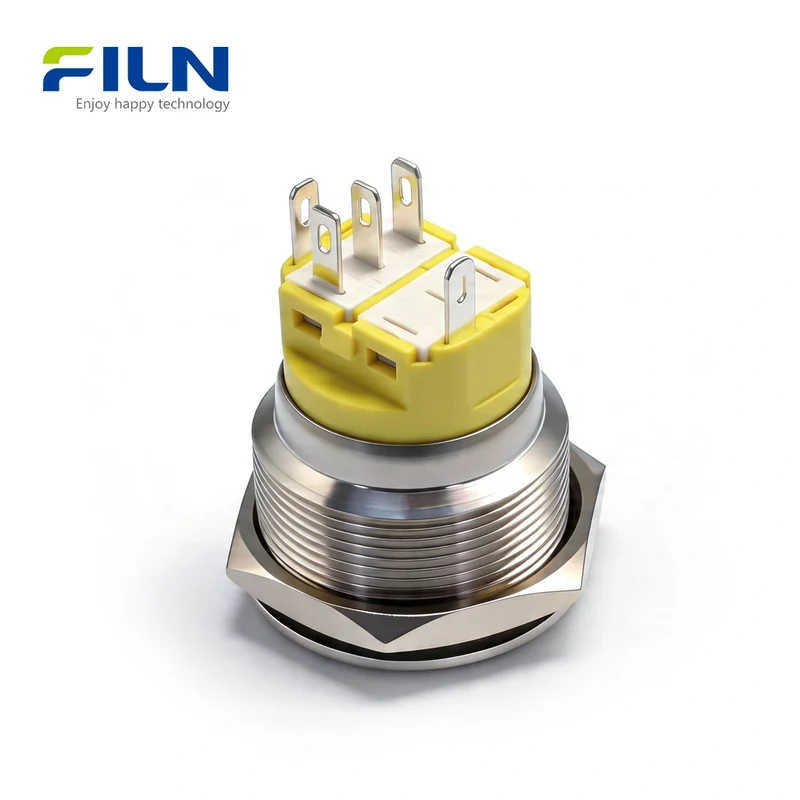

• 5. Compact Solder Pin Design: The 5-pin 2.8x0.5mm terminal allows for quick 5-pin illuminated push button wiring or use with dedicated wire harnesses.

💡 Pro Tip: Optimize your assembly time!

We recommend using our customized wire harness for a plug-and-play experience.

Buy Matching Push Button Wire Connector →

APPLICATION SCENARIOS

The versatility of the industrial-control-panel-push-switch makes it suitable for various sectors:

• Industrial control panels & Distribution boxes
• CNC Precision Machinery
• Marine systems & Outdoor equipment
• Medical diagnostic devices
• Automotive dashboard modifications

INSTALLATION GUIDE

1. Drill: Create a 25mm diameter hole on the control panel.
2. Insert: Pass the metal-push-button-switch-220v through the hole from the front.

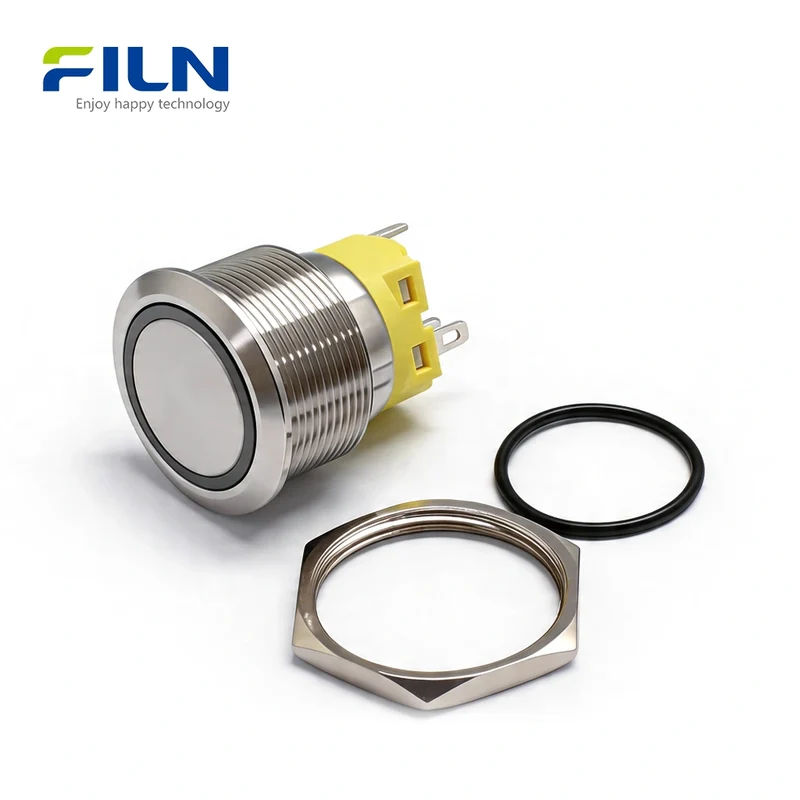

3. Secure: Tighten the metal hex nut from the back to fix the switch firmly.
4. Wiring: Connect the 5-pin terminals according to the NO/NC logic.
5. Test: Turn on the power and verify the LED and device operation.

5 Pin Push Button Switch Wiring Diagram

A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.

1. Normal OFF, Sync LED (NO Connection)

Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.

• Application: Standard start switches where the light indicates the system is running.
• State: Static (LED Out, Device Off) → Pressed (LED On, Device On).

2. Normal ON, Sync LED (NC Connection)

Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.

• Application: Stop buttons or emergency cut-off switches.
• State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).

3. Normal OFF, Constant LED (NO Connection)

Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.

• Application: Power switches in dark environments or access control buttons.
• State: Static (LED On, Device Off) → Pressed (LED On, Device On).

4. Normal ON, Constant LED (NC Connection)

Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.

• Application: Monitoring systems or security alarms that require constant power indication.
• State: Static (LED On, Device On) → Pressed (LED On, Device Stop).

Mode	LED Behavior	Device (Idle)
NO Sync	Lights up when pressed	OFF
NC Sync	Turns off when pressed	ON
Constant	Always ON (Backlight)	User Choice

INDUSTRY KNOWLEDGE

What is a Latching Switch Push Button?

A latching switch push button (also known as self-locking) remains in its new state after being pressed. To return it to its original state, you must press it again. This is essential for power switches where the device needs to stay "ON" without constant human interaction.

Latching vs. Momentary: Which one do you need?

Feature	Latching (Self-Locking)	Momentary (Self-Reset)
Action	Stays depressed/active	Springs back immediately
Usage	Power ON/OFF switches	Doorbell, PC Power, Horns

FACTORY DIRECT SUPPLY & CUSTOMIZATION

FILN is a specialized manufacturer of metal push button switches. We offer:

• No MOQ: Small orders and samples are welcome.
• Fast Lead Time: Global shipping within days.
• Full Customization: Voltage, Wire Length, and Connectors.
• Direct Support: Get technical advice straight from the engineers.

Get Free Sample

Website: www.filn.com
Email: [email protected]

FREQUENTLY ASKED QUESTIONS

Q1: What is the benefit of a 5-pin illuminated push button wiring?

A: The 5-pin design separates the LED circuit from the switch circuit, allowing you to choose if the light stays on always or only when the button is active.

Q2: Can I get a 220V LED ring for this 25mm latching switch?

A: Yes, FILN supports 3V, 12V, 24V, 110V, and 220V customizations for our metal buttons.

Q3: Is the stainless steel version suitable for outdoor use?

A: Absolutely. The 304 stainless steel combined with the IP65 seal makes it perfect for rain and humid environments.

Q4: What do the different LED colors represent?

A: Generally: Red (Stop/Fault), Green (Run/Start), Blue/White (Status/Backlight), Yellow (Warning).
