25mm Metal Push Button Illuminated Switch 4-Pin Pre-wired 12V-220V LED Light FILN

Button Switch DrawingPRODUCT OVERVIEW

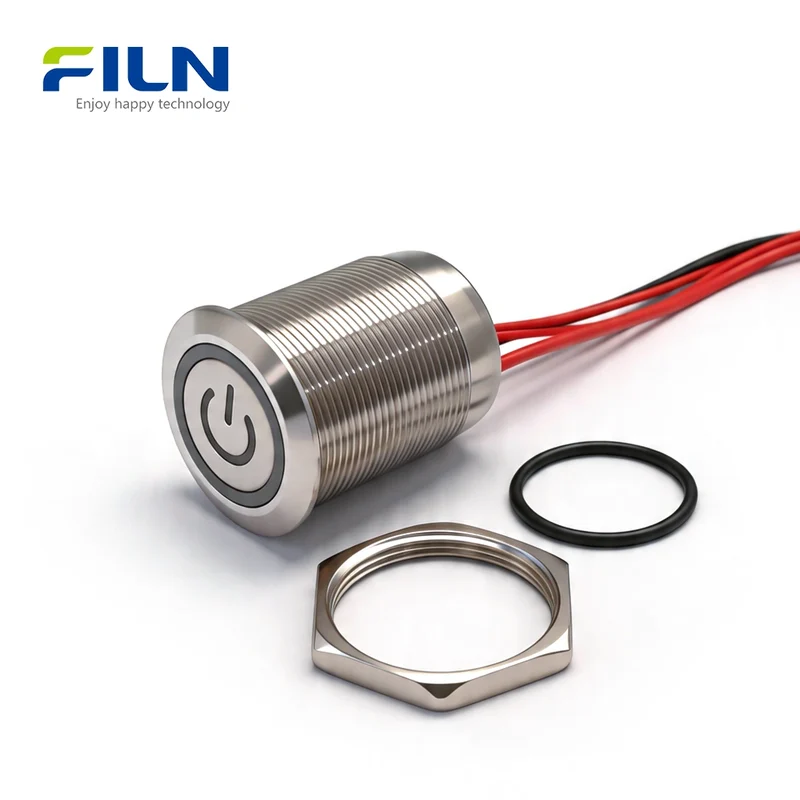

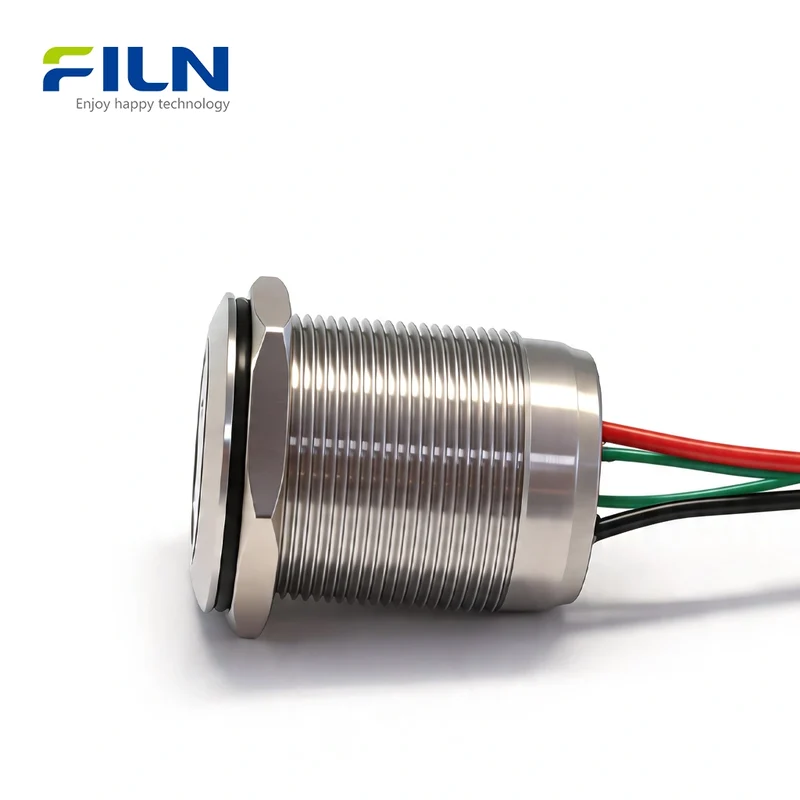

The push button illuminated switch (Model: FLM25-FW-1-EC) by FILN is a heavy-duty 25mm control solution featuring a sleek flat head with both ring and power symbol LED indicators. Constructed from premium 304 stainless steel or black anodized aluminum, this waterproof pre-wired push button is designed for the most demanding B2B industrial applications. With professional certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it ensures unmatched reliability. This 4-pin led metal button comes with 15cm pre-installed wiring, simplifying the installation process for industrial control panels, CNC machinery, and medical devices. Whether you require momentary or latching functionality, FILN provides custom voltage (12V-220V) and multi-color LED options to suit your specific engineering needs.

QUICK SPECIFICATIONS

Model Number	FLM25-FW-1-EC
Mounting Diameter	25mm (1 inch)
Function	Latching / Momentary Options

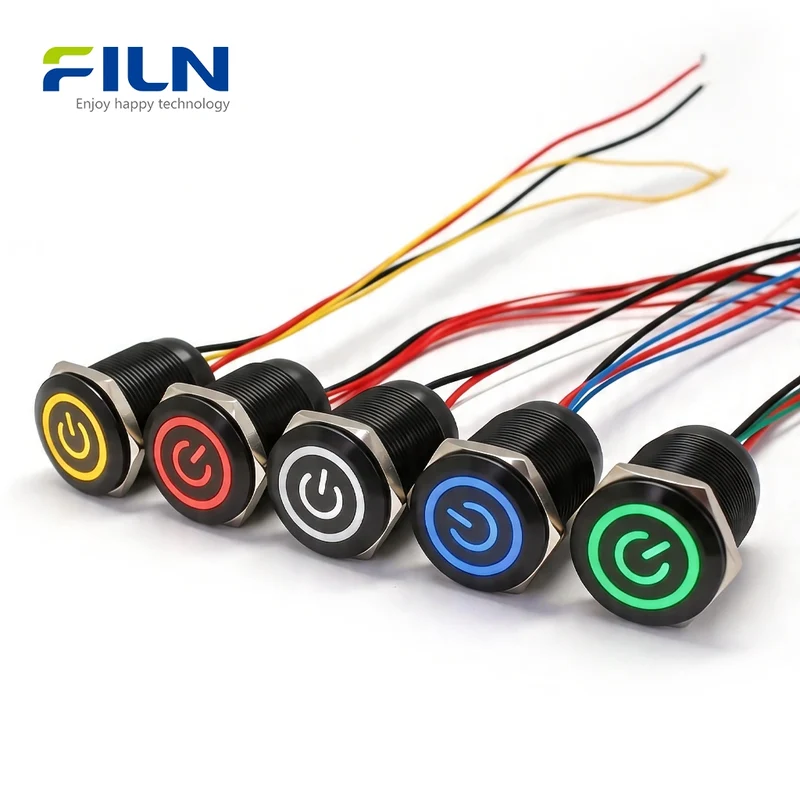

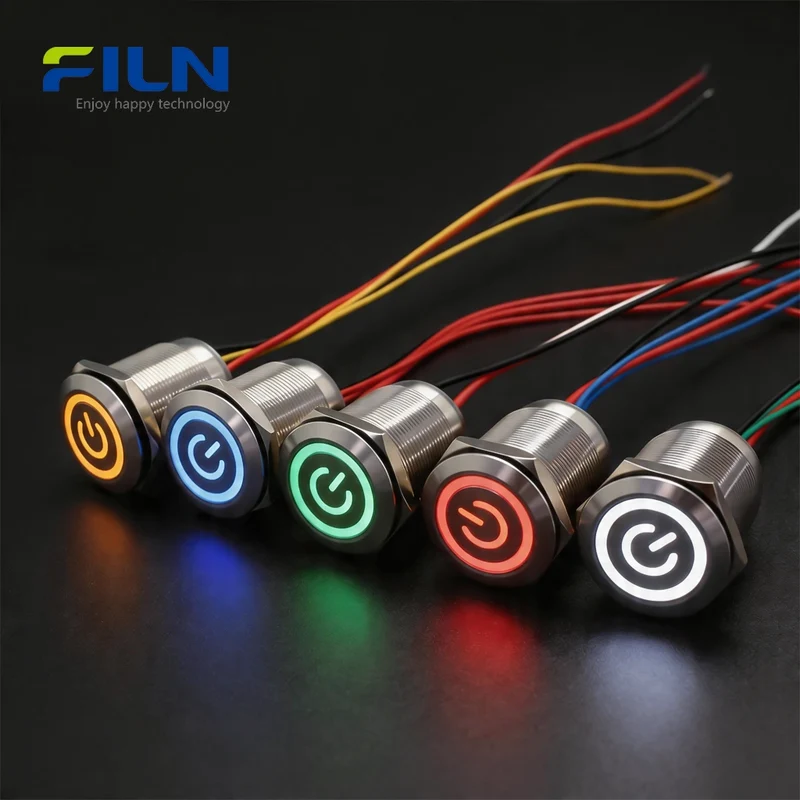

LED Color	R/G/Y/B/W (Dual & Triple color available)
Button Head Style	Flat Head (Ring + Power Symbol)

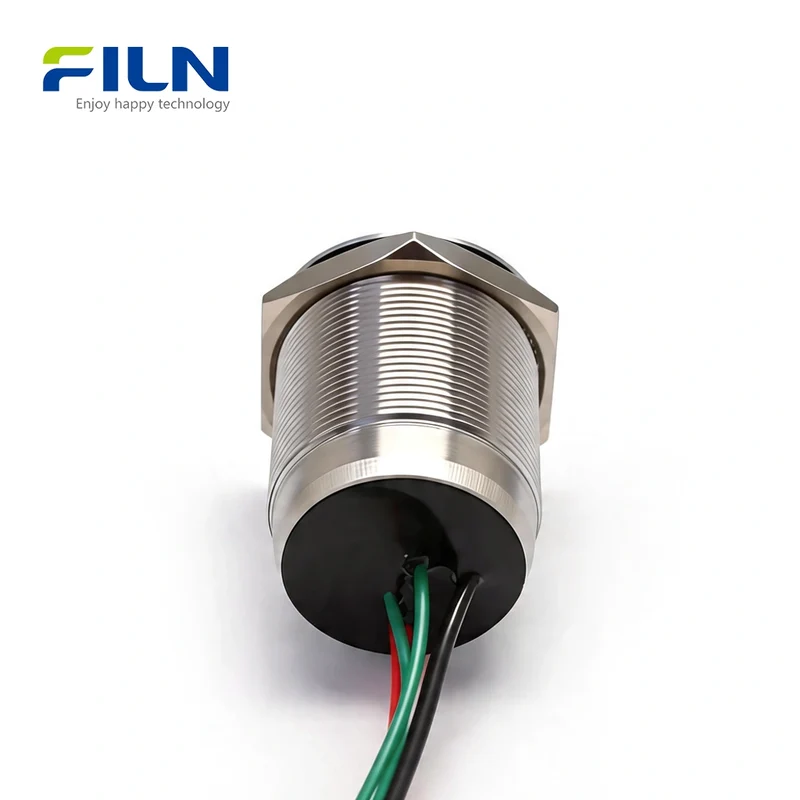

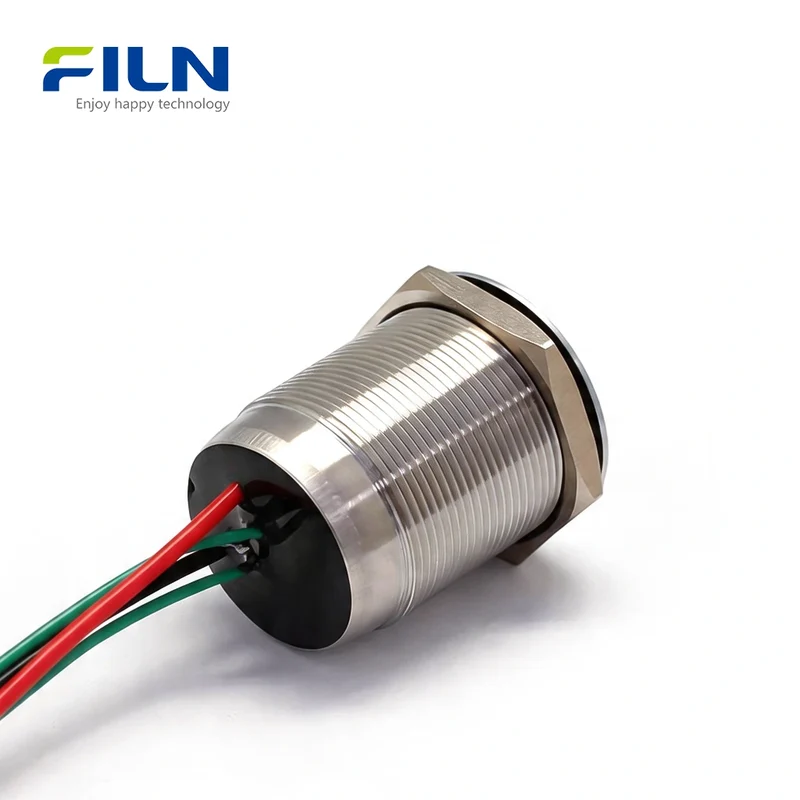

Wiring Method	Pre-wired (15cm/6-inch default)

EXPLORE FULL RANGE OF METAL PUSH BUTTON SWITCHES →

PERFORMANCE PARAMETERS

Rated Voltage	36V DC / 250V AC	Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)	Insulation Resistance	≥ 1000MΩ
LED Voltage	3V - 220V	Product Certs	CE, UL, RoHS, IP65

COMPONENT MATERIALS

Part	Material
Actuator/Button	304 Stainless Steel / Black Aluminum
Housing	H59 Brass / 304 Stainless Steel
Contacts	Silver Alloy AgCdO12
Wire Material	High-Quality Copper with 15cm Shell Protection

GENERAL CHARACTERISTICS

Operating Temp	-25°C to +85°C	Mechanical Life	500,000 Cycles
Protection Level	IP65 / IK08	Electrical Life	100,000 Cycles

LED OPTICAL SPECIFICATIONS

Light Intensity	1000 mcd	Peak Wavelength	632.2 nm
Luminous Flux	4.8 lm	Color Temperature	8400K

KEY FEATURES

1. Enhanced Protection & Durability: With IP65 and IK08 ratings, this switch is built for extreme environments, resisting water, dust, and heavy impact.

2. High Load Capacity: Supports up to 5A 250V AC/DC, allowing direct control of high-power industrial equipment without relays.

3. Visual Clarity: The 12v-24v led control switch with ring & power symbol enhances visibility in dark or low-light industrial settings, providing instant status feedback.

4. Superior Material Integrity: The use of 304 stainless steel and AgCdO12 silver contacts ensures low contact resistance (<50mΩ) and excellent anti-corrosion properties.

5. Installation Efficiency: Pre-wired with 15cm leads, this switch eliminates the need for manual soldering, making it perfect for high-speed industrial assembly lines.

APPLICATIONS

Our push button illuminated switch is vital for circuit control in diverse equipment:

• Industrial machinery & CNC stations
• Automated factory control panels
• Marine navigation and control systems
• Medical diagnostic and lab devices
• Public kiosks and EV charging stations

INSTALLATION GUIDE

1. Prepare the panel by drilling a precise 25mm hole.
2. Insert the switch from the front side of the panel.
3. Fasten the metal hex nut from the rear to lock the switch.
4. Connect the pre-wired 4-pin leads to your power source and load.

TERMINAL TYPE COMPARISON

Terminal Type	Advantages	Best For
Pre-wired (4-Pin)	Quickest installation; no soldering; waterproof seal.	Mass production & outdoor use.
Pin Terminal (Plug-in)	Compact design; easy to replace using connectors.	PCB mounting or compact panels.
Screw Terminal	No tools needed except a screwdriver; high torque.	Field repairs & heavy vibrations.

4 Pin Push Button Switch Wiring Diagram

A 4-PIN switch consists of two parts: Switch Contacts (to control the device) and LED Terminals (marked with + and -). Below are two ways to wire the LED indicator.

• Horizontal Pins: The switch mechanism (Power In / Load Out).
• Vertical Pins (+ / -): The LED indicator light terminals.

Method 1: LED Synchronized with Device (On when Active)

Logic: The button light only turns ON when the device is running. It serves as a "Status Indicator."

• Wiring: Connect LED (+) to the Output side of the switch. LED (-) to Power Negative.
• Applications: Power start buttons, car fog lights, industrial machinery.
• Benefit: Saves power; provides visual feedback that the system is active.

Figure 1: LED turns ON only when button is pressed

Method 2: LED Always ON (Backlight Mode)

Logic: The button light stays ON constantly as long as there is power, regardless of the button position.

• Wiring: Connect LED (+) directly to the Power Positive. LED (-) to Power Negative.
• Applications: Dark environments, hallway switches, standby power indicators.
• Benefit: Allows you to find the switch easily in total darkness.

Figure 2: LED stays ON constantly (Backlight)

Mode	LED Status (Idle)	LED Status (Pressed)
Sync (Status)	OFF	ON
Always ON (Backlight)	ON	ON

INDUSTRY KNOWLEDGE

What is an Illuminated Push Button Switch?

In industrial systems, an illuminated switch combines a manual actuator with an internal LED light. This dual-purpose design allows the operator to control the circuit while receiving visual confirmation of the machine's state (ON/OFF). The latching halo ring push button is specifically designed to remain in position after being pressed, whereas momentary resets instantly.

LED Color Meanings in Industry:

• Red: Stop, emergency, or fault detected.
• Green: System running, safe to operate.
• Yellow/Amber: Warning or process change.
• Blue: Special instruction or manual override.
• White: Neutral power indicator or general lighting.

FACTORY DIRECT SUPPLY

FILN Manufacturing Advantages:

• No Minimum Order Quantity (MOQ).
• Global Express Shipping.
• Full Customization (Wire length, Voltage, Connectors).

REQUEST FREE SAMPLE

Official Website: www.filn.com

FREQUENTLY ASKED QUESTIONS

Q1: Is the 25mm 4-pin switch with LED suitable for 220V?
A: Yes, we provide internal resistance matching for 12V up to 220V AC/DC configurations.

Q2: Can I customize the wire length beyond 15cm?
A: Absolutely. FILN is a factory, and we can customize any wire length to fit your panel design.

Q3: What is the benefit of the power symbol illumination?
A: It provides a clear, universally recognized visual indicator that the device is receiving power.

Q4: What's the difference between Momentary and Latching?
A: Momentary resets when you let go; Latching stays pressed until you push it again.

Q5: Is this switch really IP65 waterproof?
A: Yes, it includes a silicone gasket to prevent water ingress into your control panel.

Q6: Can I get a dual-color LED (e.g., Red/Green)?
A: Yes, we support dual and triple-color LED customization for status multi-indication.

Q7: Does the 4-pin design require a separate LED power source?
A: Not necessarily. You can wire the LED in parallel with the switch contacts for synchronized lighting.

Q8: Is 304 stainless steel better than aluminum?
A: Stainless steel is superior for marine or corrosive chemical environments.

Q9: What is the electrical life expectancy?
A: Under standard loads, the switch is rated for 100,000 electrical operations.

Q10: Are these switches UL certified?
A: Yes, FILN switches carry multiple international certifications for industrial safety.
