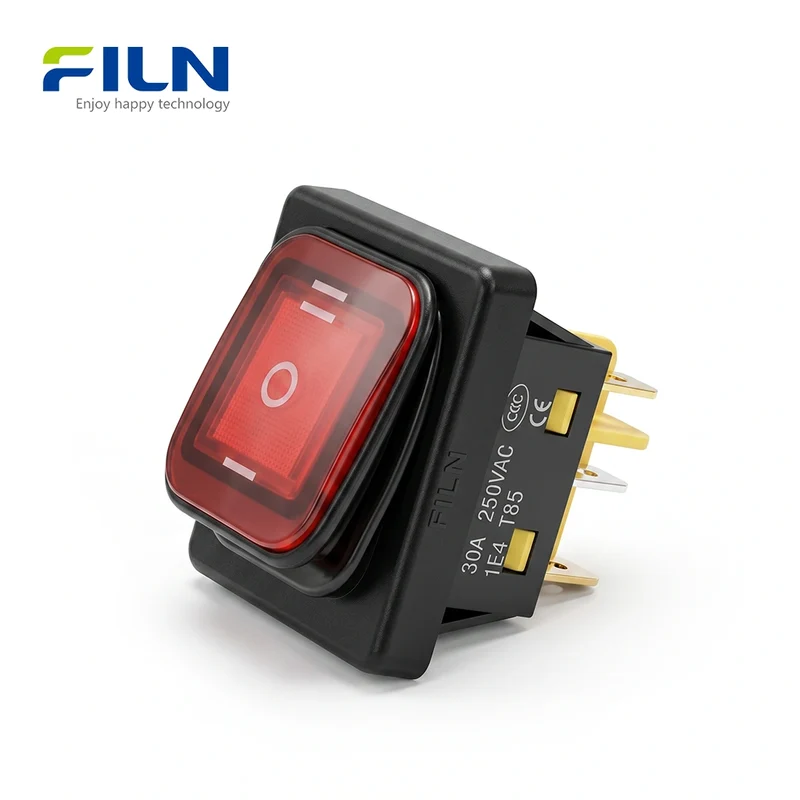

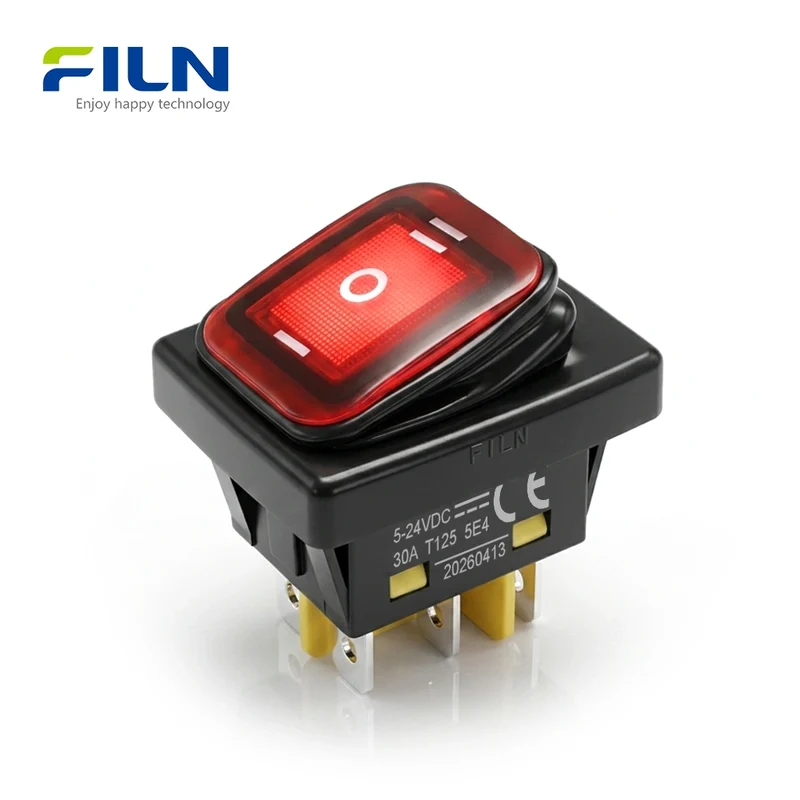

Rocker Switch 3 Position ON-OFF-ON Illuminated 30x22mm 30A Waterproof KCD4 6Pin FILN
Détails du produit
Rocker Switch Drawing
What is a Rocker Switch 3 Position?
A rocker switch 3 position is a versatile electrical toggle device designed to control two separate circuits or functions from a single point, featuring an "ON-OFF-ON" configuration. The FILN FL3-KCD4-0321-23 utilizes a 6-pin DPDT (Double Pole Double Throw) structure, allowing for complete isolation or alternating power distribution. With its standard 30x22mm cutout, this KCD4 series switch is engineered for high-current industrial systems, providing a reliable mechanical interface for complex electrical setups.
Product Overview
The FILN rocker switch 3 position is a premium KCD4 rectangular switch featuring a high-quality plastic surface and an internal reinforced frame for superior durability. This model supports a massive 30A current and is IP65 waterproof, making it perfect for outdoor and heavy-duty applications. The built-in LED indicator is available in Red, Green, Yellow, Blue, and White (RGYBW), supporting voltages from 5V to 220V. The sleek black plastic housing is not only fashionable but also easy to clean and maintain. Whether for industrial machinery, marine dashboards, or commercial appliances, this switch offers the perfect balance of visual feedback and robust mechanical switching.
🛒 Browse Full Collection of High-Quality Rocker Switches →Quick Specifications
| Model Number | FL3-KCD4-0321-23 |
|---|---|
| Mounting Size | 30 x 22 mm (1.18 x 0.87 inch) |
| Switch Function | ON-OFF-ON (3 Position) |

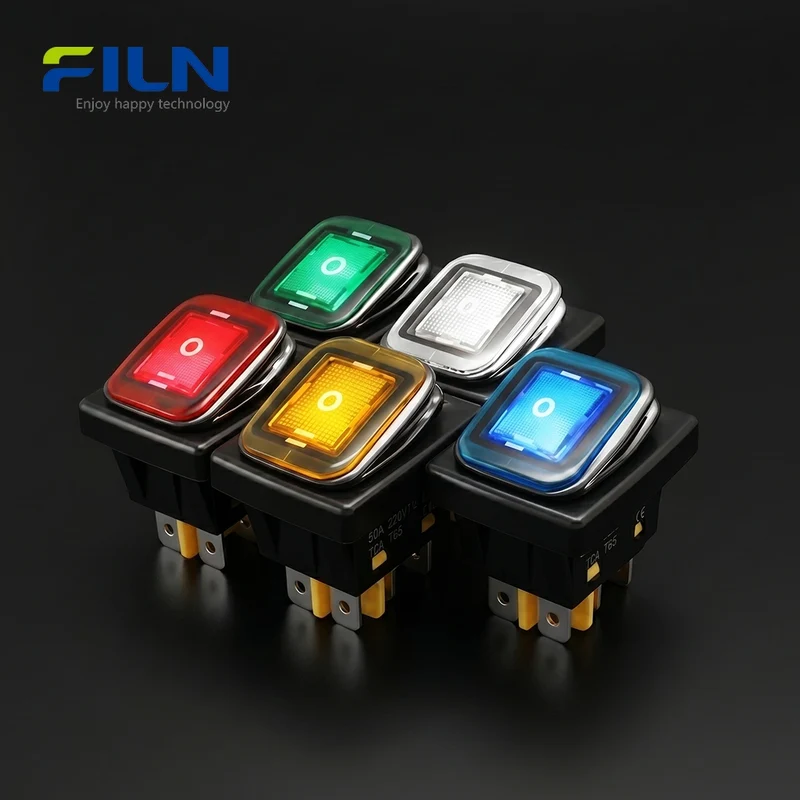

| LED Color Options | Red / Green / Yellow / Blue / White |

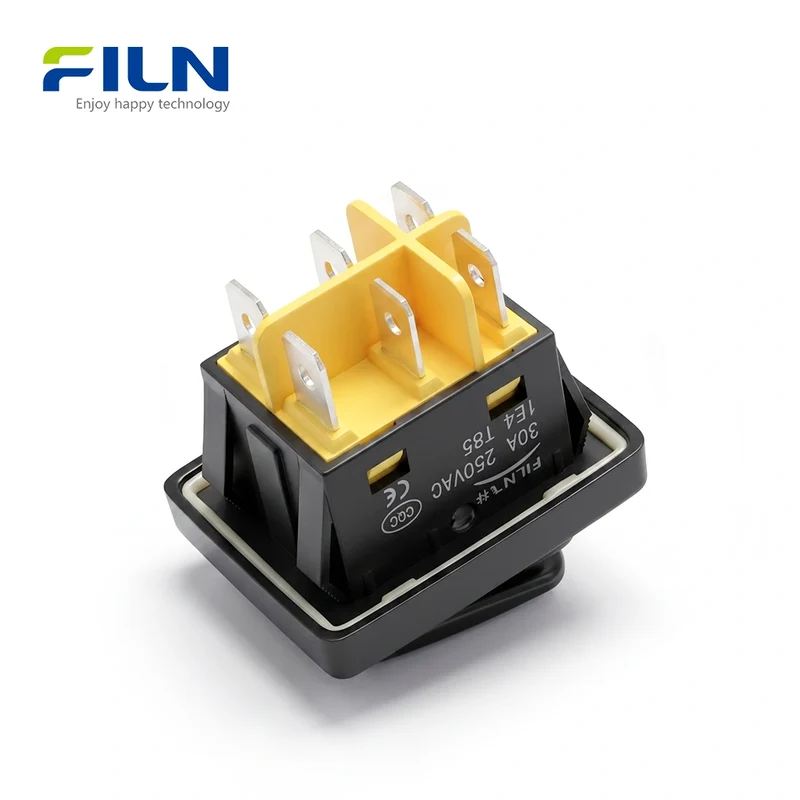

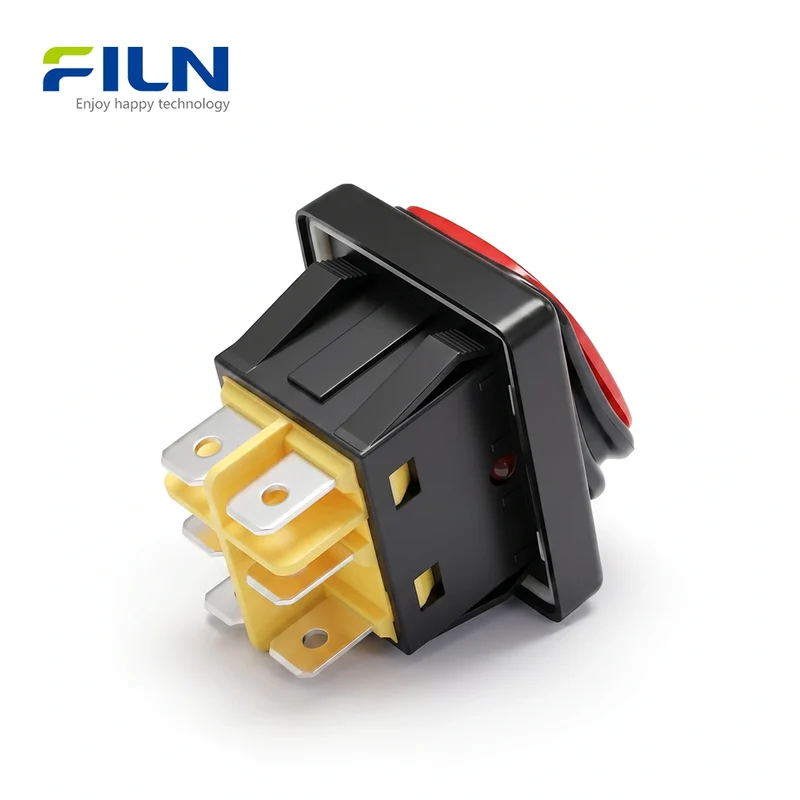

| Wiring Type | 6-Pin Quick Connect Terminals |
| Surface Material | High-Strength Plastic with Internal Frame |
ON-OFF-ON Operation Principle
| Position | Circuit Status | Application Usage |
|---|---|---|
| Position I (ON) | First Circuit Closed | Forward motion or primary mode |
| Center (OFF) | All Circuits Open | Complete safety shutdown |
| Position II (ON) | Second Circuit Closed | Reverse motion or auxiliary mode |
Performance Parameters
| Rated Voltage | 30A 250VAC; 18(12)A 125VAC |
| LED Voltage | 5V, 12V, 24V, 110V, 220V (Customized) |
| Initial Contact Resistance | ≤50mΩ |
| Insulated Resistance | ≥100mΩ/500VDC |
| Endurance | 10,000 cycles |
| Protection Degree | IP65 Waterproof |
Technical Advantages of the 30A High-Current Rocker Switch
The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:
| Core Component | Upgrade Description | Performance Benefit |
|---|---|---|
| Housing Structure | Split Black Housing Design | Superior structural stability and enhanced sealing for easier installation. |
| Waterproof Design | Optimized Frame Surface | Fits panels more securely, significantly improving waterproof and dustproof ratings. |
| Illumination | Premium LED Lamp | Longer lifespan and more uniform illumination compared to traditional neon lamps. |
| Contact Material | Silver Contacts + 1mm Thick Brass | Rated for true 30A loads; provides higher electrical endurance and reliability. |
| Inner Holder | New Larger Contact Holder | Increases contact surface area to reduce heat generation during high-current operation. |
| Material Grade | Imported PA Nylon Material | High-strength flame retardancy; resists cracking even in high-temperature environments. |
Application & Selection Guide
To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.
Design Aesthetics: Illuminated vs. Non-Illuminated
Choosing the right rocker switch 3 position involves balancing visibility and style. Illuminated rocker switches provide a critical advantage in low-light industrial environments, offering bright visual confirmation that a specific circuit is active. However, for a more universal and "all-match" look, the black plastic non-illuminated version is highly fashionable. Our black plastic surfaces are engineered to be easy to clean and maintain, resisting the oily residues commonly found in industrial workshops. The split-design internal frame ensures that even under high mechanical stress, the switch maintains its structural integrity.
Global Applications
- Commercial Appliances: Coffee machines and ovens.
- Industrial Machinery: Conveyors and welding systems.
- Medical Equipment: Patient beds and lab tools.
- Automotive & Marine: RV power and boat dashboards.
Professional Installation Guide
- Create a precise rectangular cutout of 30mm x 22mm on the target panel.
- Align the switch over the hole from the front side.
- Press firmly to engage the snap-in clips until the switch sits flush.
- Connect the 6-pin terminals following the DPDT wiring diagram provided.
Complete 6 Pin Rocker Switch Wiring Diagram and Connection Guide
A 6 pin rocker switch wiring diagram is a vital resource for complex electrical systems requiring the simultaneous control of two separate circuits or the reversal of motor polarity. This 6-pin configuration typically functions as a Double Pole Double Throw (DPDT) switch. It is frequently used in industrial machinery, automotive power windows, and marine equipment where multi-device management is required from a single control point. This wiring schematic is universal and applies to both illuminated (lighted) and non-illuminated 6-pin rocker switches.
How to Wire a 6 Pin Rocker Switch: Connection Steps
According to the technical schematic, a 6-pin switch features two independent columns of terminals. Follow these steps to ensure a correct and safe connection for both lighted and non-lighted models:
- 1. Central Power Input: Connect the positive (+) wires from your power source to the middle pair of pins. These terminals act as the common feed for the entire switch.
- 2. Device 1 Connection (Up Position): Connect the top pair of pins to the terminals of your first device (Device 1). When the rocker is toggled to the "Up" position, the circuit to Device 1 is closed.
- 3. Device 2 Connection (Down Position): Connect the bottom pair of pins to your second device (Device 2). Toggling the switch to the "Down" position redirects power to this device.
-
4. Grounding and Illumination:
- For Illuminated Switches: The negative (-) wire must be connected to the dedicated ground pin (often indicated by a different color or label) to power the internal LED. In many DPDT configurations, the lamp remains lit to act as a locator light.
- For Non-Illuminated Switches: Connect the negative (-) wires from both Device 1 and Device 2 directly back to the negative terminal of the power supply. The switch body itself does not require a ground connection.
Switch Operation and Load Logic
| Switch State | Device 1 Status | Device 2 Status | LED Status (If Lighted) |
|---|---|---|---|
| UP Position | ON (Active) | OFF | ON |
| Normal (Middle) | OFF | OFF | ON (Constant) |
| DOWN Position | OFF | ON (Active) | ON |
Technical Considerations and Precautions
- DPDT Versatility: Because a 6-pin switch handles two independent poles, it can be used for dual-circuit control or to create a polarity-reversal circuit (enabling forward and reverse motor directions).
- Voltage and Amperage: Ensure the switch is rated for your load. Industrial 6-pin switches (like the KCD4 series) are often rated for 15A 250VAC. Overloading terminals can lead to contact welding.
- Internal Lamp Compatibility: If using an illuminated rocker switch, confirm whether the lamp is rated for DC (12V/24V) or AC (110V/220V) to avoid damaging the internal indicator.
- Terminal Security: Use insulated crimp connectors. Given the pin density, insulation is critical to prevent accidental bridging and short circuits between the two poles.
Figure 1: Connection Schematic for 6-Pin Rocker Switches (Applicable to Illuminated & Non-Illuminated Versions)
FILN Factory Direct Supply
No MOQ Fast Lead Time UL/CE/RoHS Free SamplesOfficial Website: www.filn.com
Contact: [email protected]
Frequently Asked Questions
1. Does the 6-pin rocker switch support LED lighting?
Yes, our KCD4 model supports internal LED indicators in R/G/Y/B/W colors.
2. What is the benefit of an internal frame?
It prevents the switch body from warping or cracking during heavy-duty snap-in installation.
3. Can this 30A rocker switch be used for motor reversing?
Yes, the 6-pin ON-OFF-ON configuration is ideal for DC motor polarity reversal.
4. Is this switch rated for outdoor environments?
It features an IP65 waterproof rating, suitable for splash-prone and marine usage.
5. What voltages are available for the LED?
We support 5V to 220V, with custom voltage options available upon request.
