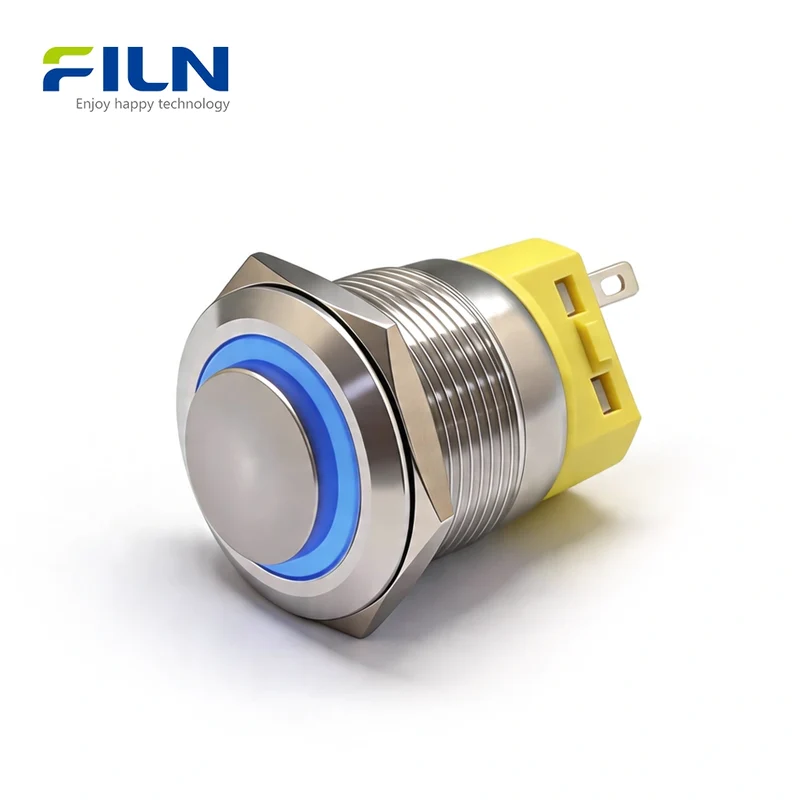

Push Button 12 Volt Switches 22mm Stainless Steel 5-Pin High Head with LED Ring FILN

Button Switch DrawingProduct Overview

The push button 12 volt switches (Model: FLM22-HJ-1-E) by FILN are engineered for high-end industrial and commercial applications. This 22mm-momentary-push-button-12v features a distinctive high head design, which is specifically optimized for operators with larger hands (common in Western markets) to provide a superior tactile response and easier operation. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, these switches guarantee safety and reliability. Available in 304 stainless steel or black zinc-aluminum alloy, they are perfect for industrial control panels, automation equipment, and marine systems. Whether you need a 5-pin-latching-led-button or a momentary version, FILN provides robust solutions for every circuit control need.

🛒 Browse Full Range of FILN Push Button Switches →

Quick Specifications

Model Number	FLM22-HJ-1-E
Mounting Diameter	22mm / 0.87"
Operation Type	Momentary / Latching
LED Colors	R/G/Y/B/W (Dual & Tri-color available)
Button Profile	High Head (High Actuator)

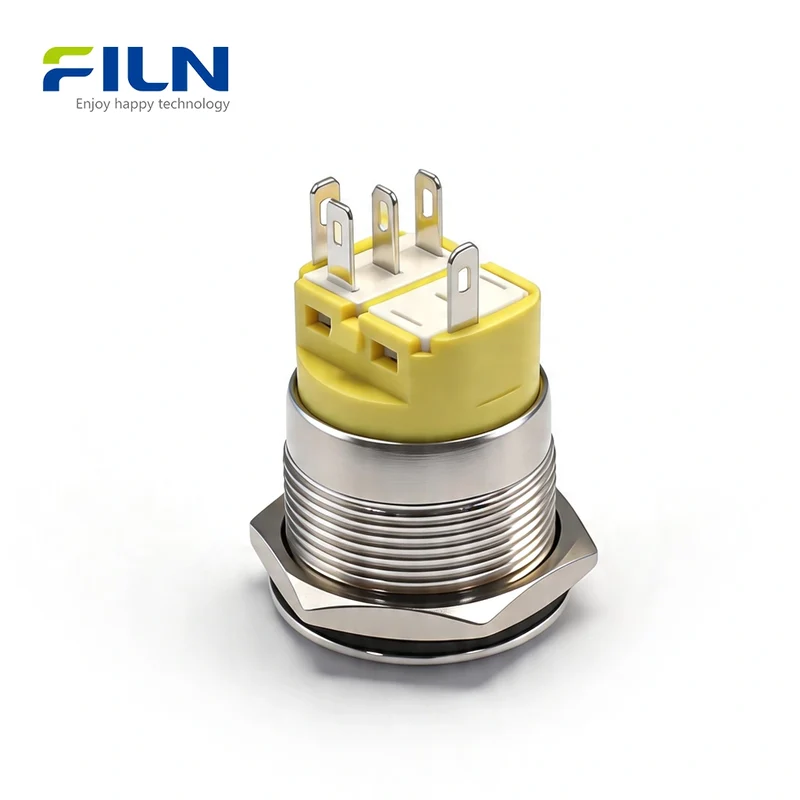

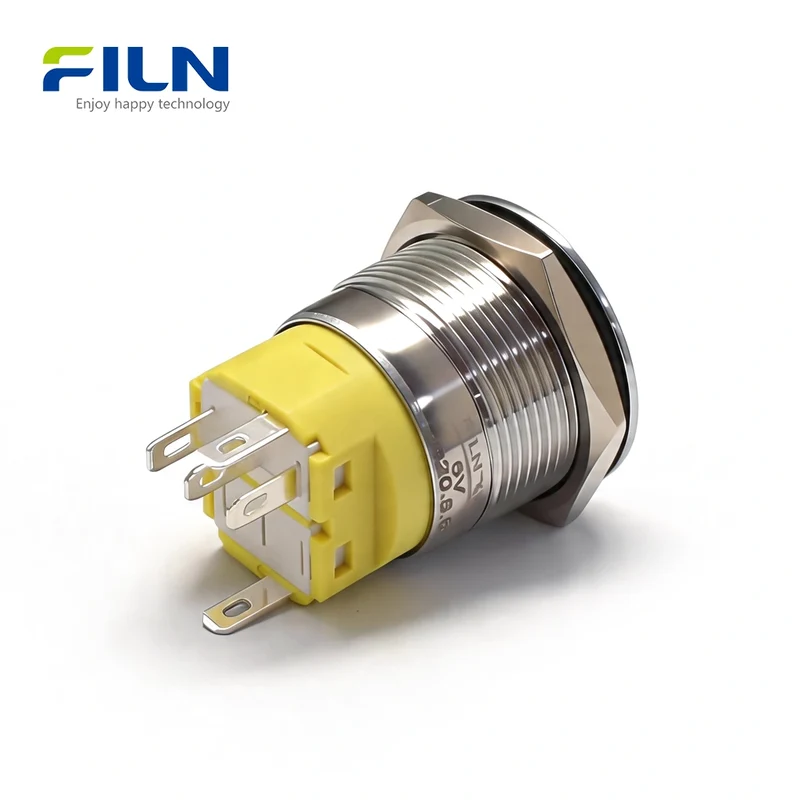

Terminal Type	5-Pin Solder Pin Terminal

Performance Parameters

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Contact Resistance	< 50mΩ
Insulation Resistance	≥ 1000MΩ
LED Voltage	3V - 220V (Customizable)
Certifications	ISO9001, CE, UL, RoHS, VDE, SGS

Component Materials

Actuator	304 Stainless Steel / 6063 Aluminum Alloy
Shell Case	H59 Brass / 304 Stainless Steel / Zinc-Aluminum Alloy
Contacts	Silver Alloy (AgCdO12)
Base	Flame Retardant PA66 + GF20% Nylon

General Characteristics

Ambient Temperature	-25°C to +85°C
Protection Level	IP65, IK08
Mechanical Life	500,000 Cycles
Electrical Life	100,000 Cycles (3A) / 50,000 Cycles (5A)

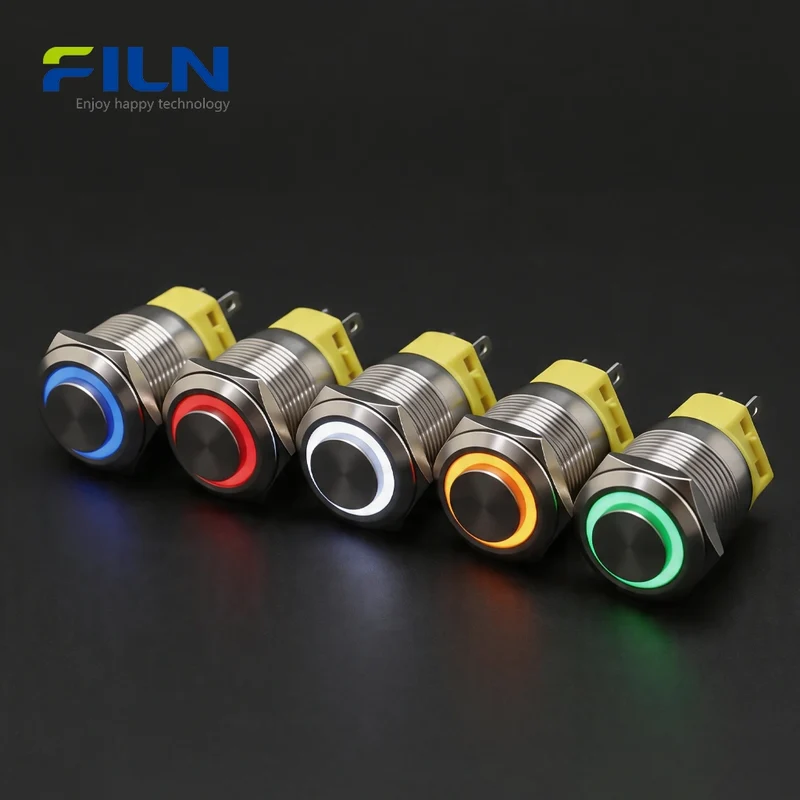

LED Specification & Color Meaning

The ring LED provides immediate visual status. Each color indicates standard industrial signals:

• Red (R): Stop, Danger, or Fault detection.
• Green (G): Safe, Ready, or System Running.
• Yellow (Y): Caution, Warning, or Standby.
• Blue (B): Mandatory Action or Cold/Status monitoring.
• White (W): Power indicator or neutral light.

Forward Current	20mA (Typical)
Light Intensity	1000 mcd
Typical Voltage	12.2V DC (AC/DC compatible)

Key Features

1. Ergonomic High Head Design: The raised actuator is designed for better ergonomics, making it ideal for operators wearing gloves or those with larger hands.
2. Extreme Protection (IP65 & IK08): Built to survive harsh environments, resisting water, dust, and heavy impacts.

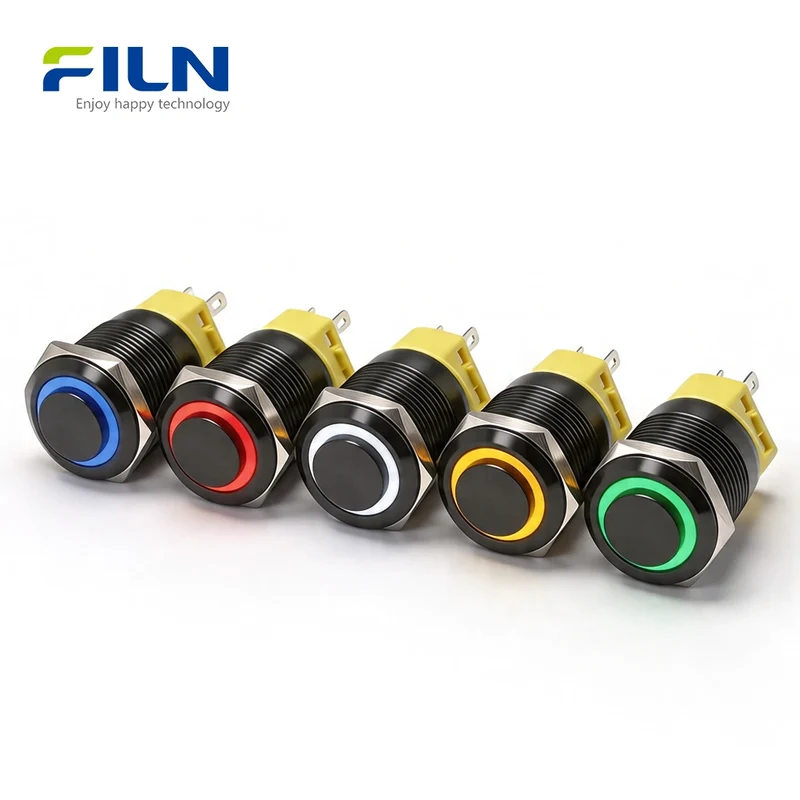

3. Premium Metal Finish: Choose between a high-grade 304 stainless steel or a sleek black zinc-aluminum alloy for superior aesthetics and corrosion resistance.
4. High Current Capacity: Handles up to 5A, allowing direct control of many devices without extra relays.
5. Long Life Silver Contacts: Ensures minimal contact resistance and maximum electrical life.

Terminal Type Comparison

Terminal Type	Durability	Installation Speed	Best For
Pin Terminal	Excellent	Fast (with Connector)	Mass production/Compact space.
Screw Terminal	High	Slow	Field maintenance/Thick wires.
Pre-wired	Moderate	Very Fast	Simple DIY installations.

Applications

These waterproof-industrial-control-switches are ubiquitous in modern technology. Any device requiring a manual interface for circuit control can benefit from these high-quality buttons:

• Industrial control panels: Power and function management.
• CNC machines: Precision start/stop and emergency signaling.
• Marine systems: Waterproof dashboard controls for boats.
• Medical devices: Reliable, easy-to-clean interfaces.
• Automation equipment: Durable buttons for high-frequency use.

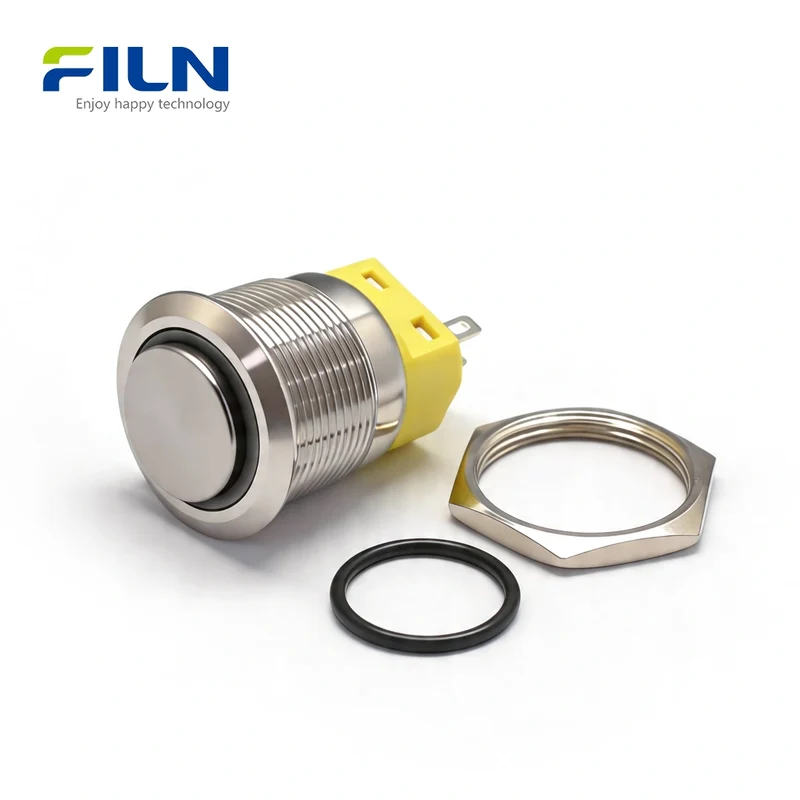

Installation Guide

1. Prepare a panel with a 22mm diameter hole.
2. Insert the switch through the hole from the front side.
3. Slide the rubber waterproof ring onto the switch body.
4. Tighten the metal nut from the back to secure the switch to the panel.
5. Complete the wiring according to your circuit requirements.

5-PIN LED Push Button Switch Wiring Guide

For efficient assembly, we recommend using our dedicated wire connector socket.

A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.

1. Normal OFF, Sync LED (NO Connection)

Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.

• Application: Standard start switches where the light indicates the system is running.
• State: Static (LED Out, Device Off) → Pressed (LED On, Device On).

2. Normal ON, Sync LED (NC Connection)

Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.

• Application: Stop buttons or emergency cut-off switches.
• State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).

3. Normal OFF, Constant LED (NO Connection)

Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.

• Application: Power switches in dark environments or access control buttons.
• State: Static (LED On, Device Off) → Pressed (LED On, Device On).

4. Normal ON, Constant LED (NC Connection)

Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.

• Application: Monitoring systems or security alarms that require constant power indication.
• State: Static (LED On, Device On) → Pressed (LED On, Device Stop).

Mode	LED Behavior	Device (Idle)
NO Sync	Lights up when pressed	OFF
NC Sync	Turns off when pressed	ON
Constant	Always ON (Backlight)	User Choice

5-PIN LED Push Button Switch Wiring Guide

What are push button 12 volt switches?

A push button 12 volt switch is a critical manual interface component used to connect or interrupt electric circuits. In industrial machinery, these switches provide operators with a safe and ergonomic way to initiate processes or manage power flow. The inclusion of an LED indicator allows for immediate visual feedback, significantly improving operational safety.

Momentary vs. Latching: The Key Difference

Function	Definition	Best For
Momentary	Active only while being pressed. Springs back upon release.	Horns, Resets, Starters.
Latching	Locks in place when pressed. Requires a second press to release.	Main Power, Light Switches.

Factory Direct Supply - FILN Advantage

As a leading manufacturer, FILN offers unmatched customization and support for global B2B clients.

• ✅ No MOQ - Order exactly what you need.
• ✅ Fast Lead Time - Direct shipping from factory.
• ✅ Voltage Customization - 3V to 220V support.
• ✅ Free Samples - Available upon request.

REQUEST A FREE SAMPLE

Official Site: www.filn.com | Email: [email protected]

Frequently Asked Questions

1. Why should I choose a high head button for my equipment?

High head buttons offer better leverage and are easier to press, especially for industrial operators wearing protective gear.

2. How many pins does the 22mm LED switch have?

This model features a 5-pin configuration: two for the LED circuit and three for the switch circuit (C/NO/NC).

3. Can I use these push button 12 volt switches for 110V AC applications?

Yes, the switch is rated up to 250V AC, and we can customize the LED resistor for 110V or 220V use.

4. Is the ring LED illuminated button always on?

This depends on your wiring. You can wire it to be always on as a backlight or only when the circuit is active. [cite: 2]

5. What is the benefit of the silver contact material?

Silver contacts provide superior conductivity and prevent oxidation, ensuring a longer electrical lifespan.

6. Are these switches suitable for outdoor marine use?

Absolutely. The IP65 rating and 304 stainless steel housing provide excellent protection against salt spray and moisture.

7. Does FILN provide custom wire harnesses for these 5-pin buttons?

Yes, we provide matching quick-connect wire sockets to save you time and cost during assembly.

8. Can I get a black finish instead of stainless steel?

Yes, we offer a black zinc-aluminum alloy shell for a modern, matte aesthetic.

9. What certifications do these buttons hold?

They are fully certified with CE, UL, VDE, RoHS, and ISO9001, meeting international industrial standards.

10. Is there a minimum order quantity for custom colors?

No, FILN supports industrial customization with no MOQ, even for specialized LED colors.
