Momentary Push Button Switch 3V-220V 16mm High Head 5-Pin Stainless Steel LED FILN

Button Switch DrawingProduct Overview

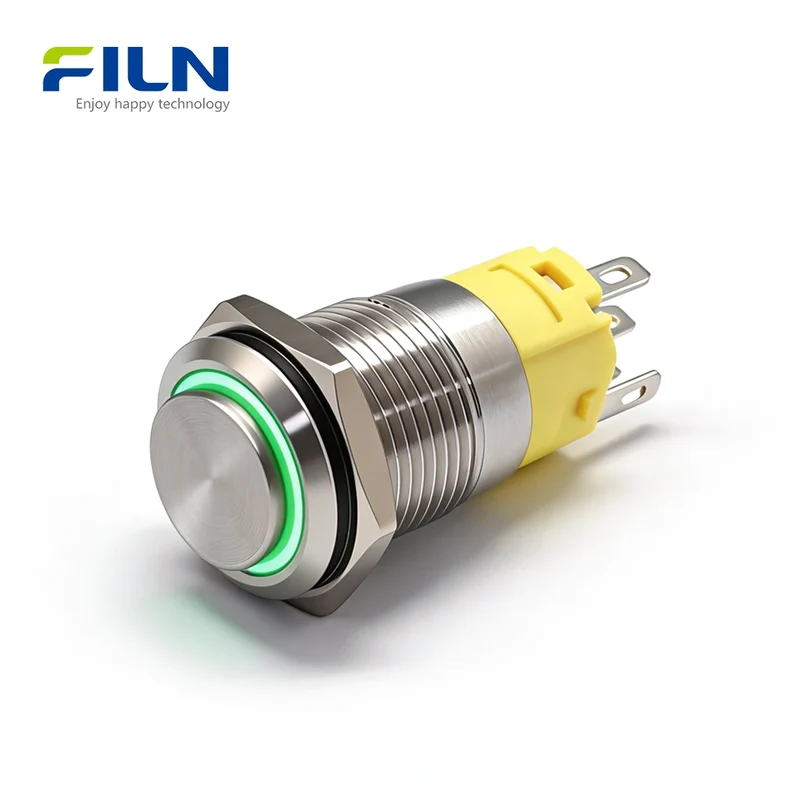

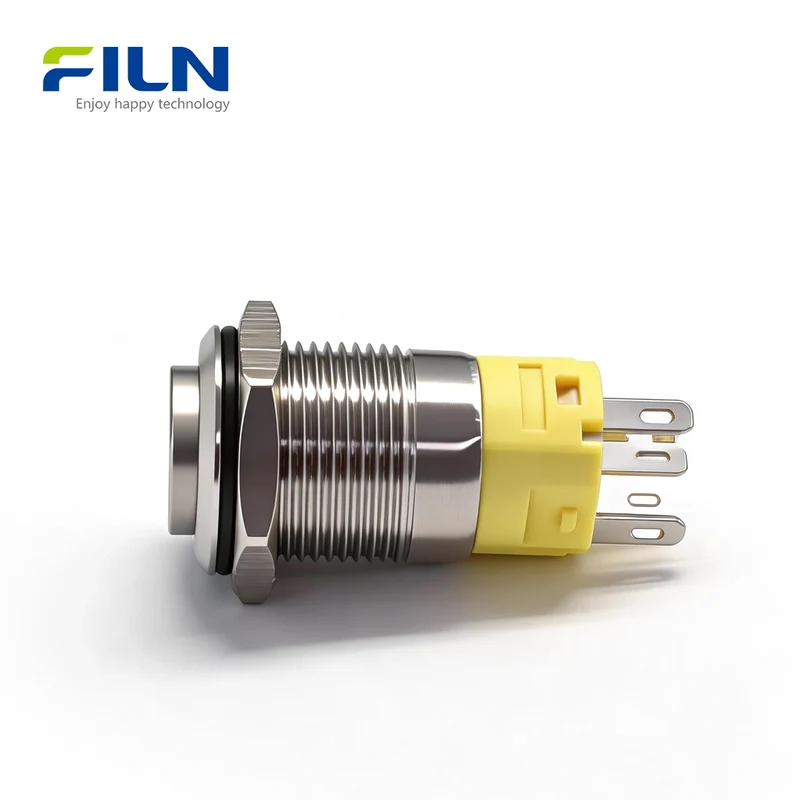

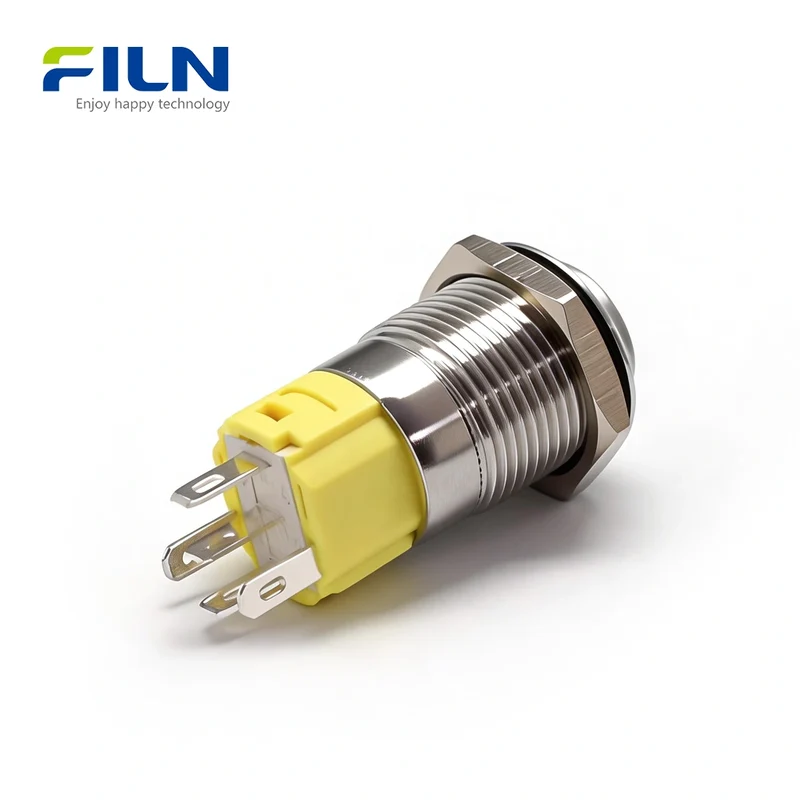

The FLM16-HJ-1-E is a premium 16mm momentary push button switch 12V engineered for demanding industrial environments. Featuring a robust 304 stainless steel or black aluminum shell, this switch boasts a high-head design that provides superior tactile feedback, making it ideal for international customers who may operate machinery with gloves. The uniform ring LED light, positioned precisely at the edge of the button, ensures high visibility and a modern aesthetic even in low-light conditions. Certified by ISO9001, CE, UL, and RoHS, and rated IP65 for waterproof protection, this 5-pin terminal switch is a reliable choice for CNC machines, automation equipment, and power control cabinets. As a FILN factory-direct product, it supports extensive customization to meet specific engineering needs.

Quick Specifications

Model Number	FLM16-HJ-1-E
Mounting Diameter	16mm / 0.63 inch
Operation Function	Momentary (Self-reset) / Latching
Button Head Shape	High Round Head

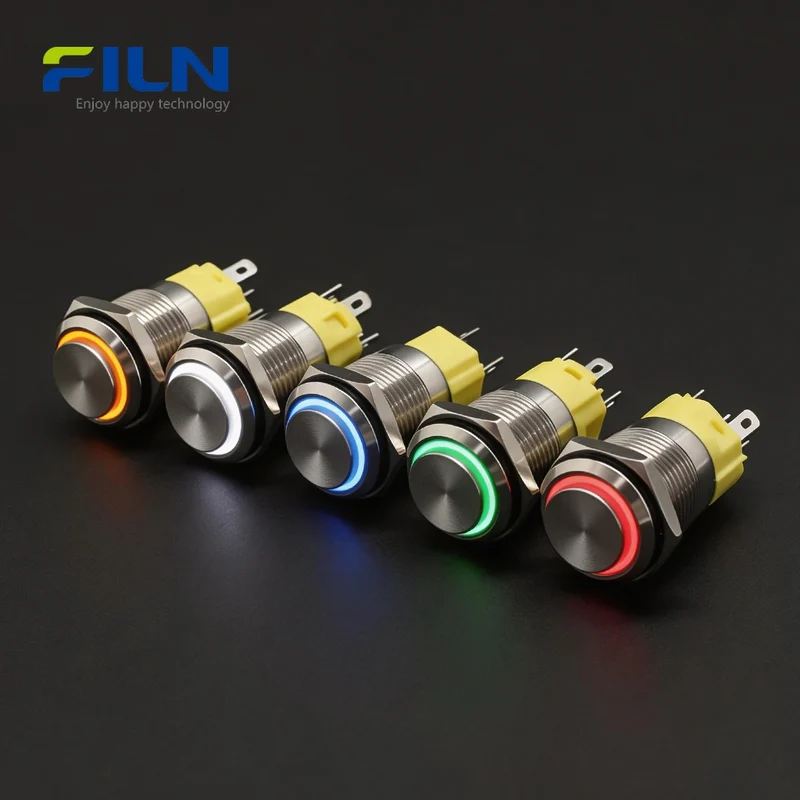

LED Colors	Red / Green / Yellow / Blue / White
Terminal Type	5-Pin Solder Terminal

Electrical Performance

Rated Voltage	36V DC / 250V AC
Rated Current	5A
Insulation Resistance	≥ 1000MΩ
Contact Resistance	< 50mΩ
LED Rated Voltage	12V-24V / 110V-220V (Custom Available)
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Terminal Type Comparison

Type	Advantages	Installation Ease
Pin Terminal	Compact design, supports high-speed assembly with connectors.	Excellent
Screw Terminal	Solid connection, no soldering required, ideal for field maintenance.	Medium
Pre-wired	High waterproof seal, plug-and-play convenience.	High

Key Features

• High-Head Ergonomics: The elevated button head offers a distinct pressing sensation, tailored for large-handed users and heavy-duty industrial operations.
• Superior Durability: Rated IP65 and IK08, providing protection against water jets, dust, and mechanical impacts.
• High-Quality Silver Contacts: Ensures minimal contact resistance and maximum electrical life (over 100,000 cycles).
• Uniform Ring Lighting: High-end LED technology provides balanced 360° illumination for clear status feedback in dark environments.

LED Indicator Meanings

Color	Industrial Standard Meaning
Red	Stop, Emergency, Error, or Power Disconnect status.
Green	Start, Run, Safety, or Normal System Operation.
Blue	Reset, Manual Mode, or specific secondary function mode.
Yellow	Warning, Abnormal Condition, or System Pre-start phase.
White	Power On Status, General Lighting, or Neutral Feedback.

Applications

This 16mm metal button switch is indispensable for Industrial control panels, CNC machines, Marine systems, Medical equipment, and Electrical distribution cabinets. It serves both as a primary power control and a functional trigger for complex circuitry.

Installation Guide

1. Drill Hole: Create a precise 16mm hole in your panel.
2. Mount Switch: Insert the switch from the front of the panel.

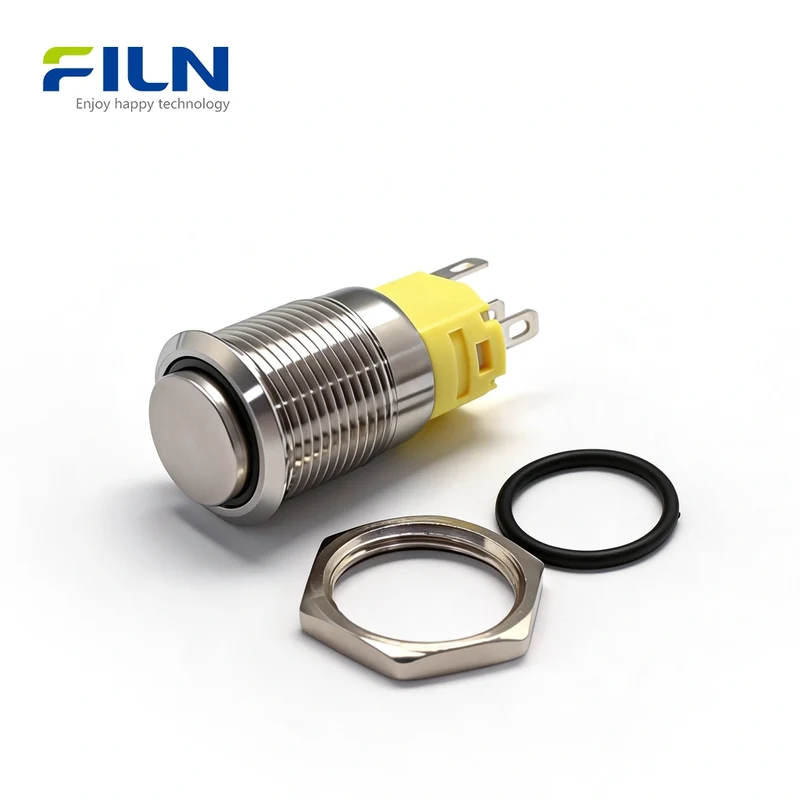

3. Secure: Tighten the metal hex nut from the back to lock it in place.

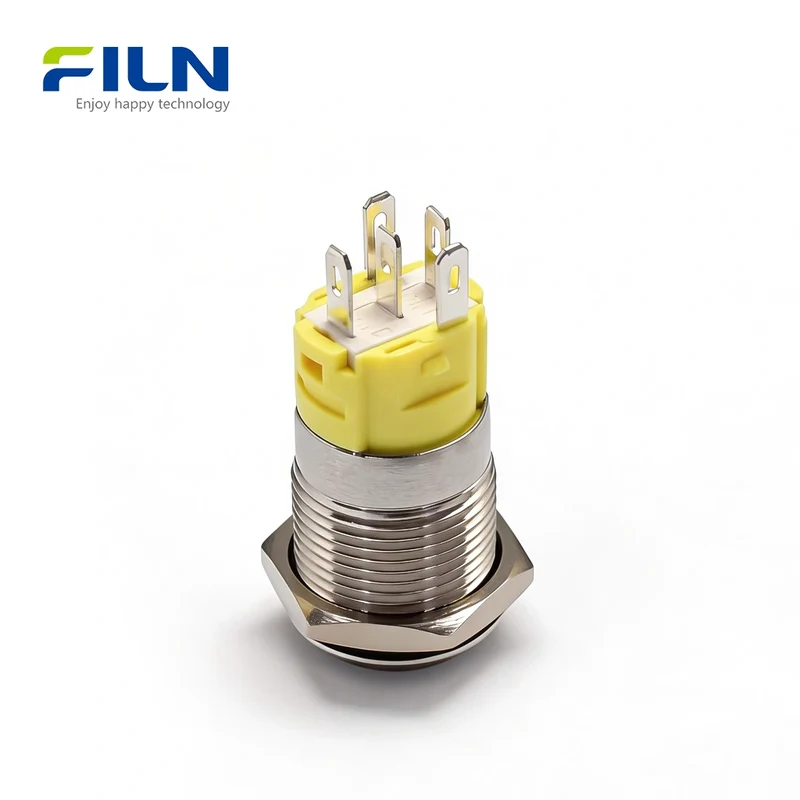

4. Wire: Connect the 5 pins according to your desired circuit logic (C, NO, NC, LED).

5-PIN LED Push Button Switch Wiring Guide

A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.

1. Normal OFF, Sync LED (NO Connection)

Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.

• Application: Standard start switches where the light indicates the system is running.
• State: Static (LED Out, Device Off) → Pressed (LED On, Device On).

2. Normal ON, Sync LED (NC Connection)

Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.

• Application: Stop buttons or emergency cut-off switches.
• State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).

3. Normal OFF, Constant LED (NO Connection)

Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.

• Application: Power switches in dark environments or access control buttons.
• State: Static (LED On, Device Off) → Pressed (LED On, Device On).

4. Normal ON, Constant LED (NC Connection)

Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.

• Application: Monitoring systems or security alarms that require constant power indication.
• State: Static (LED On, Device On) → Pressed (LED On, Device Stop).

Mode	LED Behavior	Device (Idle)
NO Sync	Lights up when pressed	OFF
NC Sync	Turns off when pressed	ON
Constant	Always ON (Backlight)	User Choice

FILN Factory Direct Supply

• ✔️ No MOQ: Support for small projects and prototypes.
• ✔️ Customization: Voltage (3V-220V), Wire length, and connectors.
• ✔️ Fast Shipping: Global logistics reach with rapid lead times.
• ✔️ Full Compliance: CE, RoHS, UL, and ISO9001 certified.

Request Free Sample

Official Website: www.filn.com
Contact: [email protected]

Frequently Asked Questions

1. Can this switch handle 12V DC systems?
Yes, it is perfectly rated for 12V DC, making it a popular choice for automotive and marine electronics.

2. What is the benefit of the 'High-Head' design?
The high head provides a larger surface area and deeper travel distance, ensuring a more positive 'click' feel, even when wearing gloves.

3. Is the LED resistor built-in?
Yes, all FILN illuminated buttons come with internal resistors matched to your specific voltage requirement (e.g., 12V or 220V).

4. What does 'Momentary' mean?
A momentary switch returns to its original state once released. It only remains 'Active' while the button is being held down.

5. Can I use the LED as a backlight only?
Yes, by wiring the LED pins (+/-) directly to the power source, the ring light will stay on regardless of the switch state[cite: 9].

6. Is it truly waterproof?
With an IP65 rating, it is protected against low-pressure water jets and is suitable for outdoor or wash-down environments.

7. Do you offer black metal options?

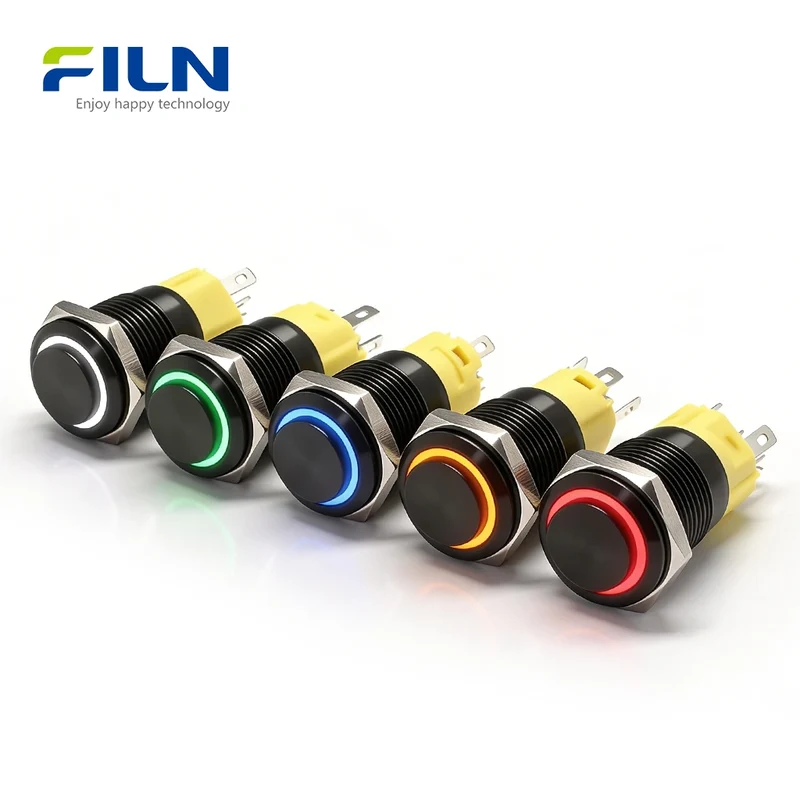

Yes, we provide both 304 stainless steel (silver) and anodized aluminum (black) versions of the 16mm button.

8. What are the 5 pins used for?
The 5 pins include the Common, Normally Open, Normally Closed terminals, and two terminals for the LED[cite: 1].

9. How long is the electrical lifespan?
It is rated for over 100,000 electrical cycles and 500,000 mechanical cycles under standard operating conditions.

10. Does FILN provide wiring harnesses?
Yes, as a factory, we can customize wire lengths and attach specific connectors for your assembly line.
