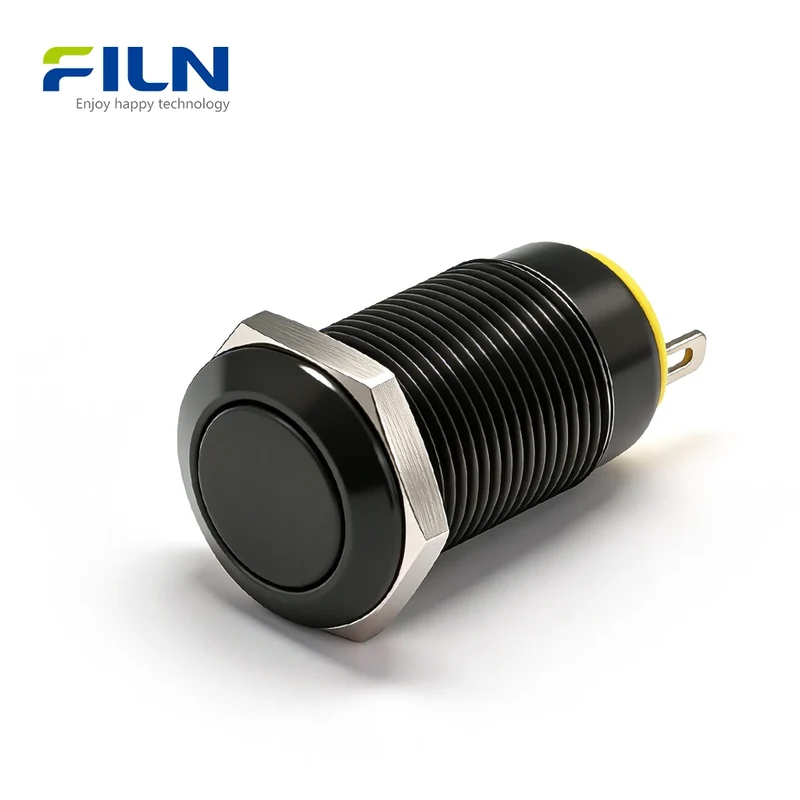

Metal Switches Push Button 12mm Stainless Steel 2-Pin Momentary Latching FILN

Button Switch DrawingProduct Overview

The switches push button (Model: FLM12-FJ-1-X) is a premium 12mm metal switches push button designed for high-performance industrial and commercial applications. Manufactured by FILN, a leading factory in button technology, this switch carries prestigious certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Whether you require a 12mm stainless steel push button switch for medical equipment or a black aluminum push button switch for automotive dashboards, this compact 2-pin component offers unmatched durability. Ideal for waterproof metal push button 2-pin requirements, it is widely used in CNC machinery, marine systems, and automation panels where long-term reliability is non-negotiable.

Quick Specifications

Model Number	FLM12-FJ-1-X
Mounting Size	12mm (0.47 inch)
Operation Type	Latching / Momentary Options
LED Indicator	Non-Illuminated (No Light)
Head Shape	Flat Head

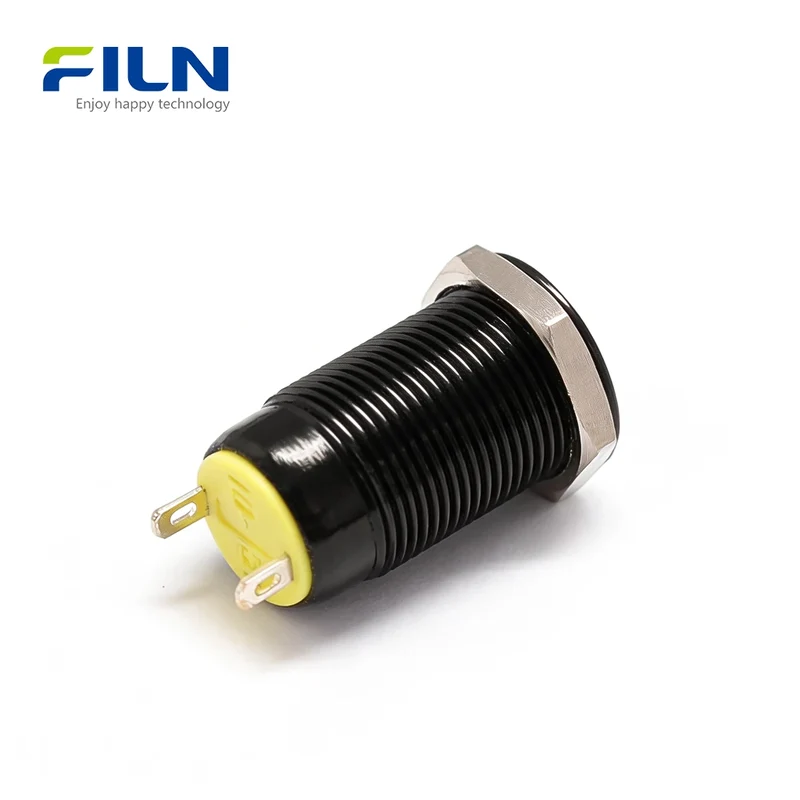

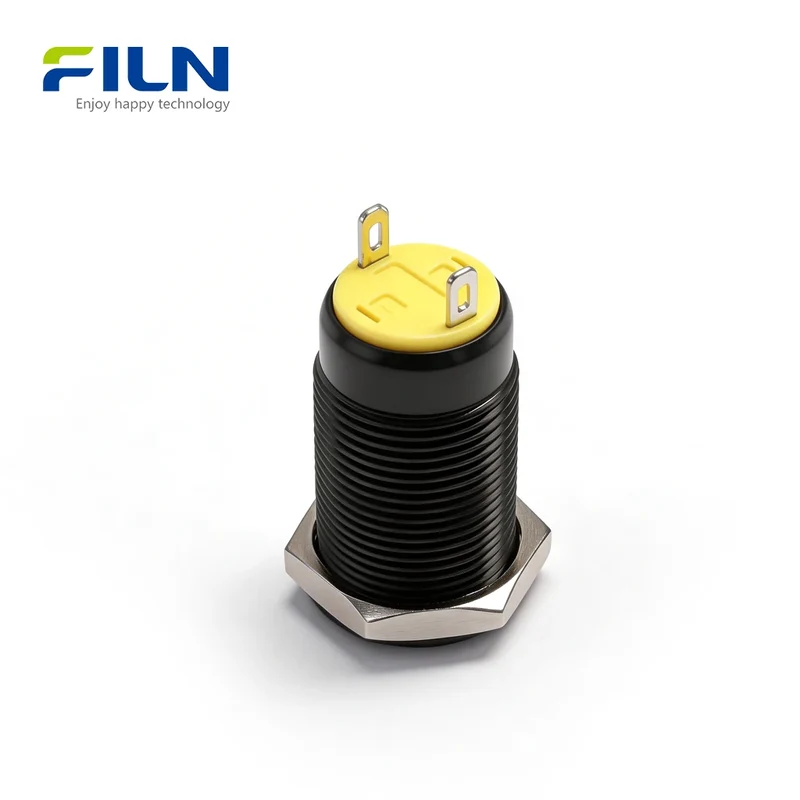

Termination Style	2-Pin Solder/Plug-in Terminal

Performance Parameters

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)
Insulation Resistance	≥ 1000MΩ
Contact Resistance	< 50mΩ
Product Certification	CE, UL, RoHS, VDE, ISO9001

Component Materials

Button Material	304 Stainless Steel / 6063 Aluminum Alloy
Shell Case	H59 Brass / 304 Stainless Steel / Black Aluminum
Base Material	PA66+GF20% Flame Retardant Nylon
Contact Material	Silver Alloy Contact (AgCdO12)
Waterproof Ring	SIL Silicone

General Characteristics

Operating Temperature	-25°C to +85°C
Protection Level	IP65 Waterproof, IK08 Anti-vandal
Mechanical Life	500,000 Cycles
Electrical Life	100,000 Cycles (3A) / 50,000 Cycles (5A)

Key Product Advantages

• Superior Durability: Rated IP65 and IK08, these switches push button models withstand harsh outdoor environments and physical impacts.
• High Current Capacity: Unlike standard 12mm buttons limited to 2A, the FILN model supports 5A 250V AC, allowing direct control of higher power devices.
• Compact 2-Pin Design: The threaded mount industrial control switch design allows for quick installation in tight panels with its short body length.

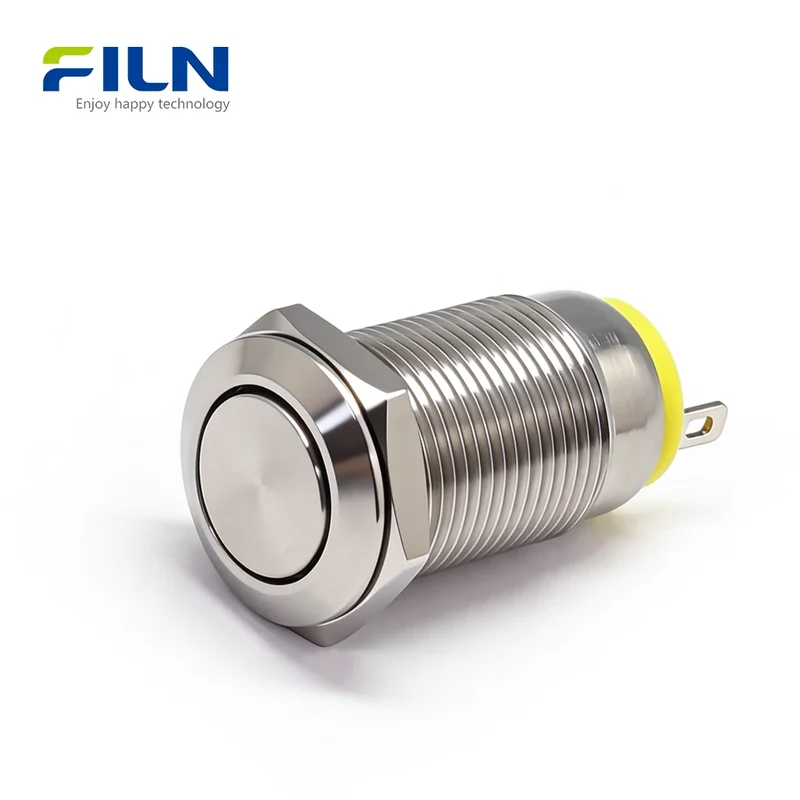

• Multiple Finishes: Available in 304 stainless steel for corrosion resistance or black aluminum for sleek aesthetics.
• Ease of Wiring: The standard 2.8mm pin terminals are compatible with soldering or female connectors, drastically reducing assembly time.

Terminal Type Comparison

Terminal Type	Installation Speed	Best Use Case
Pin Terminal (2-Pin)	Fast (Plug-in)	PCB assembly or quick-swap connectors.
Screw Terminal	Moderate	On-site field wiring with standard tools.
Pre-wired	Instant	Waterproof critical seals and limited space.

Industry Applications

Industrial Control Panels CNC Machinery Marine Dashboard Systems Medical Devices Outdoor Kiosks

Installation Steps

1. Prepare the panel by drilling a 12mm diameter hole.
2. Insert the 12mm metal push button through the hole from the front.

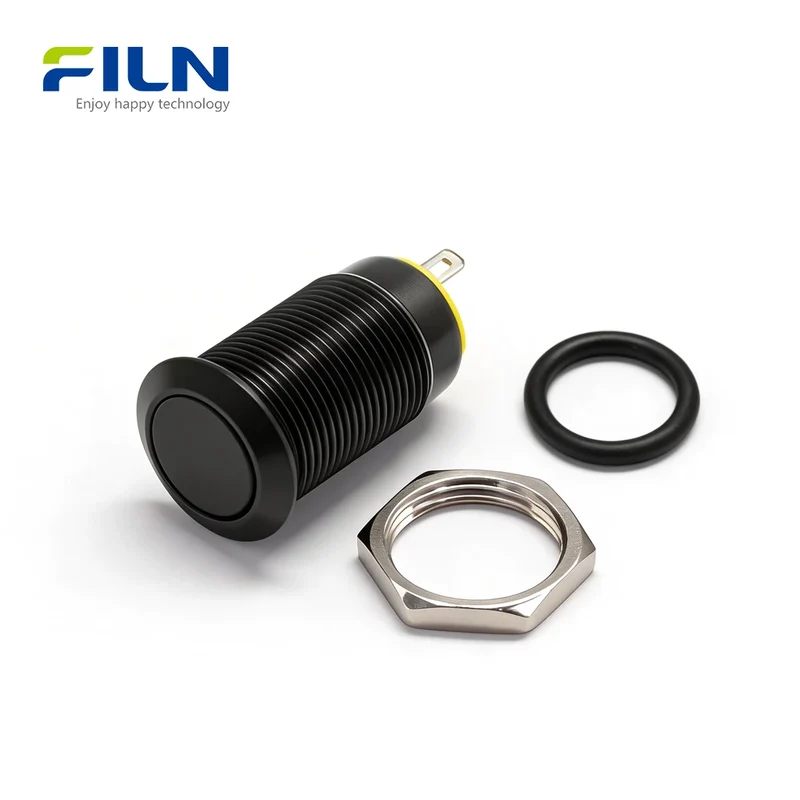

3. Slide the waterproof O-ring and metal hex nut onto the threaded body from behind.
4. Tighten the nut to secure the switch firmly against the panel.
5. Connect wires to the 2-pin terminals using soldering or quick-connectors.

Wiring Configuration

This 2-pin non-illuminated switch acts as a simple Normally Open (NO) contact. It completes the circuit only when pressed.

• Pin 1: Connect to Power Positive (+).
• Pin 2: Connect to Load Positive (+).
• Ground: Load should be connected directly to the power source negative.

Industry Knowledge

1. What is a 12mm Metal Push Button?

A switches push button with a 12mm mounting diameter is a miniature control device used to interrupt or establish an electrical circuit. Its metal construction makes it "anti-vandal," meaning it is resistant to tampering and environmental damage, making it a staple for public kiosks and industrial machinery.

2. Latching vs. Momentary: The Difference

Operation Type	Behavior	Common Application
Momentary	Springs back when released (Pulse).	Doorbell, PC Power, Car Horn.
Latching	Stays in the "ON" position until pressed again.	Main Power, Light Switch.

3. Understanding LED Indicator Colors

Although this specific model is non-illuminated, FILN offers custom LED versions. Here is the industry standard for button colors:

• Red: Emergency, Danger, or Stop.
• Green: Safe, Start, or Power On.
• Blue: Specific Function or Mandatory Action.
• Yellow/Amber: Warning or Standby.
• White: General Power Indicator.

Factory Direct Supply

FILN is a specialized manufacturer of high-quality electrical components. We provide comprehensive customization services for global B2B buyers.

• MOQ: No minimum order quantity.
• Customization: Voltage, wire length, and connectors.
• Fast Delivery: Global express shipping.
• Free Samples: Available for qualified industrial projects.

Get a Free Sample Now FILN Official Website: www.filn.com
Contact Email: [email protected]

Frequently Asked Questions

Q1: Can the 12mm metal push button be used outdoors?
A: Yes, with an IP65 rating, it is protected against dust and low-pressure water jets from any direction.

Q2: Is the stainless steel version better than aluminum?
A: Stainless steel offers superior corrosion resistance for marine or food-grade environments, while aluminum is lightweight and available in black anodized finishes.

Q3: Does FILN provide custom wire harnesses?
A: Yes, we can pre-wire the 2-pin terminals with any length and connector type to suit your production line.

Q4: What is the maximum thickness of the panel it can be installed on?
A: Typically up to 10mm, thanks to the deep threaded body design.

Q5: What is the mechanical life of these switches push button?
A: Our switches are tested to exceed 500,000 presses under normal operating conditions.

Q6: Are these buttons compatible with 12V systems?
A: Absolutely. They can handle any voltage up to 250V AC/DC.

Q7: Can I get a 3-pin version with NC/NO contacts?
A: Yes, FILN manufactures 3-pin and 5-pin variants for more complex logic circuits.

Q8: What is the advantage of silver contacts?
A: Silver contacts provide lower resistance and prevent oxidation, ensuring a stable connection over thousands of uses.

Q9: How do I choose between Momentary and Latching?
A: Choose momentary for triggers (like a horn) and latching for power control (like a machine main switch).

Q10: Is there a UL certification for North American markets?
A: Yes, FILN products are UL certified, ensuring compliance with strict safety standards.
