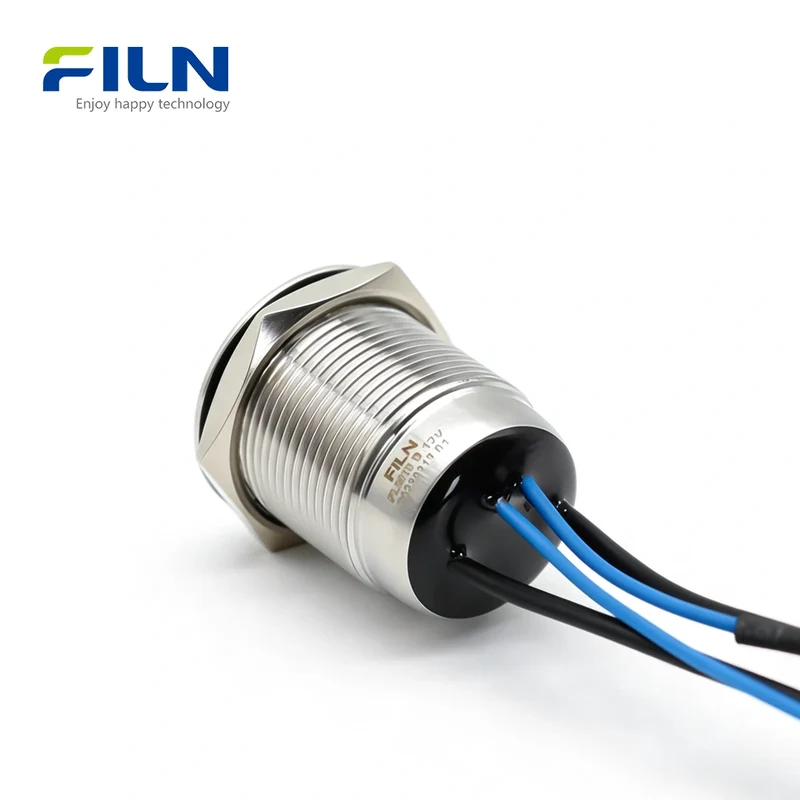

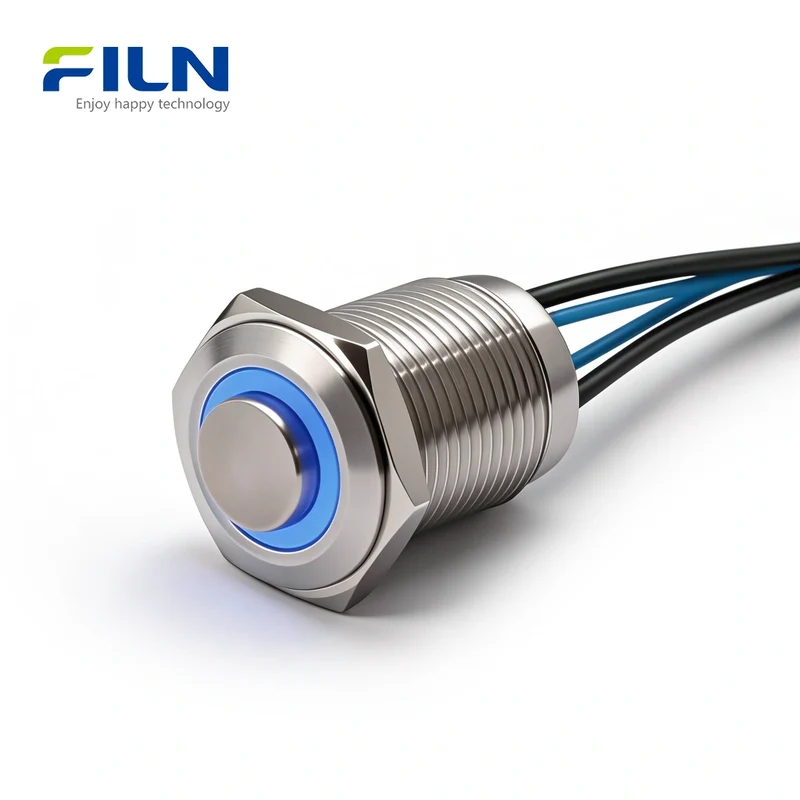

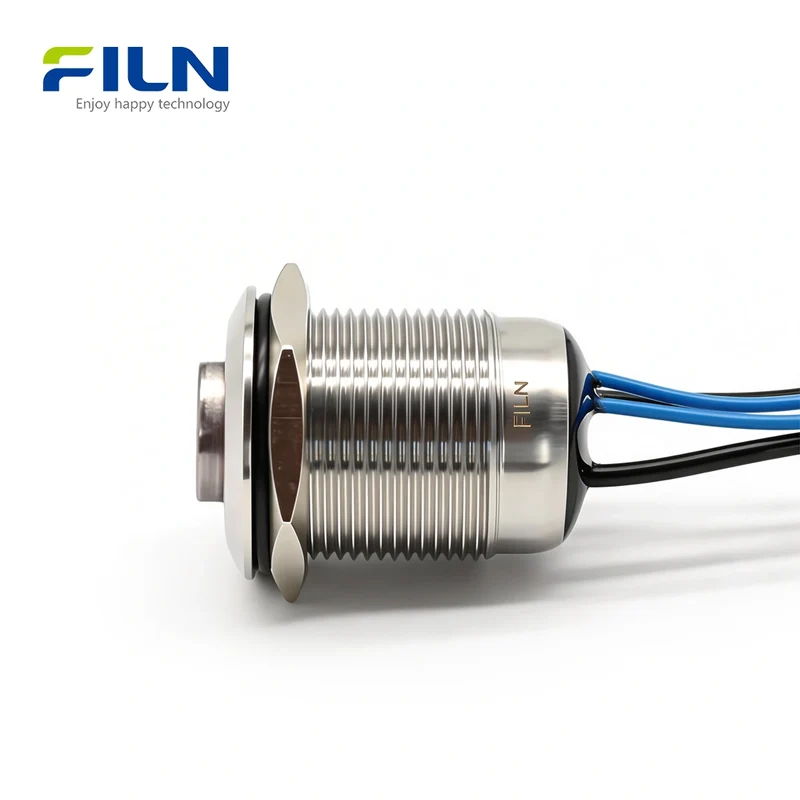

Metal Ring LED Push-Button Switch 12V-220V 4-Pin Pre-wired Waterproof IP65 Stainless Steel Momentary/Latching FILN

Button Switch DrawingProduct Overview

The FLM16-HW-1-E 16mm metal push-button switch is a high-performance industrial solution designed by FILN, a leading factory specializing in customized control components. This waterproof metal push-button switch features a robust 304 stainless steel or black anodized aluminum shell with a high-head design and a brilliant ring-illuminated LED. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, it ensures safety and reliability in harsh environments. The pre-wired 4-pin configuration with 15cm tail glue sealing provides superior moisture protection, making it ideal for industrial control panels, marine systems, and automation equipment. Its dual functionality (Momentary/Latching) and 12V-220V wide voltage support make it a versatile choice for global B2B procurement.

Quick Specifications

Model Number	FLM16-HW-1-E
Mounting Hole Size	16mm (0.63 inch)
Operation Type	Latching / Momentary (Customizable)

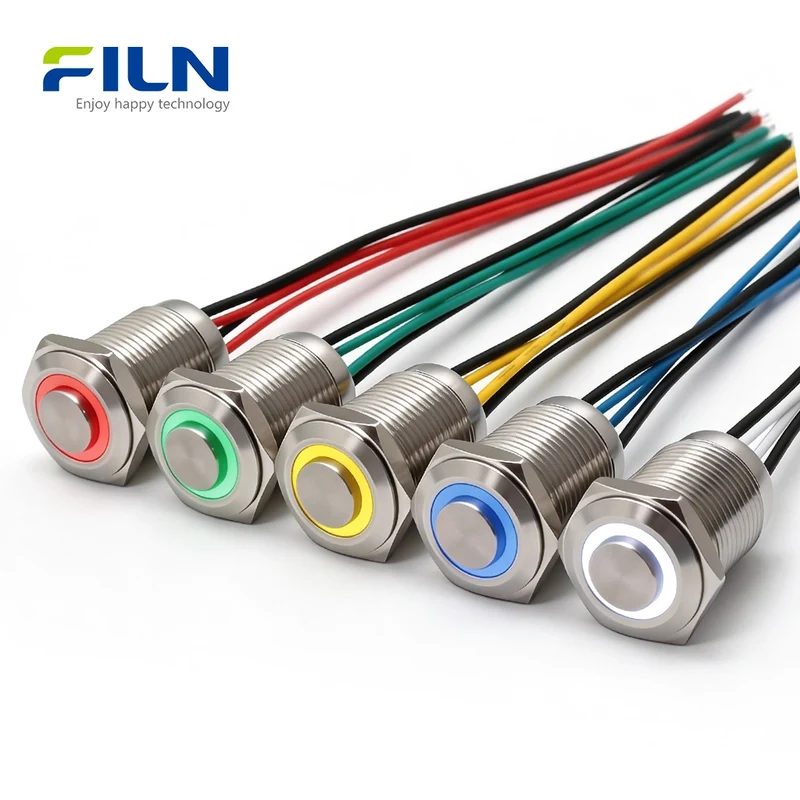

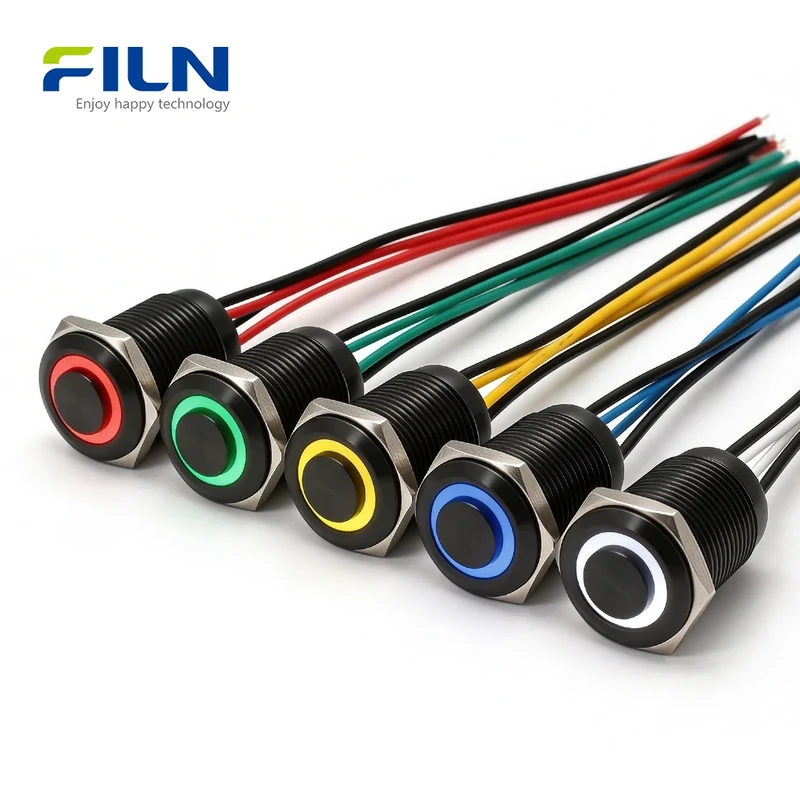

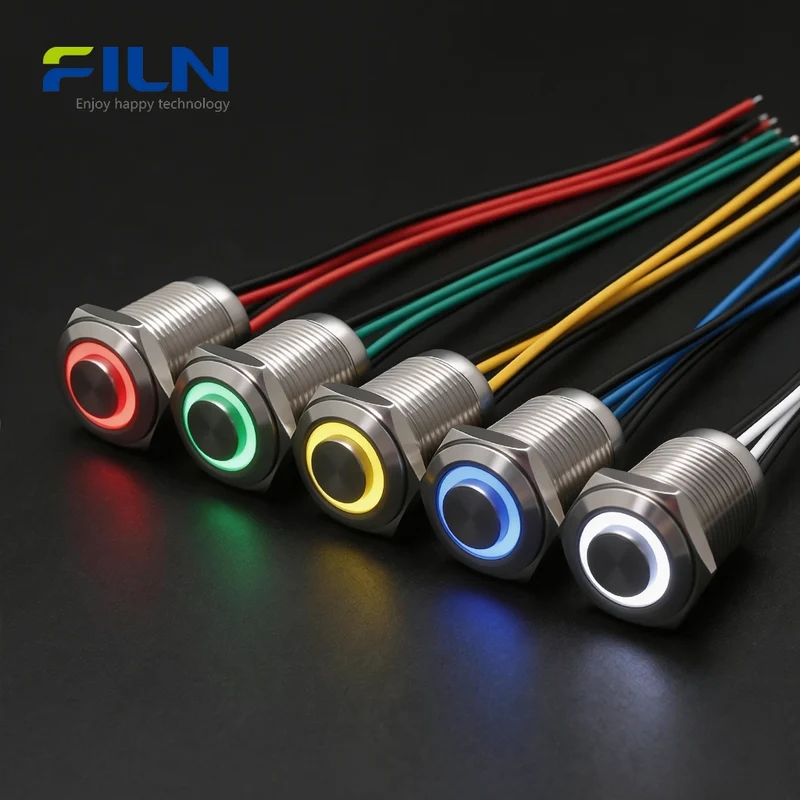

LED Color	R/G/Y/B/W (Bi-color & Tri-color Support)
Button Shape	High Head (High Round)
Wiring Method	4-PIN Pre-wired (15cm tail glue sealing)

Performance Parameters

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)
Insulation Resistance	≥ 1000MΩ
Contact Resistance	< 50mΩ
Dielectric Strength	1800V
LED Voltage	12V-24V / 110V-220V (Wide Voltage)
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Component Materials

Button	304 Stainless Steel / 6063 Aluminum Alloy
Shell/Body	H59 Brass / 304 Stainless Steel / Black Aluminum
Light Guide	(None - Direct Metal LED Integration)
Pins/Terminals	H62 Copper Alloy (Pre-wired)
Base	PA66+GF20% Flame Retardant Nylon
Contact Material	Silver Contact AgCdO12
Sealing Ring	SIL Silicone

General Characteristics

Operating Temp	-25°C to +85°C
Protection Level	IP65 (Waterproof), IK08 (Vandal-proof)
Mechanical Life	500,000 Cycles
Electrical Life	100,000 Cycles (3A) / 50,000 Cycles (5A)

LED Specification

Light Intensity	1000 mcd
Luminous Flux	4.8 lm
Main Wavelength	520.7 nm (Green Example)
Forward Current	20.00 mA
Color Meaning	Red (Stop/Danger), Green (Start/Safe), Yellow (Warning), Blue (Special Action), White (Power On)

Key Features

1. Superior Protection & Durability: Rated IP65 & IK08, this 16mm momentary push button switch is built for high-impact and wet environments. Compared to standard IP40 switches, FILN's metal buttons offer long-term reliability for outdoor equipment.

2. Optimized Electrical Load: Supports up to 5A 250V AC/DC. This high current capacity allows direct control of power devices without an intermediate relay, simplifying your circuit design.

3. Premium Material Selection: Options include 304 Stainless Steel for anti-corrosion and Silver Contacts (AgCdO12) for low contact resistance and anti-arcing performance.

4. Convenient LED Feedback: The ring illuminated push button switch provides clear status signals. Its pre-wired design with 15cm leads saves installation time for high-volume manufacturing.

5. Ultra-Compact Design: A total length of ~26.5mm makes it perfect for space-constrained control panels in handheld devices or dense electrical cabinets.

Applications

Essential for industrial control, this switch is widely used in CNC machines, medical devices, marine systems, and automation equipment. It provides a reliable interface for power starts and functional mode switching.

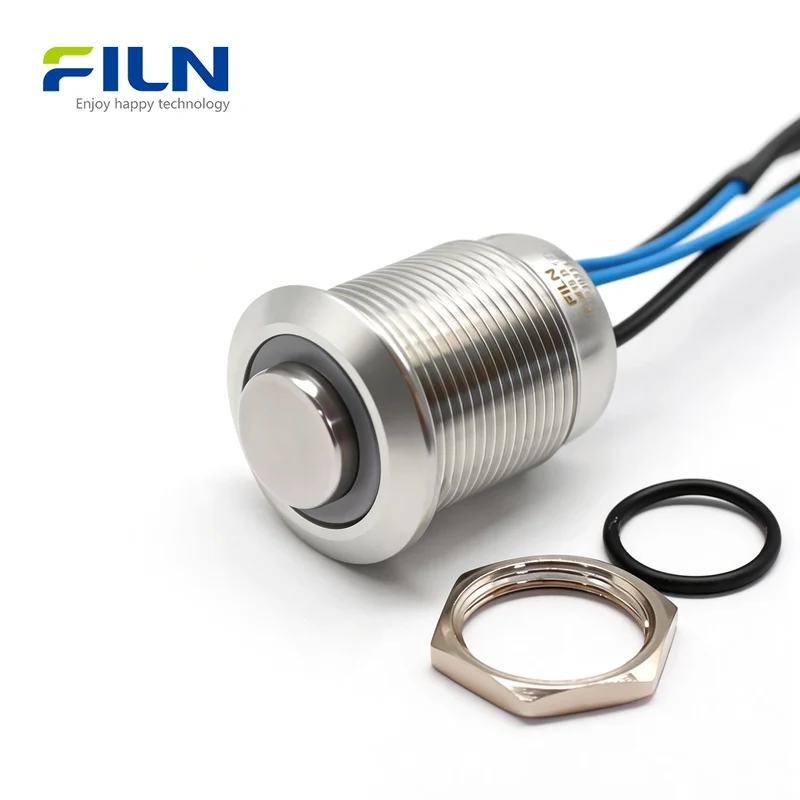

Installation Guide

1. Drill a 16mm hole in the mounting panel.
2. Insert the push-button switch through the hole from the front.
3. Tighten the metal hexagonal nut from the back to secure the switch.
4. Connect the 4-pin pre-wired harness to your power source and load.

4-PIN LED Push Button Switch Wiring Guide

A 4-PIN switch consists of two parts: Switch Contacts (to control the device) and LED Terminals (marked with + and -). Below are two ways to wire the LED indicator.

• Horizontal Pins: The switch mechanism (Power In / Load Out).
• Vertical Pins (+ / -): The LED indicator light terminals.

Method 1: LED Synchronized with Device (On when Active)

Logic: The button light only turns ON when the device is running. It serves as a "Status Indicator."

• Wiring: Connect LED (+) to the Output side of the switch. LED (-) to Power Negative.
• Applications: Power start buttons, car fog lights, industrial machinery.
• Benefit: Saves power; provides visual feedback that the system is active.

Figure 1: LED turns ON only when button is pressed

Method 2: LED Always ON (Backlight Mode)

Logic: The button light stays ON constantly as long as there is power, regardless of the button position.

• Wiring: Connect LED (+) directly to the Power Positive. LED (-) to Power Negative.
• Applications: Dark environments, hallway switches, standby power indicators.
• Benefit: Allows you to find the switch easily in total darkness.

Figure 2: LED stays ON constantly (Backlight)

Mode	LED Status (Idle)	LED Status (Pressed)
Sync (Status)	OFF	ON
Always ON (Backlight)	ON	ON

Industry Knowledge

What is a 16mm Metal Push-Button Switch?

This is a rugged electrical component used to control circuits in industrial machinery. Its metal construction provides superior vandal resistance and long lifespan compared to plastic switches.

Feature	Momentary	Latching
Behavior	Springs back when released	Stays in place (locks) until pressed again
Use Case	Horn, Starter, Doorbell	Power Switch, Main Light

Connection Comparison

Type	Pros	Cons
Pin Terminal	Easy soldering	Requires external wires
Screw Terminal	Field serviceable	Bulky back-end
Pre-wired	Waterproof & Fast Assembly	Fixed wire length

FILN Factory Direct Supply

MOQ: No Minimum Order Quantity | Lead Time: Fast Global Delivery | Quality: CE/RoHS/UL Certified

• ✔️ Voltage & Wire Length Customization
• ✔️ Connector Customization (Molex, JST, etc.)
• ✔️ Fast Global Shipping

Get Free Samples Now

Official Website: www.filn.com
Contact: [email protected]

Frequently Asked Questions

Q: Is this 16mm switch suitable for 220V applications?
A: Yes, we provide specific versions that support 110V-220V AC for industrial panels.

Q: What is the advantage of a pre-wired push-button switch?
A: It ensures a better waterproof seal and significantly reduces wiring errors and labor time during assembly.

Q: Can I use this for a car horn?
A: Absolutely. Choose the "Momentary" function for horn or starter applications.

Q: What color LEDs are available?
A: We offer Red, Green, Yellow, Blue, and White. We also support custom RGB or bi-color LEDs.
