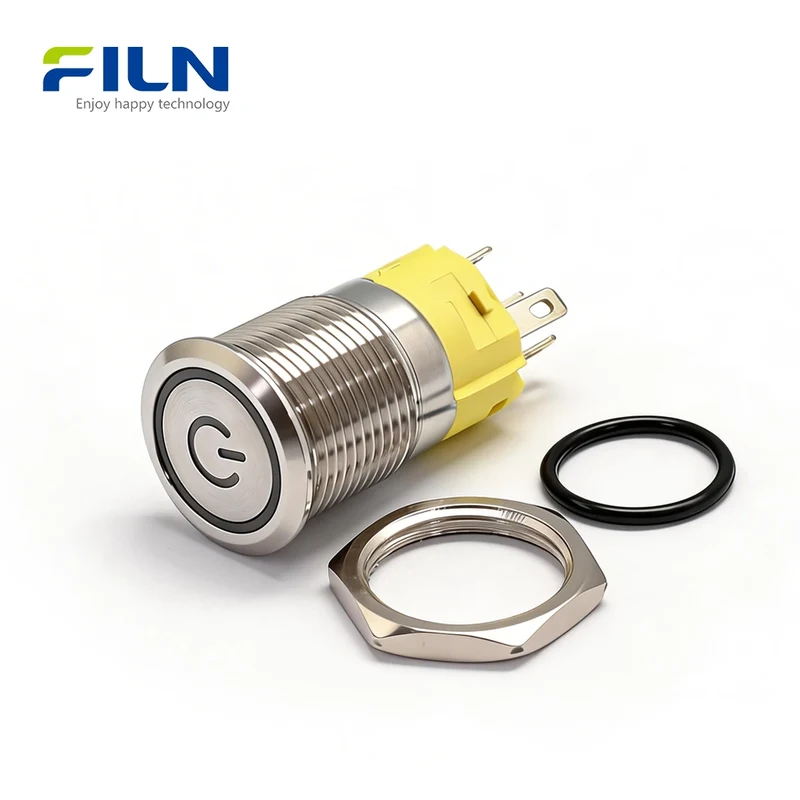

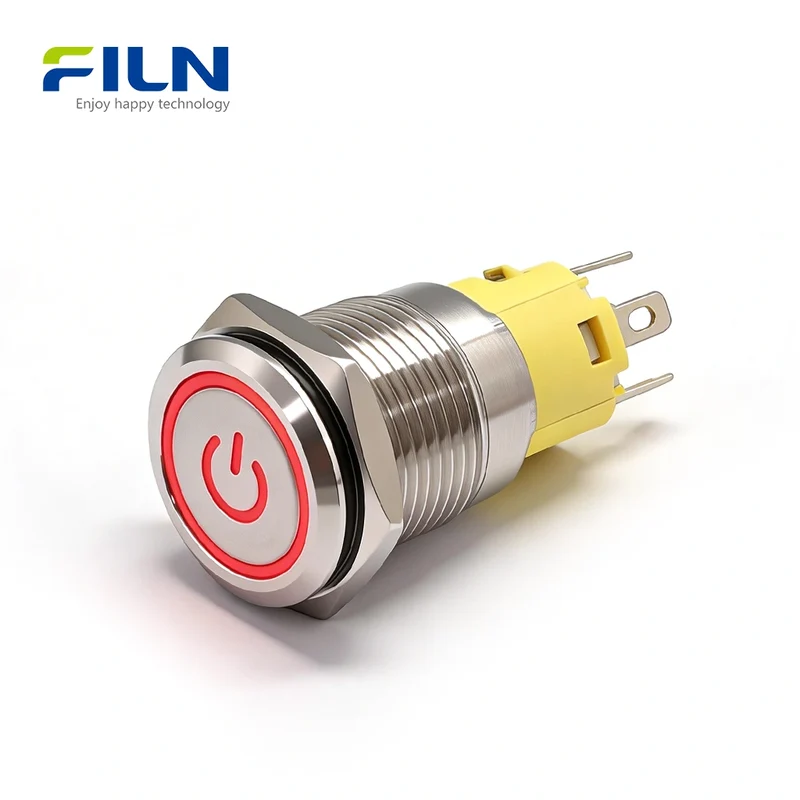

Metal Push Button Switch 12v Ring Power Symbol 16mm LED light 5Pin Terminal FILN

Button Switch DrawingProduct Overview

The FLM16-FJ-1-EC003 is a premium 16mm metal push button switch 12v designed by FILN, a leading factory specializing in high-quality industrial switches. This illuminated push button 12v features a unique dual-lighting design with a glowing ring and a power symbol, ensuring uniform light distribution and a high-tech aesthetic. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, this waterproof metal switch is built for durability and precision. Whether you need a momentary push button switch for signal triggering or a latching push button for power control, our stainless steel push button provides the reliability required for industrial control panels, CNC machinery, and marine environments.

Quick Specifications

Model Number	FLM16-FJ-1-EC003
Mounting Hole Size	16mm (0.63 inch)
Operation Type	Latching / Momentary

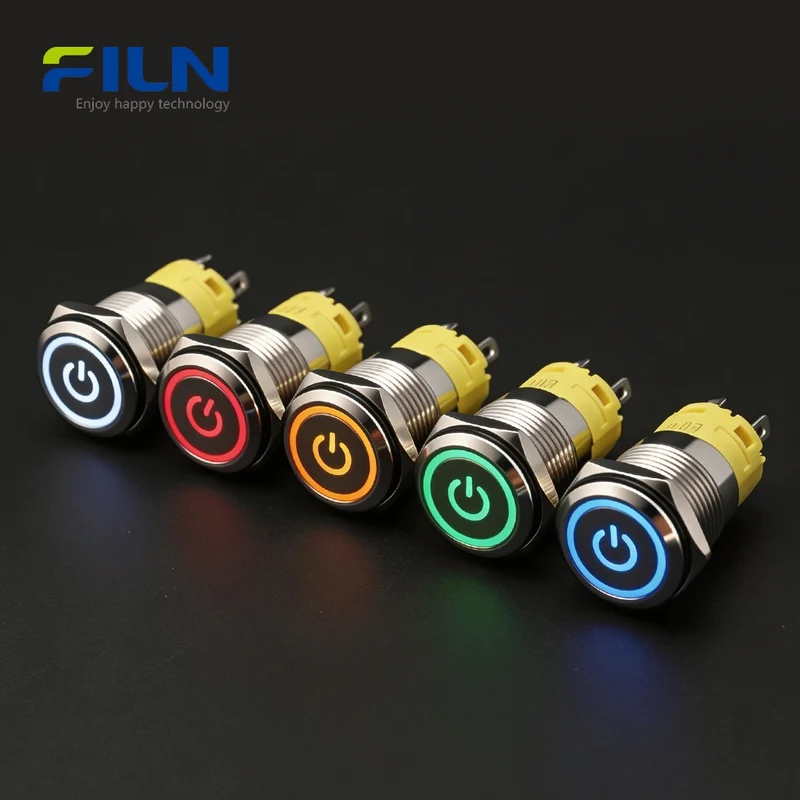

LED Color	Red, Green, Yellow, Blue, White (Dual/Triple color custom)
Button Shape	Flat Head with Ring & Power Symbol
Terminal Type	5-PIN Pin Terminal (2.8x0.5mm)

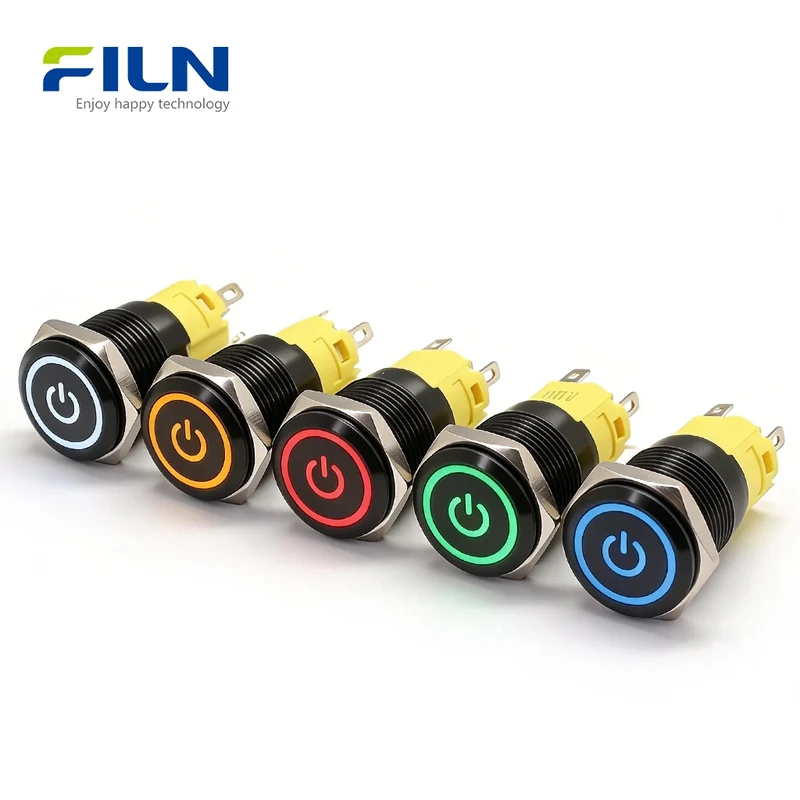

Housing Material	Silver Stainless Steel / Black Anodized Aluminum

Performance Parameters

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Insulation Resistance	≥ 1000MΩ
Contact Resistance	< 50mΩ
Dielectric Strength	1800V
LED Voltage	12-24V, 110-220V (Customizable)
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Component Materials

Button	304 Stainless Steel / 6063 Aluminum Alloy
Shell/Sleeve	H59 Brass / 304 Stainless Steel
Pins	H62 Copper Alloy
Base	Flame retardant PA66+GF20% Nylon
Contacts	Silver Contact AgCdO12
Sealing	SIL Silicone (IP65 Waterproof)

LED Color Meanings

• Red (R): Emergency, Danger, or Stop status.
• Green (G): Safe, Ready, or Normal Operating status.
• Yellow (Y): Warning, Standby, or Precautionary status.
• Blue (B): Informational, Special functions, or Reset.
• White (W): Pure backlight, modern aesthetics, or General power.

Key Features & Advantages

1. Superior Protection (IP65 & IK08): Built for outdoor and heavy-duty industrial use, resisting water, dust, and mechanical impact.

2. 5A Load Capacity: Supports 5A 250V AC/DC, allowing direct control of high-power devices without extra relays.

3. Premium Materials: Silver contacts ensure low resistance (< 50mΩ) and long electrical life (100,000 cycles).

4. Versatile 5-PIN Design: Allows for flexible wiring including Normally Open (NO) and Normally Closed (NC) circuits.

5. Compact Body: Short-body design (approx. 26.5mm) fits easily into tight control panels and handheld devices.

Switch Terminal Type Comparison

Feature	Pin Terminal	Screw Terminal	Pre-wired
Installation Speed	Very Fast (w/ Socket)	Medium	Fast
Connection Stability	High (Soldered/Plug)	High (Tightened)	Highest (Fixed)
Maintenance	Easy Plug & Play	Rewirable	Replace entire unit

💡 Pro Tip: Use our Quick-Connect Wire Harness for the fastest and safest installation.

Applications

These industrial control switches are widely used in electrical equipment, automation systems, medical devices, and marine transport. Every powered device needs a reliable switch to control circuit connectivity.

Installation Guide

1. Panel Cutout: Drill a 16mm diameter hole on your control panel.
2. Insertion: Insert the push button switch 12v through the hole from the front.
3. Securing: Tighten the metal hex nut from the back to fix the switch firmly.
4. Wiring: Connect the 5-PIN terminals according to your circuit requirements (NO/NC/LED).

5-PIN LED Push Button Switch Wiring Guide

A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.

1. Normal OFF, Sync LED (NO Connection)

Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.

• Application: Standard start switches where the light indicates the system is running.
• State: Static (LED Out, Device Off) → Pressed (LED On, Device On).

2. Normal ON, Sync LED (NC Connection)

Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.

• Application: Stop buttons or emergency cut-off switches.
• State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).

3. Normal OFF, Constant LED (NO Connection)

Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.

• Application: Power switches in dark environments or access control buttons.
• State: Static (LED On, Device Off) → Pressed (LED On, Device On).

4. Normal ON, Constant LED (NC Connection)

Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.

• Application: Monitoring systems or security alarms that require constant power indication.
• State: Static (LED On, Device On) → Pressed (LED On, Device Stop).

Mode	LED Behavior	Device (Idle)
NO Sync	Lights up when pressed	OFF
NC Sync	Turns off when pressed	ON
Constant	Always ON (Backlight)	User Choice

Industry Knowledge

What is a 16mm Push Button Switch 12v?

A 16mm push button is a compact electromechanical component used to control the flow of electricity in a circuit. In industrial settings, the 12V version is extremely popular for low-voltage control systems, providing safety and compatibility with standard power supplies.

Latching vs. Momentary: The Difference

Feature	Momentary	Latching
Action	Springs back when released	Stays in place (On/Off)
Usage	Horns, Door bells, PC Start	Light switches, Power buttons

FILN Factory Direct Advantage

• ✅ No MOQ: Small orders and samples welcome.
• ✅ Fast Delivery: Rapid global shipping from our warehouse.
• ✅ Customization: Voltage, wire length, and laser-etched symbols.

Request Free Sample

Official Website: www.filn.com
Contact: [email protected]

Frequently Asked Questions

Q1: Is the 16mm push button switch 12v waterproof?
A: Yes, it is IP65 rated, making it resistant to dust and low-pressure water splashes.

Q2: Can I use this switch for a 24V system?
A: While the LED is rated for 12V-24V, we recommend specifying your voltage for optimal LED brightness and longevity.

Q3: What is the difference between stainless steel and aluminum housings?
A: Stainless steel is more corrosion-resistant (ideal for marine), while anodized aluminum offers color variety like black.

Q4: Do you support custom symbols on the button?
A: Yes, FILN factory offers laser engraving for any logo or symbol you require.

Q5: What certifications do FILN switches have?
A: Our products carry UL, CE, RoHS, VDE, and ISO9001 certifications.

Q6: How long is the mechanical life of this switch?
A: It is tested for up to 500,000 cycles under normal operating conditions.

Q7: Can I get a pre-wired version?
A: Yes, we provide customized wire lengths and connector assemblies upon request.

Q8: What does the power symbol illumination signify?
A: It provides clear visual feedback for the device's power status, improving safety in dark environments.

Q9: Is a mounting gasket included?
A: Yes, each switch comes with a high-quality silicone O-ring for waterproof sealing.

Q10: What is the shipping time for bulk orders?
A: Most standard orders are processed and shipped within 3-7 business days.
