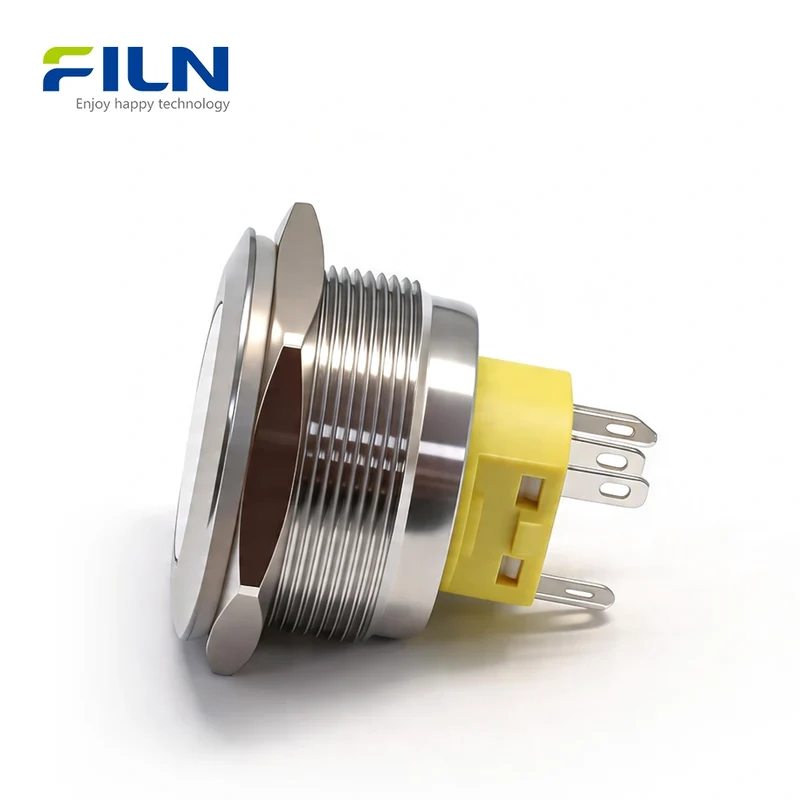

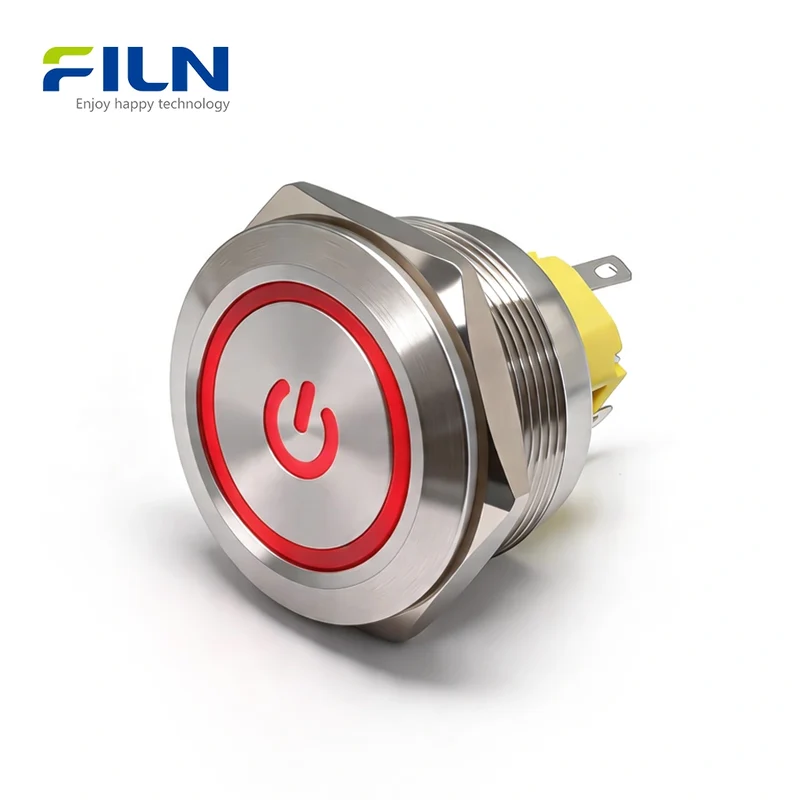

LED Light Push Button Switch 30mm Stainless Steel Power Symbol Momentary/Latching FILN

Button Switch DrawingPRODUCT OVERVIEW

The led light push button switch (Model: FLM30-FJ-1-EC) is a high-end 30mm industrial control solution designed by FILN. Featuring a robust 304 stainless steel shell and a distinctive ring LED with power symbol, this switch provides superior tactile feedback and clear visual status. With certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it is engineered for reliability in industrial control panels, automation systems, and high-power electrical cabinets. This 5-pin terminal switch supports both momentary and latching functions, making it a versatile choice for any 12V to 220V application requiring an illuminated metal interface.

🛒 View All Professional FILN Push Button Switches →

QUICK SPECIFICATIONS

Feature	Value
Model Number	FLM30-FJ-1-EC
Mounting Size	30mm (1.18 inch)
Function	Momentary / Latching (Optional)
LED Design	Ring + Power Symbol
LED Color	R/G/Y/B/W / Bi-color / Tri-color

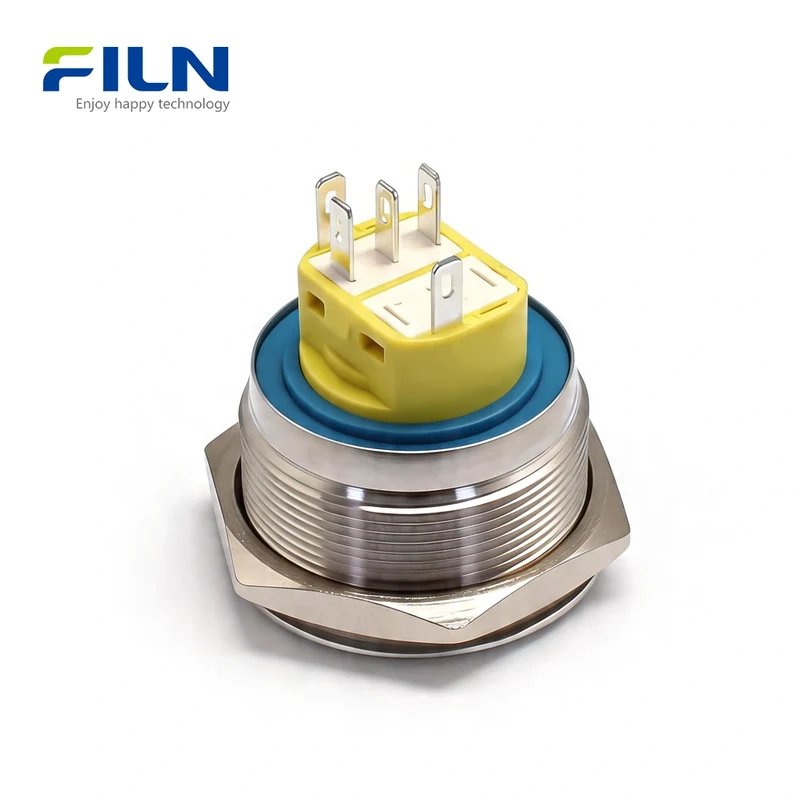

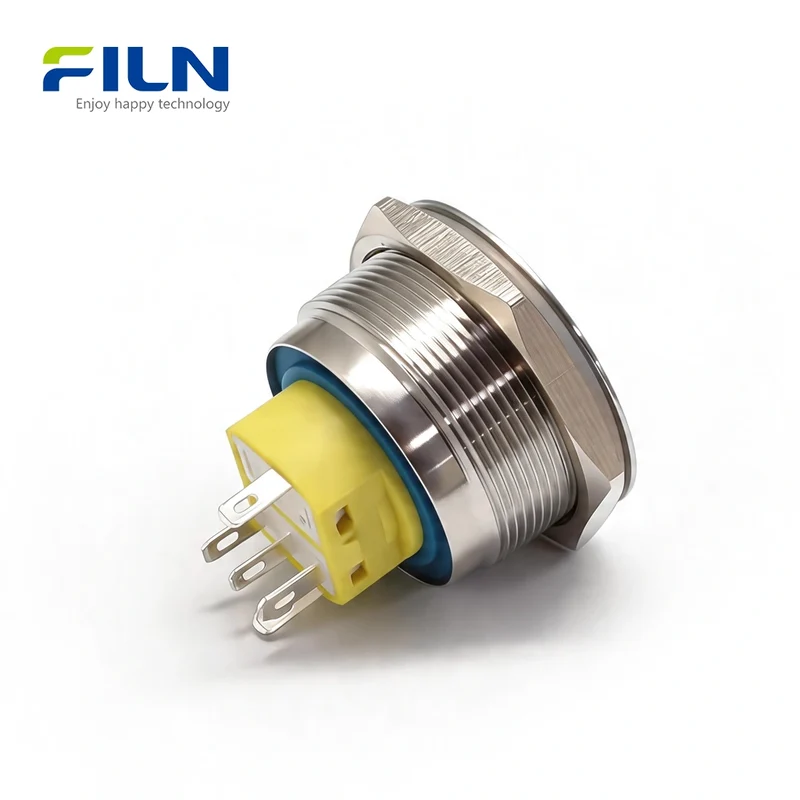

Terminal Configuration	5-Pin (C, NO, NC, LED+, LED-)

ELECTRICAL PERFORMANCE

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)
Dielectric Strength	1800V
Contact Resistance	< 50mΩ
LED Voltage	3V - 220V
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL, IP65

COMPONENT MATERIALS

Actuator/Shell	304 Stainless Steel / 6063 Aluminum Alloy
Light Lens	PC Plastic (Flame Retardant)
Terminals	H62 Copper Alloy
Contact Material	Silver Contact AgCdO12
Base	PA66+GF20% Fireproof Nylon

KEY FEATURES & ADVANTAGES

• Enhanced Visibility: The combination of a ring light and power symbol ensures the switch is easily identifiable in dark environments.
• Extreme Durability (IP65 & IK08): Built for outdoor and harsh industrial sites, providing waterproof and impact protection.
• 5A High Current Load: Capable of direct circuit control without the need for additional relays in most 5A applications.
• Premium Silver Contacts: Ensures minimal contact resistance and long electrical life span.
• Versatile 5-Pin Setup: Includes NO/NC logic plus dedicated LED pins for flexible circuit design.

💡 Installation Tip: Use our matching wire connector to save time and ensure a secure connection.
Order 5-Pin Wire Harness Here →

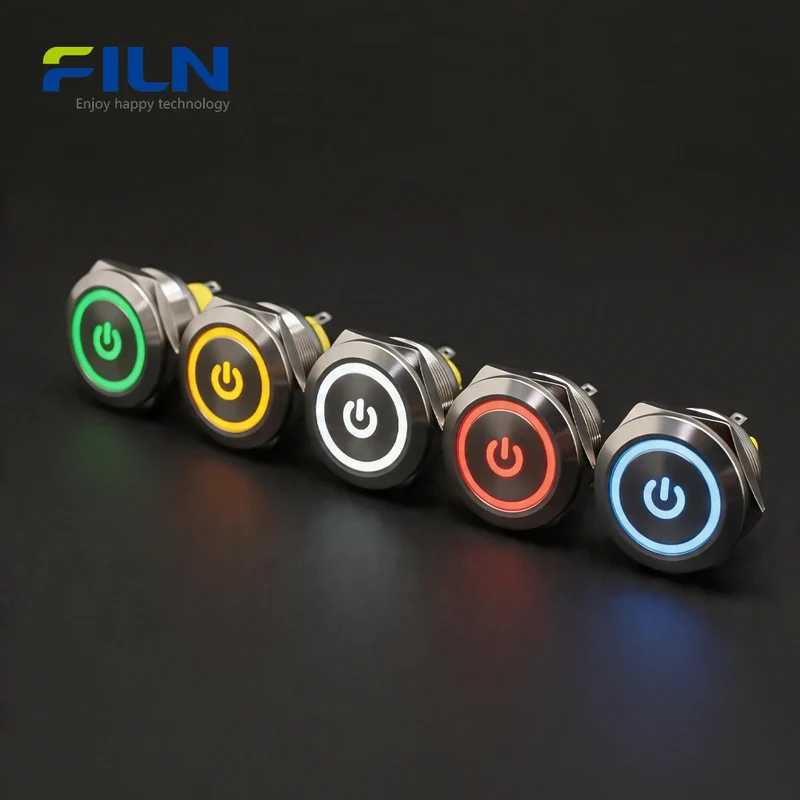

LED COLOR INDICATOR MEANINGS

Choose the color that best fits your industrial safety protocol:

• RED: Danger or Stop status.
• GREEN: Normal operation or System Start.
• YELLOW/ORANGE: Warning or Standby mode.
• BLUE: Auxiliary function or specific manual mode.
• WHITE: Neutral backlight for visibility in dark workspaces.

INDUSTRIAL APPLICATIONS

The led light push button switch is critical for circuit management in:

• CNC Machinery
• Automation Lines
• Power Distribution Boxes
• Marine Navigation
• Medical Equipment
• Access Control Systems

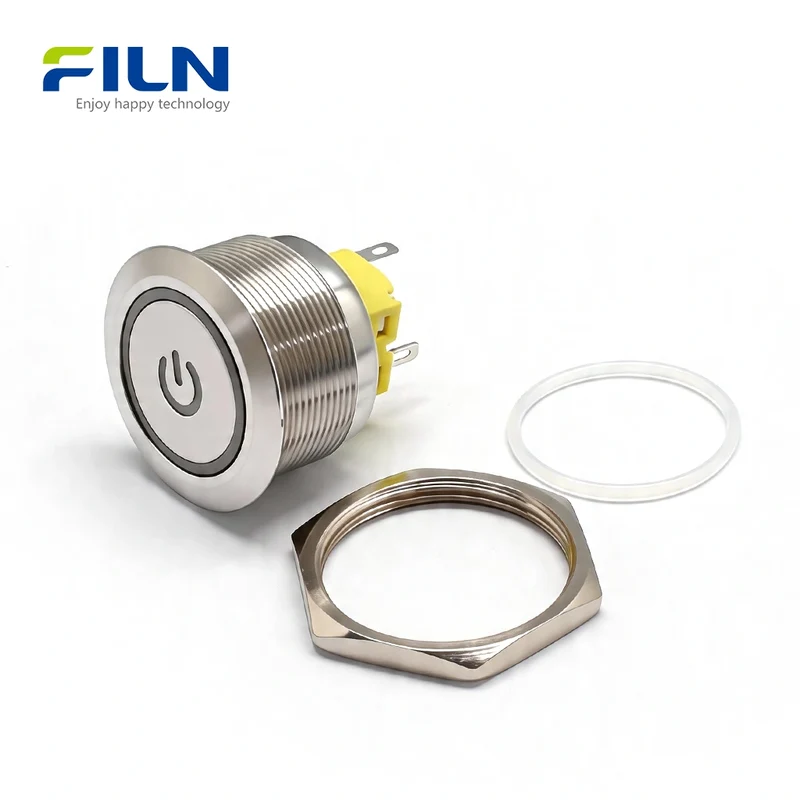

INSTALLATION STEPS

1. Drill a 30mm diameter hole on your control panel.
2. Insert the metal push button from the front side.
3. Screw the metal hex nut from the back to secure the switch.
4. Wiring: Connect your power and load wires to the 5-pin terminals (C, NO, NC, LED+/LED-).

TERMINAL TYPE COMPARISON

Terminal Type	Wiring Ease	Service Life	Best For
Pin Terminal	High (Plug-in)	Very Long	Fast mass production
Screw Terminal	Medium	Long	On-site wiring
Pre-wired	Highest	Standard	Quick DIY setup

5 Pin Push Button Switch Wiring Diagram

A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.

1. Normal OFF, Sync LED (NO Connection)

Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.

• Application: Standard start switches where the light indicates the system is running.
• State: Static (LED Out, Device Off) → Pressed (LED On, Device On).

2. Normal ON, Sync LED (NC Connection)

Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.

• Application: Stop buttons or emergency cut-off switches.
• State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).

3. Normal OFF, Constant LED (NO Connection)

Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.

• Application: Power switches in dark environments or access control buttons.
• State: Static (LED On, Device Off) → Pressed (LED On, Device On).

4. Normal ON, Constant LED (NC Connection)

Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.

• Application: Monitoring systems or security alarms that require constant power indication.
• State: Static (LED On, Device On) → Pressed (LED On, Device Stop).

Mode	LED Behavior	Device (Idle)
NO Sync	Lights up when pressed	OFF
NC Sync	Turns off when pressed	ON
Constant	Always ON (Backlight)	User Choice

INDUSTRY KNOWLEDGE

What is an LED Light Push Button Switch?

In industrial automation, an illuminated push button is more than just a power toggle; it's a critical safety component. The LED light provides real-time feedback on machine status, which is vital in noisy or dark manufacturing environments. These switches are built from metal to withstand mechanical impact (IK08) and chemical exposure.

Momentary vs. Latching Explained

Function	Logic	Typical Use
Momentary	Returns to original state on release	Reset, Doorbell, Horn
Latching	Locks in position after press	Main Power, Light Control

FACTORY DIRECT SUPPLY - FILN

• No MOQ: Samples available for testing.
• Global Fast Shipping: Fast lead times from our factory.
• Full Certification: CE, UL, RoHS, and ISO9001.

Get Free Sample Now →

Official Website: www.filn.com

Contact Us: [email protected]

FAQ - LED PUSH BUTTON SWITCH

Q1: Is the 30mm 5-pin LED switch waterproof?
Yes, it is IP65 rated, meaning it is protected against dust and water spray.

Q2: Can I get the led light push button switch in 110V?
Yes, we provide custom LED resistors for 12V, 24V, 110V, and 220V applications.

Q3: What does the power symbol indicate?
It helps users quickly identify the main power control button on a complex panel.

Q4: Do you offer the momentary 30mm metal switch?
Yes, both momentary and latching versions are available in the FLM30 series.

Q5: Can I use this for outdoor equipment?
Absolutely. The 304 stainless steel shell is highly resistant to corrosion and weather.

Q6: Is it possible to have a bi-color LED?
Yes, we can customize Red/Green or other bi-color combinations for status feedback.

Q7: What is the benefit of 5 pins over 3 pins?
A 5-pin switch provides separate control for the LED and offers both NO and NC circuit options[cite: 1].

Q8: What are the silver contacts for?
Silver contacts provide superior conductivity and prevent oxidation, extending the switch's life.

Q9: Can the LED stay on without the button being pressed?
Yes, by wiring the LED terminals to a constant power source (Constant LED mode)[cite: 9].

Q10: Is FILN a manufacturer?
Yes, FILN is a professional factory supporting customization and direct supply.
