Button Switch DrawingProduct Overview

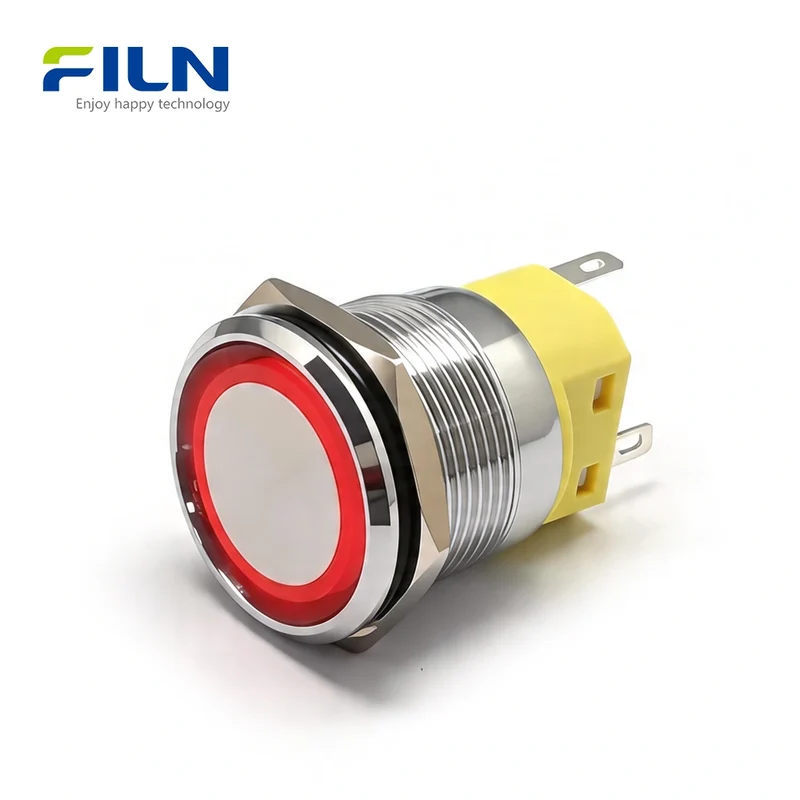

The FLM22-FJ-1-C series features premium 22mm push button switches designed for high-performance industrial applications. Manufactured by FILN, a leading factory specializing in customized metal switches, these components carry world-class certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Whether you require a stainless steel industrial switch for marine environments or a black aluminum push button for sleek control panels, this 5-pin terminal switch provides unmatched reliability. Key advantages include ring-led illumination for status feedback and a choice between momentary and latching functions. These waterproof LED button switches are ideal for automation equipment, CNC machines, and medical devices.

Quick Specifications

Model Number	FLM22-FJ-1-C
Mounting Hole Size	22mm (approx. 0.87 inch)
Operation Type	Latching (Stay ON) / Momentary (Pulse)
LED Colors	R/G/Y/B/W (Bi-color/Tri-color customizable)
Button Shape	Concave Head (Indented)

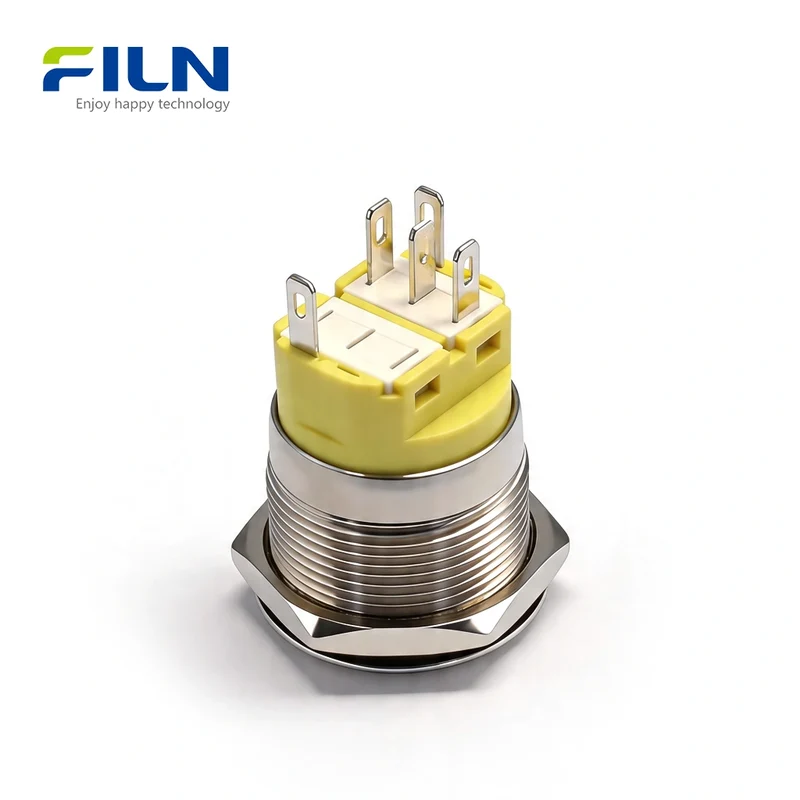

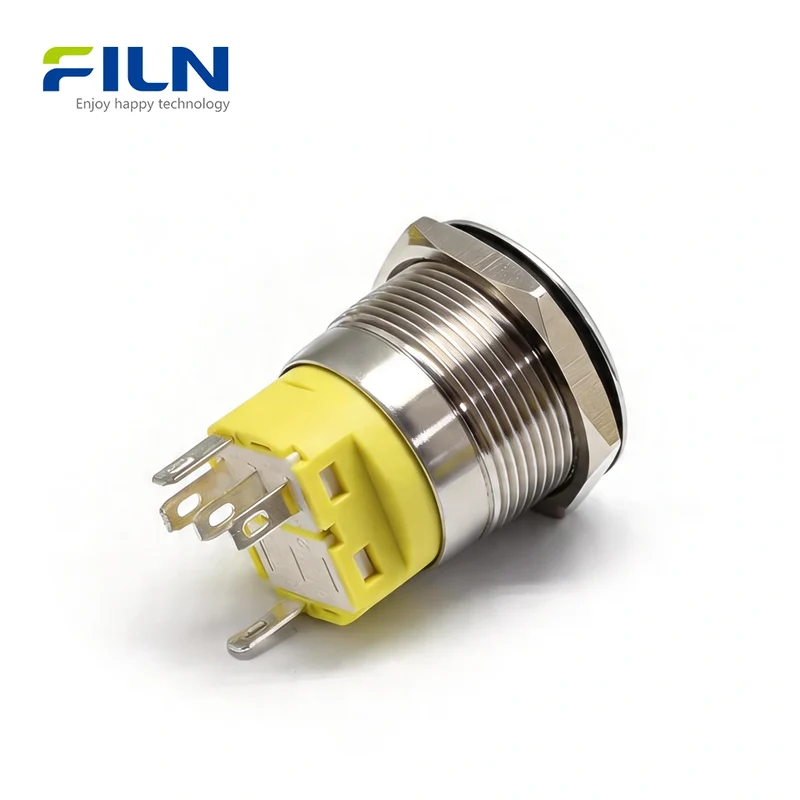

Terminal Type	5-Pin Solder/Plug-in Terminal

🛒 View All FILN Push Button Switch Products →

Performance Parameters

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)
Insulation Resistance	≥ 1000MΩ
Contact Resistance	< 50mΩ
Dielectric Strength	1800V
LED Voltage Range	3V - 220V (12V/24V/110V/220V common)
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Component Materials

Button Actuator	304 Stainless Steel / 6063 Aluminum Alloy
Housing Body	H59 Brass / 304 Stainless / Black Anodized Aluminum
Lens / Diffuser	PC (Polycarbonate) Plastic
Terminals	H62 Copper Alloy (Silver Plated)
Base Material	PA66+GF20% Flame Retardant Nylon
Contact Material	Silver Alloy (AgCdO12)
Sealing Ring	SIL Silicone (IP65 rated)

General Characteristics

Operating Temperature	-25°C to +85°C
Protection Level	IP65 Waterproof, IK08 Vandal Resistant
Mechanical Life	500,000 Cycles
Electrical Life	50,000 - 100,000 Cycles

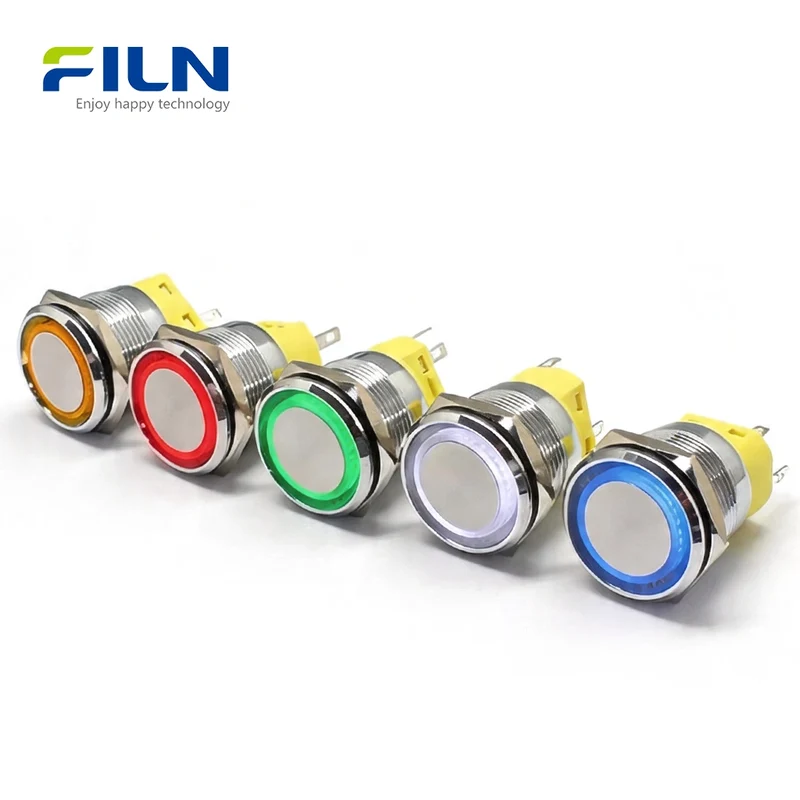

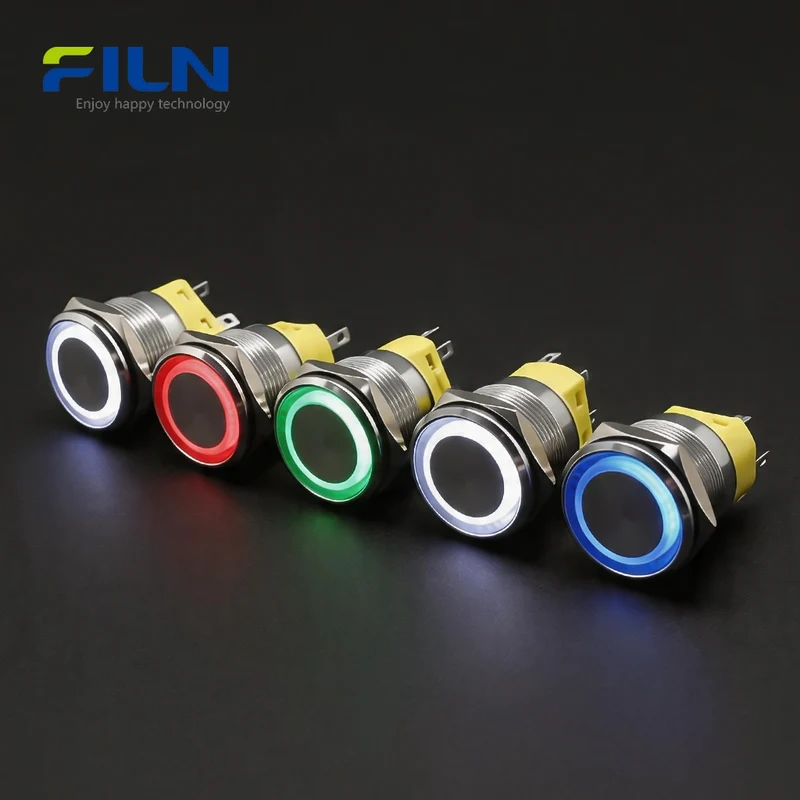

LED Specification & Color Meaning

Using illuminated push button wiring helps operators identify machine status instantly:

• Red (R): Emergency, Stop, or Fault condition.
• Green (G): Normal operation, Start, or Safe status.
• Blue (B): Manual override or specific function indication.
• Yellow (Y): Warning or Standby mode.
• White (W): Neutral power indicator or illumination in dark areas.

Forward Current	20mA (Typical)
Luminous Flux	4.8 lm
Color Temperature (White)	8400K
Wave Length (Green)	520.7 nm

Key Features

1. Superior Protection & Durability: With an IP65 & IK08 rating, this 22mm metal push button switch is resistant to water, dust, and physical impact, making it perfect for outdoor or harsh industrial environments.

2. Optimized Electrical Load: Rated at 5A 250V AC/DC, it handles higher power than standard 2A switches, often eliminating the need for additional relays.

3. Premium Material Choices: Available in 304 Stainless Steel or Black Aluminum, utilizing Silver Alloy contacts to minimize contact resistance (<50mΩ).

4. Wiring Convenience: The 5-pin terminal design supports both soldering and plug-in connectors. For rapid assembly, we recommend the FILN Push Button Wire Connector.

5. Ultra-Compact Design: A total length of ~26.5mm allows installation in shallow enclosures or handheld devices where space is at a premium.

Industrial Applications

These switches are used globally across various sectors:

• Industrial control panels
• CNC machines
• Automation equipment
• Electrical cabinets
• Marine & Naval systems
• Medical devices
• Access control systems
• Food processing machinery

Installation Guide

1. Panel Cutout: Drill a 22mm diameter hole in your control panel.
2. Insert Switch: Place the button from the front of the panel through the hole.

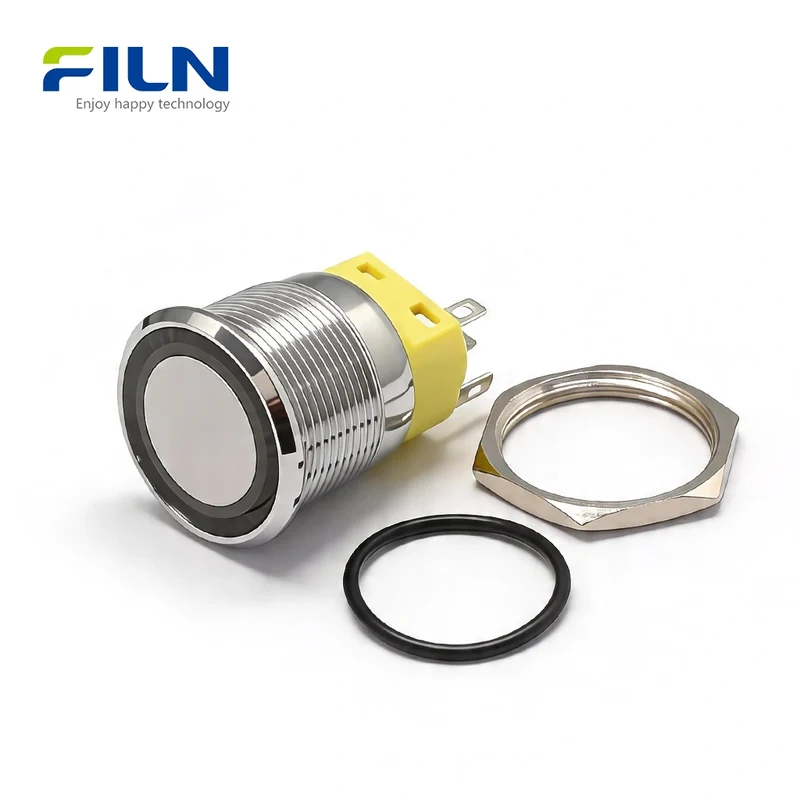

3. Secure Nut: Slide the O-ring onto the switch body and tighten the metal hex nut from the back to fix it.
4. Wiring: Connect wires to the 5-pin terminals via soldering or a quick-connect socket.

5 Pin Push Button Switch Wiring Diagram

A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.

1. Normal OFF, Sync LED (NO Connection)

Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.

• Application: Standard start switches where the light indicates the system is running.
• State: Static (LED Out, Device Off) → Pressed (LED On, Device On).

2. Normal ON, Sync LED (NC Connection)

Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.

• Application: Stop buttons or emergency cut-off switches.
• State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).

3. Normal OFF, Constant LED (NO Connection)

Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.

• Application: Power switches in dark environments or access control buttons.
• State: Static (LED On, Device Off) → Pressed (LED On, Device On).

4. Normal ON, Constant LED (NC Connection)

Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.

• Application: Monitoring systems or security alarms that require constant power indication.
• State: Static (LED On, Device On) → Pressed (LED On, Device Stop).

Mode	LED Behavior	Device (Idle)
NO Sync	Lights up when pressed	OFF
NC Sync	Turns off when pressed	ON
Constant	Always ON (Backlight)	User Choice

Industry Knowledge

1. What are Push Button Switches?

A push button switch is a simple mechanism used to control some aspect of a machine or a process. In industrial settings, they act as the interface between the human operator and the machine's electrical logic, allowing for manual start/stop or mode selection.

2. Latching vs. Momentary: What is the difference?

Feature	Momentary	Latching
Action	Springs back when released	Stays in place (Click ON/OFF)
Best Use	Horns, Doorbell, Starters	Main Power, Lights, Fans

Terminal Type Comparison

Terminal Type	Pros	Cons
Pin Terminal (This Model)	Fast plug-in, clean wiring	Requires connector or solder
Screw Terminal	No soldering needed	Takes up more space
Pre-wired	Ready to install	Fixed wire length

FILN Factory Direct Supply

• ✅ No MOQ (1 piece order accepted)
• ✅ Fast Lead Time (Global Shipping)
• ✅ Customization: Voltage, Wire Length, Connectors
• ✅ Full Certifications: CE, RoHS, UL

REQUEST FREE SAMPLES

Official Website: www.filn.com
Contact Email: [email protected]

Frequently Asked Questions

Q1: Is this 22mm metal push button switch waterproof?
A: Yes, it is IP65 rated, making it waterproof and dustproof for industrial use.

Q2: Can I get a 110V LED version?
A: Absolutely. FILN supports custom voltages from 3V to 220V AC/DC.

Q3: What is the difference between a 5-pin and 4-pin switch?
A: 5-pin switches include both NO and NC contacts, whereas 4-pin usually only has NO or shared pins.

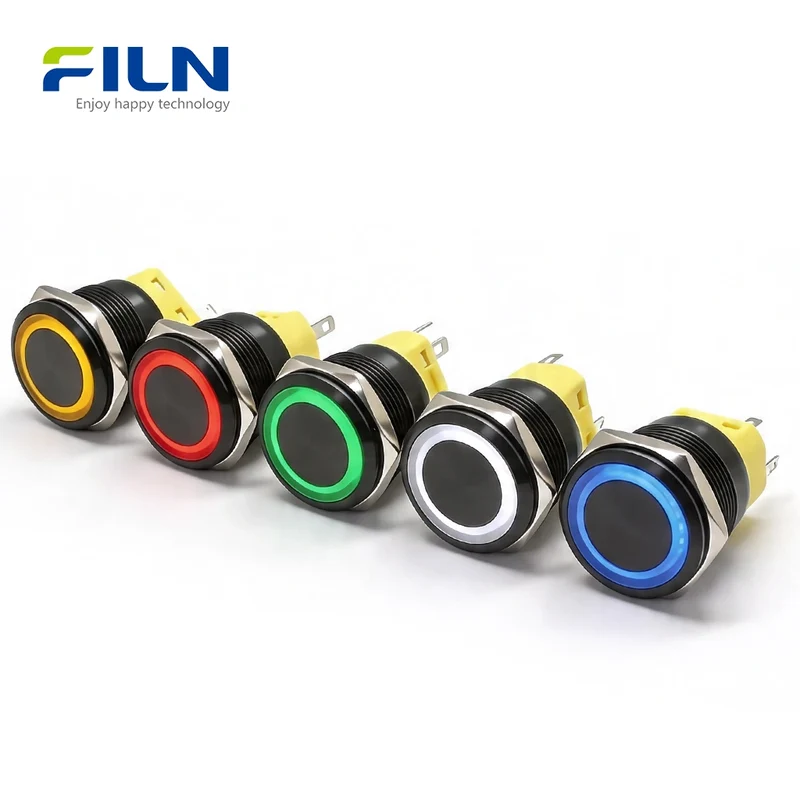

Q4: Do you offer the black aluminum finish?
A: Yes, we offer both 304 stainless steel and black anodized aluminum options.

Q5: How do I wire it so the LED is always ON?
A: Connect the LED (+) and (-) pins directly to your power source.

Q6: Is this switch momentary or latching?
A: We offer both. Model FLM22-FJ-1-C can be ordered as either momentary or latching.

Q7: Does it come with the wiring socket?
A: The socket is sold separately but highly recommended for fast installation.

Q8: What is the mechanical life of these waterproof LED button switches?
A: It has a mechanical life of over 500,000 cycles.

Q9: Can I use this for marine applications?
A: Yes, the 304 stainless steel version is excellent for resisting salt spray corrosion.

Q10: Are there other sizes available?
A: Yes, FILN manufactures 8mm to 40mm metal push buttons.
