Button Switch DrawingProduct Overview

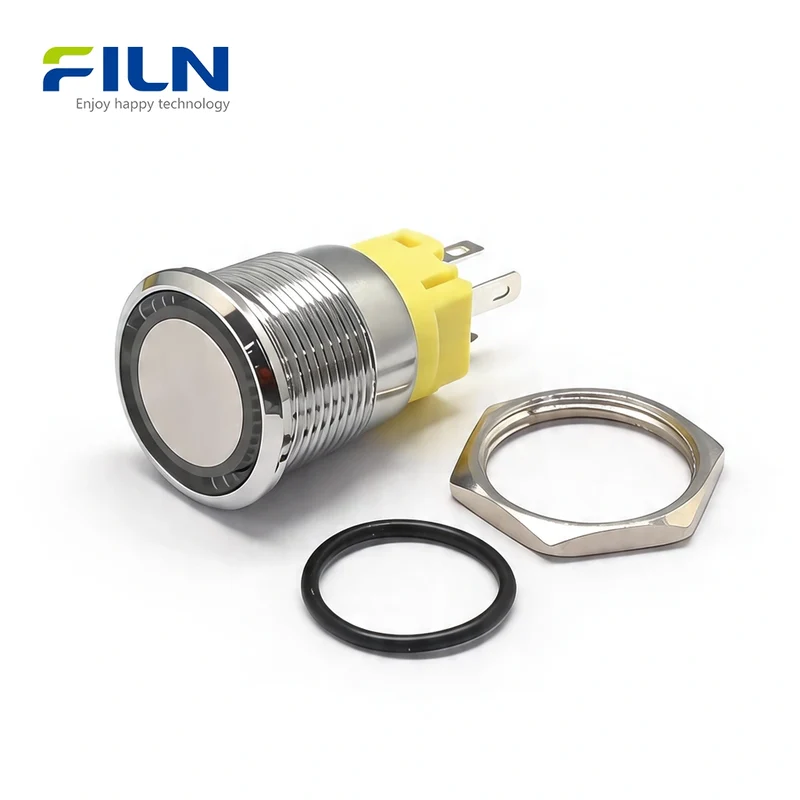

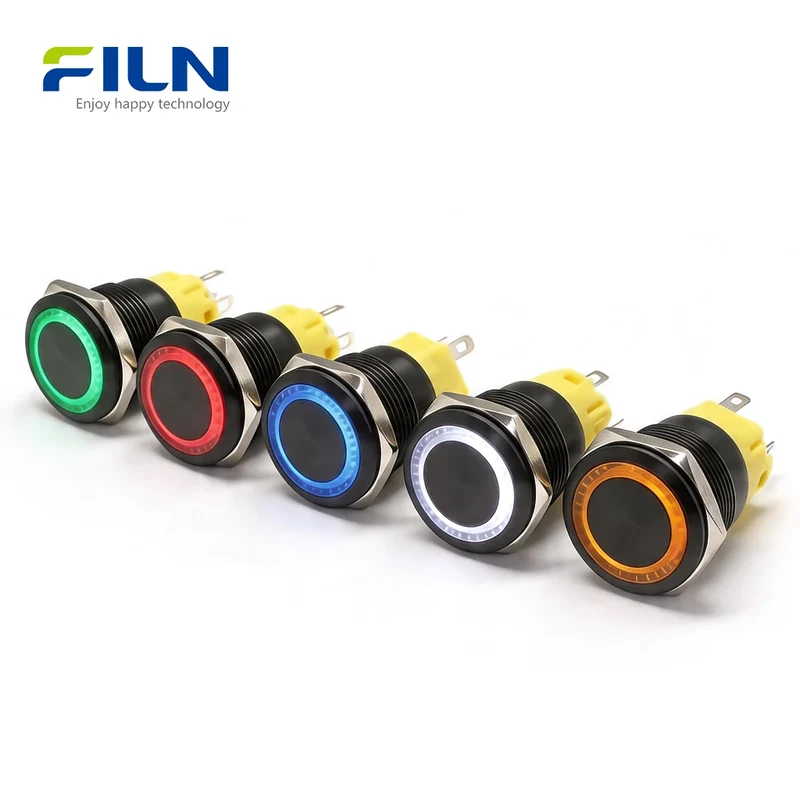

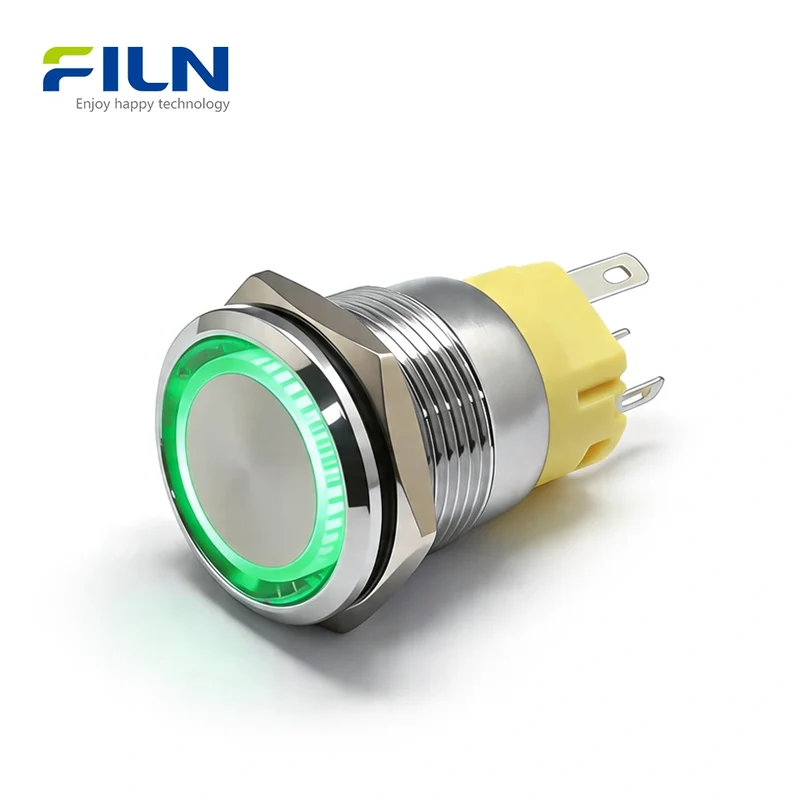

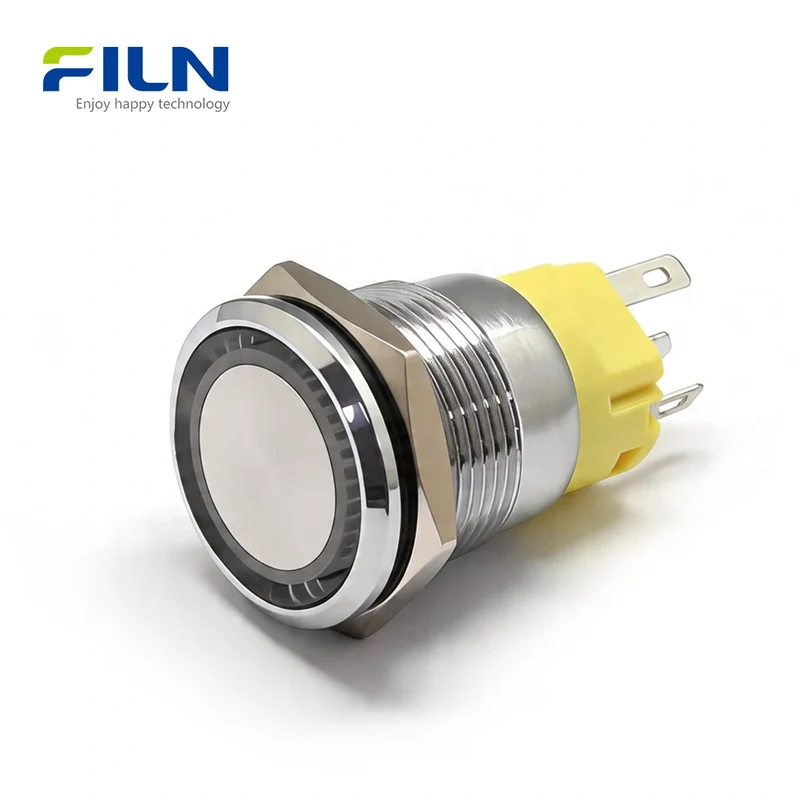

The momentary switch push button (Model: FLM19-FJ-1-EX000) is a high-performance 19mm industrial panel mount switch designed for precision and durability. Manufactured by FILN, this 19mm metal push button features a unique concave head design and a bright ring LED indicator. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, it ensures reliable operation in harsh environments. Whether you choose the sleek 304 stainless steel or the black aluminum push button, this switch provides excellent tactile feedback and a service life exceeding 500,000 cycles. It is widely used in automation, CNC machinery, and electrical cabinets to control circuit connectivity efficiently.

Quick Specifications

Model Number	FLM19-FJ-1-EX000
Mounting Size	19mm (0.75 inch)
Function	Momentary (Self-reset) / Latching (Optional)
LED Color	R/G/B/Y/W (Custom Bi-color & Tri-color available)
Button Head	Concave Head (Circular)
Terminal Type	5-Pin Pin Terminal (Socket compatible)

Performance Parameters

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Insulation Resistance	≥ 1000MΩ
Contact Resistance	< 50mΩ
LED Voltage	12V-24V, 110V-220V (Customizable)
Certifications	ISO9001, CE, UL, RoHS, SGS

Component Materials

Button Actuator	304 Stainless Steel / 6063 Aluminum
Shell Sleeve	H59 Brass / 304 Stainless Steel / Black Zinc-Aluminum
Contacts	Silver Alloy AgCdO12
Base	PA66+GF20% Flame Retardant Nylon

General Characteristics

Operating Temperature	-25°C to +85°C
Protection Level	IP65, IK08
Mechanical Life	500,000 Cycles
Electrical Life	100,000 Cycles (3A)

Terminal Type Comparison

Feature	Pin Terminal (FLM19)	Screw Terminal	Pre-wired Lead
Wiring Ease	High (Plug-in socket)	Medium (Manual)	High (Direct)
Service Life	Very Long	Long	Long
Compactness	High	Low	Medium

Key Features & Advantages

Using an illuminated momentary push button provides significant advantages for industrial operations:

• Durability: Metal casing resists impact and corrosion, far outlasting plastic buttons.
• IP65 Protection: Ideal for wet or dusty environments.

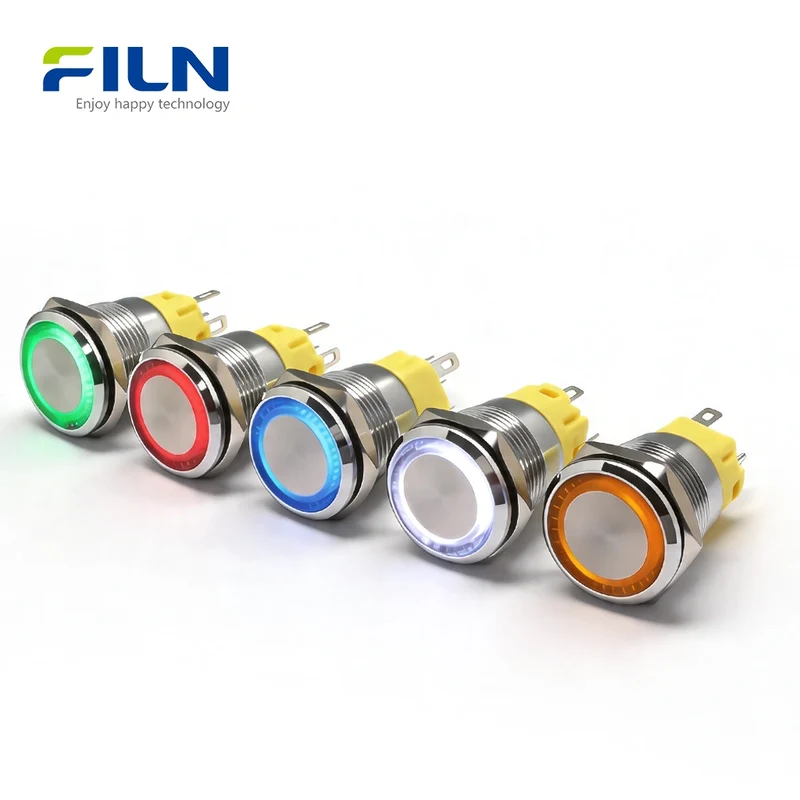

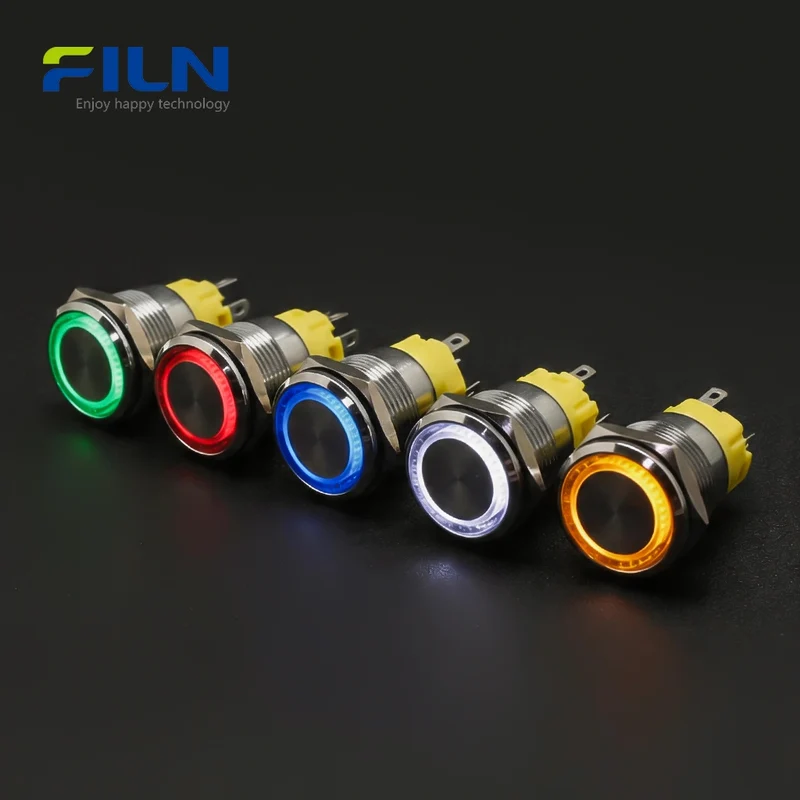

• Visual Feedback: The LED ring clarifies status. Here is what colors signify:
  • Red: Danger, emergency stop, or system failure.
  • Green: System normal, start, or ready status.
  • Blue: Specific functions like reset or secondary settings.
  • Yellow: Warning, standby, or processing state.
  • White: Power-on indication or neutral status.

Speed Up Installation with Custom Wire Harnesses!

Our 5-pin led momentary button can be equipped with pre-wired connector sockets to save assembly time.

Buy Wire Harnesses Here

Industrial Applications

This momentary switch push button is essential for equipment requiring reliable circuit interruption or activation. Applications include:

• CNC machines
• Automation equipment
• Electrical cabinets
• Marine systems
• Medical devices
• Public kiosks

Installation Steps

1. Drill a 19mm hole in your control panel.
2. Insert the button from the front side.
3. Secure the switch with the provided metal hex nut from the back.
4. Perform wiring using the 5-pin terminals or a socket harness.

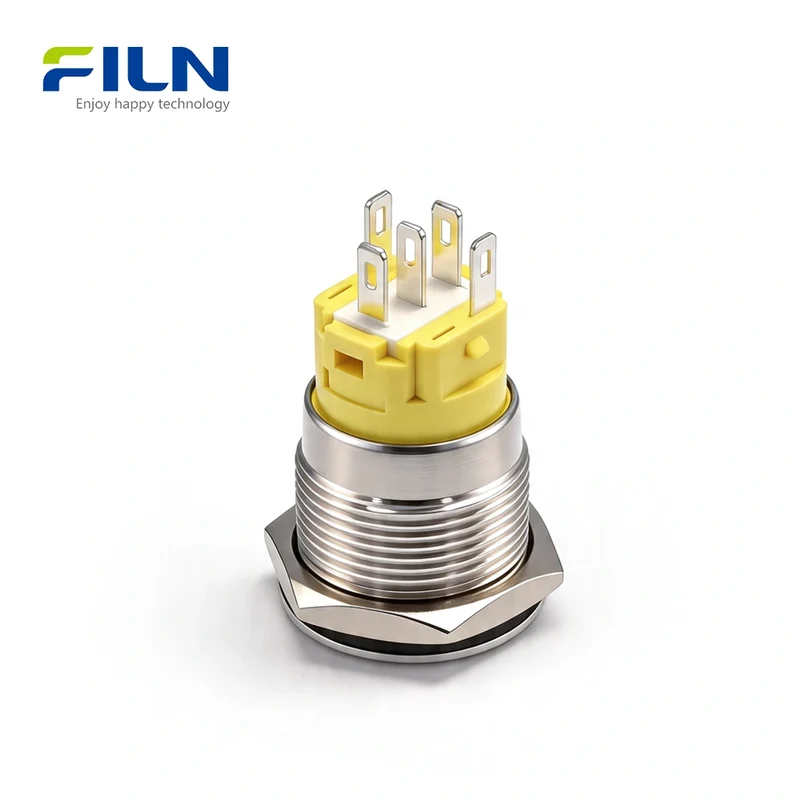

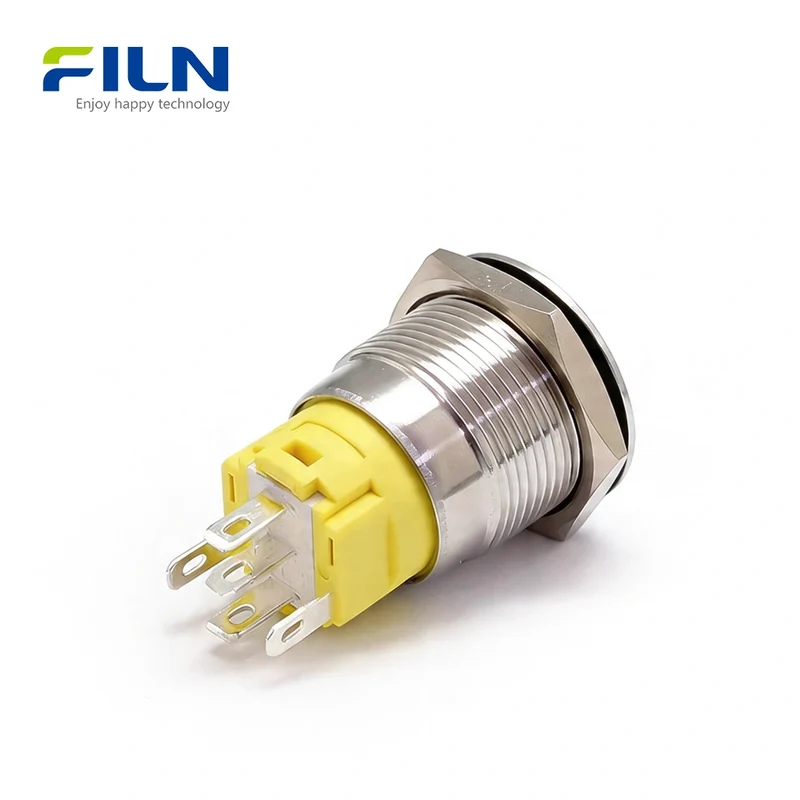

5-PIN Wiring Guide

A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two LED pins (+ / -).

For a full range of wiring options, visit our Full Push Button Switch Collection.

Factory Direct Supply

• ✅ MOQ: None (Supports small orders)
• ✅ Lead Time: Fast Global Shipping
• ✅ Customization: Voltage, wire length, and connector customization supported

FILN Official Website: www.filn.com

Contact Us: [email protected]

Request Free Sample

Frequently Asked Questions

1. Is the 19mm momentary switch push button waterproof?
Yes, it has an IP65 rating, making it splash-proof and dust-proof for industrial use.

2. Can I use this for a 220V application?
Absolutely. We provide standard 12V-24V and 110V-220V versions, and can customize voltage on request.

3. What is the advantage of the concave head?
The concave design helps prevent accidental triggering and provides a more ergonomic touch point.

4. Does FILN support custom LED colors?
Yes, we support R/G/B/Y/W and can create custom bi-color or tri-color 6-pin/7-pin configurations.

5. Can I order this with a wire harness?
Yes, we recommend our custom wire connectors to eliminate the need for soldering.

6. Is a black aluminum push button more durable than stainless steel?
Both are highly durable; stainless steel offers better chemical resistance, while anodized aluminum is lightweight and aesthetic.

7. What is the difference between momentary and latching?
Momentary resets once released; latching stays in position until pressed again.

8. How many pins does the standard version have?
The standard single-color LED version comes with a 5-pin terminal layout.

9. Are your switches UL certified?
Yes, FILN switches carry UL, CE, and RoHS certifications for global compliance.
