Button Push Switch 22mm Stainless Steel 12V-220V Ring LED 6-Pin Terminal | FILN

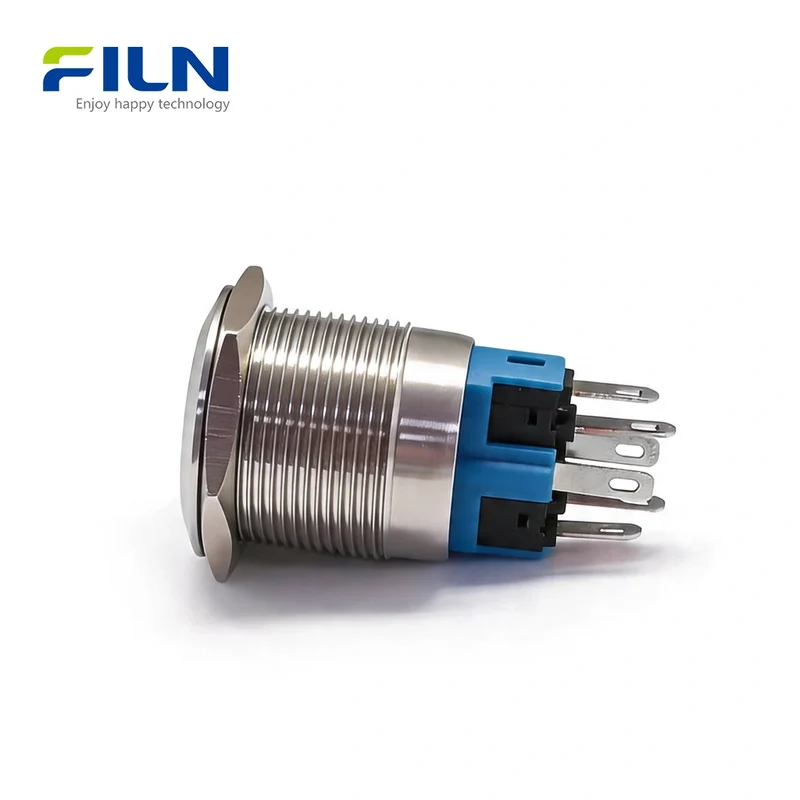

Product Overview

The button push switch (Model: FLM22-FJ-2-EX000) is a premium industrial component designed for high-performance electrical control. Featuring a 22mm mounting diameter and a high-grade stainless steel shell, this switch offers unparalleled durability. Its 6-pin terminal design ensures stable connections for both momentary and latching functions. As a leading factory, FILN ensures all products meet rigorous ISO9001, CE, VDE, RoHS, SGS, and UL certifications. This 22mm-stainless-steel-button-push-switch is widely used in automation, CNC machinery, and marine panels, providing an IP65 waterproof rating to withstand harsh industrial environments. The ring-illuminated LED enhances visibility, making it an essential ring-illuminated-metal-push-button-12v solution for dark operating conditions.

Quick Specifications

Model Number	FLM22-FJ-2-EX000
Mounting Diameter	22mm / 0.87 inch
Function	Momentary / Latching (Selectable)
LED Colors	Red, Green, Yellow, Blue, White
Button Head Style	Flat Head
Wiring Method	6-Pin Terminal (Fast Connection)

Performance Parameters

Rated Voltage	36V DC / 250V AC (12V-220V Customizable)
Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)
Insulation Resistance	≥ 1000MΩ
LED Voltage Range	3V - 220V

Looking for more options?

EXPLORE ALL PUSH BUTTON SWITCHES →

Component Materials

Button Material	304 Stainless Steel
Housing Material	Silver Stainless Steel Shell
Terminals	H62 Brass Alloy (6-Pin)
Contacts	Silver Contact AgCdO12
Sealing	Silicone Waterproof Ring

General Characteristics

Operating Temp	-25°C to +85°C
Ingress Protection	IP65 Waterproof
Mechanical Life	500,000 Cycles
Impact Protection	IK08

Comparison: Pin vs. Screw vs. Pre-wired

Terminal Type	Installation Speed	Main Advantage
6-Pin Terminal	Very High	Compact, stable for complex circuits.
Screw Terminal	Medium	No soldering required, high torque.
Pre-wired	Instant	Plug-and-play, best for waterproofing.

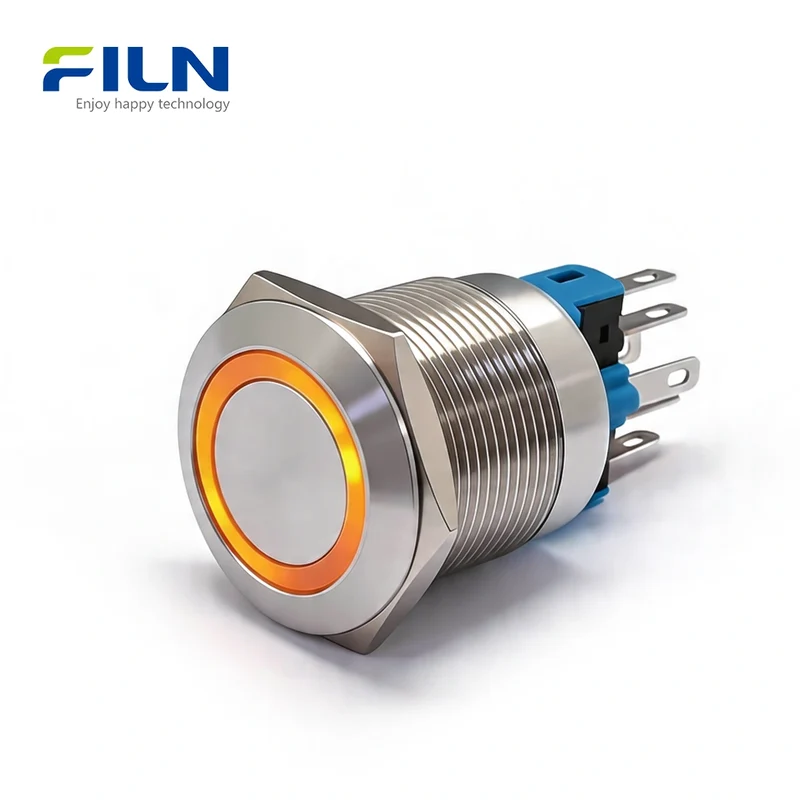

LED Indicator Advantages

The ring LED design of the 22mm-panel-mount-momentary-control-switch provides essential benefits in industrial settings. In dark or high-stress environments, a glowing LED allows for immediate identification of control states. This reduces operational errors and improves overall machine safety.

• Red: Emergency stop or system failure status.
• Green: Normal operation or "Ready" state.
• Yellow: Caution, standby, or maintenance alert.
• Blue: Specific programmed function or system active.

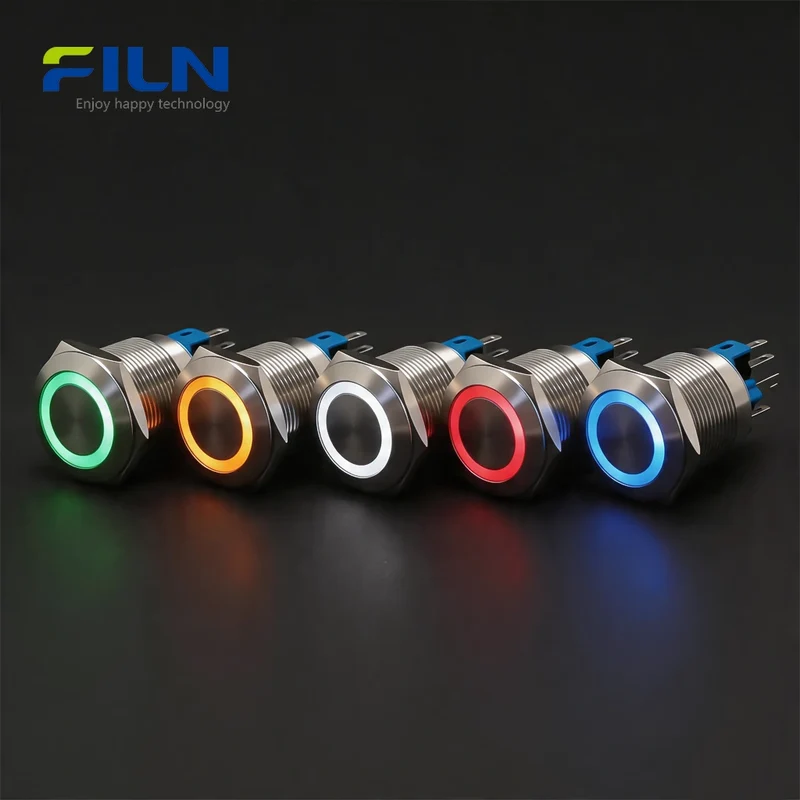

• White: Power status indicator or high-brightness backlight.

Key Features

1. Industrial-Grade Protection

With IP65 and IK08 ratings, this switch is a perfect vandal-resistant-flat-head-push-switch. It is designed to handle high-impact environments and prevent water or dust ingress into the control panel.

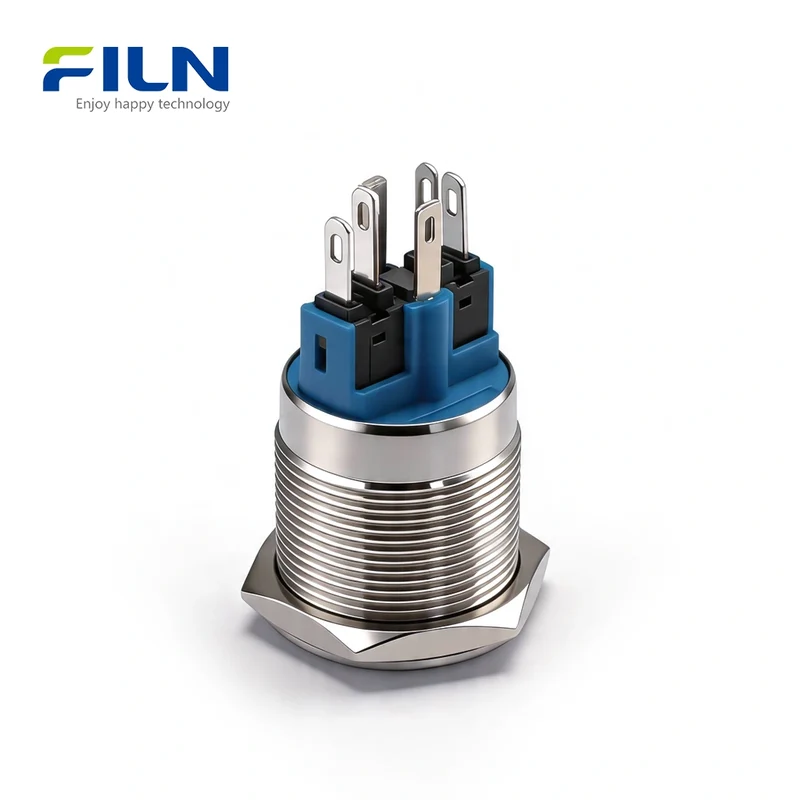

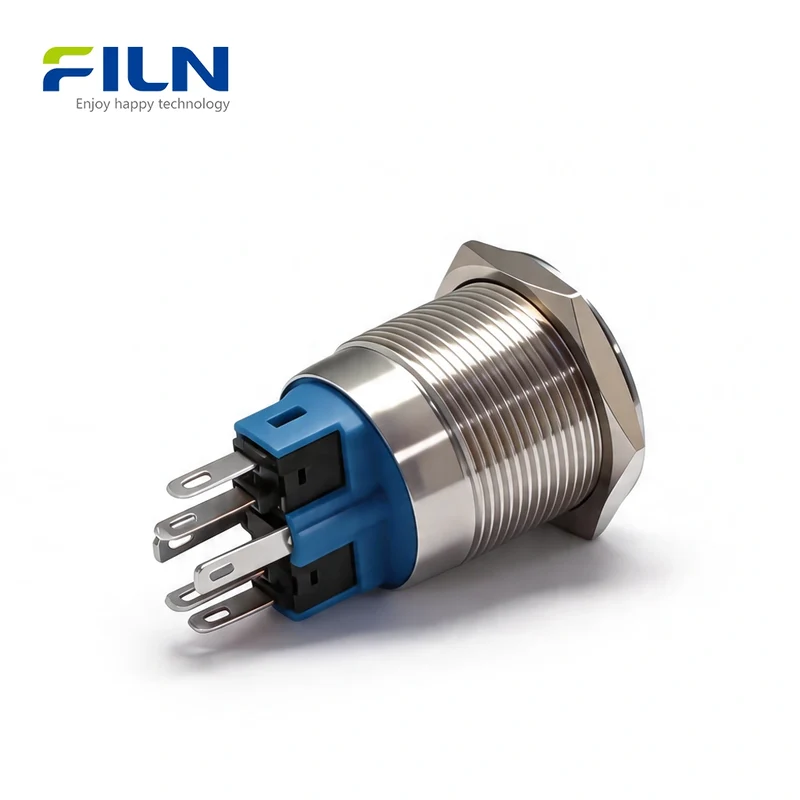

2. Versatile 6-Pin Wiring

The 6-pin configuration allows for 1NO1NC (Normally Open/Normally Closed) circuits with independent LED power pins, making it a highly flexible 6-pin-momentary-push-button-with-led.

3. Stainless Steel Longevity

Crafted from 304 stainless steel, the shell prevents rust and chemical corrosion, ensuring a mechanical life of 500,000 cycles for the heavy-duty-22mm-electrical-panel-button.

Applications

The button push switch is universal in modern electrical design. Every electrical device requires a switch to manage circuit connectivity. This 22mm model is perfect for:

• Industrial CNC Machinery Panels
• Automation Systems & Control Cabinets
• Marine Control Consoles
• Security & Access Control Systems

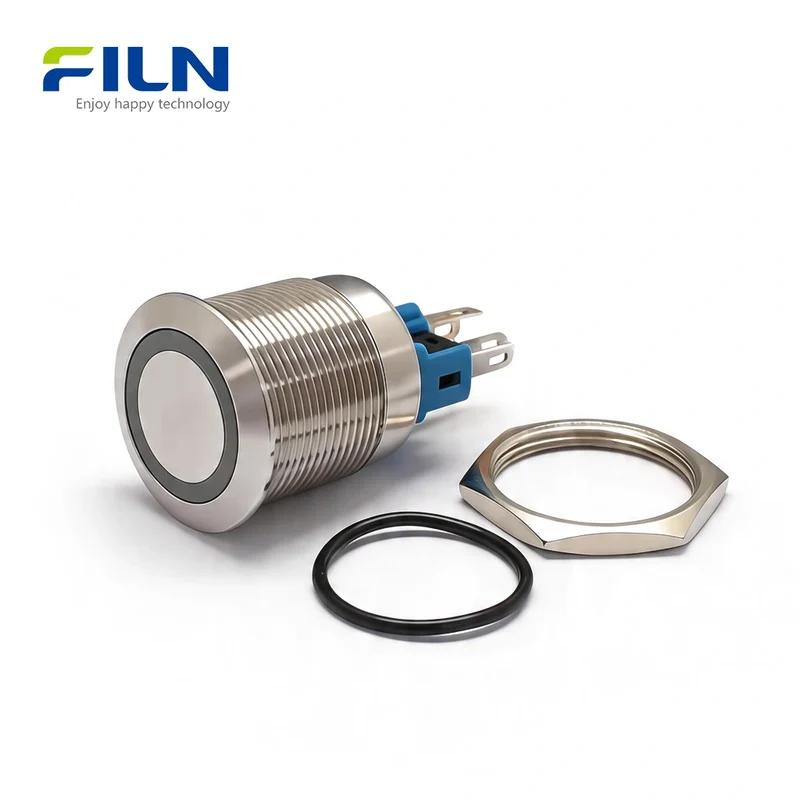

Installation Guide

1. Drilling: Drill a 22mm diameter hole in your panel.
2. Insertion: Place the button switch into the hole from the front side.
3. Fixing: Screw the metal nut onto the back of the switch to secure it against the panel.
4. Wiring: Connect the 6-pin terminals according to your circuit diagram.

Factory Direct Supply

FILN provides direct industrial solutions with no MOQ. Benefit from:

• ✅ Fast Shipping: Global logistics for urgent needs.
• ✅ Full Customization: Logo, voltage, and wire length.
• ✅ Certified Quality: CE, RoHS, and UL listed.

Official Site: www.filn.com
Email: [email protected]

Request Free Sample

Frequently Asked Questions

1. Does this 6-pin switch include LED terminals?
Yes, the 6-pin configuration includes 2 pins for the LED power and 4 pins for the 1NO1NC switch contacts.

2. Is the 22mm-stainless-steel-button-push-switch resistant to chemicals?
Yes, the 304 stainless steel shell provides excellent resistance to most industrial chemicals and saltwater.

3. Can I get a 110V version of this button push switch?
Absolutely. We offer 12V-24V as standard, but 110V-220V AC LED versions are always in stock.

4. What is the difference between momentary and latching?
Momentary resets once released (like a horn); latching stays in place until pressed again (like a light switch).

5. Can I order this 6-pin switch with pre-attached wires?
Yes, FILN offers custom wire lead soldering services for all terminal types.

6. Is this industrial-waterproof-22mm-latching-switch suitable for outdoor use?
Yes, the IP65 rating ensures it is protected against rain and dust.

7. What mounting hole size is required?
This switch requires a standard 22mm (7/8 inch) mounting hole.

8. Does the ring-illuminated-metal-push-button-12v require a resistor?
No, the resistor is built-in. You can connect it directly to your 12V power source.

9. Are the contacts silver or copper?
We use high-conductivity AgCdO12 silver contacts to ensure a long electrical life.

10. Does FILN provide technical drawings for the FLM22-FJ-2-EX000?
Yes, please contact our sales team at [email protected] for CAD files and specifications.
