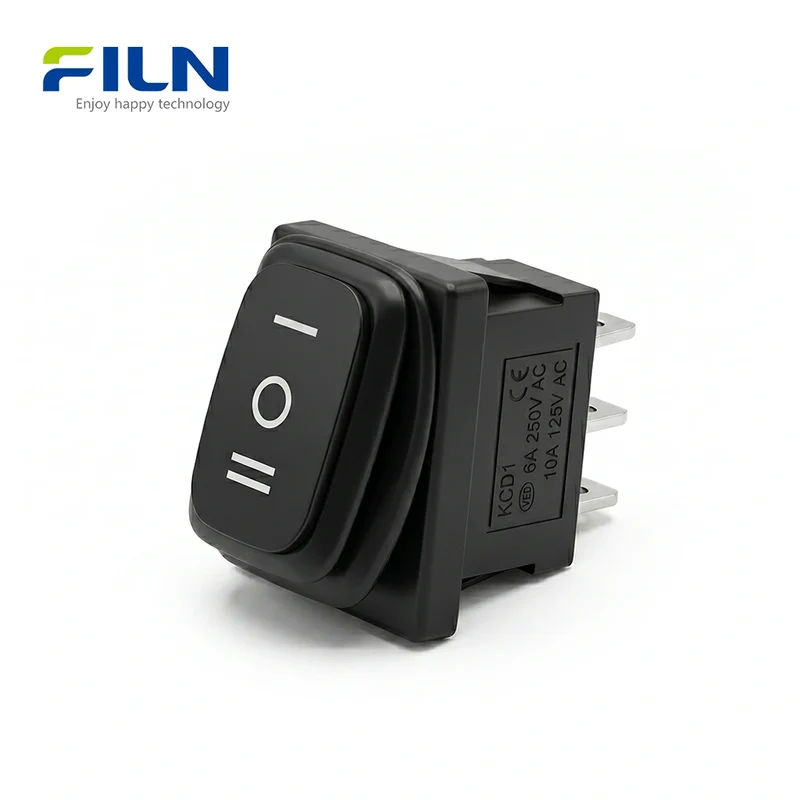

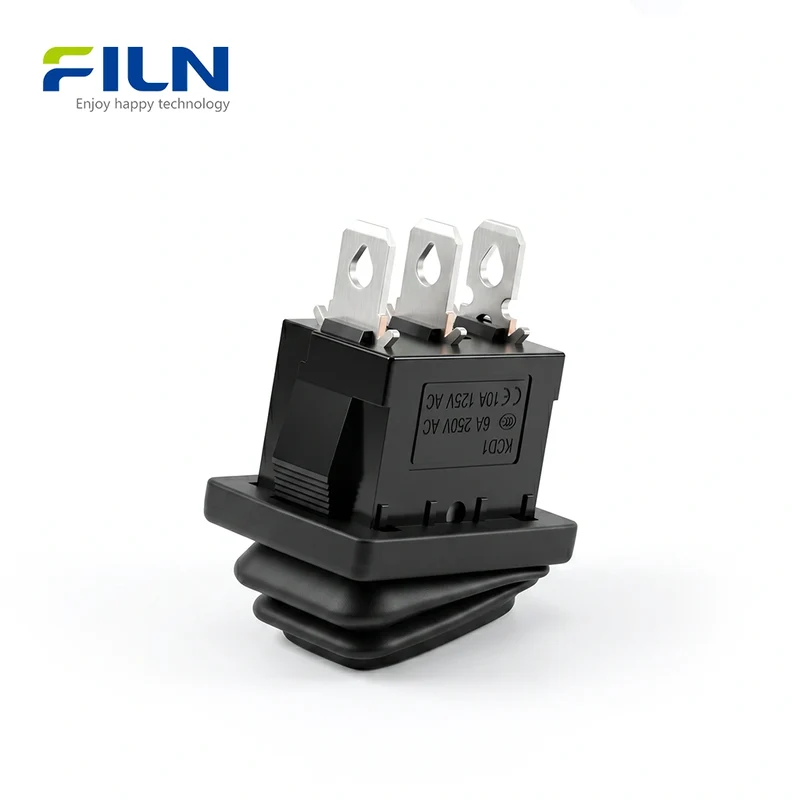

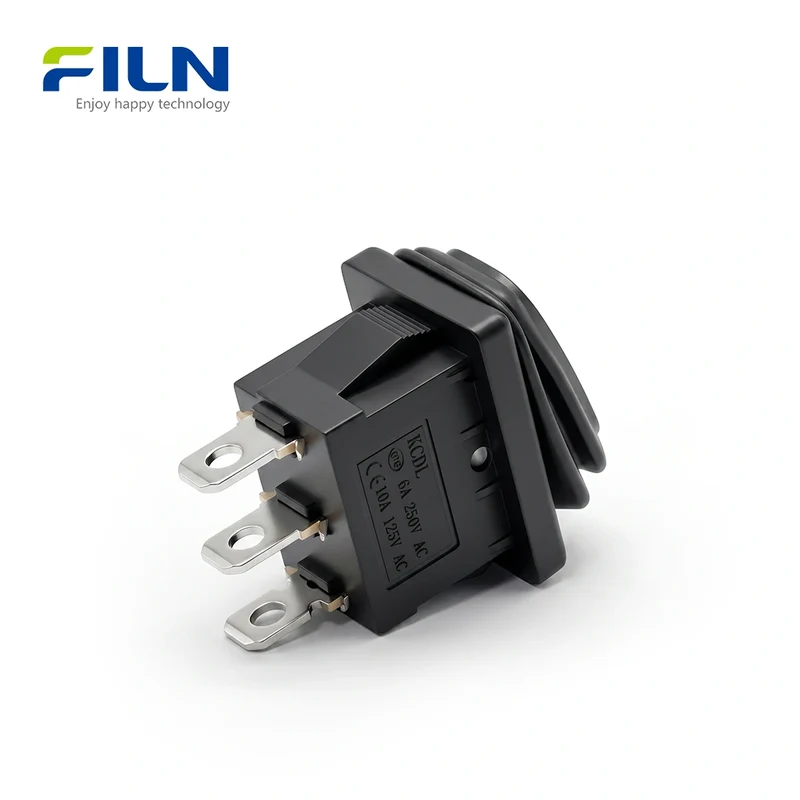

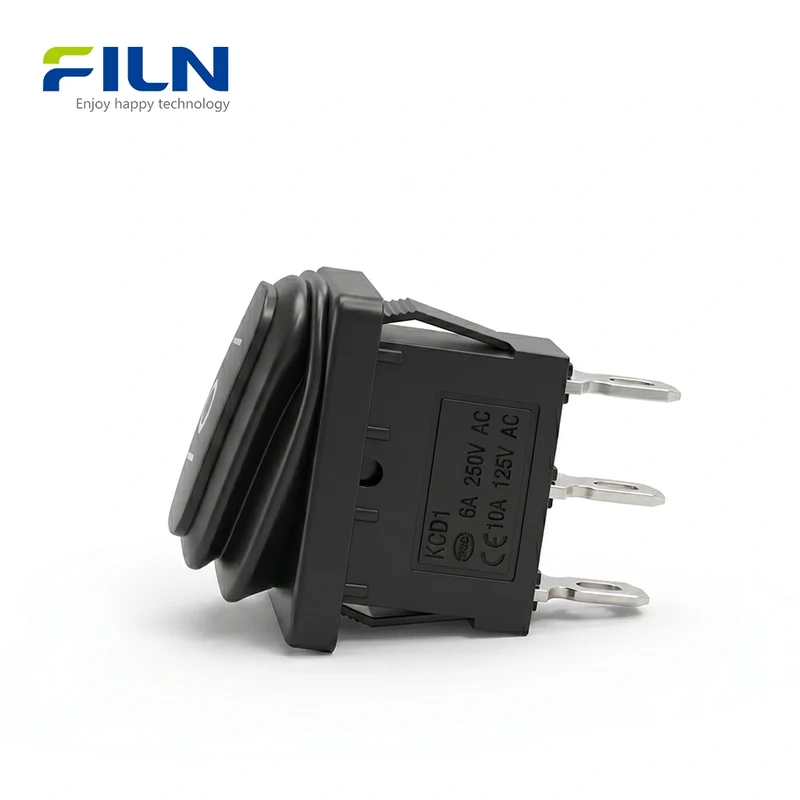

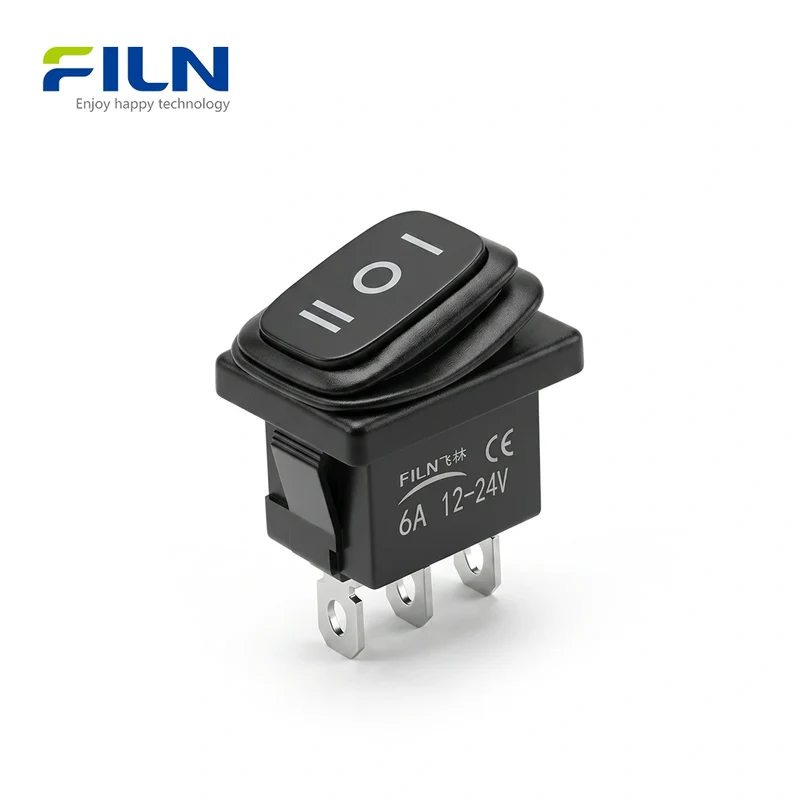

3 Position Rocker Switch ON-OFF-ON No lights MINI Rocker Switch 3-Pin FILN

Rocker Switch Drawing

What is a 3 Position Rocker Switch?

A 3 position rocker switch is a specialized electrical component designed to control two independent circuits through a single physical interface. Operating on a Single Pole Double Throw (SPDT) principle, this switch features three distinct states: ON-OFF-ON. In the central position, the circuit remains open (OFF), while the two outer positions close separate paths to direct power to different loads. The 13x19.5mm form factor is the industrial standard for "Mini" rocker switches, providing a compact yet robust solution for power management in diverse electronic environments.

Product Overview

The FILN FL3-KCD1-011-13X is a high-performance 3 position rocker switch engineered for precision and durability. This non-illuminated model offers a "all-match" aesthetic, fitting seamlessly into any panel design without the distraction of indicator lights. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, it meets the highest global safety standards. It is widely used in industrial control systems, household appliances, and automotive modifications. As a factory-direct product from FILN, it supports full customization including terminal types and pre-soldered wire leads.

Quick Specifications

Model Number	FL3-KCD1-011-13X
Mounting Size	13mm x 19.5mm (0.51" x 0.77")
Switch Function	ON-OFF-ON (3 Position)
LED Illumination	Non-Illuminated (No Light)
Actuator Shape	Rectangular / Square Profile
Wiring Method	3-Pin Solder / Quick Connect Terminals

VIEW ALL ROCKER SWITCH PRODUCTS →

Electrical Performance Parameters

Technical Parameter	Standard Value
Rated Load	30A 250VAC / 18(12)A 125VAC
Contact Resistance	≤ 50mΩ (Initial)
Insulation Resistance	≥ 100mΩ / 500VDC
Dielectric Strength	1500VAC / 5mA / 60s
Electrical Life	≥ 10,000 Cycles
Protection Degree	IP65 / IP66
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Component Materials

Part Name	Material
Transparent Sheet / Light Guide	Polycarbonate (PC)
Holder / Up Base	ABS High-Impact Plastic
Waterproof Cover / Washer	Silicone Rubber
Bottom Base	PA66 (Flame Retardant)
Pins / Spring Board	H62 Brass (Silver Plated)
Contact Point	AgCdO12 (Silver Alloy)
Spring	72# Spring Steel

General Characteristics & Testing Standards

Item	Technical Requirement
Operating Temp	-40℃ to +125℃ (Continuous operation)
Mechanical Life	20,000 Cycles (No load, 60 ops/min)
Terminal Strength	Withstands 80N static load for 60 seconds
Solderability	90%+ coverage at 235±5℃ for 3 seconds
Resistance to Heat	Maintains function after 72 hours at 125℃

Framed vs. Frameless Rocker Switches

FILN offers both "Enhanced Framed" and "Standard Classic" series. The Framed Series features an internal high-strength white frame that acts as an "exoskeleton," preventing deformation during installation in tight panels. It also provides a superior seat for waterproof covers. The Frameless Series is ideal for high-density panel layouts where space is at a premium, offering a sleek, minimalist aesthetic and optimized cost for large-scale production.

Global Applications

• Household Appliances: Coffee machines, air fryers, water dispensers.
• Industrial Control: PDU power strips, distribution boxes, test equipment.
• Medical Equipment: Centrifuges, diagnostic tools, nursing beds.
• Automotive & Marine: RV light control, bilge pumps, dashboard auxiliary switches.

Installation Guide

1. Measure and cut a rectangular hole in your panel (13mm x 19.5mm).
2. Insert the switch from the front of the panel until the side clips snap into place.
3. Ensure the switch is flush and securely held by the clips.
4. Connect wires to the 3 rear terminals using female spade connectors or soldering.

Complete 3 Pin 3 Way Rocker Switch Wiring Diagram and Guide

A 3 pin rocker switch wiring diagram is vital for projects requiring control over two separate electrical circuits. This specific configuration, commonly found in KCD1 series switches, operates as a Single Pole Double Throw (SPDT) switch with an "On-Off-On" functionality. It allows a single power source to alternate between two different devices or to remain in a central neutral position where both are disconnected.

How to Wire a 3 Pin 3 Way Rocker Switch: Step-by-Step Instructions

Wiring a 3-way non-illuminated switch involves managing a common power input and two independent output loads. Follow these steps for a correct setup:

• 1. Central Power Input (Common Pin): Connect the positive (+) wire from your power supply to the middle pin of the rocker switch. This pin acts as the common terminal that distributes power to the other two pins.
• 2. Device 1 Connection: Connect the bottom pin of the switch to the positive input of your first device (Device 1). In the "Down" position, the circuit to this device is closed.
• 3. Device 2 Connection: Connect the top pin of the switch to the positive input of your second device (Device 2). In the "Up" position, power is redirected here.
• 4. Grounding the Circuit: Connect the negative (-) terminals of both Device 1 and Device 2 directly back to the negative terminal of the power source. As this is a non-illuminated switch, the switch itself does not require a ground connection.

Switch Operation Logic Table

Switch State	Device 1 Status	Device 2 Status
UP Position	OFF	ON (Active)
Normal (Middle)	OFF (Resting)	OFF (Resting)
DOWN Position	ON (Active)	OFF

Technical Installation Considerations

• On-Off-On Functionality: This 3-pin configuration is unique because the center position acts as a complete "Off" state for both devices, making it perfect for reversing motors or toggling between two different lighting modes.
• KCD1 Series Ratings: Most KCD1 switches are rated for 6A 250VAC or 10A 125VAC. Ensure your load does not exceed these electrical specifications to prevent internal contact welding.
• Wire Termination: For high-current applications, use high-quality female spade connectors. Ensure they are snugly fitted to the 4.8mm or 6.3mm terminals to maintain low resistance and prevent heat buildup.

Figure 1: 3-Pin 3-Way Rocker Switch Connection Schematic

Industry Knowledge: Rocker vs. Push Button Switches

Feature	Rocker Switch	Push Button Switch
Installation	Snap-in (Easy)	Threaded Nut (Slow)
Current Load	High (up to 30A)	Moderate (usually <10A)
Visual Status	Clear physical angle	Needs LED indicator

How it works: A rocker switch uses a mechanical "seesaw" mechanism. When one side is pressed, the internal bridge pivots to make contact with a terminal, completing the circuit. In an ON-OFF-ON configuration, the bridge is only in contact with the central terminal in the middle position, preventing any current flow.

FILN Factory Direct Supply

FILN is a leading manufacturer of industrial switches with no MOQ requirements. We offer Fast Global Shipping and extensive Customization options for voltage, wire length, and connectors.

• ✅ No MOQ: Small batch orders welcome.
• ✅ Lead Time: Rapid production and shipping.
• ✅ Certifications: CE, RoHS, UL, ISO9001.

REQUEST FREE SAMPLES

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

Q1: What is the difference between a 3-pin and 2-pin rocker switch?
A: A 2-pin switch is a simple ON-OFF switch for one circuit. A 3-pin 3-position switch allows for ON-OFF-ON control over two different circuits. Q2: Why choose a non-illuminated 3-pin switch?
A: Non-illuminated switches are more versatile as they do not have specific voltage requirements for a lamp, making them a "universal fit" for both 12V and 220V systems. Q3: What are the electrical ratings for the FL3-KCD1?
A: It is rated at 30A 250VAC or 18A 125VAC, making it suitable for high-power industrial loads. Q4: Does FILN provide custom wire harnesses?
A: Yes, we can customize wire length, wire gauge, and pre-install various connectors to save your assembly time. Q5: What certifications does this switch carry?
A: This model is UL, CE, VDE, and RoHS certified, ensuring compliance for export to US and European markets.
