22mm Lighted Push Button Switch Ultra-short Body Momentary 4-Pin 12V-220V Metal FILN

Button Switch DrawingProduct Overview

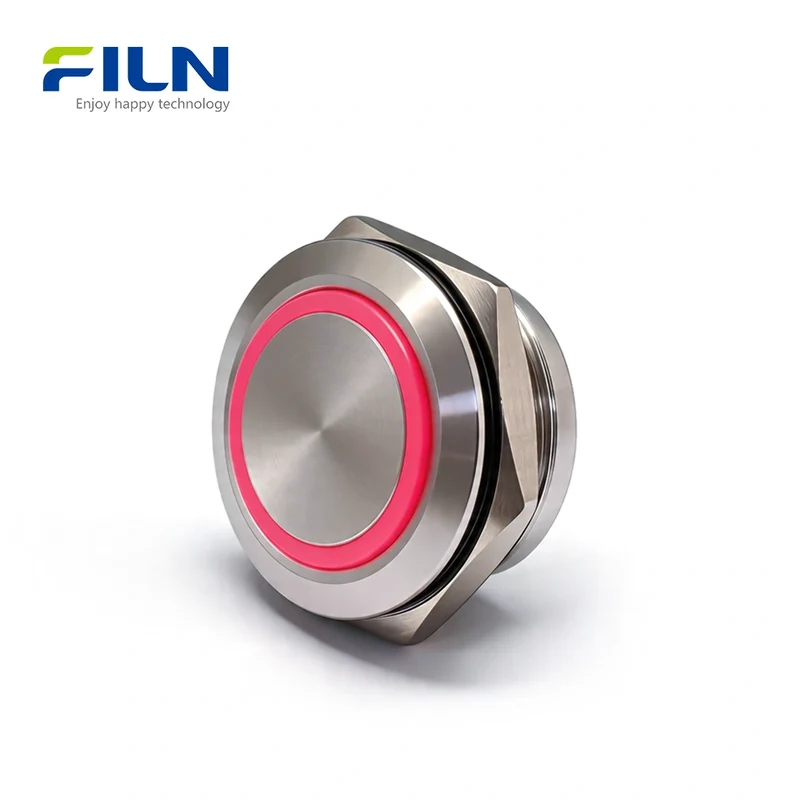

The lighted push button switch (Model: FLM22-FJ-4-E) is a high-performance 22mm momentary switch designed by FILN for industrial precision. Featuring an ultra-short body design and 4-pin terminals, this metal push button switch is ideal for installation in narrow spaces. It carries top-tier certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and an upgraded IP67 waterproof rating. Constructed from 304 stainless steel or black zinc-aluminum alloy, it provides a sleek flat head with a vibrant LED ring, widely used in CNC machines, medical devices, and automation control panels.

View All FILN Push Button Switches →

Quick Specifications

Model Number	FLM22-FJ-4-E	Mounting Size	22mm (0.87 inch)
Function	Momentary (Self-reset)	LED Color	R/G/Y/B/W (Dual/Triple Customizable)
Button Shape	Flat Head	Terminal Type	4-Pin (2.8x0.5mm) Plug-in

Performance Parameters

Rated Voltage	12V-24V / 110V-220V (Customizable)	Contact Resistance	≤ 50mΩ
Insulation Resistance	≥ 1000MΩ	Dielectric Strength	1800V AC (Pin to Housing)
Operating Force	Approx. 6N	Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Component Materials

Component	Material Specification
Button Actuator	304 Stainless Steel / Zinc-Aluminum Alloy
Housing Sleeve	304 Stainless Steel / Black Anodized Aluminum
Contact Material	Silver Alloy (AgCdO12)
Base Holder	PA66+GF20% Flame Retardant Nylon
Sealing	SIL Silicone (Waterproof Ring)

General Characteristics

Protection Level	IP67 Waterproof, IK08 Impact Resistance
Mechanical Life	200,000 cycles
Electrical Life	100,000 cycles
Temperature Range	-25°C to +85°C

LED Specification

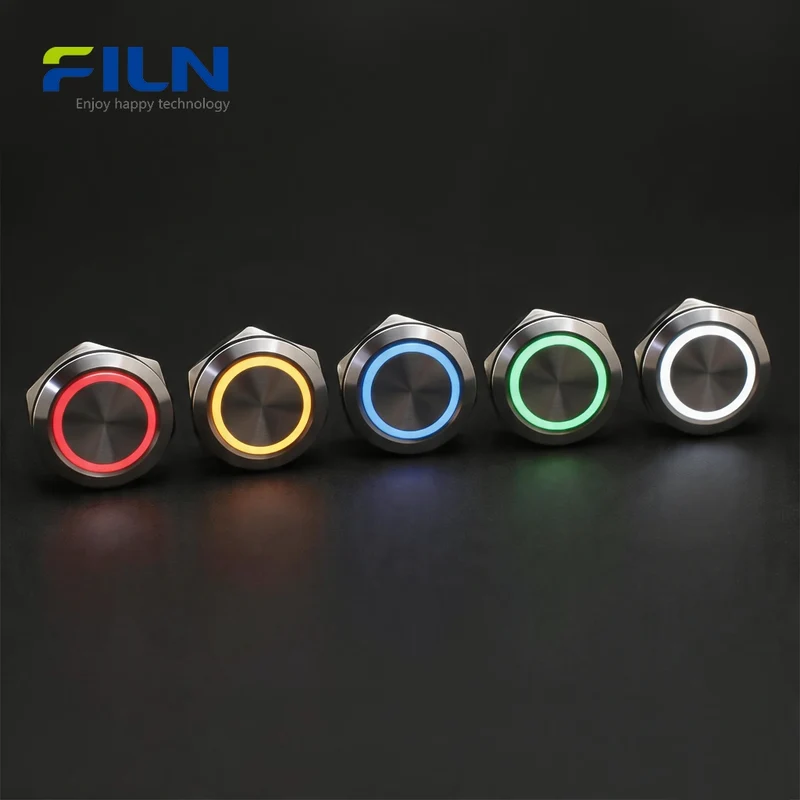

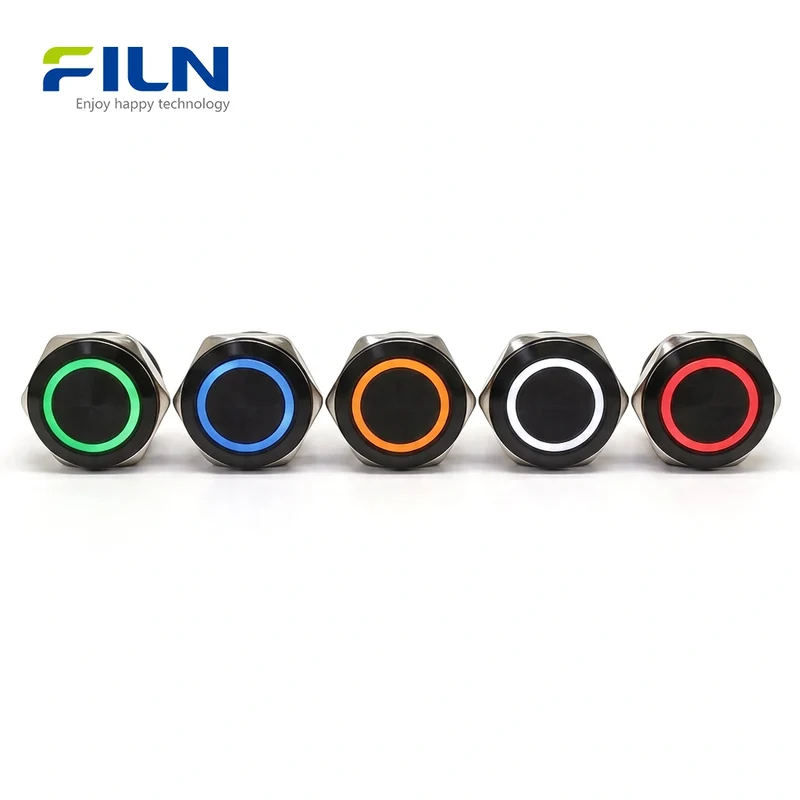

Available Colors	Red, Green, Yellow, Blue, White (R/G/Y/B/W)
Forward Current	20mA (Typical)
Luminous Intensity	1000 mcd
Color Temperature (White)	8400K

Key Features

• Elite Protection (IP67): Unlike standard IP40 buttons, this model provides complete dust protection and water immersion resistance, perfect for harsh outdoor or industrial environments.

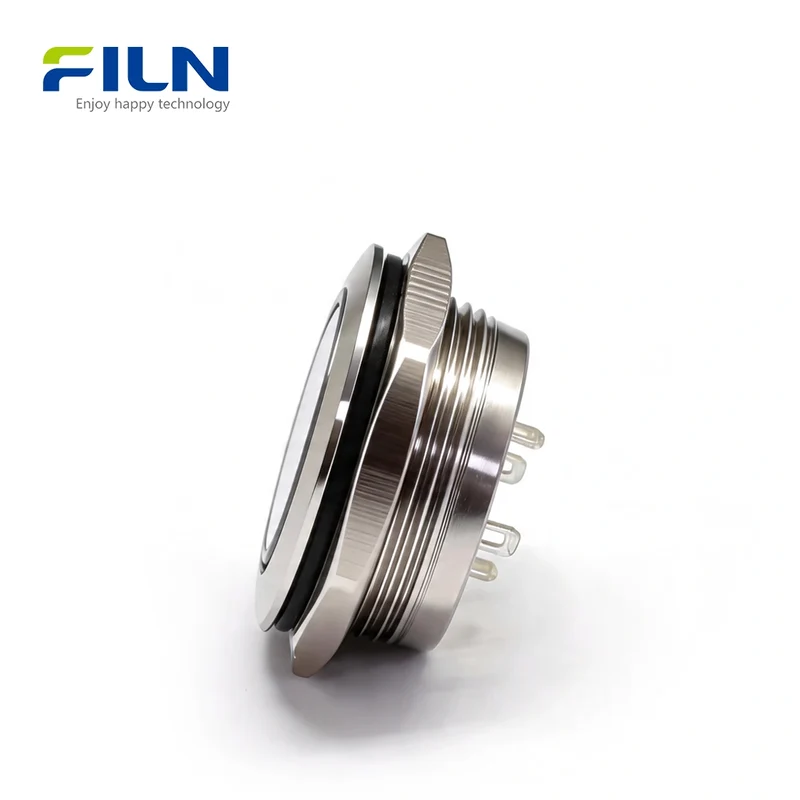

• Ultra-Short Design: With a body length of only 26.5mm, it is designed specifically for control panels where depth is limited.
• Silver Alloy Contacts: Low contact resistance (<50mΩ) ensures high conductivity and reduces electrical arcing, extending the switch's lifespan.
• Momentary Function: The momentary push button resets immediately after being released, ideal for pulse-triggered operations.

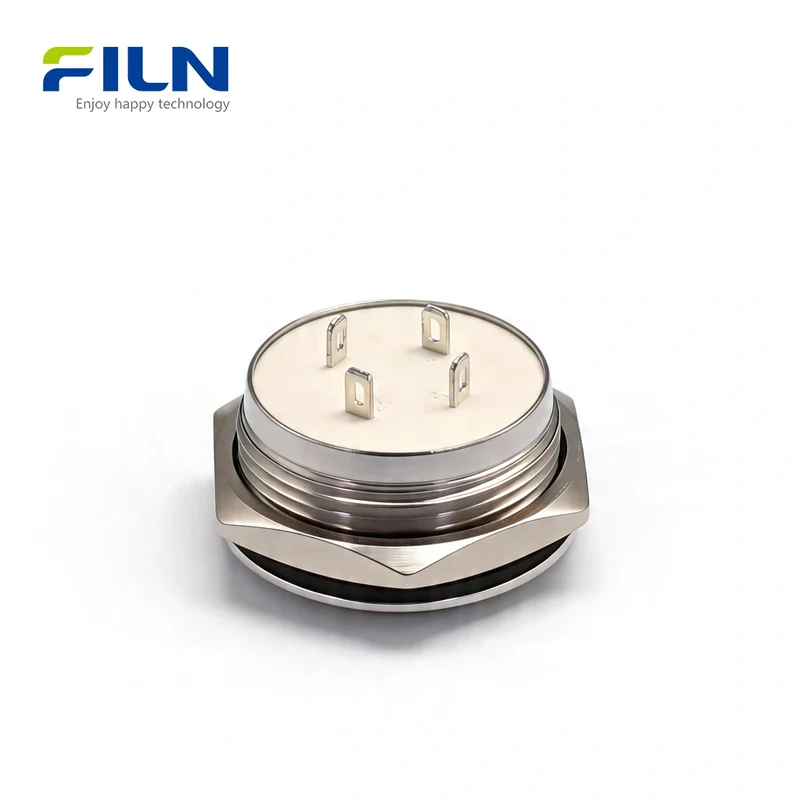

• 4-Pin Simplicity: Two pins for the switch contact (1NO) and two pins for the LED (+/-), allowing for easy wiring and high-density installation.

Applications

FILN's lighted push button switches are essential components for any device requiring circuit control. Common applications include:

• Industrial Control: CNC machines, automation equipment, and electrical cabinets.
• Marine & Transportation: Marine dashboard systems and automotive fog light controls.
• Commercial & Medical: Medical diagnostic tools and dark-environment hallway switches.

Installation Guide

1. Drill a 22mm diameter hole on the mounting panel.
2. Insert the switch through the hole from the front side.

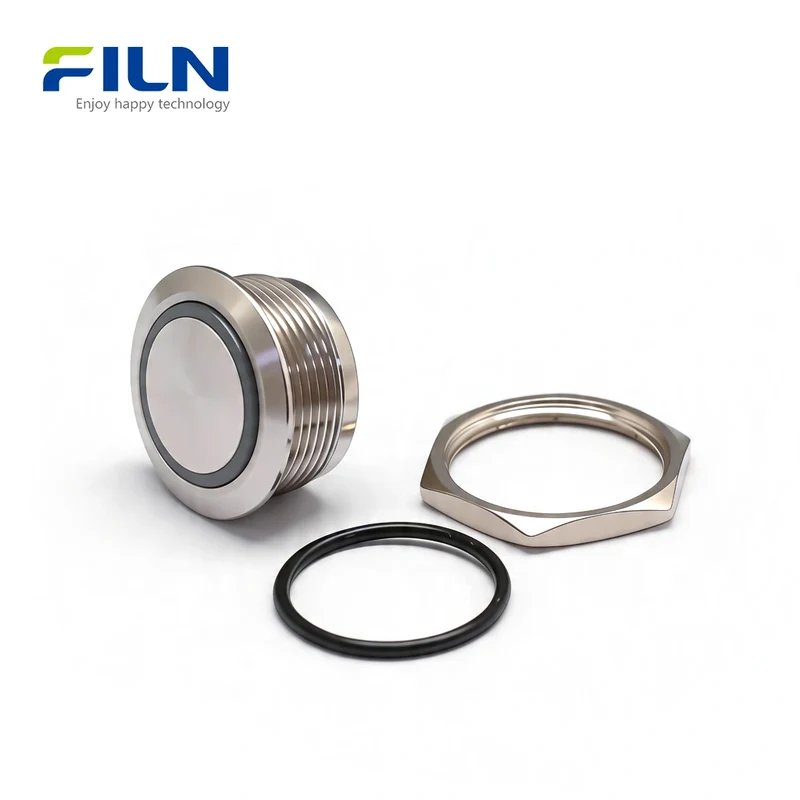

3. Tighten the metal hex nut from the back to secure the switch.

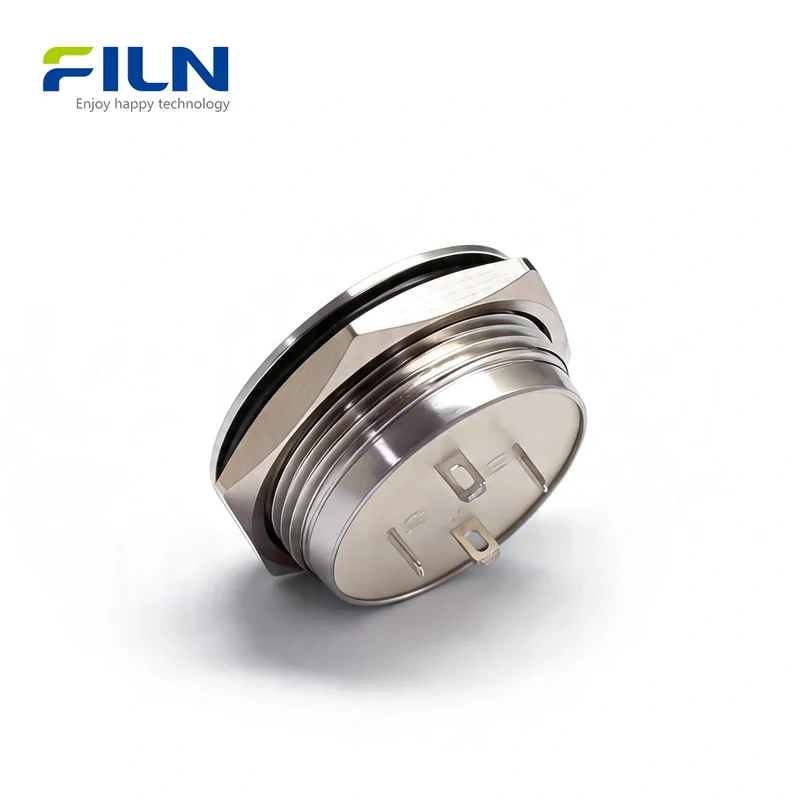

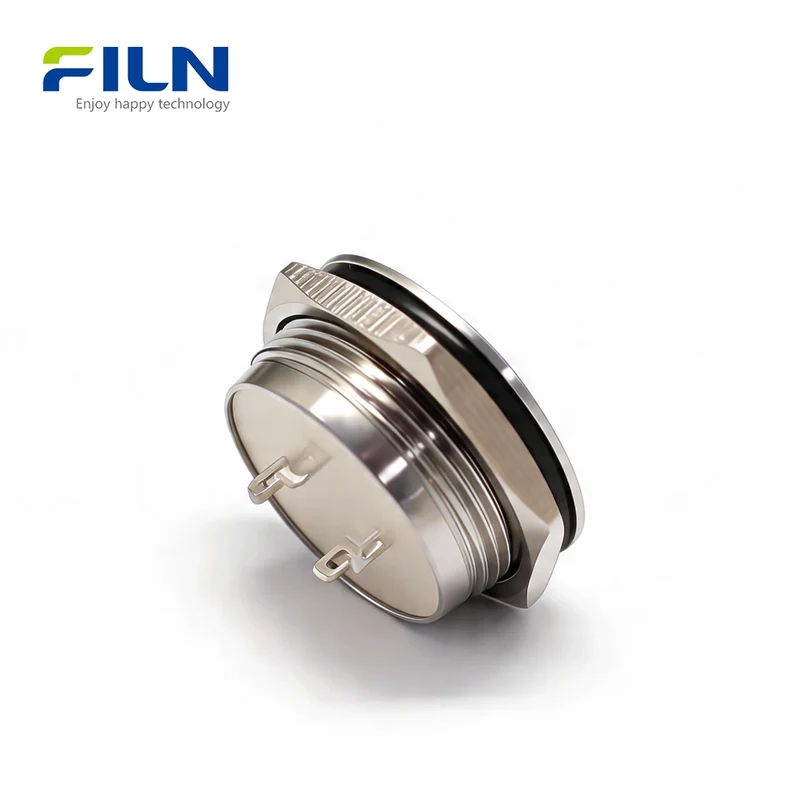

4. Connect the 4-pin terminals (2 for power/device, 2 for LED).

4 Pin Push Button Switch Wiring Diagram

A 4-PIN switch consists of two parts: Switch Contacts (to control the device) and LED Terminals (marked with + and -). Below are two ways to wire the LED indicator.

• Horizontal Pins: The switch mechanism (Power In / Load Out).
• Vertical Pins (+ / -): The LED indicator light terminals.

Method 1: LED Synchronized with Device (On when Active)

Logic: The button light only turns ON when the device is running. It serves as a "Status Indicator."

• Wiring: Connect LED (+) to the Output side of the switch. LED (-) to Power Negative.
• Applications: Power start buttons, car fog lights, industrial machinery.
• Benefit: Saves power; provides visual feedback that the system is active.

Figure 1: LED turns ON only when button is pressed

Method 2: LED Always ON (Backlight Mode)

Logic: The button light stays ON constantly as long as there is power, regardless of the button position.

• Wiring: Connect LED (+) directly to the Power Positive. LED (-) to Power Negative.
• Applications: Dark environments, hallway switches, standby power indicators.
• Benefit: Allows you to find the switch easily in total darkness.

Figure 2: LED stays ON constantly (Backlight)

Mode	LED Status (Idle)	LED Status (Pressed)
Sync (Status)	OFF	ON
Always ON (Backlight)	ON	ON

Industry Knowledge

1. What is a 4-Pin Lighted Push Button Switch?

It is a control component that integrates a switching mechanism and a status indicator. In industrial machinery, it serves as the human-machine interface (HMI) to trigger operations while providing visual confirmation via the LED ring.

2. Latching vs. Momentary: The Difference

Feature	Momentary (This Model)	Latching
Operation	Springs back when released	Stays depressed until pressed again
Typical Use	Doorbell, PC Power, Start Button	Light Switch, Main Power Toggle

Factory Direct Supply

FILN is a professional manufacturer specializing in button switches. We offer:

• No MOQ (Small orders welcome)
• Lead Time: 24-hour fast shipping
• Custom Voltage (3V - 380V)
• Custom Wire Harness & Connectors

Request Free Samples

Official Website: www.filn.com
Contact: [email protected]

Frequently Asked Questions (FAQ)

Q1: Is this 22mm push button switch waterproof?
A: Yes, it is rated IP67, meaning it is protected against dust and short periods of immersion in water. Q2: What do the different LED colors represent?
A: Red usually signifies "Stop/Danger," Green is "Start/Safe," Blue is "Special Function," Yellow is "Caution," and White is "General Status/Power." Q3: Can I get a custom voltage for the LED?
A: Absolutely. While 12V and 220V are standard, FILN can customize for any voltage from 3V to 380V. Q4: What is the benefit of the 4-pin design?
A: The 4-pin design separates the LED circuit from the switch circuit, allowing for more flexible wiring logic (e.g., LED on/off independent of switch state).
