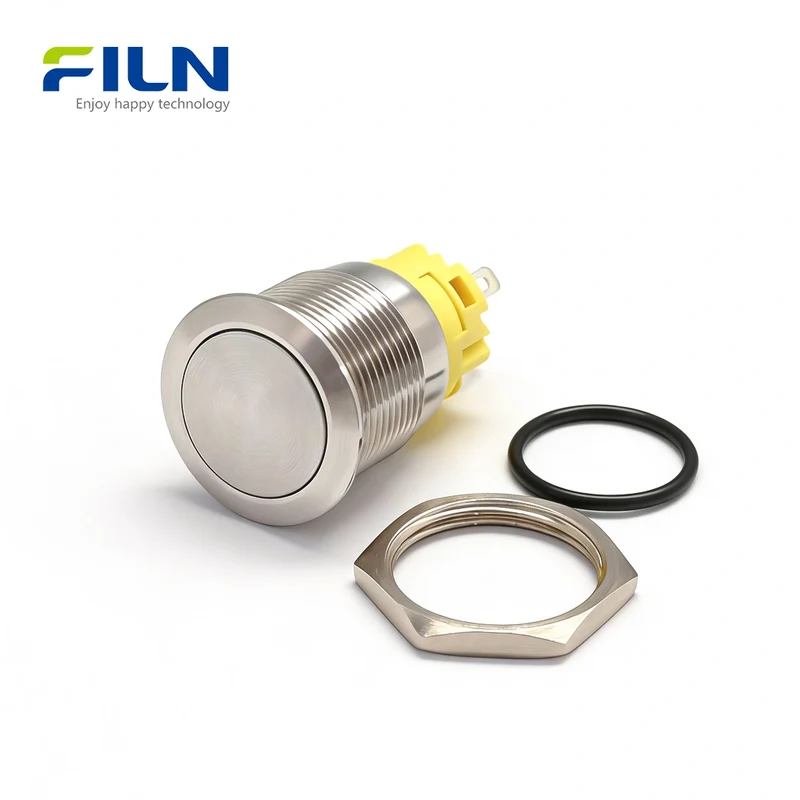

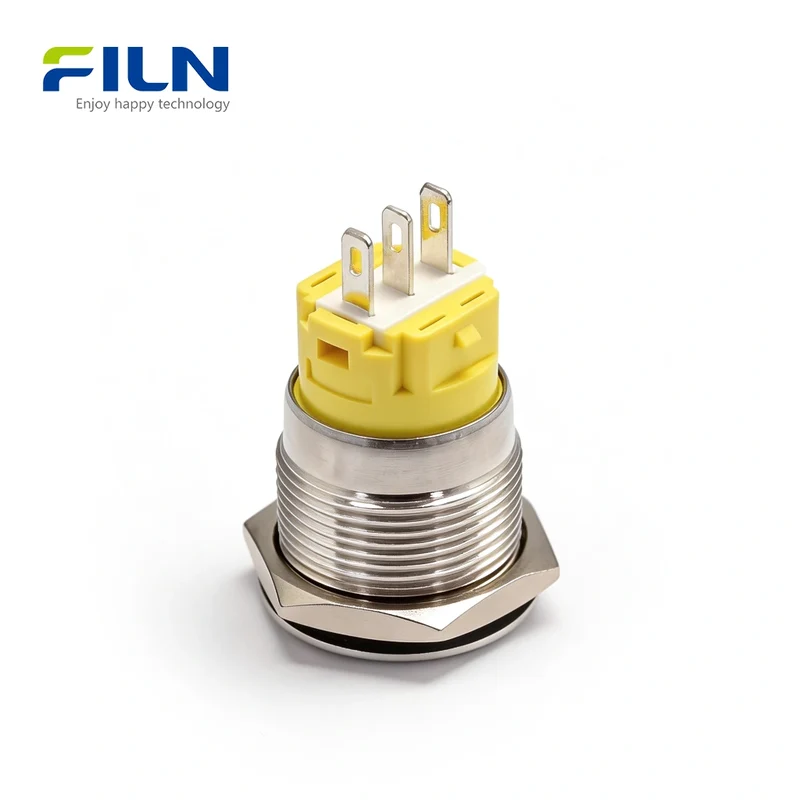

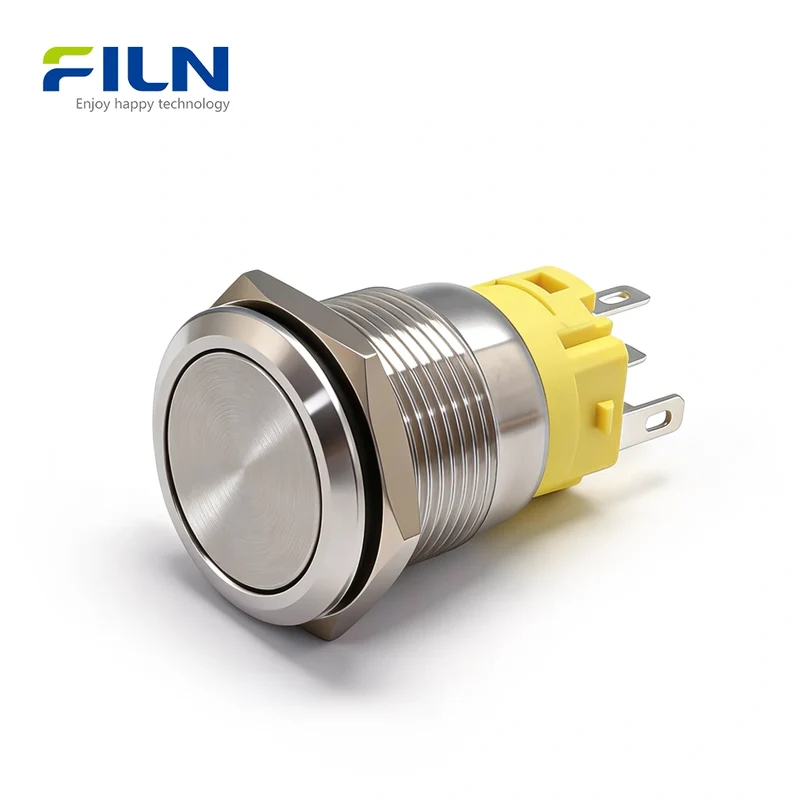

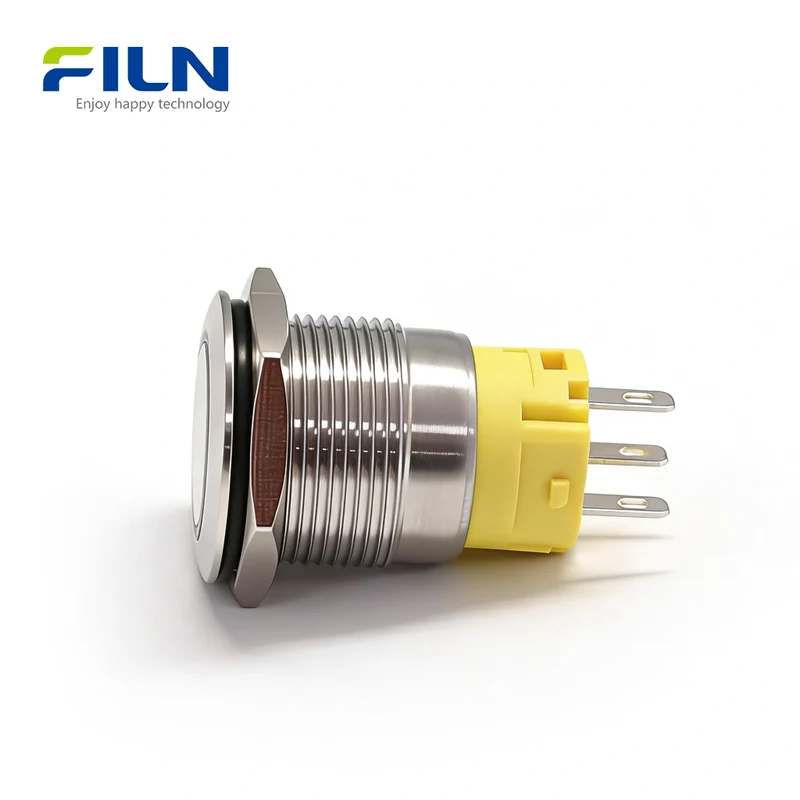

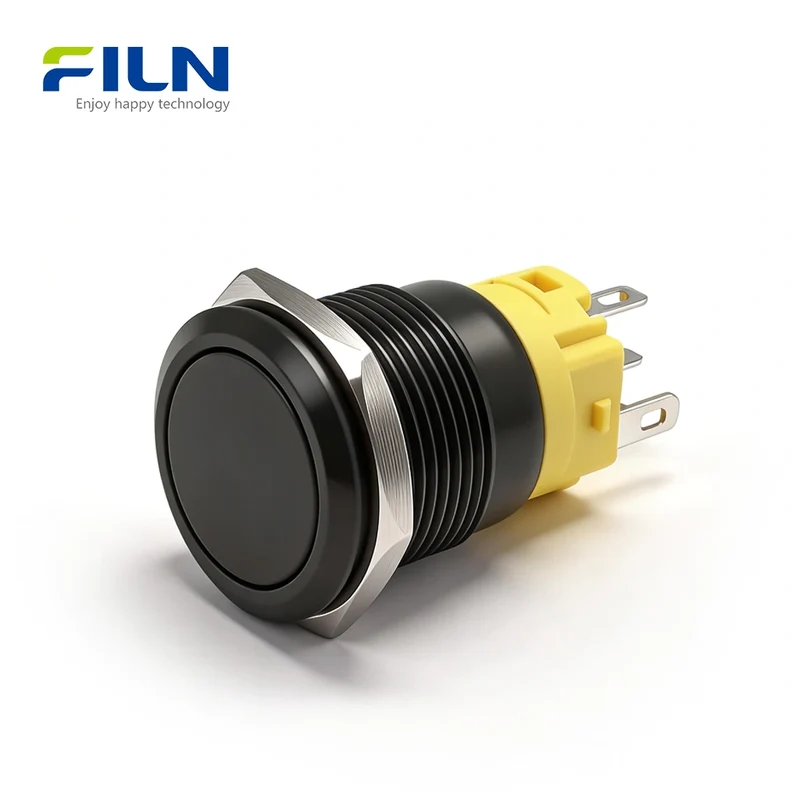

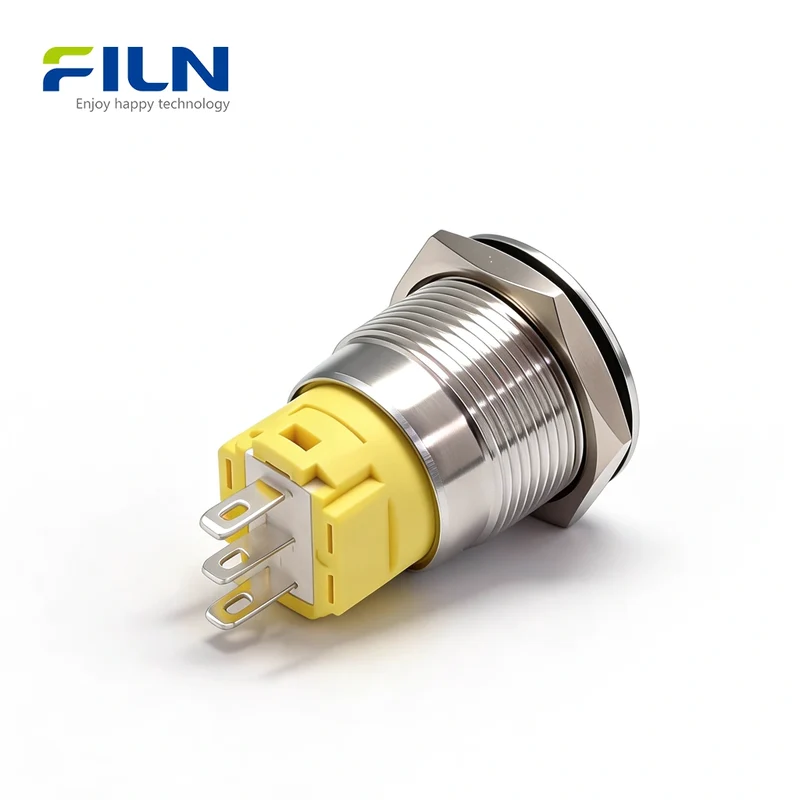

19mm Push Button Latching Switch Zinc Alloy/Steel Non-illuminated Push Button Switch 3-PIN FILN

Button Switch DrawingProduct Overview

The 19mm push button latching switch (Model: FLM19-FJ-1) is a high-performance industrial component designed for durability and precision. Manufactured by FILN, a leading factory in switch technology, this product carries prestigious certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Whether you require a zinc alloy black push button for aesthetic integration or a stainless steel push button switch for harsh environments, the FLM19-FJ-1 series offers unmatched reliability. These 3-pin terminal button switches are ideal for industrial control panels, medical devices, and marine systems, providing both latching and momentary functionalities to suit various circuit requirements.

Quick Specifications

Model Number	FLM19-FJ-1
Mounting Hole Size	19mm (0.75 inch)
Function	Latching / Momentary (Available)
Illumination	Non-Illuminated (No LED)
Actuator Shape	Flat Head
Terminal Type	3-PIN Pin Terminal (2.8 x 0.5mm)

View All FILN Push Button Switches →

Performance Parameters

Rated Voltage	36V DC / 250V AC	Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)	Insulation Resistance	≥ 1000MΩ
Contact Resistance	< 50mΩ	Dielectric Strength	1800V
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL, IP65

Terminal Type Comparison

Feature	Pin Terminal (This Product)	Screw Terminal	Pre-wired
Wiring Speed	Fast (with Socket)	Medium	Immediate
Durability	High (Stable connection)	High	Medium
Best Use Case	Mass Production / PCBs	Field Maintenance	Space Constrained

Pro Tip: This switch can be paired with our customized wire harness for even faster installation. [Shop Wire Connectors Here]

Component Materials

Button Actuator	304 Stainless Steel / 6063 Aluminum Alloy
Housing Sleeve	H59 Brass / 304 Stainless Steel / 6063 Aluminum Alloy
Button Pins	H62 Copper Alloy
Base	PA66+GF20% Flame Retardant Nylon
Contacts	Silver Contact AgCdO12
Waterproof Ring	SIL Silicone

Environmental & Life Parameters

Operating Temperature	-25°C to +85°C
Protection Level	IP65 (Waterproof), IK08 (Impact Resistant)
Mechanical Life	500,000 Cycles
Electrical Life	100,000 Cycles (3A) / 50,000 Cycles (5A)

Understanding LED Colors in Switches

Although this model is non-illuminated, FILN provides custom LED options. Here is what colors represent in industrial standards:

• Red: Danger, Emergency, or Stop.
• Green: Ready, Start, or Safe Condition.
• Blue: Special Action, Reset, or Manual Override.
• Yellow: Warning or Abnormality.
• White: Neutral power status or General Illumination.

Key Features

1. Exceptional Protection: Rated IP65 and IK08, making it dust-tight, waterproof, and resistant to heavy impacts in harsh industrial settings.
2. High Load Capacity: Supports 5A 250V AC/DC, allowing direct control of power equipment without additional relays.
3. Premium Materials: Available in 304 Stainless Steel or Black Zinc Alloy. Silver contacts ensure low resistance and high conductivity.
4. Compact Design: A total length of approximately 26.5mm ensures the switch fits into tight control panels and handheld devices.
5. Versatile Mounting: Threaded installation with a metal nut ensures the switch stays secure in vibration-prone environments.

Applications

The versatility of the FLM19-FJ-1 series makes it suitable for diverse industries:

• Industrial Control Panels
• CNC Machinery
• Automation Equipment
• Electrical Cabinets
• Marine Systems
• Medical Devices
• Security Alarms
• Food Processing Equipment

Installation Guide

1. Drill a 19mm hole in the control panel.
2. Insert the switch from the front of the panel.
3. Slide the O-ring onto the switch body from behind.
4. Thread and tighten the metal nut against the panel to secure the switch.
5. Connect the wires to the 3-PIN terminals (Common, NO, or NC).

3 Pin Push Button Switch Wiring Diagram

A 3-PIN switch consists of a Common (C), Normally Open (NO), and Normally Closed (NC) terminal. Use these connections to control whether a device turns on or off when pressed.

• C (Common): Power input terminal.
• NO (Normally Open): Connects only when pressed.
• NC (Normally Closed): Disconnects when pressed.

Method 1: Normally Open (NO) Connection

Logic: Device stays OFF by default and turns ON only when pressed.

• Wiring: Power (+) to C, Device (+) to NO.
• Applications: Door bells, PC power buttons, car horns, momentary starters.

Figure 1: Normally Open (NO) Wiring Diagram

Method 2: Normally Closed (NC) Connection

Logic: Device stays ON by default and turns OFF only when pressed.

• Wiring: Power (+) to C, Device (+) to NC.
• Applications: Emergency stops, limit switches, fridge door light control.

Figure 2: Normally Closed (NC) Wiring Diagram

Terminals	Default	Action (Pressed)
C + NO	Device OFF	Device ON
C + NC	Device ON	Device OFF

Industry Knowledge

1. What is a 19mm Push Button Latching Switch?

In industrial automation, the 19mm push button latching switch acts as a physical interface for power management. A latching power switch 19mm maintains its state (staying depressed) once pushed, requiring a second push to release. This is crucial for equipment that needs to remain active without continuous manual pressure. The 19mm mounting diameter is an industry-standard size, ensuring compatibility with most commercial enclosures.

2. Latching vs. Momentary: Which do you need?

Function	Action	Typical Use
Latching	Pushes and locks in place. Push again to release.	Power buttons, Main Light switches.
Momentary	Springs back immediately after being pressed.	Door bells, Horns, Reset buttons.

Factory Direct Supply - FILN Advantage

• ✅ NO MOQ: Small orders welcome for startups and maintenance.
• ✅ Rapid Lead Time: Fast manufacturing and global shipping.
• ✅ Full Customization: Voltage, wire length, and connector options.
• ✅ Direct Support: Engineering consultation from our factory team.

Request Free Samples

Official Website: www.filn.com
Contact: [email protected]

Frequently Asked Questions (FAQ)

1. Is the 19mm push button latching switch waterproof?
Yes, it is IP65 rated, meaning it is protected against low-pressure water jets and dust.

2. Can I use this for DC and AC power?
Yes, it supports up to 36V DC and 250V AC at 5A.

3. What material should I choose: Zinc Alloy or Stainless Steel?
Zinc Alloy Black is great for aesthetics; Stainless Steel is best for high corrosion or medical environments.

4. Does FILN offer custom wire harnesses for these?
Yes, we provide pre-wired sockets to make your installation much faster.

5. What is the difference between a 3-pin and 5-pin button?
3-pin buttons are usually for simple switching; 5-pin buttons include two dedicated pins for LED lights.

6. Is this switch IK08 rated?
Yes, it has high impact resistance, perfect for industrial "anti-vandal" applications.

7. How do I install it on a panel?
Drill a 19mm hole, insert the switch, and tighten the included metal nut on the back.

8. Can I get a sample before a bulk order?
Yes, contact us at [email protected] for sample requests.

9. Do these switches have UL certification?
Yes, our switches are UL, CE, and RoHS certified.

10. What is the mechanical life of the FLM19-FJ-1?
It is designed for up to 500,000 mechanical operations.
