19mm Momentary Push Button 12V High Head LED Ring Stainless Steel 4-Pin | FILN

Button Switch DrawingProduct Overview

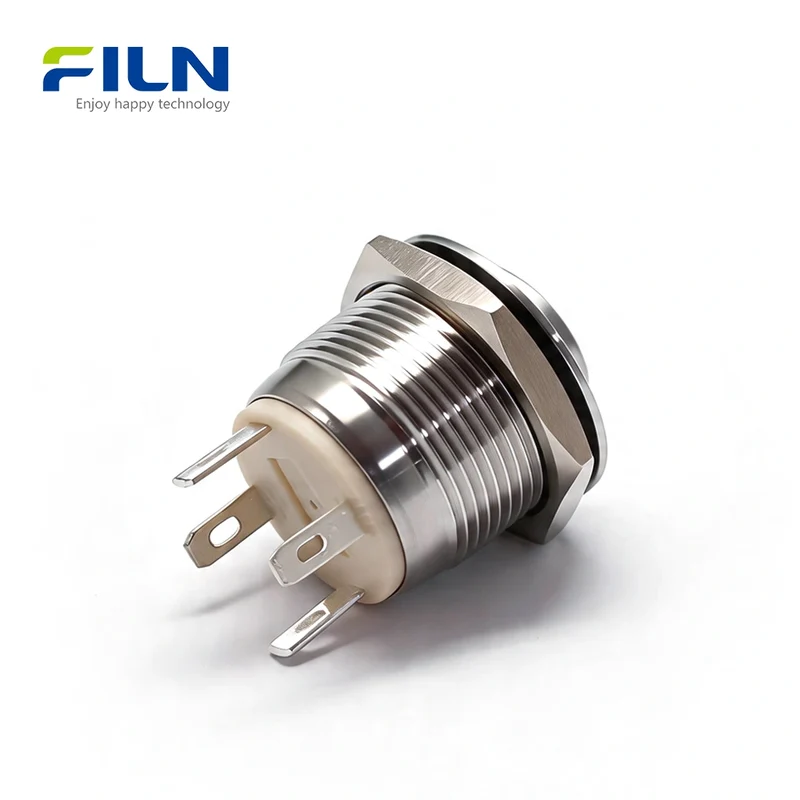

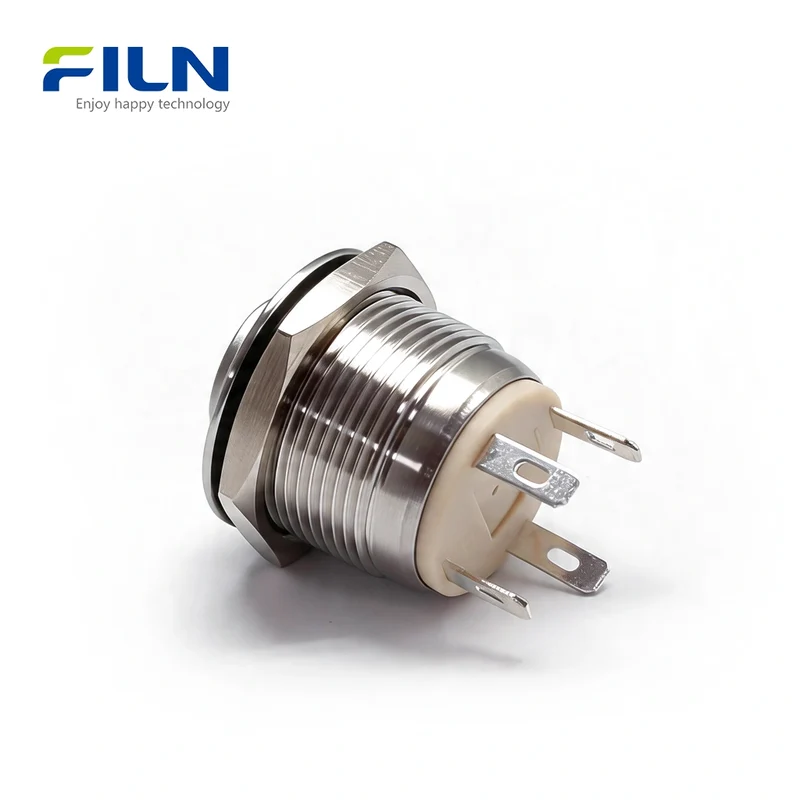

The FLM19-HJ-2-E is a premium momentary push button 12V designed for high-end industrial and commercial applications. As a professional FILN product, it features a 19mm stainless steel housing with a high-head design, providing superior tactile feedback and ergonomic control, especially for Western users with larger hands.

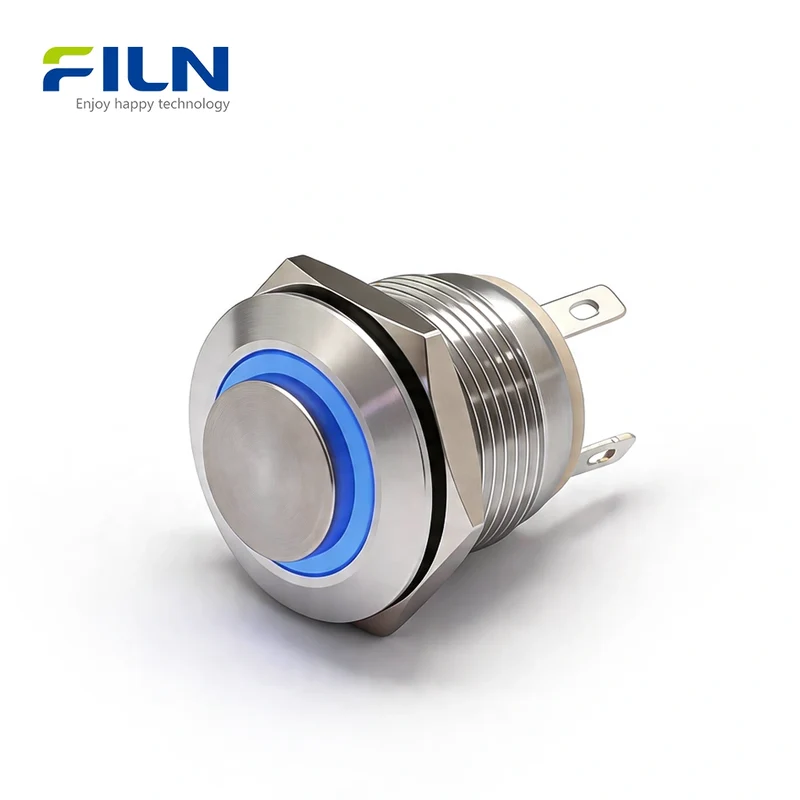

This 19mm metal push button switch is equipped with a brilliant LED ring light, ensuring clear visibility in low-light or nighttime environments. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, it is perfect for industrial-momentary-control-switch needs in CNC machines, marine equipment, and automation systems. FILN is a leading factory providing full customization for voltage and wiring to meet your specific project requirements.

🛒 Browse All Industrial Push Button Switches →

Quick Specifications

Model	FLM19-HJ-2-E
Size	19mm / 0.75"
Function	Momentary

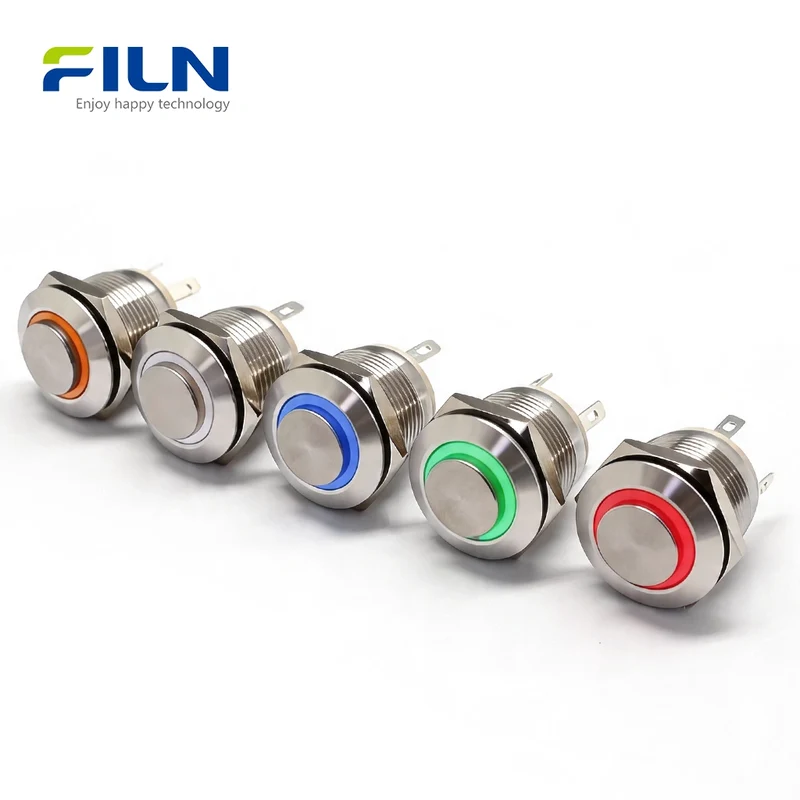

LED Color	Red, Green, Yellow, Blue, White
Button Shape	High Head (Ergonomic Design)
Wiring Type	4-Pin Pin Terminal

Performance Parameters

Rated Voltage	36V DC / 250V AC	Rated Current	5A
Rated Power	180W (DC) / 1250W (AC)	Dielectric Strength	1800V
Contact Resistance	< 50mΩ	Insulation Resistance	≥ 1000MΩ
Indicator Voltage	3V - 220V (12V Default)	Indicator Current	< 20mA
Certification	ISO9001, CE, VDE, RoHS, SGS, UL, IP65

Component Materials

Component	Material Description
Button / Shell	304 Stainless Steel / Black Zinc-Aluminum Alloy
Light Guide Button	PC Plastic
Terminals	H62 Copper Alloy Pins
Base	PA66+GF20% Flame Retardant Nylon
Contacts	Silver Contacts (AgCdO12)

General Characteristics

Operating Temp	-25°C to +85°C	Protection Level	IP65, IK08
Mechanical Life	500,000 cycles	Electrical Life	100,000 cycles (250V/3A)

LED Specification

Indicator Colors	R / B / G / Y / W	Forward Current	20mA (Typ)
Luminous Flux	4.8 lm	Light Intensity	1000 mcd
Color Temp	8400K (White)	Forward Voltage	4.22V (AC)

Key Features

1. Optimized Ergonomics (High-Head Design)

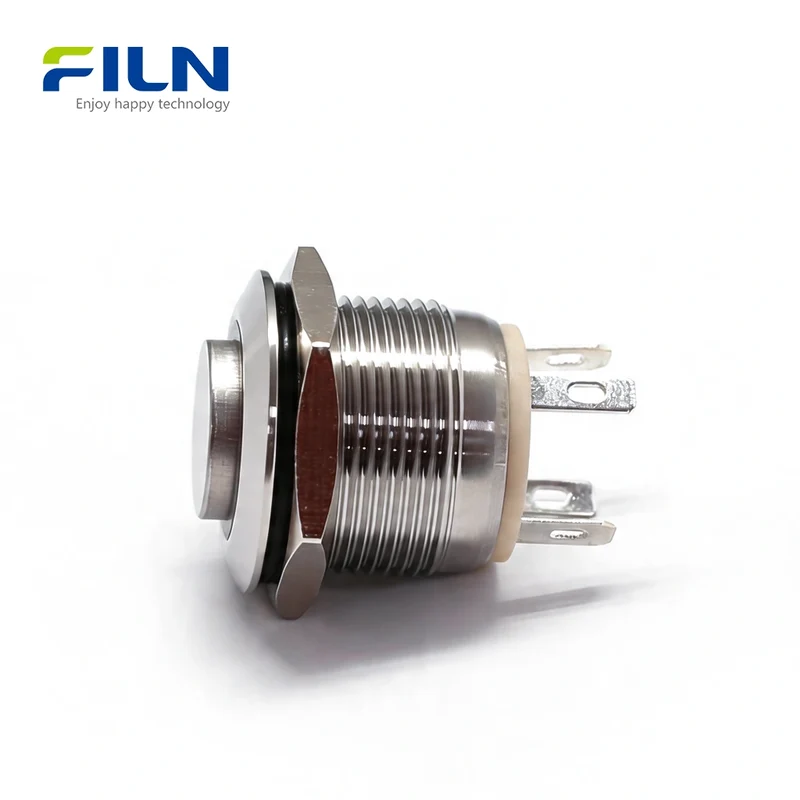

The high-head-led-switch design allows for a larger contact area and more precise actuation. This is especially beneficial for Western users or industrial operators wearing heavy gloves, providing a superior control experience compared to flat-head buttons.

2. Enhanced Nighttime Visibility

Featuring an illuminated ring, the stainless-steel-ring-light-switch ensures high visibility in dark or complex environments. The light guide is sharp and bright, reducing the risk of accidental operation during nighttime shifts.

3. Industrial-Grade Durability

With an IP65 waterproof rating and IK08 impact protection, this waterproof-4-pin-push-button is built to withstand harsh environments. The stainless steel shell resists corrosion and physical damage.

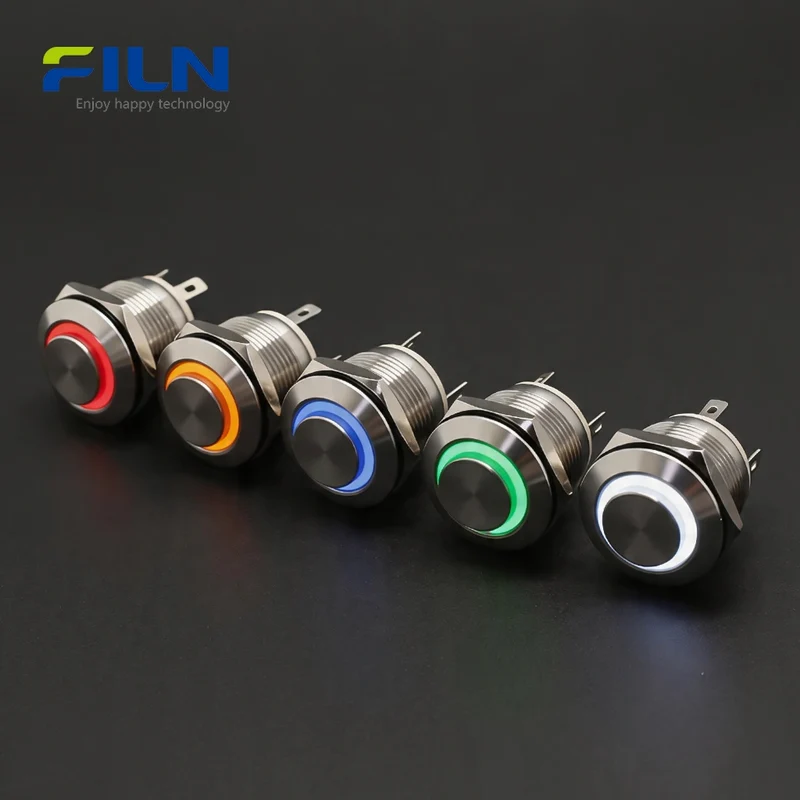

4. Functional Indicator Colors Meaning

• Red: Warning or Stop status.
• Green: Ready or Running status.
• Blue: Special mode or Information.
• Yellow: Caution or Standby.
• White: Power status or general lighting.

Applications

This panel-mount-metal-switch is widely used in circuits to control the power on/off state of various equipment. Its versatility makes it suitable for:

• Industrial Control Panels
• CNC Machinery
• Automation Equipment
• Electrical Cabinets
• Marine Systems
• Medical Devices

Installation Guide

1. Drilling: Create a 19mm diameter hole in the mounting panel.
2. Insertion: Place the button switch through the hole from the front of the panel.

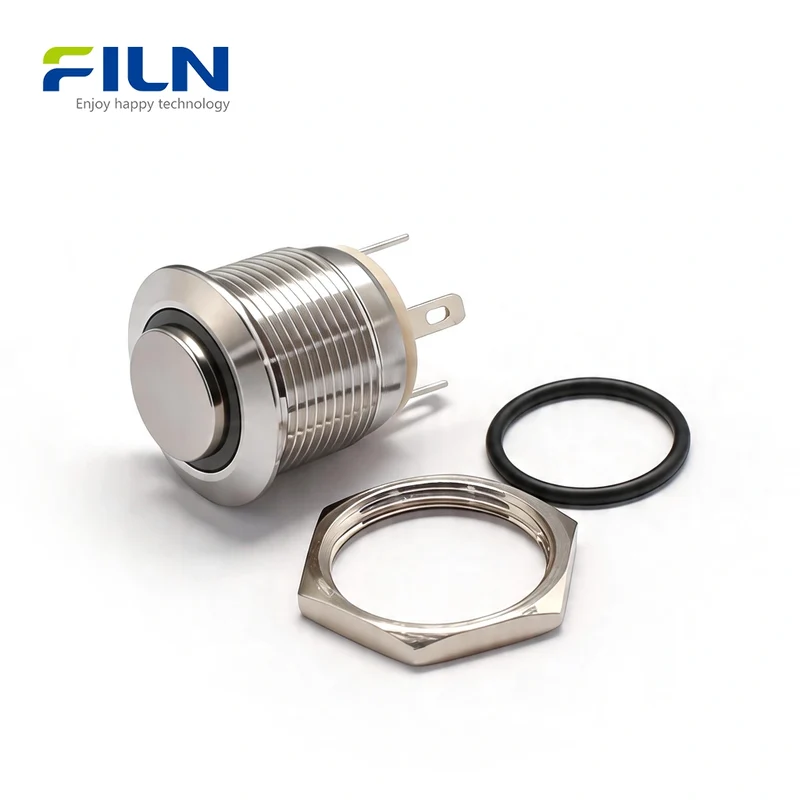

3. Securing: Use the metal nut to fix the switch firmly from the back.
4. Wiring: Connect the 4-pin terminals to your circuit as per the wiring diagram.

4 Pin Push Button Switch Wiring Diagram

A 4-PIN switch consists of two parts: Switch Contacts (to control the device) and LED Terminals (marked with + and -). Below are two ways to wire the LED indicator.

• Horizontal Pins: The switch mechanism (Power In / Load Out).
• Vertical Pins (+ / -): The LED indicator light terminals.

Method 1: LED Synchronized with Device (On when Active)

Logic: The button light only turns ON when the device is running. It serves as a "Status Indicator."

• Wiring: Connect LED (+) to the Output side of the switch. LED (-) to Power Negative.
• Applications: Power start buttons, car fog lights, industrial machinery.
• Benefit: Saves power; provides visual feedback that the system is active.

Figure 1: LED turns ON only when button is pressed

Method 2: LED Always ON (Backlight Mode)

Logic: The button light stays ON constantly as long as there is power, regardless of the button position.

• Wiring: Connect LED (+) directly to the Power Positive. LED (-) to Power Negative.
• Applications: Dark environments, hallway switches, standby power indicators.
• Benefit: Allows you to find the switch easily in total darkness.

Figure 2: LED stays ON constantly (Backlight)

Mode	LED Status (Idle)	LED Status (Pressed)
Sync (Status)	OFF	ON
Always ON (Backlight)	ON	ON

Industry Knowledge

What is a 12V Momentary Push Button?

A momentary push button 12V is a control switch that only remains in its active state while it is being physically pressed. Once released, it returns to its original state (Open or Closed) via a built-in spring mechanism. These are essential in modern industrial equipment for triggering signals, starting motors, or resetting systems.

Latching vs. Momentary: Which one do you need?

Function	Description	Common Use
Momentary	Self-reset: Springs back when released.	Doorbell, PC Power, Horn.
Latching	Self-lock: Stays depressed until pressed again.	Light switch, Power start.

Factory Direct Advantage

• 🔹 MOQ: No Minimum Order Quantity.
• 🔹 Customization: Voltage, Wire Length, and Connector customization supported.
• 🔹 Global Shipping: Fast shipping worldwide from the FILN factory.

📧 Get Free Sample (Contact Us)

Website: www.filn.com
Email: [email protected]

Frequently Asked Questions

1. Does this 4-pin momentary switch include the LED?
Yes, it features a built-in LED ring. The 4-pin design includes 2 pins for the switch and 2 pins for the LED.

2. Can I use the 12V push button in a 24V system?
We offer custom-voltage-led-button options for 24V, 110V, or 220V. Please specify your requirement.

3. Is the high-head button better than flat-head?
It provides better tactile feedback and is easier to press in industrial settings.

4. Is it waterproof for outdoor use?
Yes, it is IP65 rated, making it resistant to water splashes and dust.

5. What material is the housing made of?
It is made of high-quality 304 stainless steel for maximum durability.

6. Does it come with a wire harness?
Socket adapters are sold separately to ensure maximum wiring flexibility.

7. What does the green LED ring indicate?
Green typically represents a "Running" or "Ready" state in industrial standards.

8. Can this button control 220V AC equipment?
Yes, it is rated for up to 250V AC with a 5A current capacity.

9. How long is the electrical service life?
It is rated for 100,000 electrical cycles, ensuring long-term reliability.

10. Does FILN offer custom laser etching?
Yes, as a filn-industrial-switch-supplier, we can etch symbols onto the button face.
