Button Switch DrawingProduct Overview

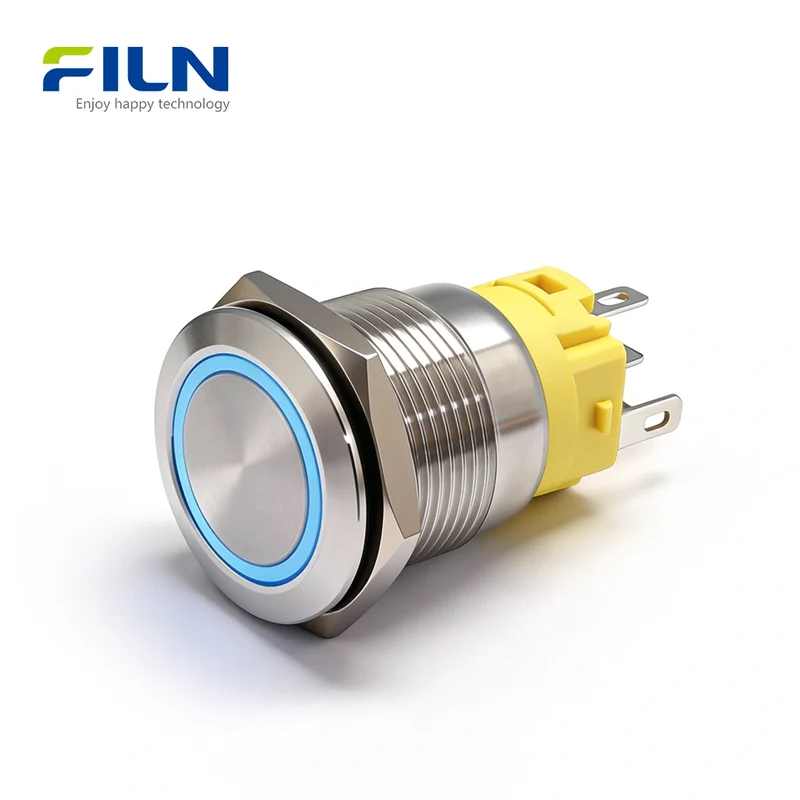

The 19mm LED push button switch (Model: FLM19-FJ-1-E) by FILN is a high-end industrial control solution. Available in 304 stainless steel or black zinc-aluminum alloy, this momentary power symbol switch provides a premium tactile feel and exceptional durability. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, it is engineered for reliability. The ring-illuminated latching button design is ideal for industrial control panels, automation equipment, and medical devices. Whether you need a black aluminum push button or a classic silver finish, FILN offers factory-direct customization to meet your exact specifications.

Quick Specifications

Model Number	FLM19-FJ-1-E
Mounting Hole Size	19mm (0.75 inch)
Function	Latching (Self-locking) / Momentary (Self-reset)
LED Light Type	Ring Illuminated Power Symbol

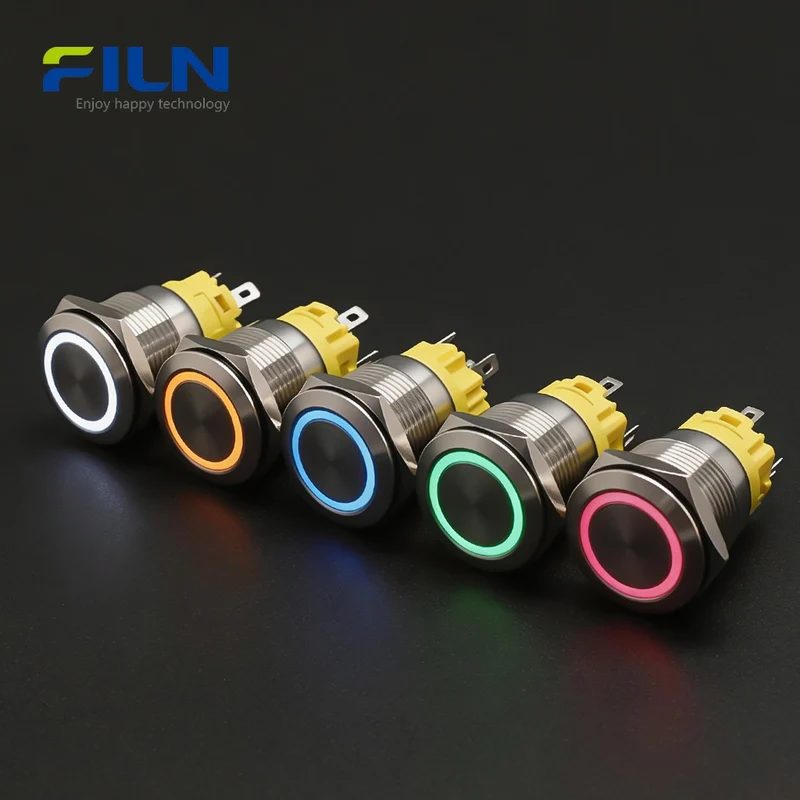

LED Color	R/G/B/Y/W (Custom Bi-color/Tri-color available)

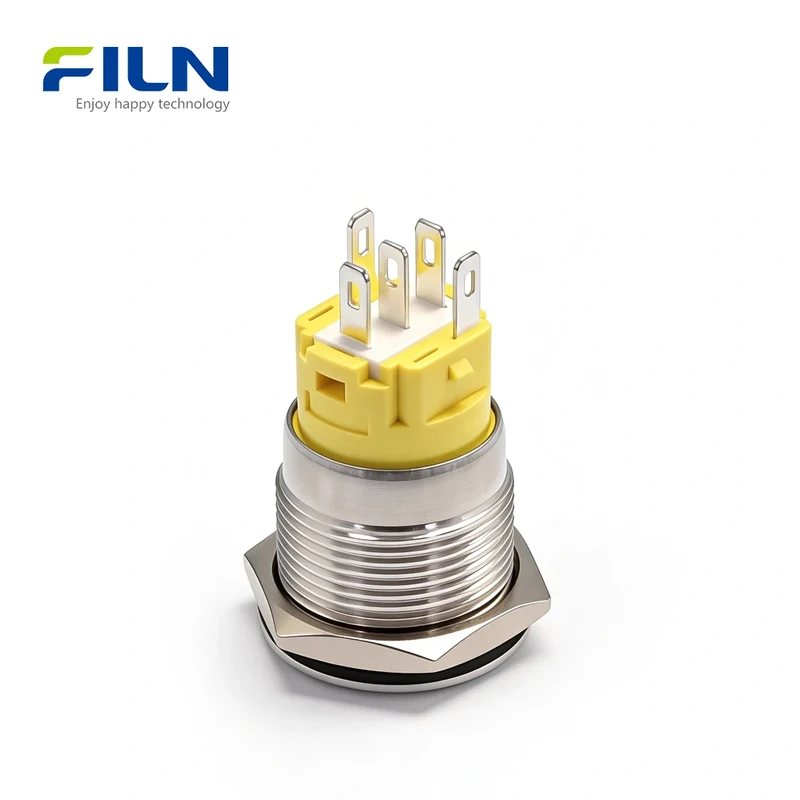

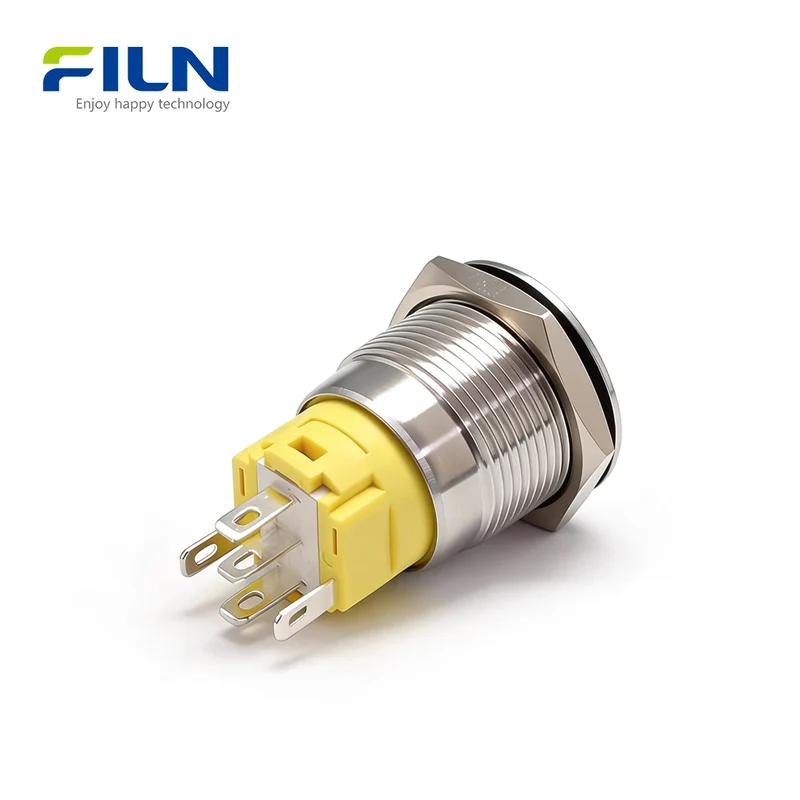

Terminal Type	5-Pin Pin Terminal

Performance Parameters

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)
Insulation Resistance	≥ 1000MΩ
LED Voltage	12-24V, 110-220V (Customizable)
Certifications	CE, RoHS, UL, TUV

Component Materials

Button	304 Stainless Steel / Aluminum Alloy
Shell	304 Stainless Steel / Black Anodized Aluminum
Contacts	Silver Alloy (AgCdO12)
Base	PA66+GF20% Flame Retardant Nylon
Waterproof Ring	SIL Silicone

General Characteristics

Mechanical Life	500,000 Cycles
Electrical Life	100,000 Cycles
Protection Level	IP65, IK08
Operating Temp	-25°C to +85°C

Improve Efficiency with Custom Wire Harnesses

Speed up your assembly with our matching 4-wire socket adapters, designed specifically for FILN 19mm switches.

Get Wire Connectors Now

Key Features & Visual Feedback

Using an illuminated metal push button significantly enhances machine safety and user interaction. The metallic casing offers superior impact resistance compared to plastic alternatives.

• Red: Indicates "Stop", "Emergency", or "Danger".
• Green: Signifies "Start", "Normal Operation", or "Safe".
• Blue: Often used for "Reset" or "Special Functions".
• Yellow: Represents "Warning" or "Wait".
• White: Used as a neutral power-on indicator.

Terminal Type Comparison

Feature	Pin Terminal (5-Pin)	Screw Terminal	Pre-wired Lead
Installation	Fast (Socket or Solder)	Manual (Screwdriver)	Direct (Easiest)
Durability	High / Long Life	Medium	High
Space Usage	Compact	Bulky	Flexible

Applications

This 24v led illuminated button is essential for any equipment requiring circuit control. Common applications include:

• CNC Machines
• Automation Panels
• Electrical Cabinets
• Marine Control Systems
• Medical Devices
• Kitchen Appliances

Installation Guide

1. Drill a 19mm hole in your panel.
2. Insert the button actuator from the front side.
3. Thread the metal hex nut from the back and tighten.
4. Connect the 5-pin terminals to your circuit or use a FILN socket harness.

5 Pin Push Button Switch Wiring Diagram

A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.

1. Normal OFF, Sync LED (NO Connection)

Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.

• Application: Standard start switches where the light indicates the system is running.
• State: Static (LED Out, Device Off) → Pressed (LED On, Device On).

2. Normal ON, Sync LED (NC Connection)

Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.

• Application: Stop buttons or emergency cut-off switches.
• State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).

3. Normal OFF, Constant LED (NO Connection)

Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.

• Application: Power switches in dark environments or access control buttons.
• State: Static (LED On, Device Off) → Pressed (LED On, Device On).

4. Normal ON, Constant LED (NC Connection)

Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.

• Application: Monitoring systems or security alarms that require constant power indication.
• State: Static (LED On, Device On) → Pressed (LED On, Device Stop).

Mode	LED Behavior	Device (Idle)
NO Sync	Lights up when pressed	OFF
NC Sync	Turns off when pressed	ON
Constant	Always ON (Backlight)	User Choice

Factory Direct Benefits

FILN is a professional factory with over 20 years of experience. We offer:

• No MOQ: Small orders for testing are welcome.
• Customization: Custom laser symbols, voltages, and colors.
• Global Shipping: Fast delivery via FedEx, DHL, and UPS.

Official Website: www.filn.com

Inquiry: [email protected]

Frequently Asked Questions

1. Can the FLM19 switch handle 220V?
Yes, we offer specific versions for 110-220V AC with integrated resistors for the LED.

2. What is the difference between latching and momentary?
Latching stays in place when pressed (on/off); momentary springs back immediately (pulse signal).

3. Is the LED ring replaceable?
The LED is integrated for IP65 protection and long life, thus not separately replaceable.

4. Is there a black metal version?

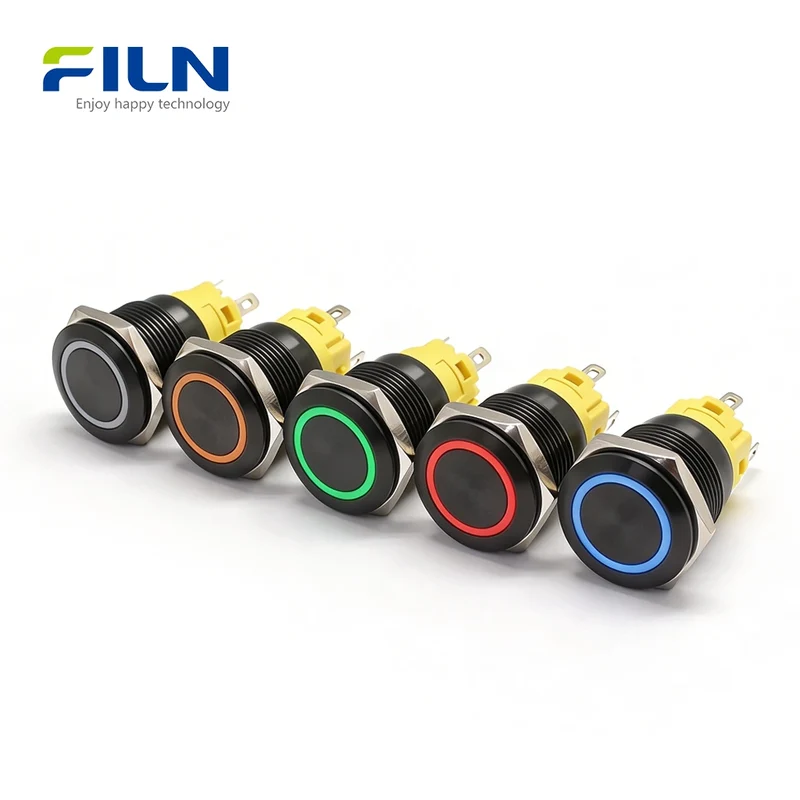

Yes, we offer zinc-aluminum alloy with a durable black anodized finish.

5. What wire size fits the 5-pin terminal?
We recommend 22AWG to 18AWG wires or using our custom socket connector.

6. Can you customize the LED to be bi-color?
Yes, we can produce Red/Green or other bi-color combinations in a 6-pin configuration.

7. How long is the delivery time?
Standard orders usually ship within 3-7 working days.

8. Is the stainless steel rust-proof?
Yes, we use high-quality 304 stainless steel suitable for marine and outdoor use.

9. Does it come with the rubber gasket?

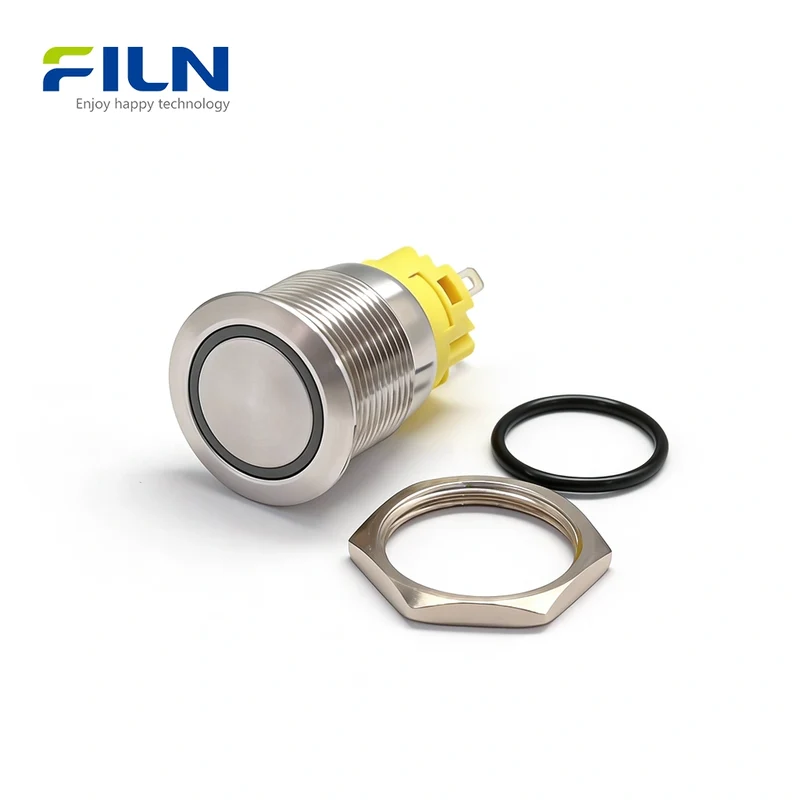

Every switch includes a high-grade silicone waterproof gasket.

10. Can I get a free sample?
Please email [email protected] with your project details for sample requests.
