16mm Push Button Reset Switch Metal Momentary 2PIN Screw Terminal FILN

Product Overview

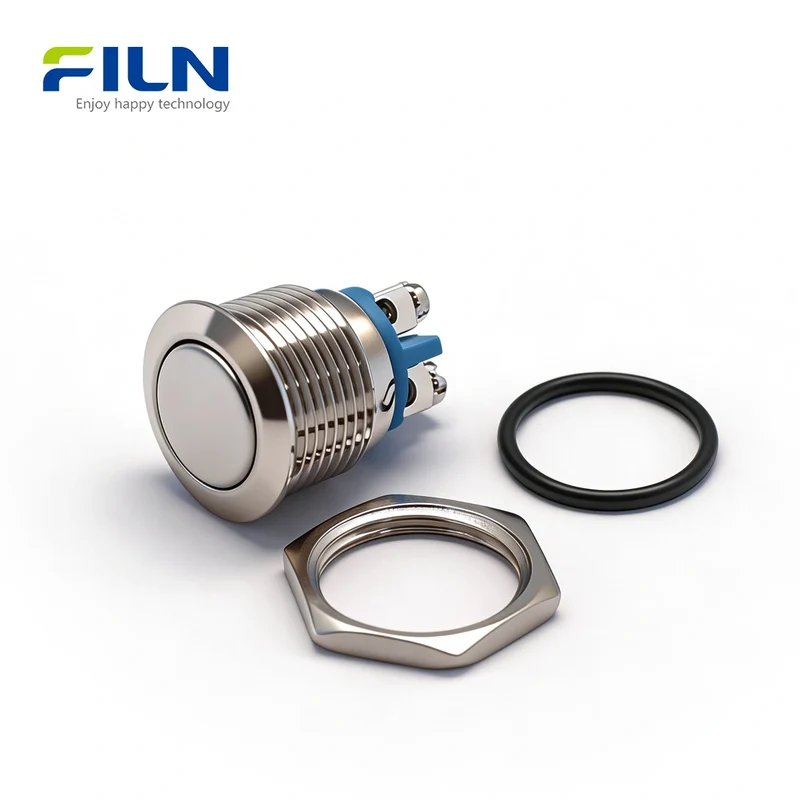

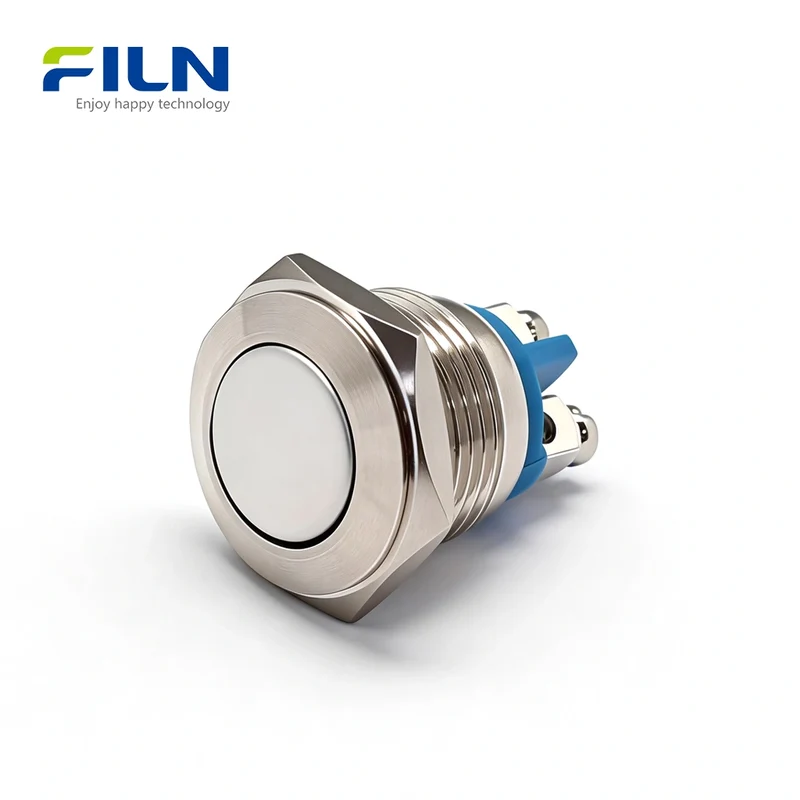

The push button reset switch (Model: FLM16-FS-2) is a high-performance 16mm metal momentary switch designed for industrial reliability. Manufactured by FILN, a leading factory with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, this switch ensures maximum safety and durability. Featuring a flat head design and 304 stainless steel or brass housing, it is perfect for industrial control panels, medical devices, and marine systems. Its momentary (reset) function and 2-pin screw terminal connection offer a secure, stable electrical contact without the need for complex soldering.

Quick Specifications

Model Number	FLM16-FS-2
Mounting Hole Size	16mm (5/8 inch)
Switch Function	Momentary (Reset)
LED Color	Non-Illuminated
Button Shape	Flat Head

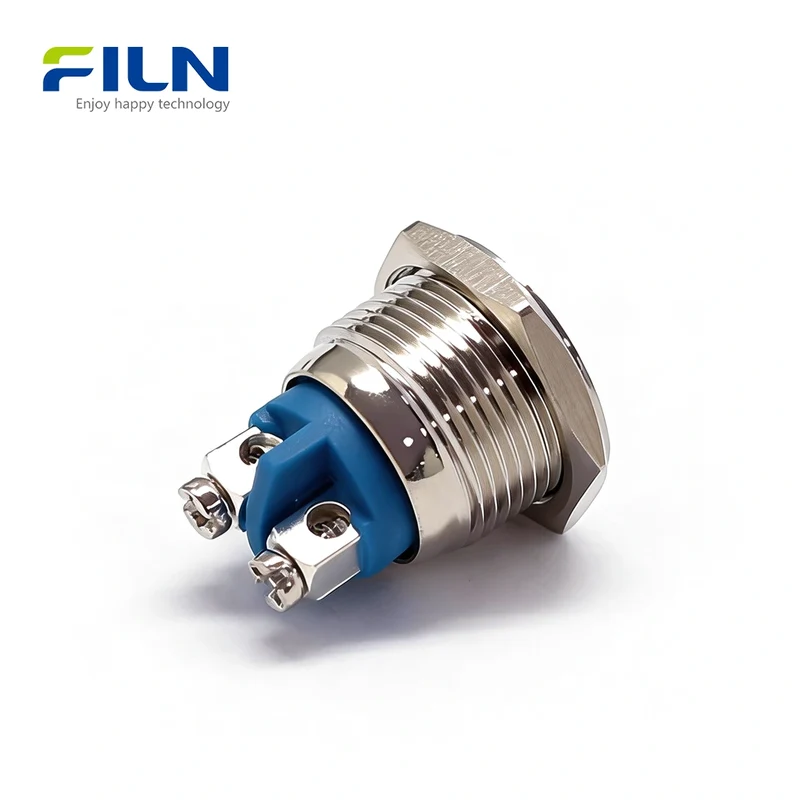

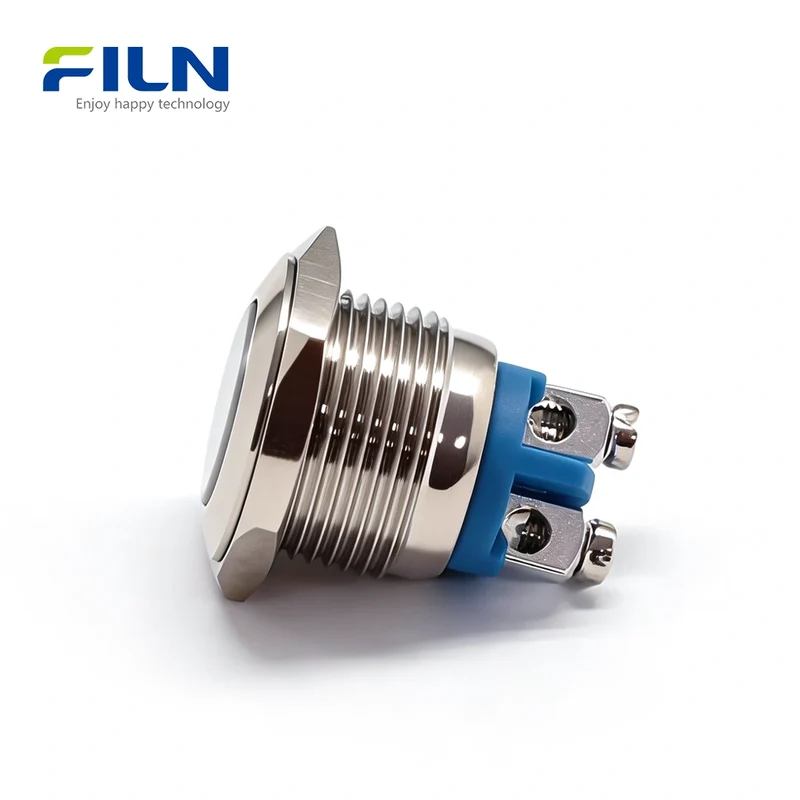

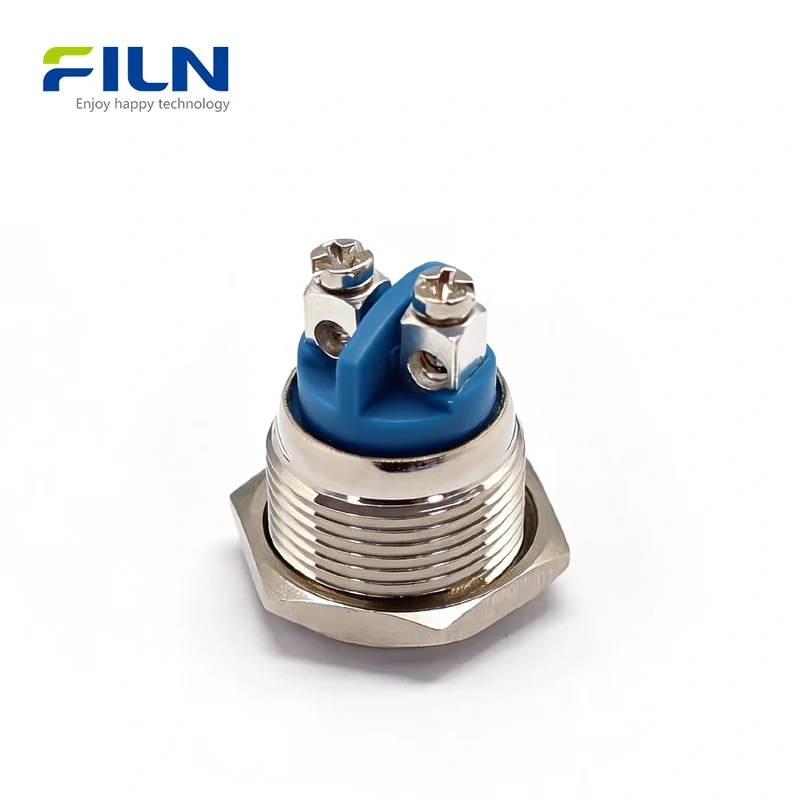

Terminal Type	2-Pin Screw Terminals

Performance Parameters

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Insulation Resistance	≥ 1000MΩ
Contact Resistance	< 50mΩ
Product Certification	ISO9001, CE, VDE, RoHS, UL

Component Materials

Button Actuator	304 Stainless Steel / 6063 Aluminum Alloy
Shell Body	H59 Nickel-plated Brass / 304 Stainless Steel
Base Material	PA66+GF20% Flame Retardant Nylon
Contact Material	Silver Contact (AgCdO12)
Waterproof Seal	SIL Silicone Gasket

General Characteristics

Operating Temperature	-25°C to +85°C
Protection Level	IP65 Waterproof, IK08 Impact Resistance
Mechanical Life	500,000 Cycles
Electrical Life	100,000 Cycles (3A) / 50,000 Cycles (5A)

Key Features

• Extreme Protection: With IP65 and IK08 ratings, this push button reset switch resists water, dust, and heavy physical impact.
• High Electrical Capacity: Rated for 5A 250V, it controls power directly without needing extra relays.
• Premium Materials: The 304 stainless steel housing provides excellent corrosion resistance for medical and marine use.
• Silver Contacts: Utilizes AgCdO12 silver contacts for lower resistance and higher reliability.
• Compact Design: A total length of approx 26.5mm makes it ideal for panel-mount reset switch applications in tight spaces.

Terminal Type Comparison

Terminal Type	Advantages	Installation Complexity
Screw Terminal	Easy wiring, no soldering needed, high vibration resistance.	Low (Screwdriver only)
Pin Terminal	Fast mass production, supports sockets/soldering.	Medium
Wired Terminal	Ready to plug, waterproof connectors available.	Very Low

Applications

This stainless steel reset button is widely used in:

• Industrial control panels
• CNC machines
• Medical equipment
• Marine control systems
• Automotive dash buttons
• Smart home control boxes

Installation Guide

1. Drill a 16mm hole in the panel.
2. Insert the flat head metal button switch from the front.
3. Secure the switch from the back using the provided metal hex nut.
4. Connect the wires to the 2-pin screw terminals.

Wiring Guide: Momentary Connection

A 2-pin momentary switch works on a Normally Open (NO) principle. The circuit is only completed when the button is held down.

• Wiring: Connect one wire to Pin 1 and the other to Pin 2.
• Logic: Device stays OFF and turns ON only when pressed.
• Applications: PC power buttons, car horns, doorbells.

Industry Knowledge

1. What is a Push Button Reset Switch?

A push button reset switch, also known as a momentary switch, is a control mechanism that only stays in its active state while being physically pressed. Once released, it returns to its original position (OFF). In industrial machinery, it serves as a safe way to trigger actions like motor starts or system resets without locking the circuit permanently.

2. Latching vs. Momentary: What's the difference?

Feature	Momentary (Reset)	Latching (Self-Locking)
Action	Returns to original position when released.	Stays in "ON" position until pressed again.
Best Use	Horns, Resets, Starters.	Power Switches, Light Switches.

Factory Direct Supply

• ✅ No MOQ: Small orders welcome.
• ✅ Fast Delivery: Global shipping within days.
• ✅ Customization: Wire length, voltage, and logo support.

Get Free Sample

FILN Official Website: www.filn.com

Contact Us: [email protected]

Frequently Asked Questions (FAQ)

Q1: What is the benefit of the screw terminal?
A: The screw-terminal-push-button-switch allows for easy, secure installation without soldering, making it ideal for field repairs and industrial vibrations.

Q2: Is the 16mm switch waterproof?
A: Yes, it is IP65 rated, meaning it is protected against low-pressure water jets and total dust ingress.

Q3: Can I get this switch in different colors?
A: The FLM16-FS-2 is a non-illuminated stainless-steel-reset-button, but FILN offers Red, Blue, Green, Yellow, and White LED versions in the same size.

Q4: What does "Momentary" mean?
A: It means the switch only works while you are holding it down. It "resets" to the OFF state once you let go.

Q5: What material is the housing made of?
A: Standard units are 304 stainless steel or nickel-plated brass for high durability.

Q6: Does FILN provide custom wire lengths?
A: Yes, as a factory, FILN can pre-wire the switch to your specified length and connector type.

Q7: Can this handle 110V AC?
A: Absolutely. It is rated up to 250V AC/DC at 5A.

Q8: What industries use this 16mm momentary switch?
A: It is widely used in industrial control panels, medical equipment, and marine dash controls.

Q9: Is the button impact resistant?
A: Yes, it has an IK08 rating, which means it can withstand significant physical impact.

Q10: Does it come with the rubber seal?
A: Yes, every switch includes a silicone waterproof gasket and a metal hex nut for installation.
