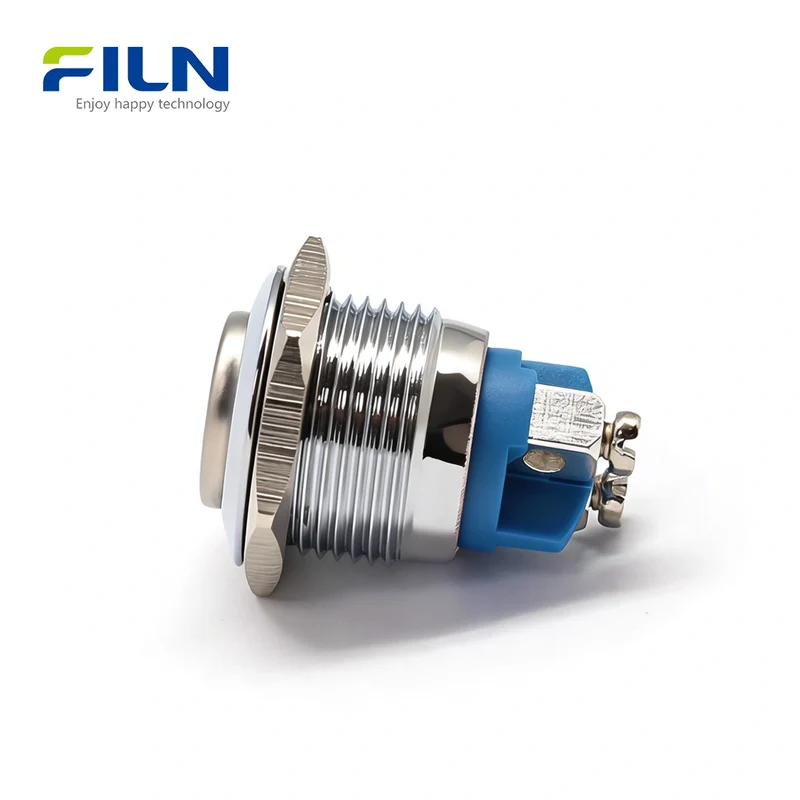

16MM On/Off Push Button Switch Metal Momentary High Head 2PIN Screw Terminal FILN

Button Switch DrawingProduct Overview

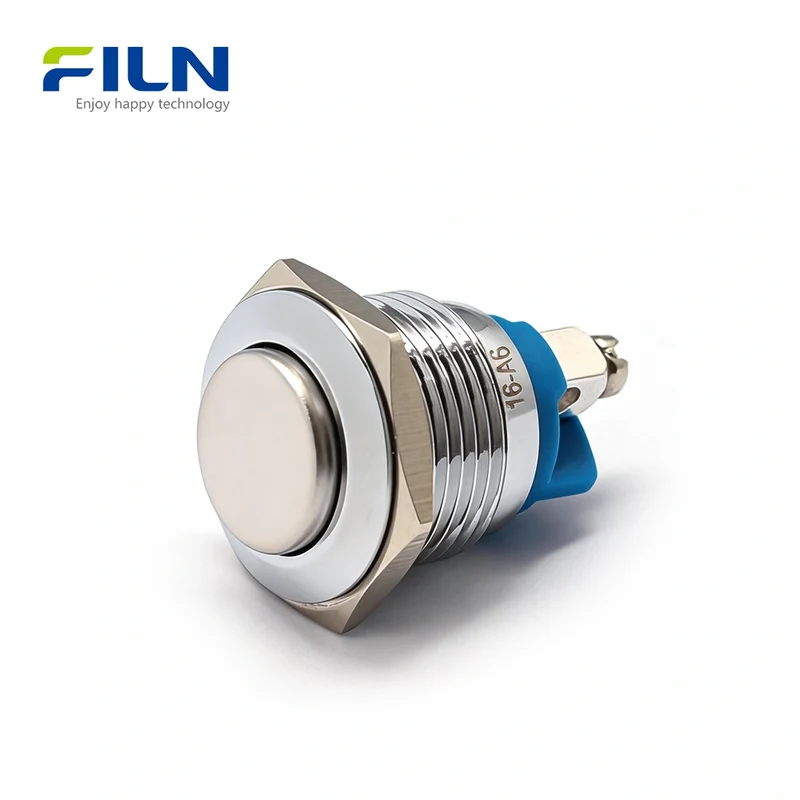

The 16mm on/off push button switch (Model: FLTM16-HS-2-X) is a premium industrial control component engineered by FILN. This momentary push button switch features a robust silver metal stainless steel shell and a high-head design for tactile precision. Designed with 2-pin screw terminals, it offers superior connection stability and ease of installation compared to standard pin terminals. With certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, this 16mm momentary switch is ideal for heavy-duty industrial control panels, automation equipment, and marine systems. Its high-head metal button ensures reliable on-off control in even the most demanding environments.

Quick Specifications

Model Number	FLTM16-HS-2-X
Mounting Hole Size	16mm (0.63 inch)
Switch Function	Momentary (Self-Reset)
LED Illumination	Non-Illuminated
Button Shape	High Head (Round)

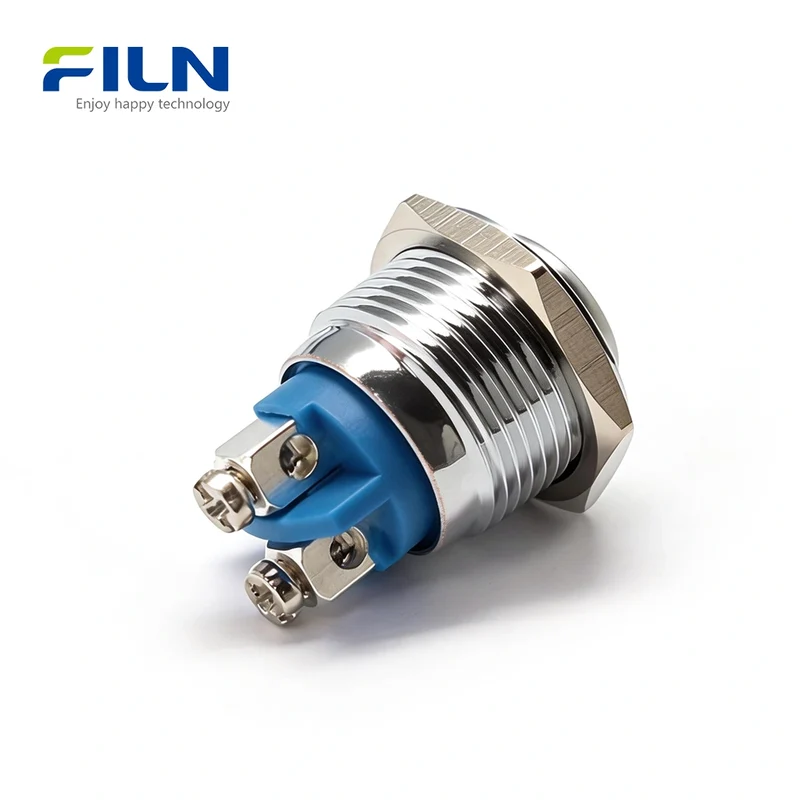

Terminal Type	2-PIN Screw Terminal

Performance Parameters

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)
Insulation Resistance	≥ 1000MΩ
Contact Resistance	< 50mΩ
Dielectric Strength	1800V
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL, IP65

Component Materials

Button Actuator	304 Stainless Steel / 6063 Aluminum Alloy
Shell/Body	H59 Brass / 304 Stainless Steel
Light Guide	N/A (Non-Illuminated)
Terminals	H62 Copper Alloy (Screw)
Base	PA66+GF20% Flame Retardant Nylon
Contact Material	Silver Contact AgCdO12
Waterproof Ring	SIL Silicone

General Characteristics

Operating Temperature	-25°C to +85°C
Protection Level	IP65, IK08
Mechanical Life	500,000 Cycles
Electrical Life	100,000 Cycles (3A) / 50,000 Cycles (5A)

Key Features

1. Exceptional Protection & Durability

This 16mm metal on/off switch boasts IP65 and IK08 ratings, protecting against water, dust, and heavy impact. The silver stainless steel shell ensures it withstands harsh industrial environments without corrosion.

2. Optimized Electrical Load Capacity

Rated at 5A 250V AC/DC, this heavy-duty push button can control high-power devices directly, eliminating the need for extra relays in many circuits. The 1800V dielectric strength provides a high safety margin.

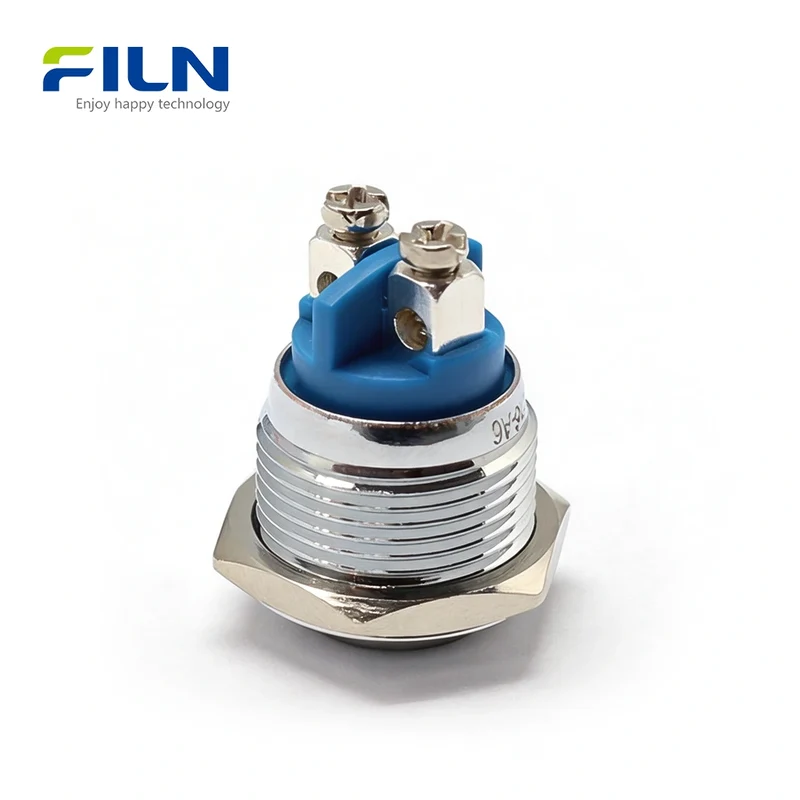

3. Superior Screw Terminal Design

The 2-pin screw terminal offers a significant advantage over solder pins: it allows for fast, secure wiring using only a screwdriver. This is ideal for field maintenance and vibration-prone applications where solder might fail.

4. High-Head Tactical Feedback

The high-head metal button provides distinct tactile feedback even when operators are wearing heavy gloves, making it perfect for CNC machines and manual automation equipment.

5. Compact Industrial Build

Despite its high current rating, the FLM16-HS-1 maintains a compact profile, allowing for dense installation on industrial control panels with limited back-space.

Applications

The 16mm metal button switch is universally used across various sectors. Every powered device requires a reliable switch to control circuit continuity. Common applications include:

• Industrial Control Panels: For machine starting and emergency signaling.
• CNC Machines: Providing manual overrides and mode selections.
• Marine Systems: Weather-resistant control for deck equipment.
• Medical Devices: Hygienic, easy-to-clean stainless steel interfaces.
• Electrical Cabinets: Reliable on-off control for power distribution.

Installation Guide

1. Drill the Panel: Create a 16mm (0.63") hole in your mounting surface.
2. Insert Switch: Place the metal push button switch through the hole from the front side.
3. Secure with Nut: From the back, thread the provided metal hex nut onto the screw body and tighten to secure the switch.
4. Wiring: Connect your wires to the 2-pin screw terminals and tighten the screws for a secure connection.

Terminal Type Comparison

Terminal Type	Pros	Installation Method
Screw Terminal	No soldering needed, vibration resistant, easy maintenance.	Screwdriver tightening
Pin Terminal	Compact, suitable for PCB or socket connection.	Soldering or Plug-in
Wired Terminal	Fastest assembly, waterproof sealing.	Direct wire splicing

3-PIN Wiring Guide (Reference)

While the FLM16-HS-1 is a 2-pin switch, here is the standard logic for 3-PIN switches often used in similar circuits:

• C (Common): Power input terminal.
• NO (Normally Open): Connects only when pressed. (Logic for FLM16-HS-1)
• NC (Normally Closed): Disconnects when pressed.

Terminals	Default	Action (Pressed)
C + NO	Device OFF	Device ON
C + NC	Device ON	Device OFF

Industry Knowledge

What is a Metal On/Off Push Button Switch?

An on/off push button switch is a fundamental mechanical component used to control the flow of electricity in a circuit. In industrial settings, these are typically momentary (the device stays on only while you hold the button) or latching (press once for ON, press again for OFF). The metal construction ensures protection against physical abuse and electrical interference.

Latching vs. Momentary: Key Differences

Feature	Momentary (This Model)	Latching
Operation	Springs back after release.	Stays in place until pressed again.
Common Use	Bells, PC Power, Starters.	Light switches, main power.

Factory Direct Supply

FILN is a leading manufacturer of premium button switches with no MOQ and fast global lead times.

Factory Direct Voltage Customization Wire Length Customization Fast Global Shipping Get Free Samples Now

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions (FAQ)

1. Is this 16mm momentary switch waterproof?
Yes, it is IP65 rated, making it resistant to water splashes and dust, ideal for outdoor use. 2. What is the benefit of screw terminals over soldering?
Screw terminals allow for easy installation without a soldering iron and provide a more robust connection in high-vibration environments. 3. Can I use this for 220V AC?
Yes, the switch is rated for up to 250V AC at 5A. 4. Does the button stay pressed down?
No, this is a momentary switch. It springs back to its original position as soon as you release it. 5. What do the different LED colors represent?
Although this model is non-illuminated, FILN offers colors: Red (Stop/Danger), Green (Start/Normal), Yellow (Warning), Blue (Special Action), and White (General Power). 6. What is the shell material?
It is made of high-quality silver stainless steel for maximum durability and corrosion resistance. 7. Does it come with the mounting nut?

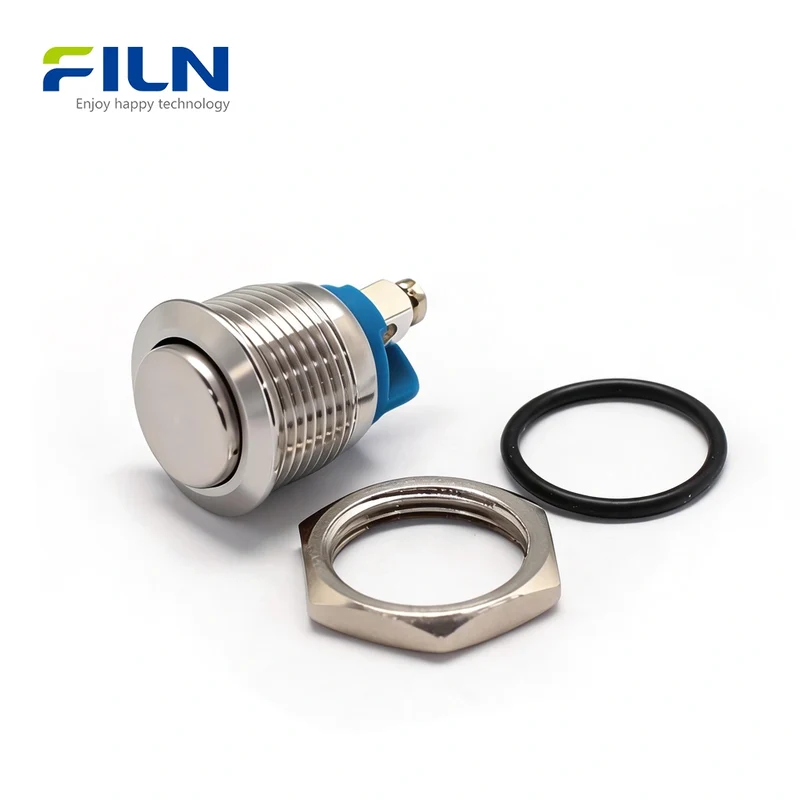

Yes, every switch includes a hex nut and a waterproof rubber gasket. 8. Can FILN customize the wire length?
Absolutely! We specialize in customization for industrial orders, including wire harness pre-assembly. 9. What is the mechanical life of this button?
It is tested for 500,000 cycles, ensuring years of maintenance-free operation. 10. Is there a minimum order quantity (MOQ)?
No, FILN supports industrial customers with no MOQ for standard models like the FLM16-HS-1.
