16mm Lighted Push Button Switch Stainless Steel RGB Colors LED Push Button Switch FILN

Button Switch Drawing

Product Overview

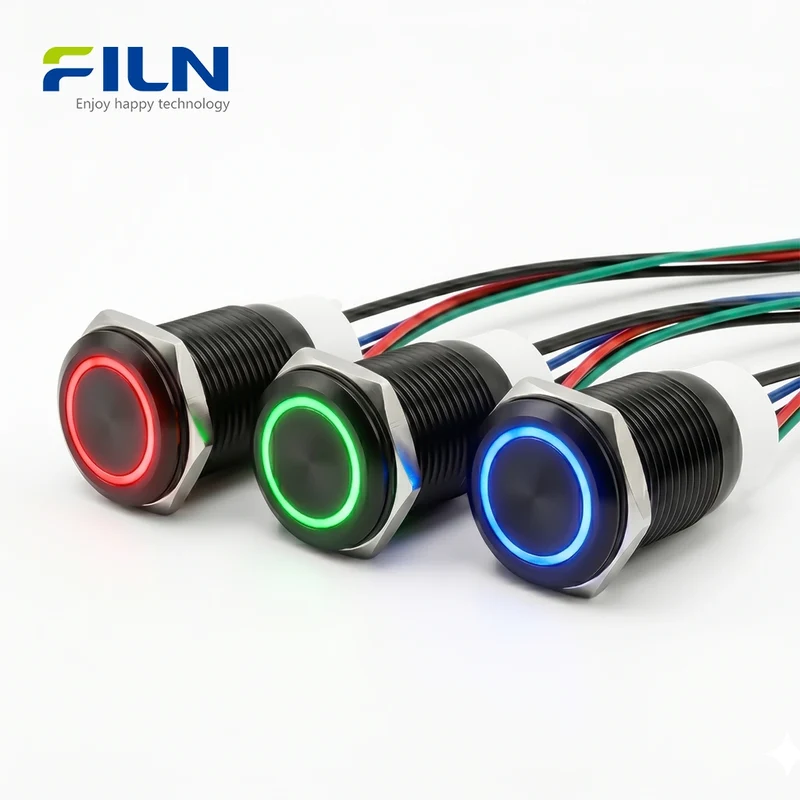

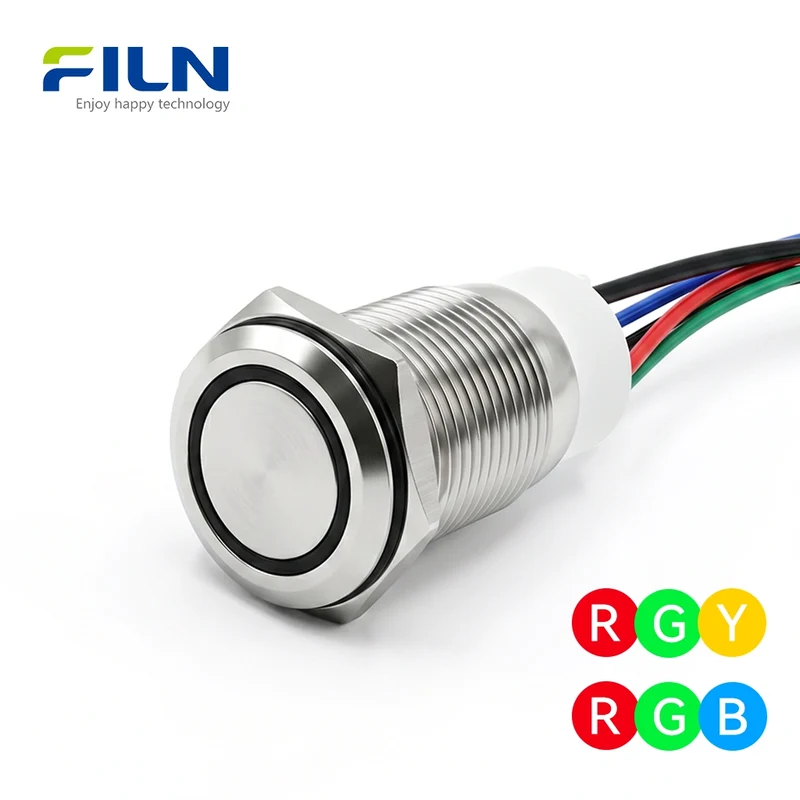

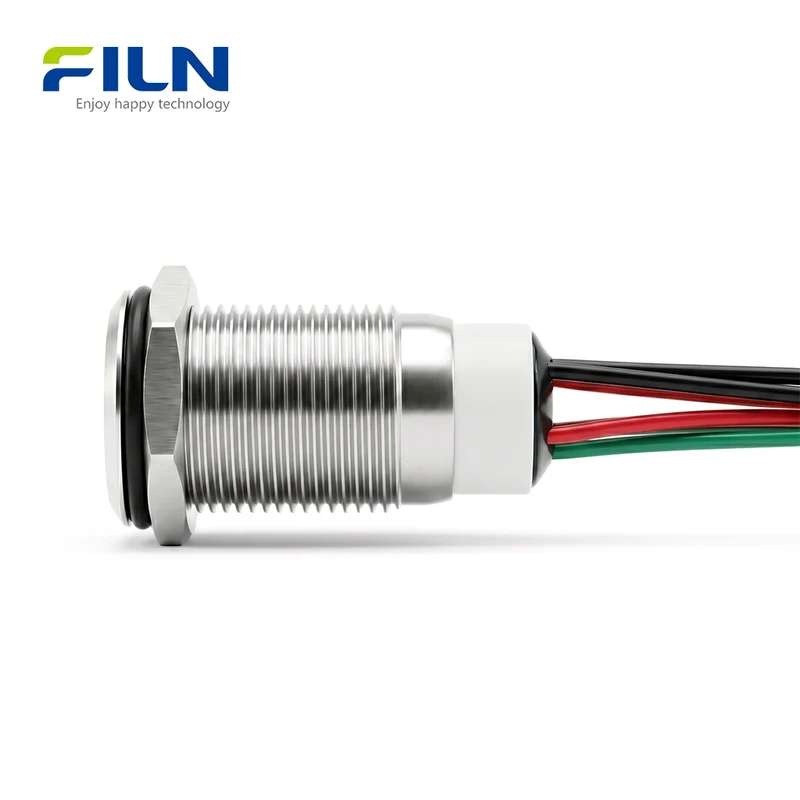

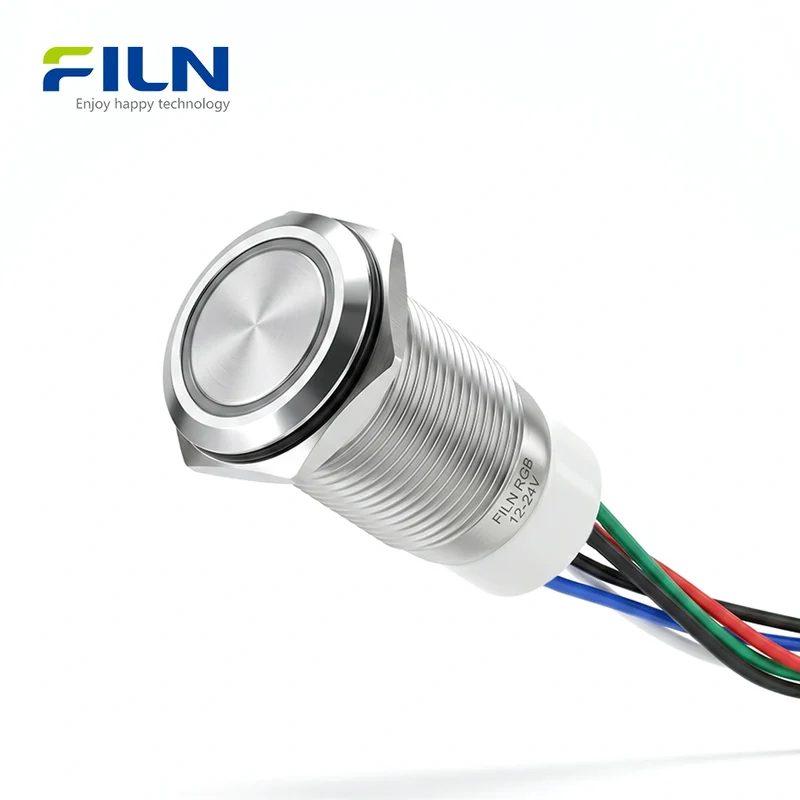

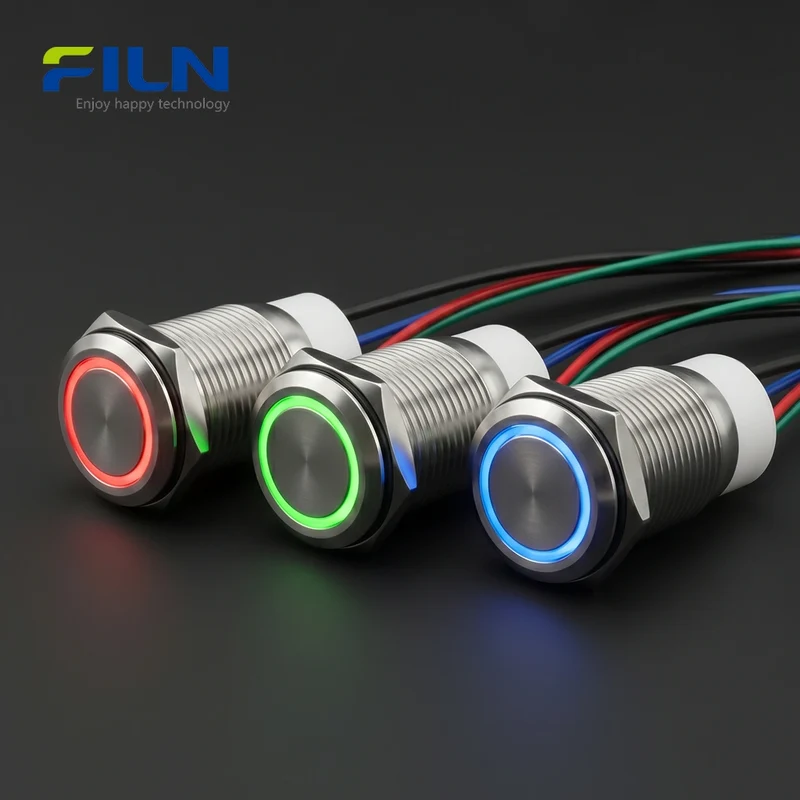

The lighted push button switch (Model: FLM16-FW-3-T) is a premium 16mm industrial control solution engineered by FILN. This tri-color RGB button switch features a durable stainless steel or black anodized aluminum shell, offering a sleek flat head design and 6-wire pre-soldered leads for rapid installation. With global certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, this switch ensures high reliability in harsh environments. It is widely used in Industrial control panels, automation equipment, and marine systems. The core advantage lies in its ability to display multiple status colors (Red/Green/Blue or Red/Green/Yellow) in a compact 16mm form factor, providing clear visual feedback for complex circuit operations.

Quick Specifications

Model Number	FLM16-FW-3-T
Mounting Hole Size	16mm (5/8 inch)
Switch Function	Latching / Momentary (Optional)
LED Color	RGB / RGY (Customizable Tri-color)
Button Shape	Flat Head

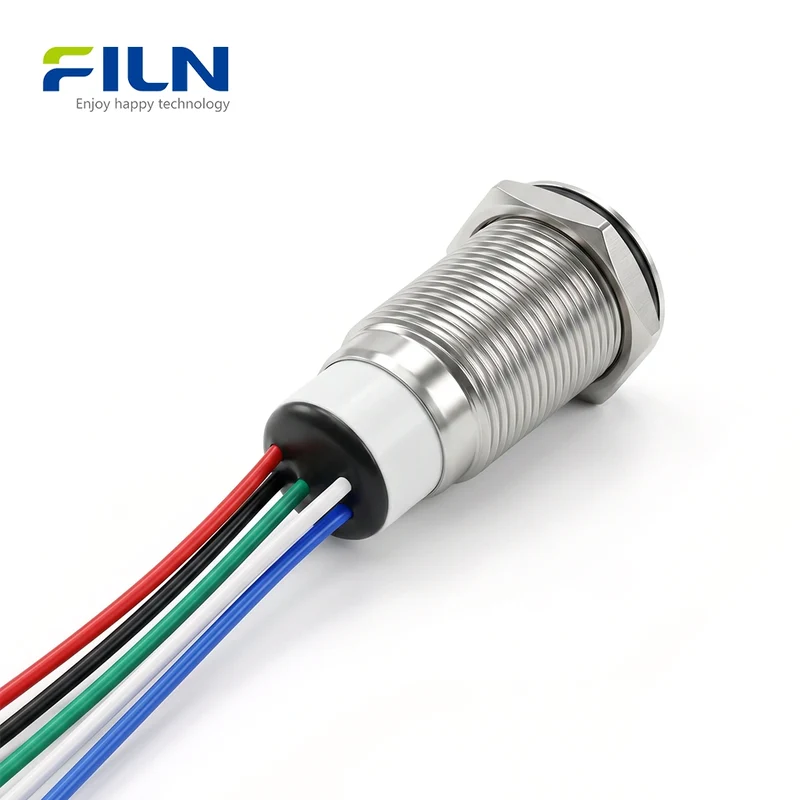

Wiring Method	Pre-wired (6 Wires, 15cm Length)

Performance Parameters

Rated Voltage (Switch)	36V DC / 250V AC
Rated Current (Switch)	5A DC / 5A AC
Insulation Resistance	≥ 1000MΩ
LED Voltage	12-24V / 110-220V (Standard)
Certifications	CE, UL, RoHS, VDE, ISO9001

Component Materials

Component	Material Specification
Button Actuator	304 Stainless Steel / 6063 Aluminum Alloy
Outer Shell	H59 Brass / 304 Stainless Steel
Base Material	Flame Retardant Nylon PA66+GF20%
Contact Material	Silver Alloy (AgCdO12)
Sealing	SIL Silicone (IP65 Grade)

General Characteristics

Operating Temperature	-25°C to +85°C
Protection Level	IP65 Waterproof, IK08 Vandal Resistant
Mechanical Life	500,000 Cycles
Electrical Life	50,000 - 100,000 Cycles

LED Specification

Forward Current	20mA (Typical)
Light Intensity	1000 mcd
Power Dissipation	60mW
Color Meanings	Red (Stop/Danger), Green (Start/Normal), Yellow (Caution/Wait), Blue (Notice), White (Power On)

Key Features

• Premium Protection: IP65 and IK08 ratings ensure resistance to water, dust, and mechanical impact, making it perfect for outdoor or industrial use.
• High Load Capacity: Supports up to 5A 250V AC/DC, allowing direct control of high-power devices without extra relays.
• Stainless Steel Durability: The 304 stainless steel housing provides extreme corrosion resistance for medical and marine applications.
• RGB Visual Feedback: Tri-color LED allows one button to represent multiple machine states, saving space on control panels.
• Compact Short-Body Design: Total length of ~26.5mm is ideal for shallow control boxes and handheld equipment.

Industry Applications

This 16mm lighted push button switch is engineered for versatility across multiple high-demand sectors:

• Industrial automation and CNC control panels.
• Electrical distribution cabinets and power systems.
• Marine electronics and boat dashboard controls.
• Medical diagnostic and laboratory equipment.

Installation Guide

1. Prepare the panel by drilling a precise 16mm mounting hole.
2. Insert the push button switch through the front of the panel.

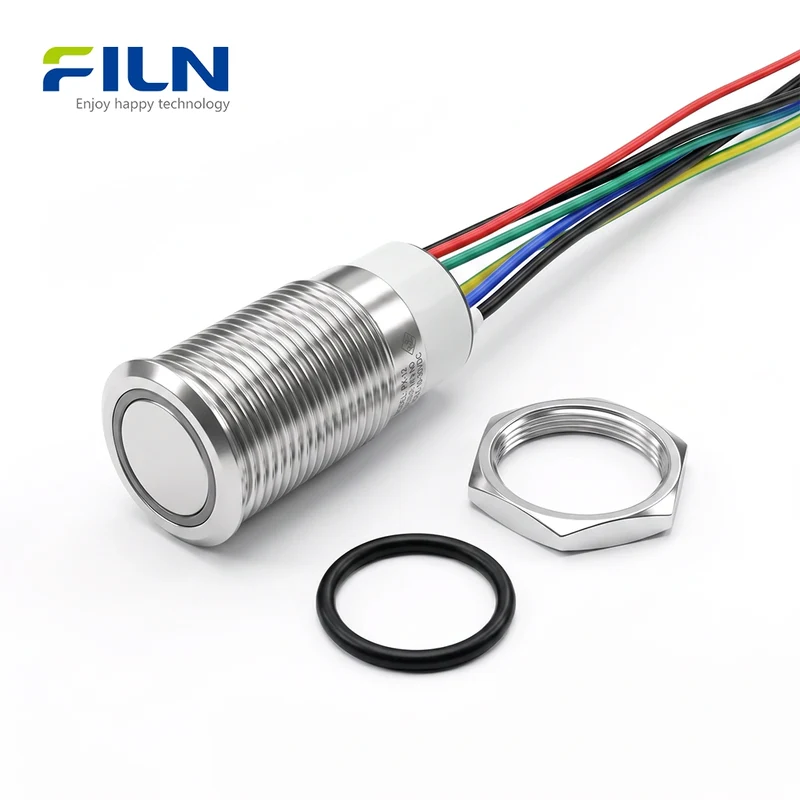

3. Secure the switch from behind using the provided metal hex nut.
4. Connect the 6-wire harness according to your circuit requirements (RGB Sync or Backlight).

4-PIN LED Push Button Switch Wiring Guide

A 4-PIN switch consists of two parts: Switch Contacts (to control the device) and LED Terminals (marked with + and -). Below are two ways to wire the LED indicator.

• Horizontal Pins: The switch mechanism (Power In / Load Out).
• Vertical Pins (+ / -): The LED indicator light terminals.

Method 1: LED Synchronized with Device (On when Active)

Logic: The button light only turns ON when the device is running. It serves as a "Status Indicator."

• Wiring: Connect LED (+) to the Output side of the switch. LED (-) to Power Negative.
• Applications: Power start buttons, car fog lights, industrial machinery.
• Benefit: Saves power; provides visual feedback that the system is active.

Figure 1: LED turns ON only when button is pressed

Method 2: LED Always ON (Backlight Mode)

Logic: The button light stays ON constantly as long as there is power, regardless of the button position.

• Wiring: Connect LED (+) directly to the Power Positive. LED (-) to Power Negative.
• Applications: Dark environments, hallway switches, standby power indicators.
• Benefit: Allows you to find the switch easily in total darkness.

Figure 2: LED stays ON constantly (Backlight)

Mode	LED Status (Idle)	LED Status (Pressed)
Sync (Status)	OFF	ON
Always ON (Backlight)	ON	ON

Industry Knowledge

What is a Lighted Push Button Switch?

A lighted push button switch is an electrical component that combines a switching mechanism with an integrated LED indicator. In industrial settings, these switches allow operators to see the status of a machine (e.g., Running, Error, or Standby) directly on the control interface, significantly improving safety and operational efficiency.

Latching vs. Momentary: What's the Difference?

Feature	Momentary	Latching
Action	Springs back after release	Stays in place after press
Common Use	Doorbell, PC Reset, Horn	Main Power, Lamp Switch

Factory Direct Supply & Customization

FILN is a professional manufacturer offering wholesale solutions with No MOQ and fast global shipping.

Voltage Customization Wire Length Customization Connector Customization Get Free Sample

FILN Official Website: www.filn.com
Browse All Switches: Push Button Switch Collection

Frequently Asked Questions

1. Is this lighted push button switch waterproof?
Yes, it is IP65 rated, making it resistant to water splashes and dust, ideal for outdoor use.

2. Can I use this switch for a 220V application?
Absolutely. We offer customized internal resistors to support 12V, 24V, 110V, and 220V.

3. What is the benefit of a stainless steel shell?
304 Stainless steel offers superior corrosion resistance compared to plastic or brass, especially in marine environments.

4. Does it come with the wiring harness?
Yes, this model features 15cm pre-soldered 6-wire leads for plug-and-play installation.

5. Can I get a different LED color?
We support RGB tri-color as well as single colors (R/G/B/Y/W) and bi-color options.

6. What is the hole size required for mounting?
This switch requires a standard 16mm (approx. 5/8 inch) diameter hole.

7. How do I wire the RGB function?
The 6 wires consist of one common positive (or negative) and separate wires for the R, G, and B LED chips and switch contacts.

8. Is there a minimum order quantity?
FILN supports B2B clients with No MOQ for standard models.

9. Are your switches UL certified?
Yes, our products carry UL, CE, and RoHS certifications for global compliance.

10. How long is the mechanical life of this switch?
It is rated for over 500,000 mechanical operations.
