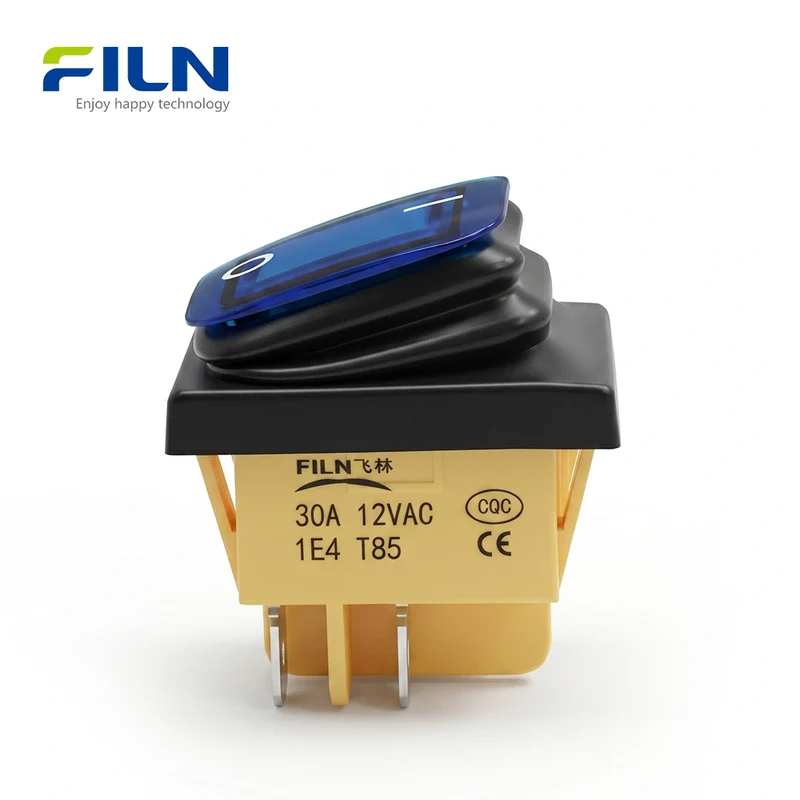

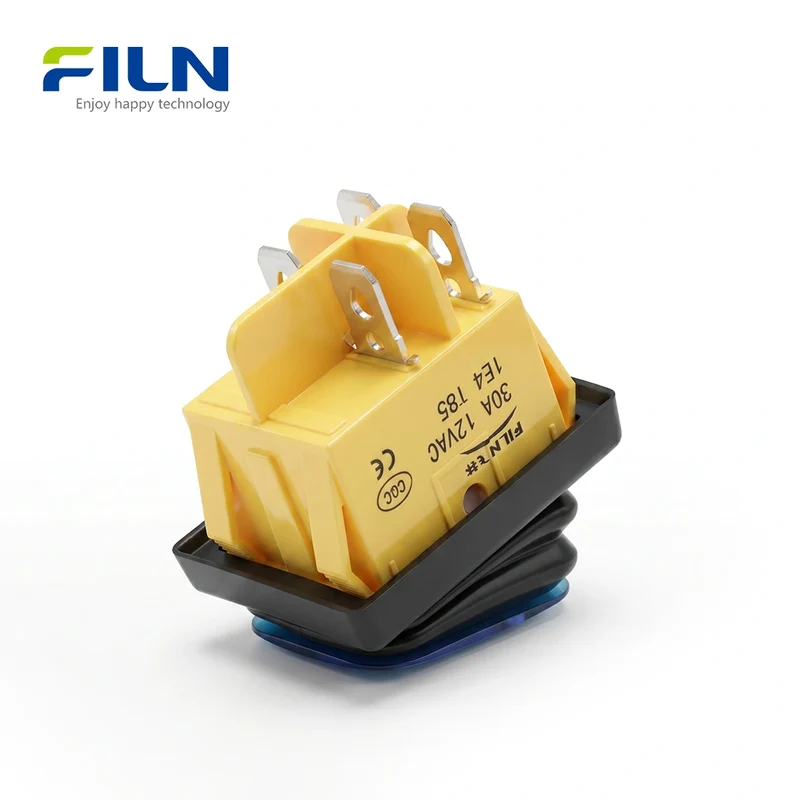

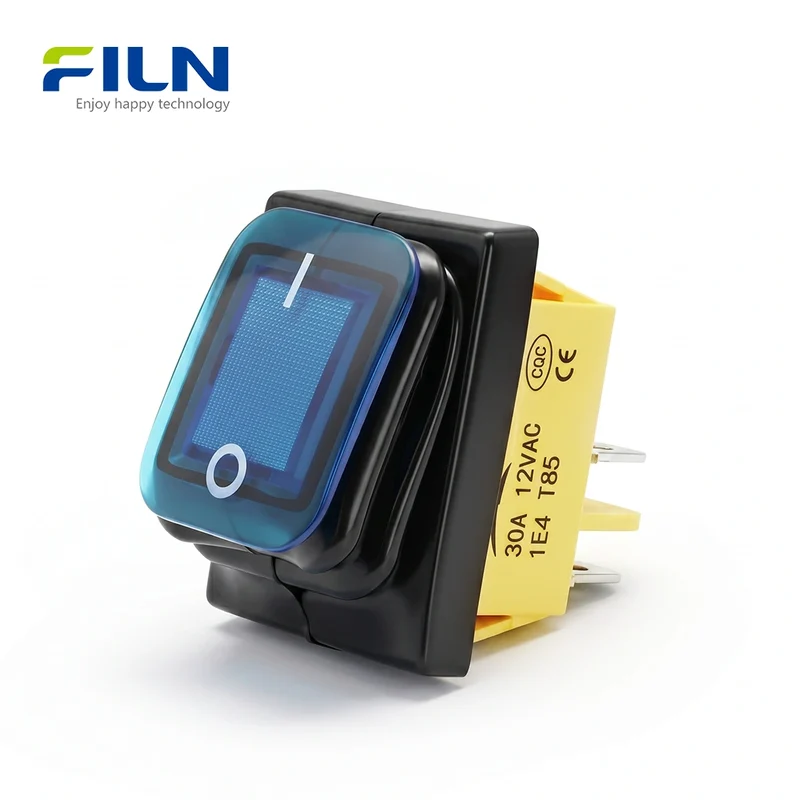

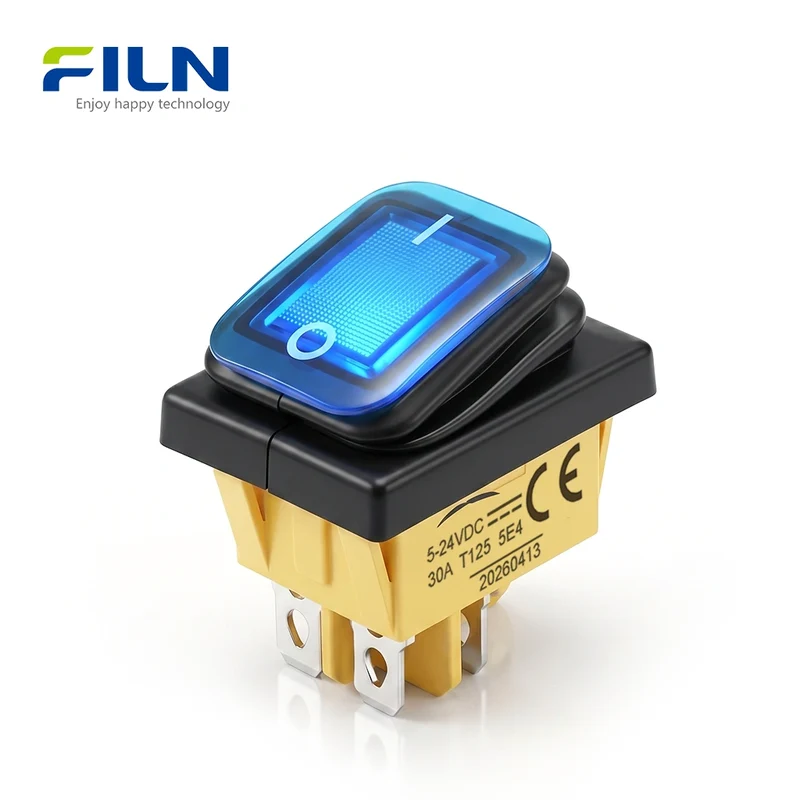

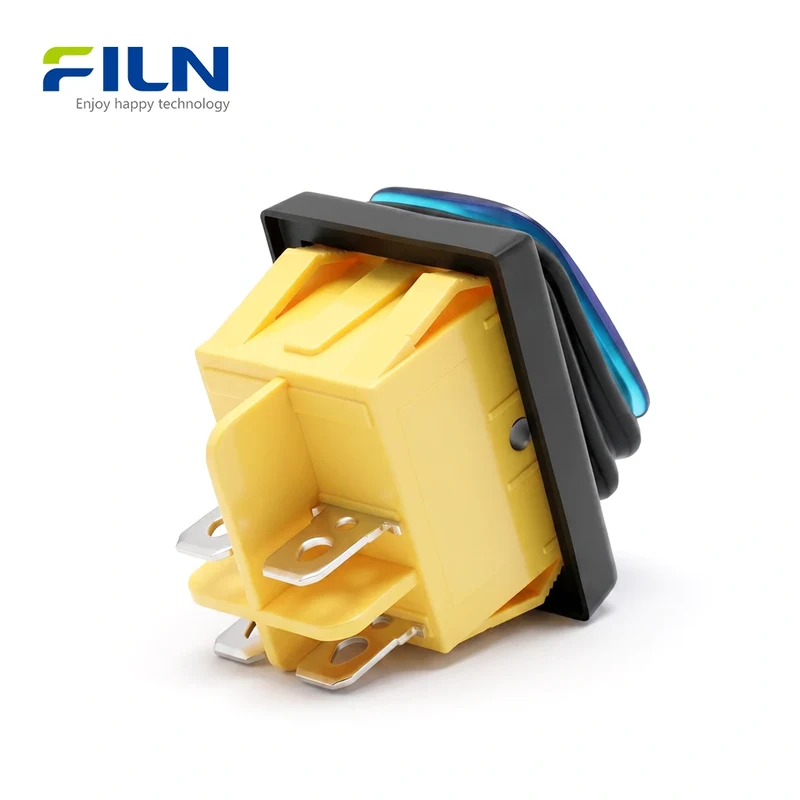

12V Rocker Switches Transparent Plastic KCD4 Waterproof Rocker Switch 30x22mm 4-Pin DPST FILN

Rocker Switch Drawing

What is 12V Rocker Switches?

12V rocker switches are pivotal electrical components used to manually bridge or interrupt power within a circuit. The FL3-KCD4-0111-21 model is an industrial-standard KCD4 series device featuring a transparent ordinary plastic surface. Engineered for a 30x22mm rectangular mounting hole, these switches provide robust 4-pin DPST (Double Pole Single Throw) control, making them essential for high-current applications in automotive, marine, and industrial machinery.

Product Overview

The FILN 12v rocker switches represent a benchmark in reliability and visual clarity. Utilizing a transparent ordinary plastic surface, this switch allows the internal LED light to shine through brightly, ensuring clear status indication in pitch-black environments. Unlike standard models, it features a frameless (no frame) integrated housing that provides an IP65 waterproof rating, allowing for safe outdoor and industrial use. The 4-pin terminal pins are designed for quick and secure installation. With global certifications including ISO9001, CE, VDE, RoHS, SGS, and UL, this KCD4 switch handles loads up to 30A with unmatched stability.

➜ CLICK HERE TO VIEW ALL ROCKER SWITCH PRODUCTS (OPEN NEW WINDOW)

Switch Function Principles (ON-OFF & ON-ON)

Function	Technical Principle	Operation Result
ON-OFF	Single Throw: The switch bridges or breaks the circuit between two terminals.	Used for main power control (Start/Stop).
ON-ON	Double Throw: Power is always directed to one of two different device paths.	Used for alternating between two different modes or circuits.

Quick Specifications

Model Name	FL3-KCD4-0111-21
Mounting Cutout	30X22MM (1.18" x 0.87")
Standard Function	ON-OFF

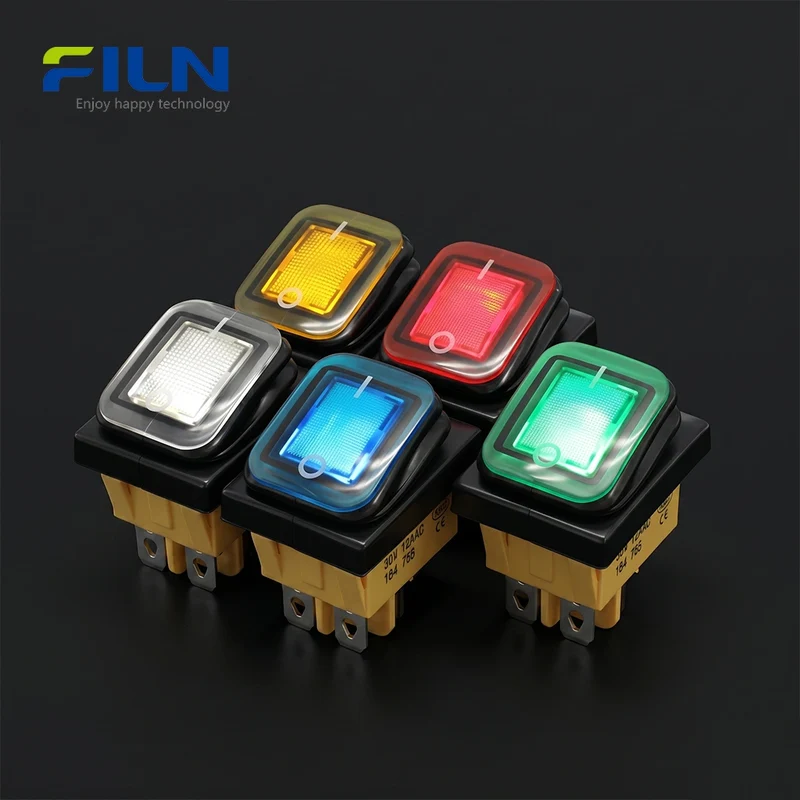

LED Colors	Red, Green, Yellow, Blue, White
Terminal Pins	4-Pin Quick Connect
Frame Status	No Frame (Integrated Body)

Performance Parameters

Rated Load	16A 250VAC
Rated Current	30A Max
Initial Contact Resistance	≤50mΩ
Insulation Resistance	≥100mΩ / 500VDC
Dielectric Strength	1500VAC / 5mA 60s
Endurance Life	10,000 cycles
Ambient Temperature	-40°C to +125°C
Protection Rating	IP65 Waterproof

Component Materials

Component Name	Material Specification
Transparent Actuator	Polycarbonate (PC)
Base Housing	PA66 / ABS
Terminals / Pins	H62 Brass
Silver Contact Point	AgCdO12
Waterproof Seal	Rubber

Technical Advantages of the 30A High-Current Rocker Switch

The FILN 30A High-Current Rocker Switch has been meticulously engineered for high-power loads and extreme durability. Below is a detailed technical comparison highlighting the superior features of our upgraded model:

Core Component	Upgrade Description	Performance Benefit
Housing Structure	Split Black Housing Design	Superior structural stability and enhanced sealing for easier installation.
Waterproof Design	Optimized Frame Surface	Fits panels more securely, significantly improving waterproof and dustproof ratings.
Illumination	Premium LED Lamp	Longer lifespan and more uniform illumination compared to traditional neon lamps.
Contact Material	Silver Contacts + 1mm Thick Brass	Rated for true 30A loads; provides higher electrical endurance and reliability.
Inner Holder	New Larger Contact Holder	Increases contact surface area to reduce heat generation during high-current operation.
Material Grade	Imported PA Nylon Material	High-strength flame retardancy; resists cracking even in high-temperature environments.

Application & Selection Guide

To ensure the safety and longevity of your equipment, we recommend the 30A Upgraded Model for heavy-duty applications such as Industrial Control Panels, Outdoor Portable Power Stations, Marine Systems, and High-Performance Automotive modifications. For standard residential or lower-wattage appliances, our Regular Item remains a high-quality, cost-effective solution.

Aesthetic Choice: Transparent vs. Black Surfaces

FILN's KCD4 rocker switch series provides multiple actuator finishes to suit different environments. The transparent surface model is specifically designed for dark workspaces, as the LED illumination provides a brilliant status check. For a more versatile and stylish appearance, our black plastic surface is highly recommended. Black actuators are significantly easier to clean, maintain their professional look longer, and fit seamlessly into any modern dashboard or control panel design. Both options feature snap-in installation and long operational life.

Wide Range of Applications

Every device requiring a reliable circuit toggle can benefit from the FILN 12v rocker switches. Common application fields include:

• Appliances: Coffee machines, water dispensers, and air fryers.
• Industrial: Machinery control panels and distribution boxes.
• Marine & RV: 12V lighting control and interior accessory toggles.
• Office Equipment: Power strips (PDU) and shredder master switches.

Step-by-Step Installation Guide

1. Mark and cut a 30x22mm rectangular opening on your mounting panel.
2. Align the rocker switch from the top (front) side of the panel.
3. Firmly press the switch into the cutout; the integrated side clips will snap into place automatically.
4. Connect the 4-pin terminals on the back according to your wiring schematic to complete the installation.

Complete Rocker Switch Wiring Diagram and Connection Guide

A 4 pin rocker switch wiring diagram is essential for managing higher-current loads or providing clear visual feedback in electrical systems. These switches are typically Double Pole Single Throw (DPST) or specialized single-pole configurations that allow the internal lamp to function independently or in synchronization with the connected device. Depending on your requirements, rocker switch wiring can be configured for either "Independent Illumination" (Always On) or "Dependent Illumination" (On when Device is Active).

Option 1: Light On When Device is Operating (Dependent Illumination)

This configuration is ideal when you need a visual status indicator to show that the equipment is currently powered. In this mode, the internal LED only illuminates when the switch is toggled to the "Press" position.

• Input Connection: Connect the positive (+) and negative (-) wires from the power source to the bottom set of pins.
• Output Connection: Connect the positive and negative terminals of your device to the top set of pins.
• Logic: When the switch is closed, current flows through the device and simultaneously completes the internal circuit for the LED lamp.

Figure 1: Wiring for LED illumination during device operation.

Option 2: Switch Light Remains Constantly Lit (Independent Illumination)

This setup is useful for locating the switch in dark environments (such as vehicle dashboards or industrial control panels). The internal LED remains on as long as the power source is connected, regardless of the device status.

• Input Connection: Connect the power source positive (+) and negative (-) wires to the top set of pins (where the internal lamp is internally bridged).
• Output Connection: Connect the device terminals to the bottom set of pins.
• Logic: The LED is powered directly by the input line, while the rocker mechanism acts as a gatekeeper only for the current flowing to the device.

Figure 2: Wiring for constant LED illumination (Switch Finder Mode).

Comparison of Operation Logic

Configuration Type	Switch State	Device Status	LED Status
Dependent (Option 1)	Normal	OFF	OFF
	Press	ON	ON
Independent (Option 2)	Normal	OFF	ON
	Press	ON	ON

Technical Considerations & Safety Notes

• Pin Orientation: 4-pin rocker switches usually have two parallel circuits. Ensure you are wiring the positive and negative on the correct pairs to avoid a short circuit.
• Voltage Matching: Check if the internal lamp is designed for 12V DC or 110V/220V AC. Using an AC lamp on a DC circuit will result in no light, while the reverse may cause the lamp to explode.
• Amperage Ratings: Most 4-pin industrial switches (like the KCD4 series) support up to 15A-30A. Verify that your total load does not exceed the manufacturer's specification.
• Termination: Use high-quality 6.3mm female spade connectors. Ensure they are fully insulated to prevent accidental contact between adjacent terminals.

Industry Knowledge: How It Works

A rocker switch functions via a "see-saw" mechanical pivot. Pressing one side pushes an internal contact arm into position, bridging metal contacts to complete an electrical circuit. The KCD4 series is particularly valued for its DPST (Double Pole Single Throw) configuration, which allows for the simultaneous disconnection of both power lines—providing a critical safety layer for high-voltage industrial equipment. The PC transparent surface is highly heat-resistant, ensuring safety even under 30A loads.

Factory Direct Supply & Customization

FILN is a world-class factory providing high-quality switches with No MOQ and rapid delivery times. We offer extensive customization services:

• ✅ Voltage Customization: 5V, 12V, 24V, 110V, 220V Options.
• ✅ Wire & Connector: Pre-soldered wires and custom connectors.
• ✅ Global Shipping: Fast international logistics for B2B clients.

GET FREE SAMPLES NOW

Official Website: www.filn.com
Contact: [email protected]

Frequently Asked Questions

1. How many pins does this 12v rocker switch have?
This model features 4 pins (DPST) for controlling both positive and negative lines simultaneously.

2. Can I use the transparent 12V rocker switches on a 220V AC circuit?
While the body can handle the load, the LED must match the voltage. FILN offers custom 110V/220V LED versions upon request.

3. What is the benefit of the transparent plastic surface?
It allows for 360-degree light diffusion, making the switch highly visible and functional as an indicator lamp.

4. Is the KCD4 30x22mm switch waterproof?
Yes, it features an integrated frameless design with an IP65 waterproof rating, suitable for outdoor use.

5. What is the difference between ON-OFF and ON-ON functions?
ON-OFF is a standard power disconnect, while ON-ON switches power between two different output paths.

6. Does this switch have an external mounting frame?
No, this model is a frameless design, allowing for a flush, clean installation on compact panels.

7. How do I install a snap-in rocker switch?
Simply cut the 30x22mm hole and push the switch in; the side clips will automatically lock it to the panel.

8. Are the silver contacts reliable for high current?
Yes, FILN uses AgCdO12 silver contacts which are designed to handle up to 30A without welding or overheating.

9. Can FILN provide switches with pre-wired harnesses?
Yes, we offer customization for wire lengths and specific connectors to save your assembly time.

10. Does this product carry global safety certifications?
Absolutely. Our switches are UL, CE, VDE, RoHS, and SGS certified for international markets.
