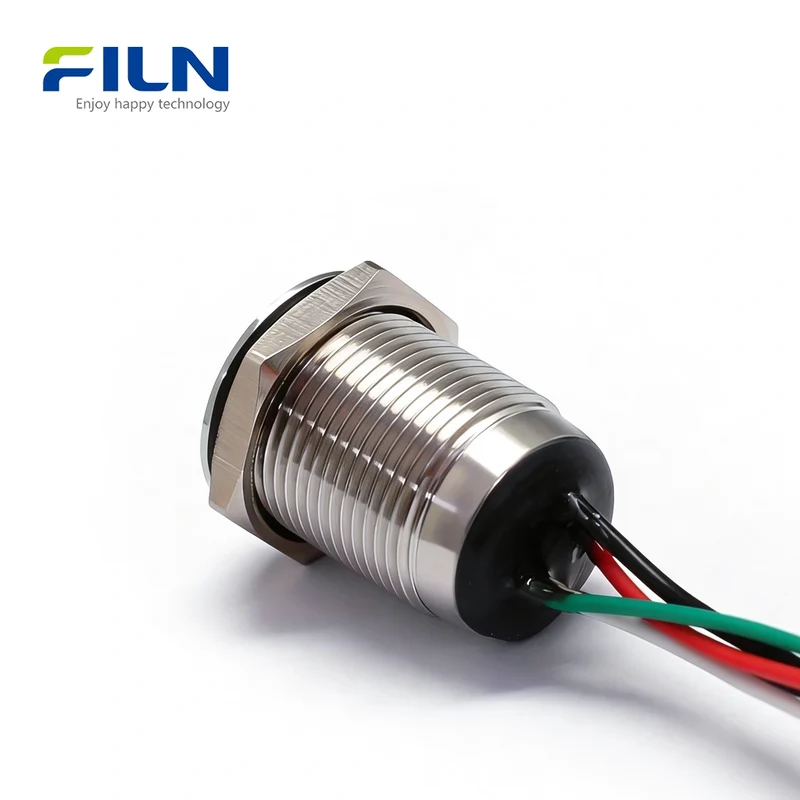

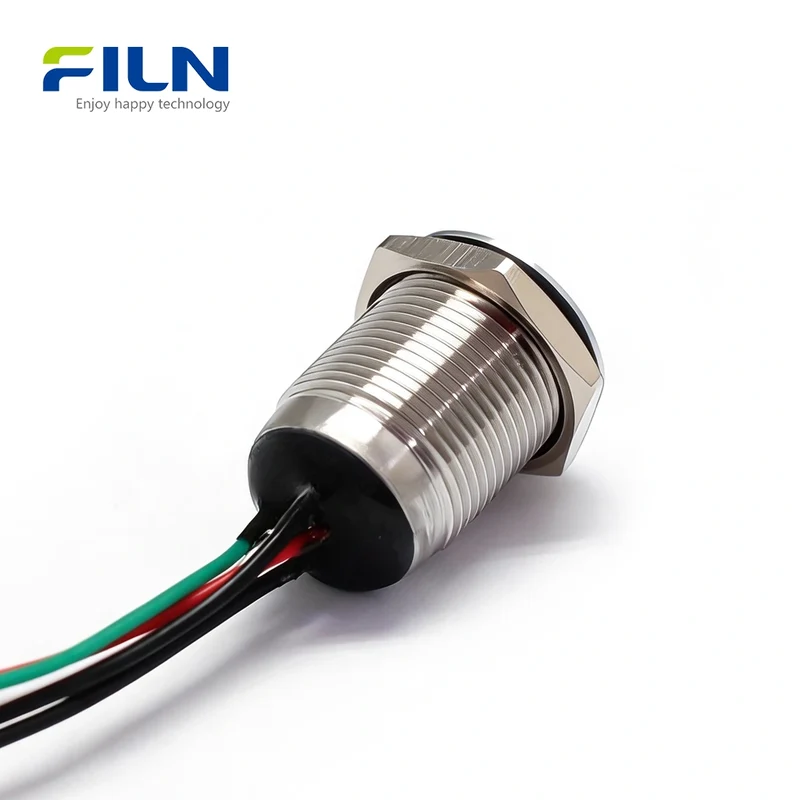

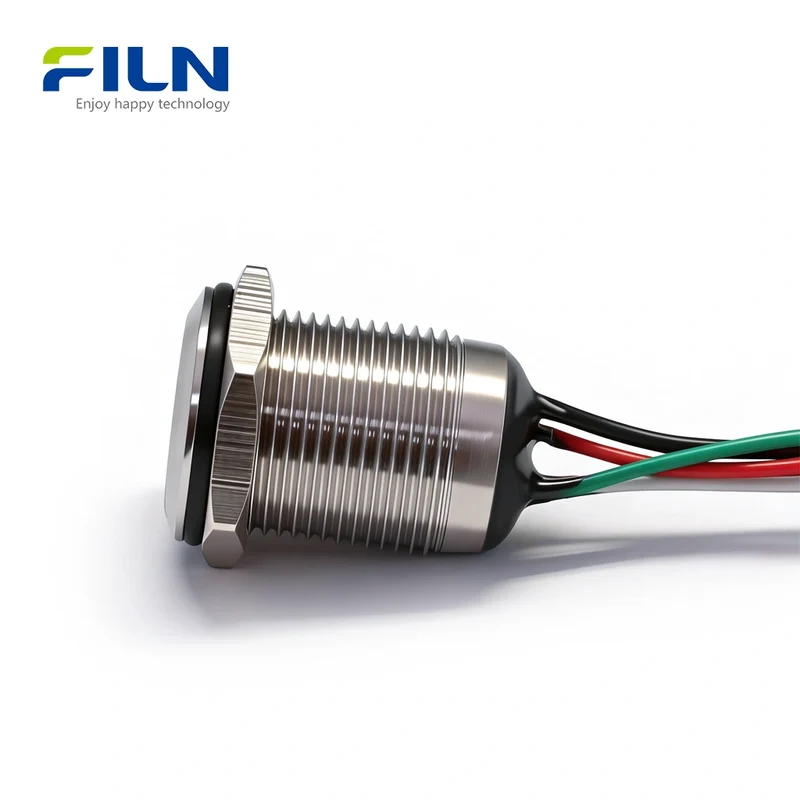

12V Push Button Switches Dual-Color R&G LED Metal Waterproof Momentary Switch FILN

Product Overview

The 12v push button switches (Model: FLM16-FW-1-D) by FILN are high-performance 16mm metal push button switches designed for rigorous industrial environments. These dual-color LED button 12v switches feature a robust stainless steel push button 12v or aluminum housing, ensuring durability and a premium aesthetic. With IP65 waterproof and IK08 impact resistance, they are ideal for industrial control panels, marine systems, and medical devices. Certified by ISO9001, CE, VDE, RoHS, SGS, and UL, these switches offer a momentary start button with LED or latching function, pre-wired with 15cm leads for rapid installation.

Quick Specifications

Model Number	FLM16-FW-1-D
Mounting Hole Size	16mm (0.63 inch)
Function	Latching / Momentary (Self-Reset)

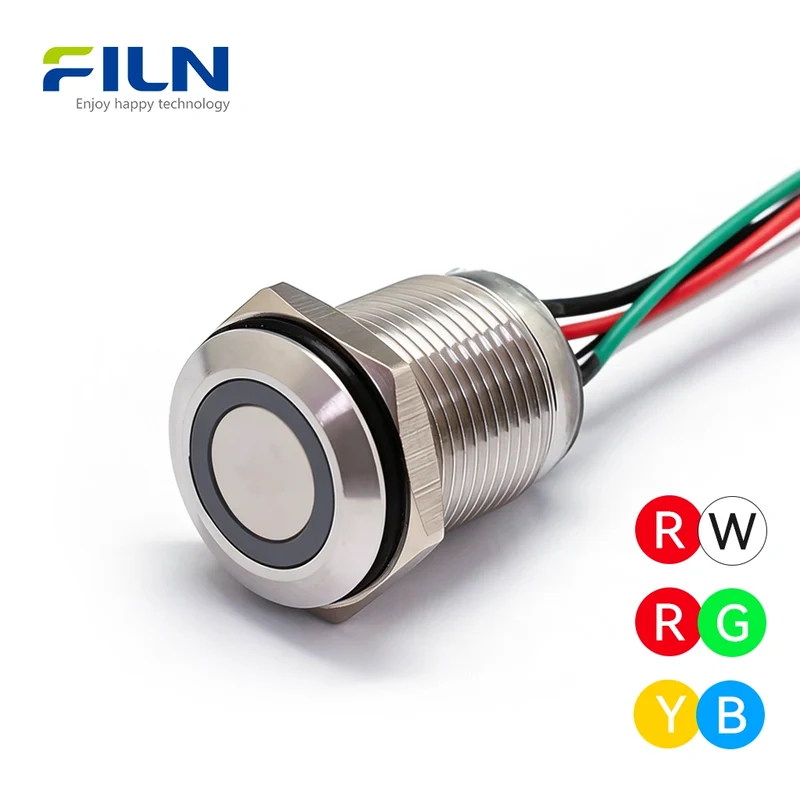

LED Color	Dual-color (R&G, Y&B, R&W) Custom Available
Button Shape	Flat Head
Terminal Type	Pre-wired (5 wires, 15cm length)

Performance Parameters

Rated Voltage (Switch)	36V DC / 250V AC	Rated Current	5A
Rated Power	180W (DC) / 1250W (AC)	Insulation Resistance	≥ 1000MΩ
LED Voltage	3V - 220V (Standard 12V-24V)	Contact Resistance	< 50mΩ
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL

Component Materials

Component	Material Detail
Button Head	304 Stainless Steel / 6063 Aluminum Alloy
Shell Sleeve	H59 Brass / 304 Stainless Steel / 6063 Aluminum Alloy
Base	PA66+GF20% Flame Retardant Nylon
Contacts	Silver Alloy (AgCdO12)
Sealing	Silicone (Waterproof Ring)

General Characteristics

Operating Temp	-25°C to +85°C
Protection Level	IP65 Waterproof, IK08 Impact Resistance
Mechanical Life	500,000 Cycles
Electrical Life	100,000 Cycles (3A) / 50,000 Cycles (5A)

Key Features

1. Superior Protection and Durability

With IP65 and IK08 ratings, this switch is far superior to standard IP40 buttons. It thrives in outdoor, wet, and high-impact industrial environments, reducing maintenance costs significantly.

2. Enhanced Electrical Load Capacity

Supporting 5A 250V AC/DC, it handles higher power than common 2A alternatives, often eliminating the need for intermediate relays and simplifying your circuit design.

3. Premium Material Selection

Utilizing 304 Stainless Steel and Silver Alloy contacts (AgCdO12), our switches offer exceptional corrosion resistance and high conductivity with low contact resistance.

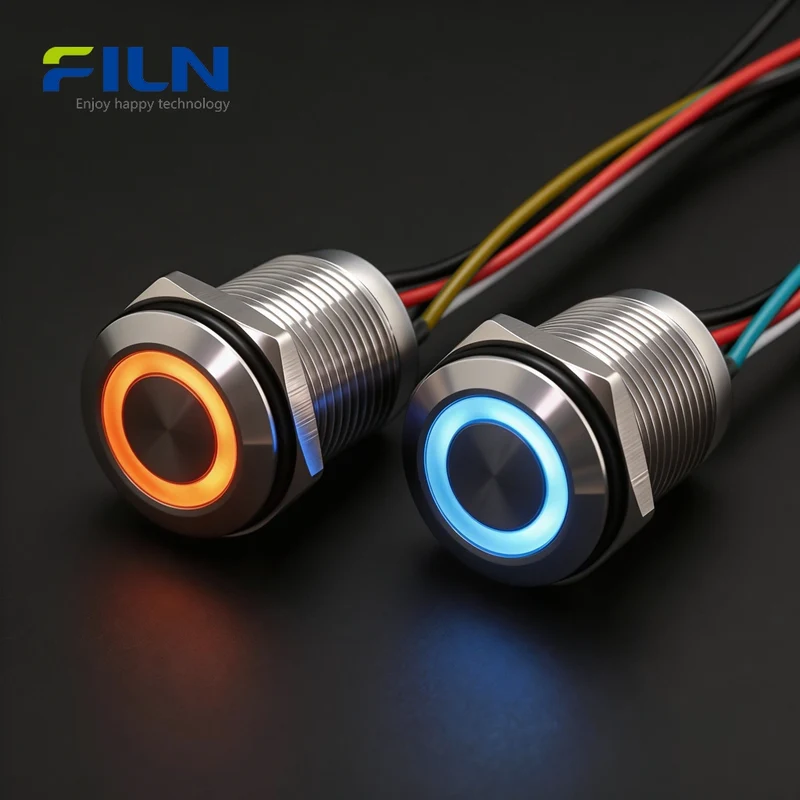

4. Visual Feedback & Ease of Installation

The ring-illuminated LED provides clear status feedback. The pre-wired design with 5 color-coded leads allows for fast, error-free batch assembly compared to pin-terminal versions.

Industrial Applications

FILN 12v push button switches are widely used across diverse sectors. They serve as reliable control interfaces for CNC machines, automation equipment, and marine systems where water resistance is paramount. In medical environments, the stainless steel finish ensures hygiene and durability.

Installation Guide

1. Prepare a 16mm diameter hole in your control panel.
2. Insert the switch through the hole from the front.

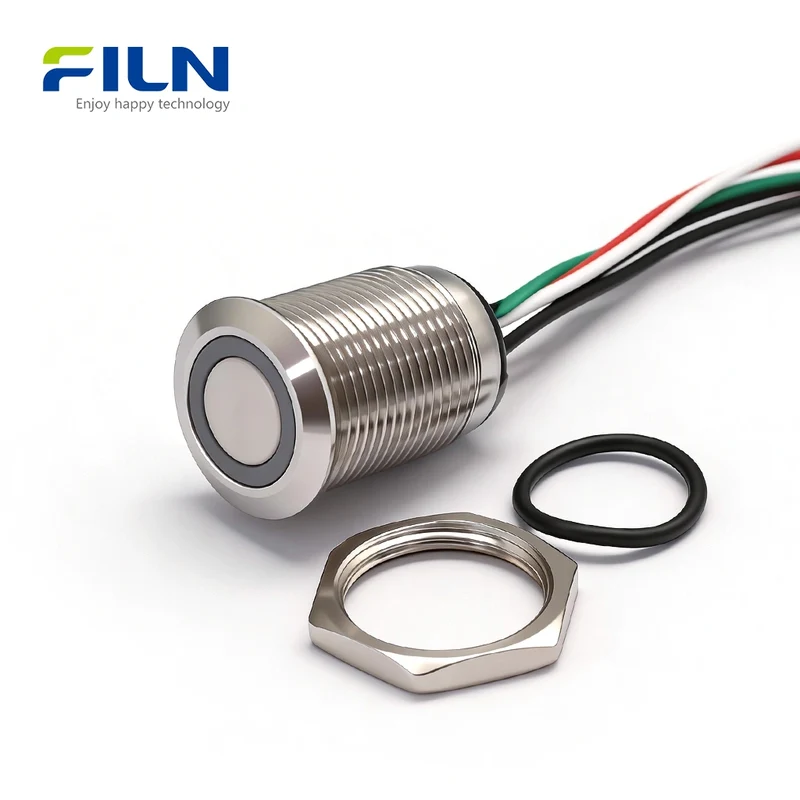

3. Secure the switch from the back using the provided metal hex nut.
4. Connect the 5-wire harness according to your desired logic (Sync or Constant LED).

4-PIN LED Push Button Switch Wiring Guide

A 4-PIN switch consists of two parts: Switch Contacts (to control the device) and LED Terminals (marked with + and -). Below are two ways to wire the LED indicator.

• Horizontal Pins: The switch mechanism (Power In / Load Out).
• Vertical Pins (+ / -): The LED indicator light terminals.

Method 1: LED Synchronized with Device (On when Active)

Logic: The button light only turns ON when the device is running. It serves as a "Status Indicator."

• Wiring: Connect LED (+) to the Output side of the switch. LED (-) to Power Negative.
• Applications: Power start buttons, car fog lights, industrial machinery.
• Benefit: Saves power; provides visual feedback that the system is active.

Figure 1: LED turns ON only when button is pressed

Method 2: LED Always ON (Backlight Mode)

Logic: The button light stays ON constantly as long as there is power, regardless of the button position.

• Wiring: Connect LED (+) directly to the Power Positive. LED (-) to Power Negative.
• Applications: Dark environments, hallway switches, standby power indicators.
• Benefit: Allows you to find the switch easily in total darkness.

Figure 2: LED stays ON constantly (Backlight)

Mode	LED Status (Idle)	LED Status (Pressed)
Sync (Status)	OFF	ON
Always ON (Backlight)	ON	ON

Industry Knowledge

What is a 12v Dual-Color Push Button Switch?

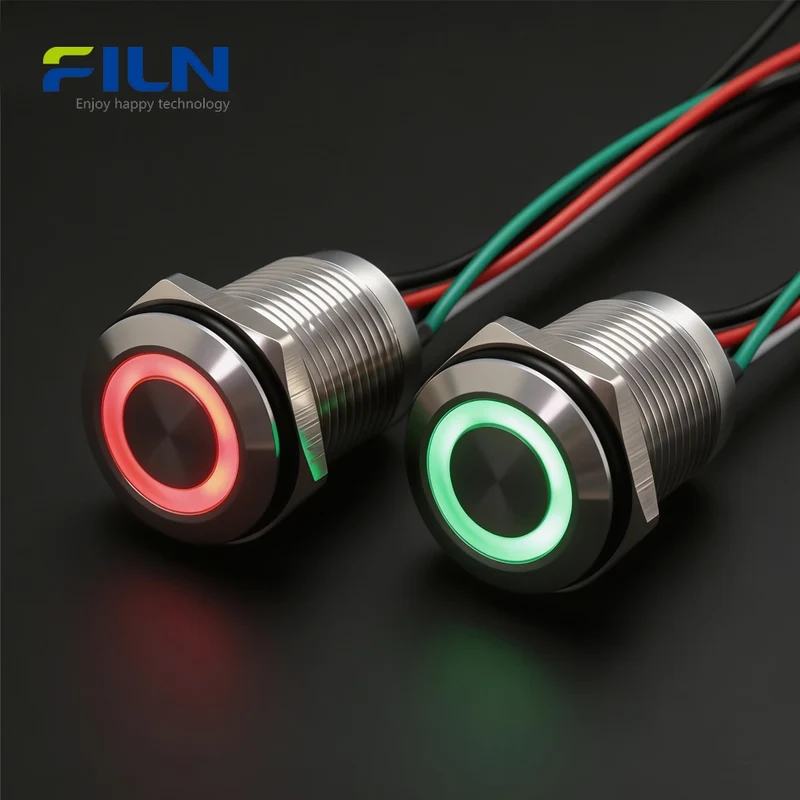

In industrial automation, a dual-color LED button 12v allows for complex status signaling in a single footprint. For example, a Red & Green LED can indicate "Stop/Fault" (Red) and "Running/Safe" (Green), saving panel space and improving operator clarity.

Comparison: Latching vs. Momentary

Feature	Latching (Self-Lock)	Momentary (Self-Reset)
Operation	Press to ON, press again to OFF	ON only while held; springs back
Common Use	Main Power, Light Switches	Horns, Doorbell, Reset, Start

Terminal Type Comparison

Terminal Type	Advantage	Installation
Pin Terminal	Compact, low cost	Soldering or female connectors
Screw Terminal	No soldering, heavy duty	Screwdriver needed
Pre-wired (This Model)	Fastest assembly, waterproof seal	Direct wire splicing

Factory Direct Supply - FILN Advantage

• No MOQ: Small orders and prototypes welcome.
• Fast Delivery: Global shipping with short lead times.
• Full Customization: Voltage (3V-220V), Wire Length, and Connectors tailored to your needs.

Request Free Sample

FILN Official Website: www.filn.com
Contact Us: [email protected]
Explore All: View All Push Button Switches

Frequently Asked Questions

1. What do the LED colors signify?
Typically, Red indicates Stop or Error, Green means Running, Blue for Standby, Yellow for Warning, and White for Power status.

2. Can I use these 12v push button switches for 24v systems?
Yes, this model supports 12-24V wide voltage range without damaging the LED.

3. Is the 16mm metal push button switch truly waterproof?
Yes, it is rated IP65, meaning it is protected against low-pressure water jets from any direction and is dust-tight.

4. How long are the pre-wired leads?
Standard length is 15cm, but FILN can customize this to any length for bulk orders.

5. What is the difference between Momentary and Latching?
Momentary resets once released; Latching stays in place until pressed again.

6. Can you provide custom laser engraving on the button?
Yes, FILN supports custom symbols and text etching on the button head.

7. Do you have UL certification for the 16mm switch?
Yes, all FILN metal buttons are UL, CE, and RoHS certified.

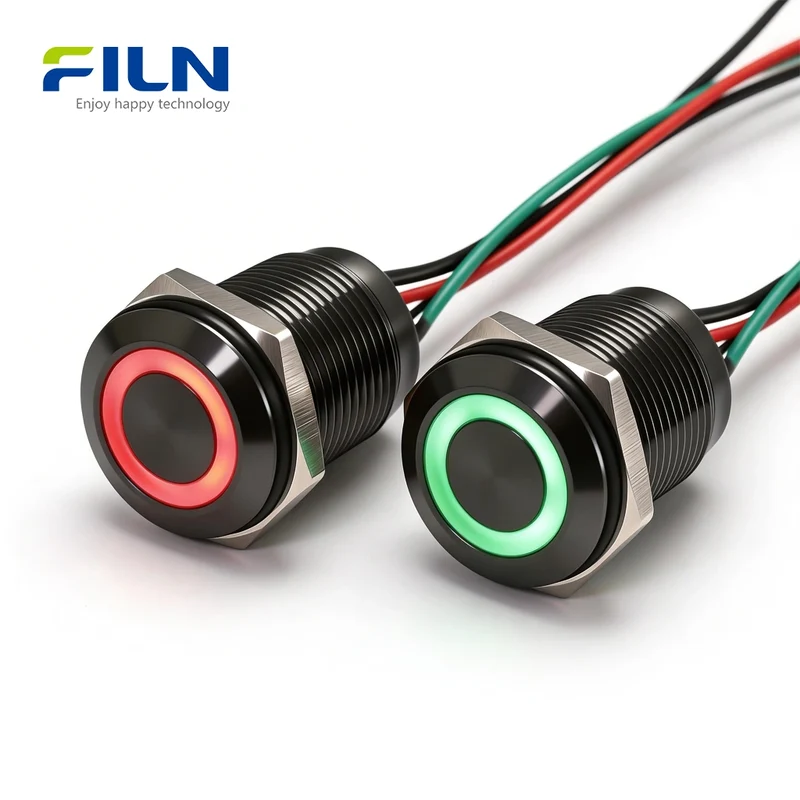

8. Is there a choice between black and silver shells?
Yes, we offer high-quality 304 Stainless Steel (Silver) and Black Anodized Aluminum shells.

9. How do I wire a dual-color LED?
The 5-wire harness includes common negative and two separate positives for each color.

10. Can these be used in automotive applications?
Absolutely. They are popular for dashboards, fog lights, and auxiliary power controls.
