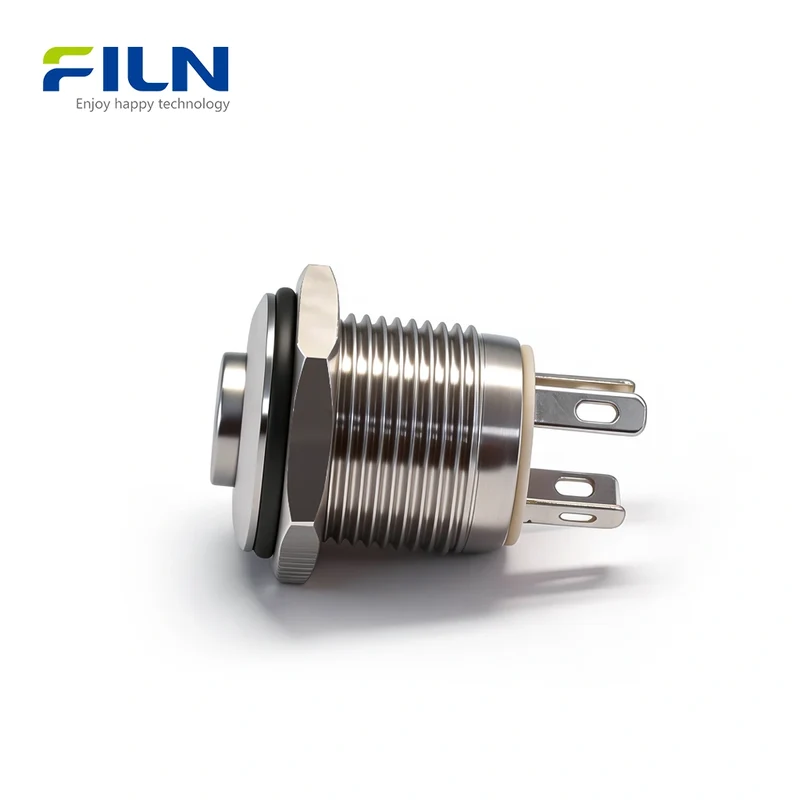

12V Push Button Momentary Switch 16mm Stainless Steel 4-PIN Ring LED Light FILN

Button Switch DrawingPRODUCT OVERVIEW

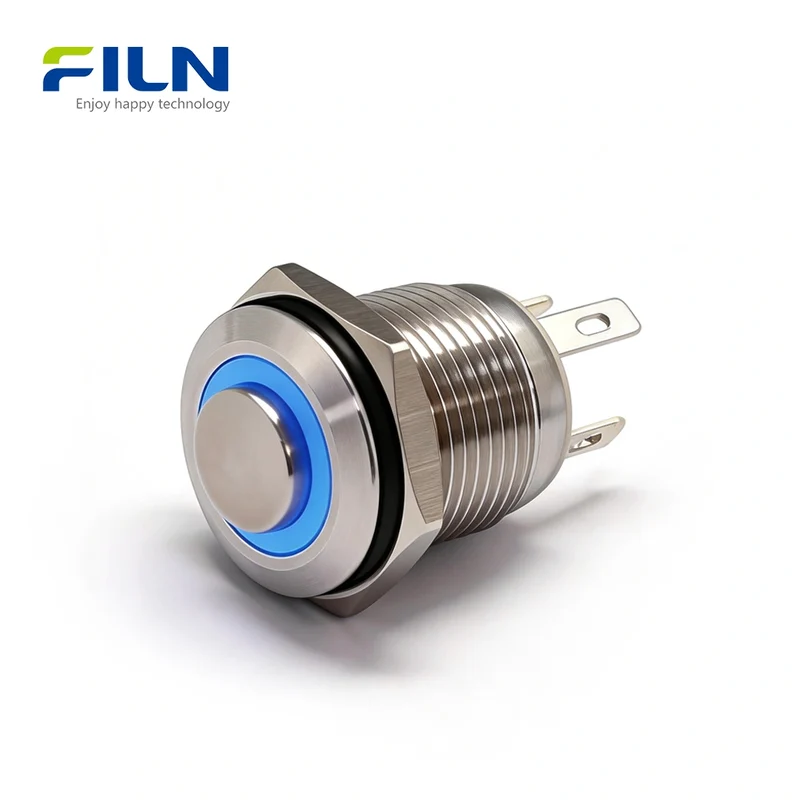

The 12v push button momentary switch (Model: FLM16-HJ-2-E) is a high-performance industrial control component manufactured by FILN. This 16mm metal push button features a premium 304 stainless steel shell and an elegant ring LED indicator, making it ideal for high-end equipment panels. As a momentary reset switch, it functions by staying active only while pressed, perfect for signal triggering and short-term circuit activation. Our products are fully certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, ensuring maximum reliability in harsh environments. Whether used in automation equipment or marine systems, this switch provides superior tactile feedback and long-lasting illuminated push button switch performance.

QUICK SPECIFICATIONS

Model Number	FLM16-HJ-2-E
Mounting Hole Size	16mm (0.63 inch)
Operation Type	Momentary (Self-reset)
LED Color	R/G/Y/B/W (Custom bi-color/tri-color available)
Head Shape	High Head (High Actuator)

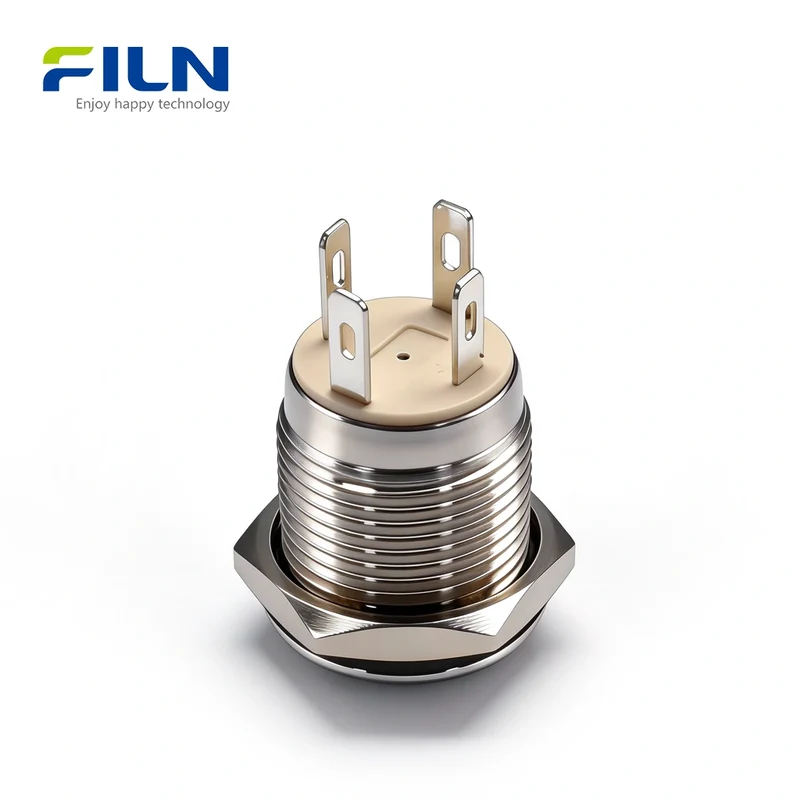

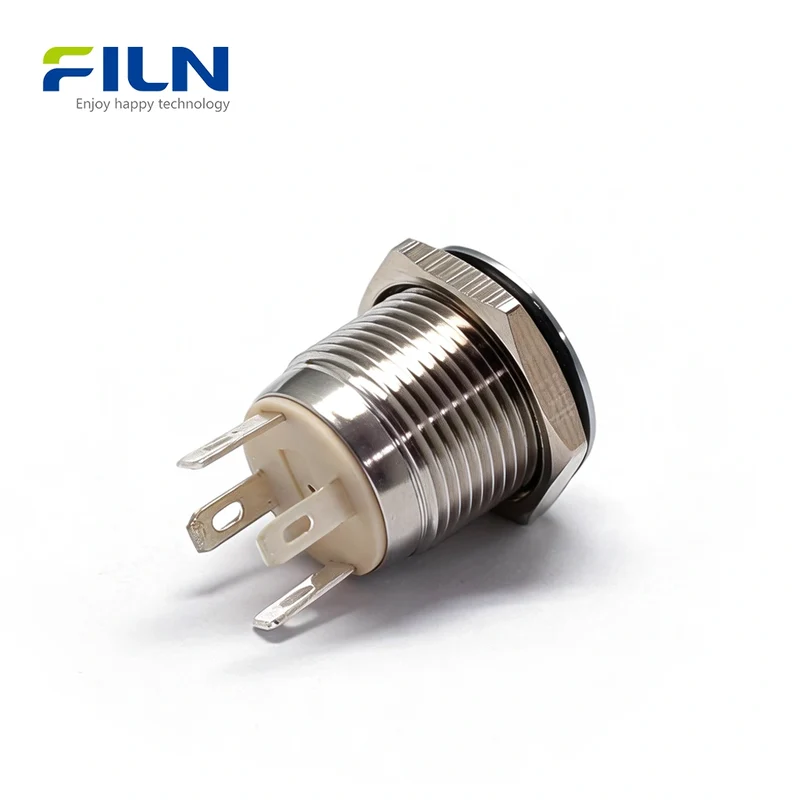

Termination Type	4-PIN Pin Terminal (2.8x0.5mm)

ELECTRICAL PERFORMANCE PARAMETERS

Rated Voltage	36V DC / 250V AC	Rated Current	5A
Rated Power	180W (DC) / 1250W (AC)	Insulation Voltage	1800V
Contact Resistance	< 50mΩ	Insulation Resistance	≥ 1000MΩ
LED Voltage	12V-24V (Support 3V-220V)	Product Certification	CE, UL, RoHS, VDE, SGS

COMPONENT MATERIALS

Component	Material Description
Button Actuator	304 Stainless Steel / 6063 Aluminum Alloy
Shell Sleeve	H59 Brass / 304 Stainless Steel
Button Pins	H62 Copper Alloy
Base Material	PA66+GF20% Flame Retardant Nylon
Contact Point	Silver Contact (AgCdO12)
Sealing Ring	SIL Silicone (Waterproof)

ENVIRONMENTAL & LIFE CHARACTERISTICS

Operating Temperature	-25°C to +85°C
Protection Level	IP65, IK08 (Vandal Resistant)
Mechanical Life	500,000 Cycles
Electrical Life	100,000 Cycles (3A) / 50,000 Cycles (5A)

KEY FEATURES & ADVANTAGES

• Superior Protection: Rated IP65 and IK08, this switch is waterproof, dustproof, and resistant to physical impact, making it ideal for outdoor and industrial use.
• High Load Capacity: Supports up to 5A 250V AC/DC, allowing it to control higher power devices directly without needing an external relay.
• Premium Materials: The 304 stainless steel shell offers extreme corrosion resistance, while AgCdO12 silver contacts ensure low resistance and high durability.
• User-Friendly Design: The ring LED push button provides clear status feedback, and the pin terminal (4-PIN) design simplifies wiring and mass production assembly.
• Compact Structure: With a mounting diameter of 16mm and a short-body design, it fits perfectly into space-constrained control panels and handheld devices.

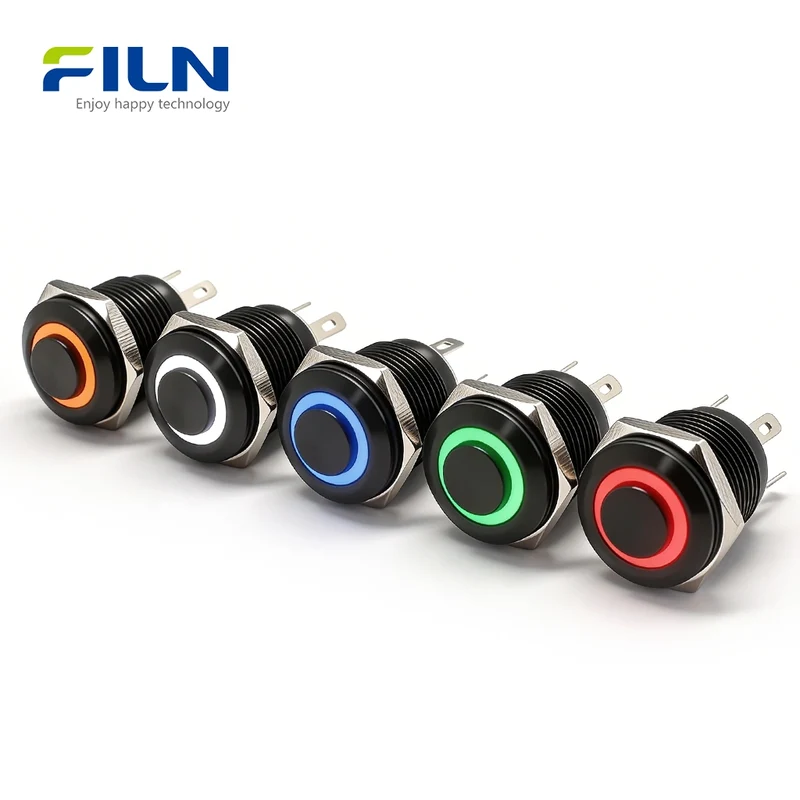

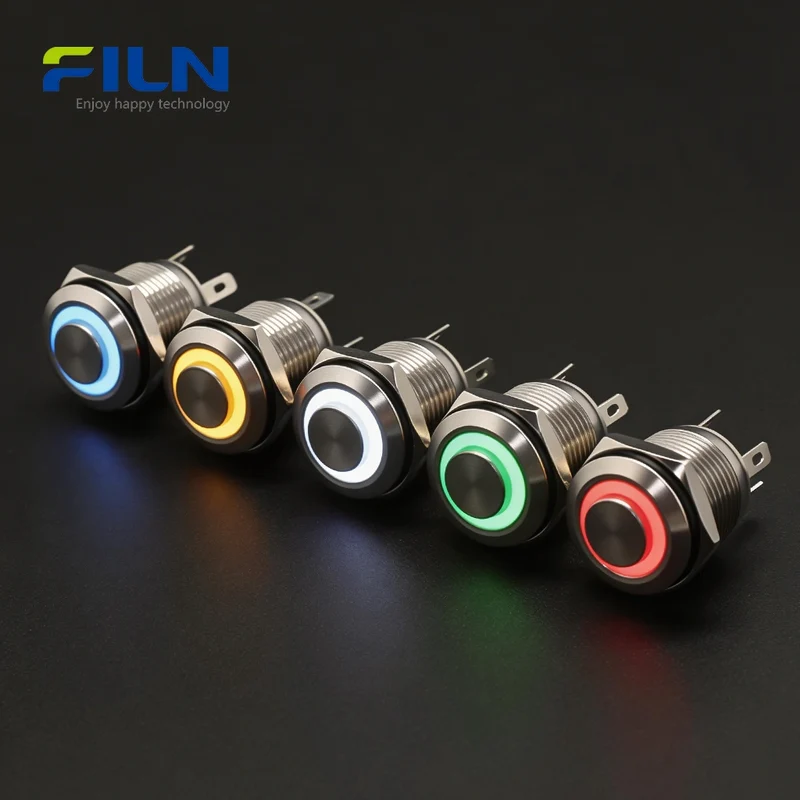

LED COLOR STATUS INDICATIONS

Choosing the right LED color for your 12v push button momentary switch is essential for user safety and equipment operation:

• 🔵 Blue: Often used for secondary functions or status indicators in dark environments.
• 🔴 Red: Standard for emergency stops, power-off indicators, or warning alerts.
• 🟢 Green: Indicates "Start," "System Ready," or normal operating status.
• 🟡 Yellow: Used for standby modes or caution alerts requiring operator attention.
• ⚪ White: Provides high-brightness illumination for general power status in bright areas.

INDUSTRIAL APPLICATIONS

FILN 16mm metal push button switches are widely utilized in:

• Industrial control panels & CNC machines
• Automation equipment & Robotics
• Electrical cabinets & Power distribution
• Marine systems & Automotive dashboards
• Medical devices & Laboratory equipment

INSTALLATION STEPS

1. Prepare the control panel by drilling a 16mm mounting hole.
2. Insert the momentary reset switch from the front side of the panel.

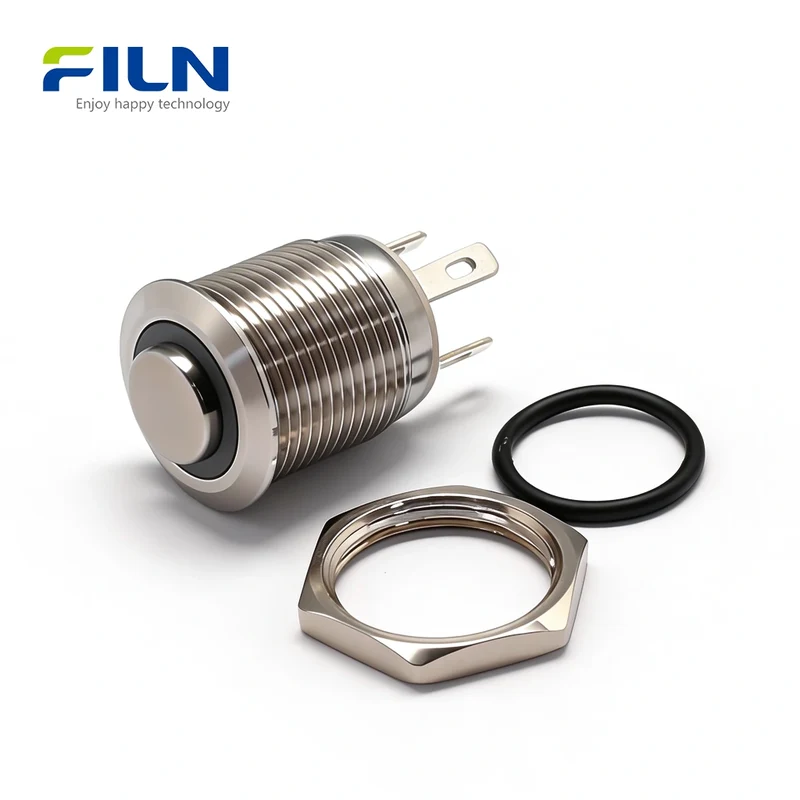

3. Secure the switch from the back using the provided metal hex nut and waterproof gasket.
4. Connect the 4-PIN terminal according to the wiring logic (refer to the guide below).

4-PIN LED Push Button Switch Wiring Guide

A 4-PIN switch consists of two parts: Switch Contacts (to control the device) and LED Terminals (marked with + and -). Below are two ways to wire the LED indicator.

• Horizontal Pins: The switch mechanism (Power In / Load Out).
• Vertical Pins (+ / -): The LED indicator light terminals.

Method 1: LED Synchronized with Device (On when Active)

Logic: The button light only turns ON when the device is running. It serves as a "Status Indicator."

• Wiring: Connect LED (+) to the Output side of the switch. LED (-) to Power Negative.
• Applications: Power start buttons, car fog lights, industrial machinery.
• Benefit: Saves power; provides visual feedback that the system is active.

Figure 1: LED turns ON only when button is pressed

Method 2: LED Always ON (Backlight Mode)

Logic: The button light stays ON constantly as long as there is power, regardless of the button position.

• Wiring: Connect LED (+) directly to the Power Positive. LED (-) to Power Negative.
• Applications: Dark environments, hallway switches, standby power indicators.
• Benefit: Allows you to find the switch easily in total darkness.

Figure 2: LED stays ON constantly (Backlight)

Mode	LED Status (Idle)	LED Status (Pressed)
Sync (Status)	OFF	ON
Always ON (Backlight)	ON	ON

INDUSTRY KNOWLEDGE

What is a 12V Push Button Momentary Switch?
In industrial equipment, a momentary reset switch is a type of electrical contact that only maintains its state while it is being physically actuated. Once released, it returns to its default position. It acts as the "brain" for triggering specific functions like machine startup or system resets.

Feature	Momentary (Reset)	Latching (Fixed)
Action	Springs back after press	Stays in position after press
Application	Horn, Starter, Doorbell	Main Power, Light Switch

FACTORY DIRECT SUPPLY - FILN

As a leading illuminated push button switch manufacturer, FILN offers:

• ✅ No MOQ (Minimum Order Quantity)
• ✅ Fast Global Shipping (DHL/FedEx/UPS)
• ✅ Full Customization (Voltage, Wire, Connector)
• ✅ CE / RoHS / UL Certified Quality

REQUEST FREE SAMPLE

FILN Official Website: www.filn.com
Contact Us: [email protected]

FREQUENTLY ASKED QUESTIONS (FAQ)

1. Is this 12v push button switch waterproof?
Yes, it is rated IP65, making it resistant to water splashes and dust, suitable for outdoor use.

2. Can I use this 16mm metal push button for a car horn?
Absolutely. The momentary reset function is perfect for car horns and starters.

3. Does FILN support custom LED voltages?
Yes, we can customize voltages from 3V up to 220V AC/DC.

4. What is the benefit of the stainless steel shell?
It provides superior corrosion resistance and a professional aesthetic compared to plastic.

5. How do I wire the LED to be always on?
Connect the LED pins (+ and -) directly to your power source positive and negative.

6. Can I get this switch with a pre-wired harness?
Yes, FILN offers custom wire length and connector assembly services.

7. What is the mechanical lifespan of the FLM16-HJ-2-E?
It is tested for up to 500,000 cycles for high-frequency industrial use.

8. Are samples available before bulk orders?
Yes, please contact [email protected] for free samples.

9. Is the 4-PIN configuration easy to install?
Yes, the standard 2.8mm pin terminals are compatible with quick-connect sockets or soldering.

10. Does this switch have UL certification?
Yes, FILN push button switches are UL, CE, and RoHS certified for global markets.
