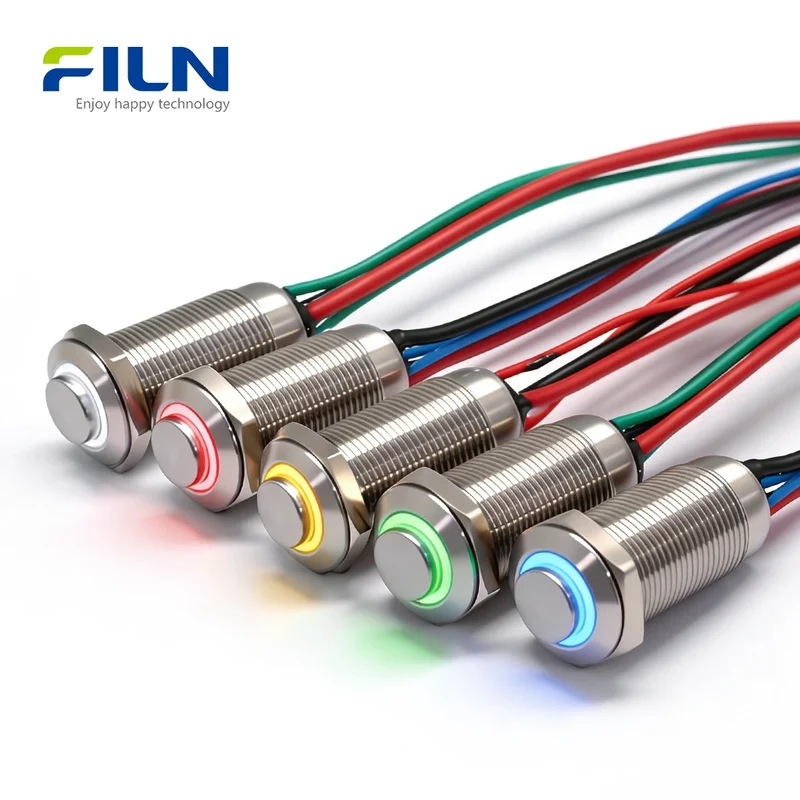

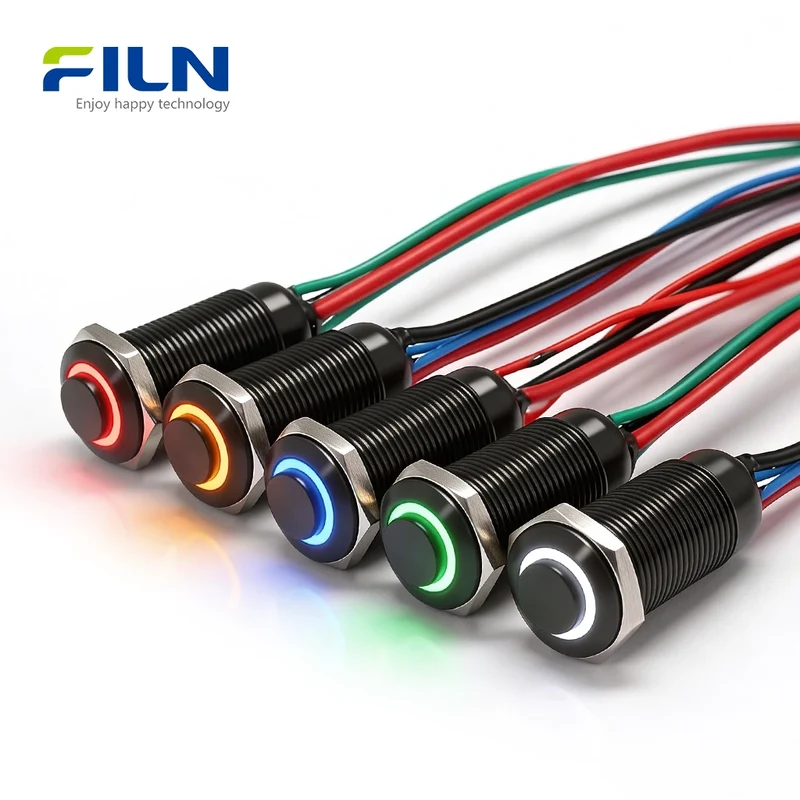

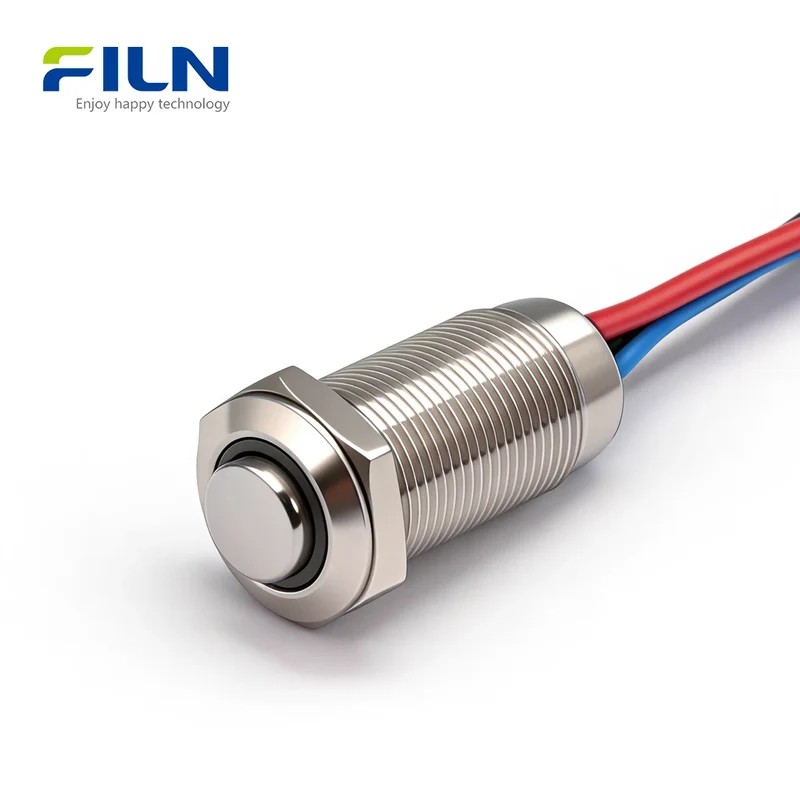

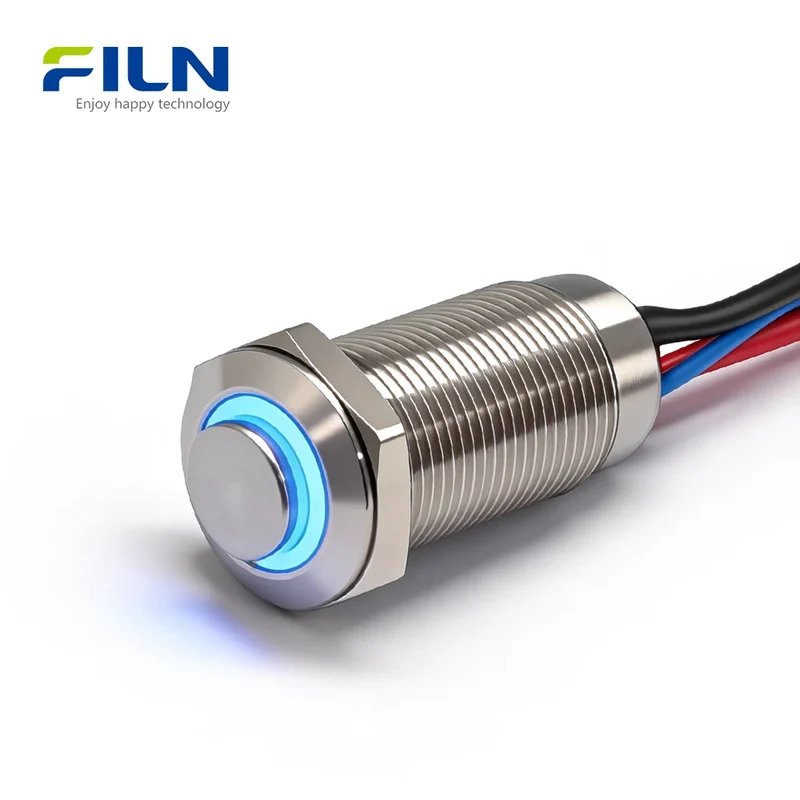

12mm Stainless Steel Push Button Motorcycle Switch LED Ring Momentary Latching 12-220V FILN

Button Switch DrawingPRODUCT OVERVIEW

The FLM12-HW-1-E is a premium 12mm push button motorcycle switch engineered by FILN for high-performance industrial and automotive applications. This stainless steel LED ring button switch features a high-head design and comes pre-wired with 15cm leads, specifically epoxy-sealed to prevent moisture ingress, achieving an IP65 waterproof rating. With certifications including ISO9001, CE, VDE, RoHS, SGS, and UL, it ensures maximum safety for industrial control panels, CNC machines, marine systems, and medical devices. Whether used as a momentary push button switch for horns or a latching power button for lighting, its robust metal construction offers superior durability compared to plastic alternatives.

QUICK SPECIFICATIONS

Model Number	FLM12-HW-1-E
Mounting Hole Size	12mm (0.47 inches)
Operation Function	Latching / Momentary (Customizable)

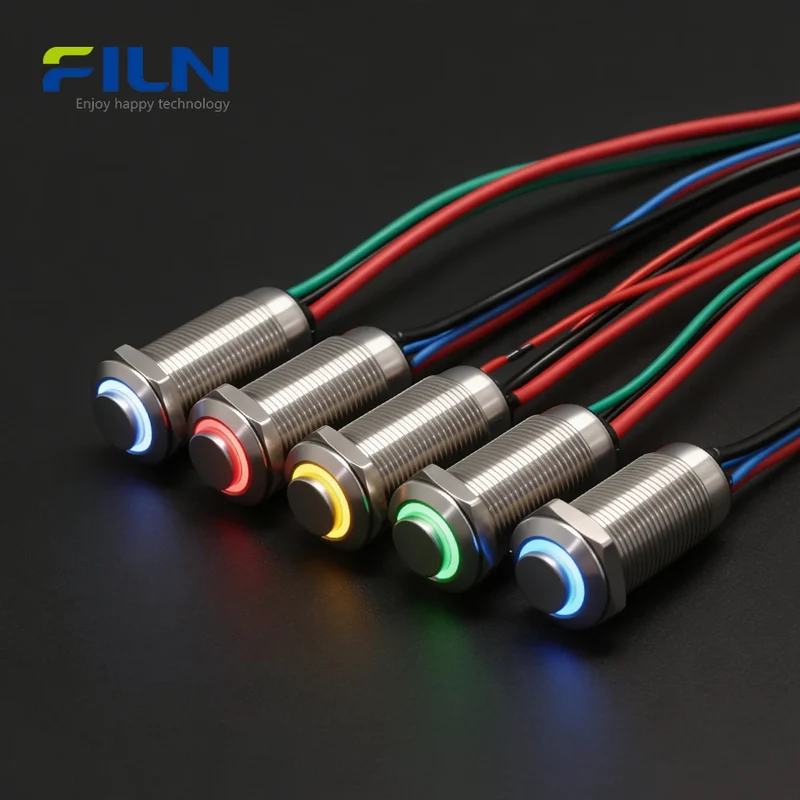

LED Color Options	Red, Green, Yellow, Blue, White (Dual/Tri-color supported)
Button Head Style	High Head (High Actuator)
Wiring Method	Pre-wired (4 Wires, 15cm Length)

ELECTRICAL PERFORMANCE PARAMETERS

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)
Insulation Resistance	≥ 1000MΩ
Contact Resistance	< 50mΩ
Product Certification	ISO9001, CE, VDE, RoHS, SGS, UL

COMPONENT MATERIALS

Component	Material Specification
Button Actuator	304 Stainless Steel / 6063 Aluminum Alloy
Housing Shell	H59 Brass / 304 Stainless Steel
Contact Material	Silver Contact AgCdO12
Base Material	Flame Retardant Nylon PA66+GF20%

LED & ENVIRONMENTAL SPECIFICATIONS

Protection Level	IP65, IK08
Mechanical Life	500,000 Cycles
Light Intensity	1000 mcd
Main Wavelength	520.7 nm

Meaning of LED Colors

• RED: Danger/Emergency or Power Off status.
• GREEN: Normal operation or System Ready.
• BLUE: Specialty functions or High-beam indicators on motorcycles.
• YELLOW: Warning or Standby mode.
• WHITE: General illumination or Neutral status.

KEY FEATURES

• Superior Durability: Rated IP65 & IK08, resistant to water, dust, and physical impact.
• Optimized Load Capacity: Supports up to 5A 250V, reducing the need for external relays.
• Anti-Corrosive Housing: 304 Stainless Steel shell ideal for marine and medical industries.

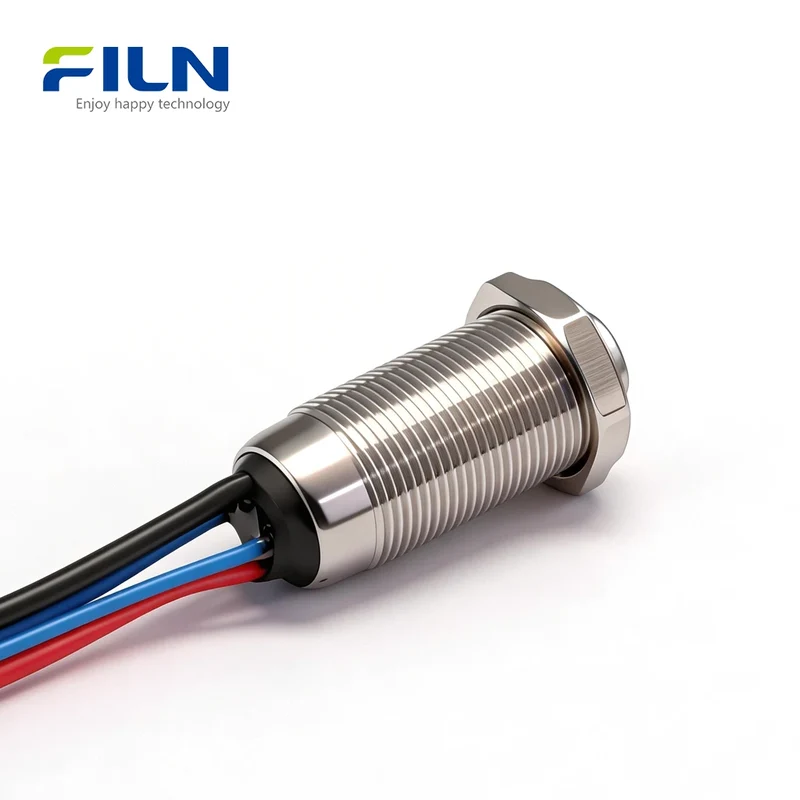

• Pre-wired Convenience: Includes 15cm wire leads with epoxy sealing for instant installation.
• Compact Design: 12mm mounting diameter is perfect for space-constrained panels.

INSTALLATION GUIDE

1. Panel Prep: Drill a 12mm hole in the desired control panel location.
2. Insertion: Insert the switch from the front side of the panel.

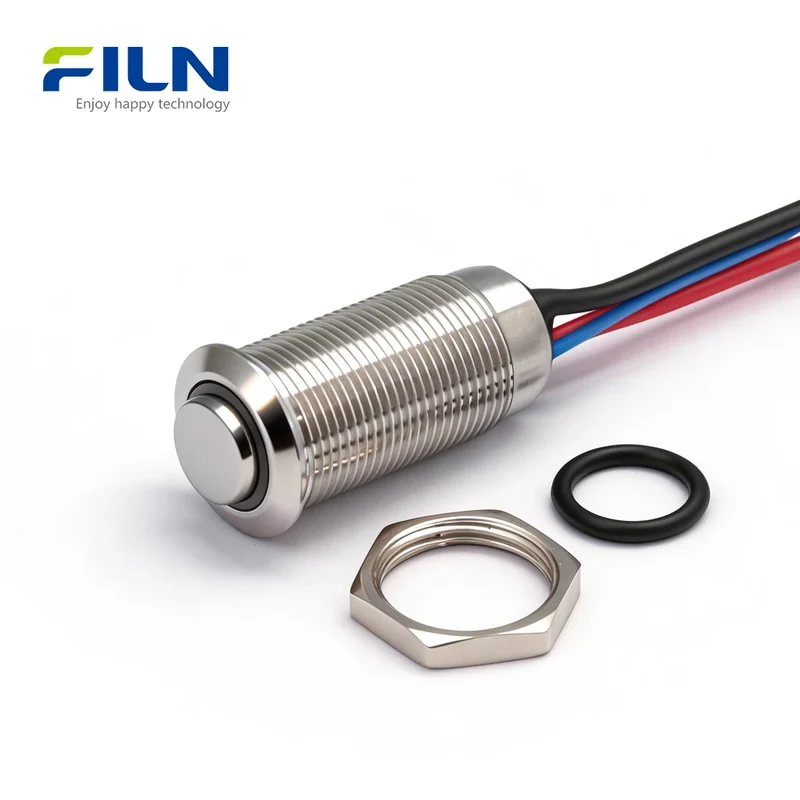

3. Securing: Use the provided metal hex nut from the back to tighten and fix the switch.
4. Wiring: Connect the 4 wires according to your circuit logic (refer to diagrams below).

WIRING DIAGRAM (4-WIRE LED)

Method 1: LED Synchronized with Device (On when Active)

Connect LED (+) to the Output side of the switch. LED (-) to Power Negative. The button light only turns ON when the device is running.

Method 2: LED Always ON (Backlight Mode)

Connect LED (+) directly to the Power Positive. LED (-) to Power Negative. The light stays ON constantly to help find the switch in the dark.

INDUSTRY KNOWLEDGE

What is a 12mm Pre-wired Push Button?

In industrial environments, time-to-assembly is a critical cost factor. A 12mm pre-wired switch eliminates the need for manual soldering on-site, providing a reliable, waterproof connection that is sealed at the factory. This is vital for motorcycles and outdoor equipment where vibration and humidity would otherwise cause terminal failure.

Latching vs. Momentary Operation

Function	Behavior	Common Use
Momentary	Stays active only while pressed (Spring back)	Horns, Engine Start, Doorbell
Latching	Stays in position (Push-ON, Push-OFF)	Fog Lights, Main Power Switch

FACTORY DIRECT ADVANTAGE

• ✅ No MOQ: Small orders welcome for B2B testing.
• ✅ Fast Lead Time: Global shipping from our factory.
• ✅ Customization: Voltage, wire length, and connectors tailored to your specs.

GET FREE SAMPLES

Official Website: www.filn.com
Email: [email protected]

FREQUENTLY ASKED QUESTIONS

Q1: Is the 12mm push button switch waterproof?
A1: Yes, the FLM12-HW-1-E is IP65 rated and features a sealed tail with glue injection to prevent water vapor from entering.

Q2: Can I customize the wire length?
A2: Absolutely. While the standard length is 15cm, FILN offers wire length customization for bulk orders.

Q3: What is the benefit of a metal push button over plastic?
A3: Metal buttons offer IK08 impact protection, are flame-retardant, and provide a premium aesthetic for motorcycles and machinery.

Q4: Do you provide UL certified switches?
A4: Yes, FILN products carry UL, CE, RoHS, and VDE certifications for global compliance.

Q5: Can this switch handle 220V?
A5: Yes, the switch contact is rated for up to 250V AC, and the LED can be customized for 220V use.
