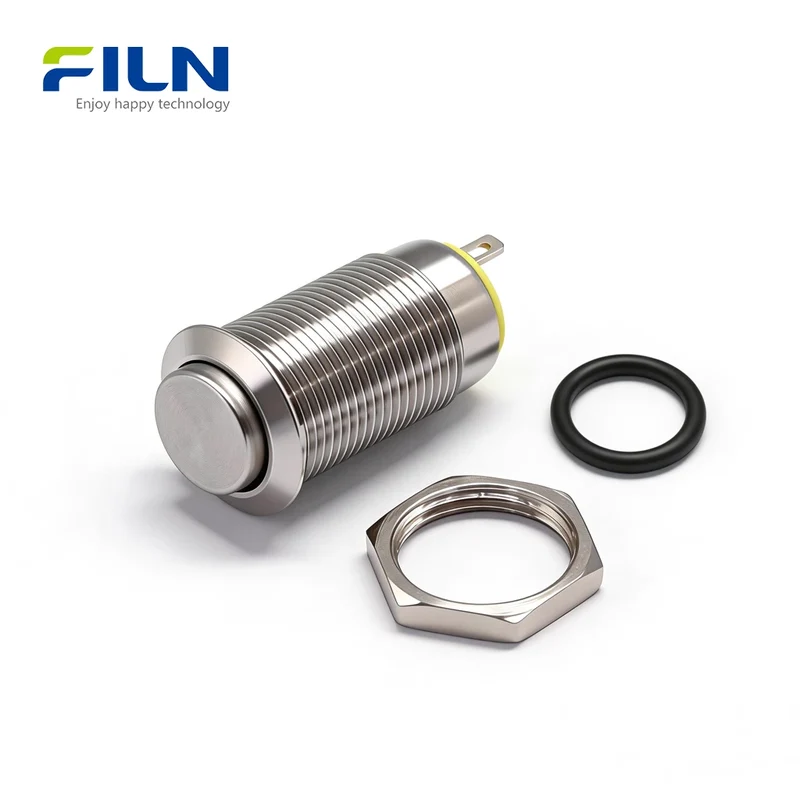

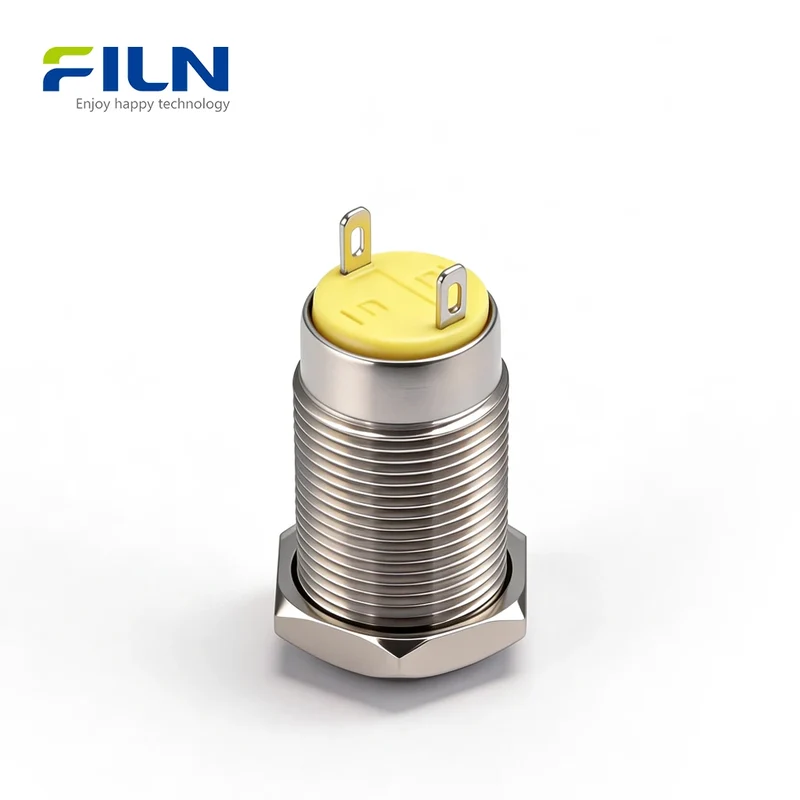

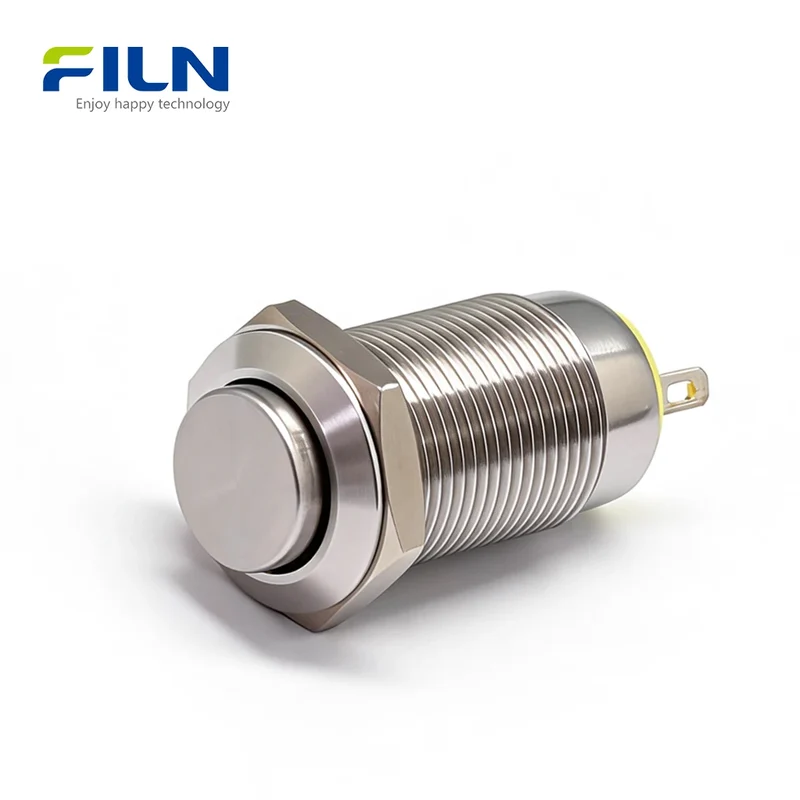

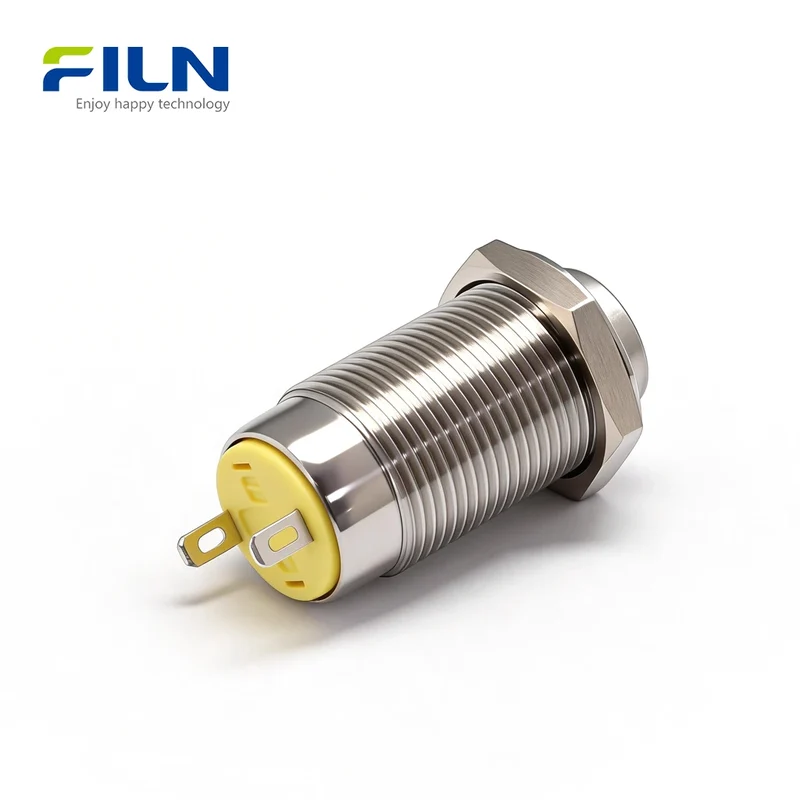

12mm Push Button Switch Mini Stainless Steel High Head Push Button Switch FILN

Button Switch Drawing

Product Overview

The push button switch mini (Model: FLM12-HJ-1) is a precision-engineered 12mm metal high head button designed for demanding industrial applications. Manufactured by FILN, a leading factory in switch technology, this product carries prestigious certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and IP65. Built from premium stainless steel, it serves as a critical component in industrial control panels, CNC machinery, and automation equipment. Its momentary high-head design provides excellent tactile feedback, ensuring reliable circuit control. As a corrosion resistant metal button, it excels in harsh environments where plastic switches fail, offering a long service life and easy 2 pin terminal wiring for rapid deployment.

Quick Specifications

Model Number	FLM12-HJ-1
Mounting Diameter	12mm (0.47 inch)
Actuator Style	High Head (Round Actuator)
Function	Momentary / Latching
LED Lighting	Non-Illuminated
Terminal Configuration	2-Pin Solder/Plug-in Terminal

Performance Parameters

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Insulation Resistance	≥ 1000MΩ
Contact Resistance	< 50mΩ
Dielectric Strength	1800V
Certifications	UL, CE, RoHS, ISO9001

Component Materials

Button/Actuator	304 Stainless Steel / 6063 Aluminum
Shell Body	Stainless Steel / H59 Nickel-Plated Brass
Base Housing	Flame Retardant PA66 Nylon
Internal Contacts	Silver Alloy AgCdO12
Terminals	Silver-Plated H62 Copper

General Characteristics

Operating Temp	-25°C to +85°C
Protection Level	IP65 Waterproof, IK08 Impact-Proof
Mechanical Life	500,000 operations
Electrical Life	100,000 operations (Full Load)

Terminal Type Comparison

Terminal Type	Installation Speed	Reliability	Best For
Pin Terminal (Plug-in)	Very Fast	High (Stable)	Factory Assembly / PCB Connection
Screw Terminal	Slow (Manual)	Medium	Field Repair / Heavy Vibration
Pre-wired Leads	Instant	Highest (Sealed)	Waterproof Deep Sealing

Key Features

• High Head Actuator: The protruding high head design allows for easy operation even while wearing gloves, providing clear tactile feedback.
• Compact 12mm Design: Ideal for high-density control panels where space is a premium.
• Stainless Steel Durability: Offers superior resistance to corrosion, oxidation, and physical wear compared to standard aluminum or plastic switches.
• Silver Contacts: Utilizes AgCdO12 contacts to ensure low electrical resistance and a long life cycle of up to 500,000 presses.
• Simplified Wiring: The 2-pin terminal design supports standard 2.8mm connectors or soldering, making it incredibly easy to connect.

Applications

This push button switch mini is widely utilized across various sectors:

• Industrial Control: Perfect for starting/stopping machinery.
• Automotive: Used in dash panels, horn buttons, and accessory triggers.
• Medical Devices: Ideal for sterile environments due to stainless steel's ease of cleaning.
• Marine Equipment: Resists salt spray and moisture with IP65 protection.

Installation Steps

1. Drilling: Drill a precise 12mm mounting hole in your control panel.
2. Insertion: Push the button actuator through the hole from the front side of the panel.
3. Fastening: Slide the metal hex nut onto the threaded body from the back and tighten securely.
4. Wiring: Attach your 2-pin connectors or solder the wires to the terminals to complete the circuit.

Wiring Connection Logic

Logic: Device stays OFF by default and turns ON only when pressed.

• Wiring: Connect Power (+) to Pin 1, and Device Input to Pin 2.
• Applications: PC power buttons, car horns, momentary starters. [cite: 3]

Industry Knowledge

What is a Push Button Switch Mini?

A push button switch mini is a compact electrical mechanism used to control the flow of current. In industrial machinery, it often serves as a primary interface for humans to trigger specific machine functions. The metal construction ensures it can handle high-frequency use without the cracking or fading seen in plastic variants.

Latching vs. Momentary: Which do you need?

Function	Behavior	Use Case
Momentary	Springs back when released	Reset buttons, horns
Latching	Clicks and stays in place	Power toggles, lights

Factory Direct Supply - FILN Advantage

• ✔ No Minimum Order Quantity (MOQ)
• ✔ Global Fast Delivery
• ✔ Custom Wire Lengths & Connectors
• ✔ Certified Quality (CE/UL/RoHS)

Request Free Samples

Official Site: www.filn.com | Email: [email protected]

Frequently Asked Questions

1. Is this switch momentary or latching?
The FLM12-HJ-1 is a momentary switch, meaning it only activates when pressed.

2. What is the benefit of the high head design?
The high head allows for easier activation when using gloves or in low-visibility conditions.

3. Can I get a customized wire harness for this 12mm button?
Yes, FILN provides wire length and connector customization services.

4. What material is the body made of?
We primarily use 304 Stainless Steel for maximum corrosion resistance.

5. Is there a minimum order quantity?
No, FILN supports industrial customers with no MOQ requirements.

6. How do I install this on a panel?
Simply drill a 12mm hole, insert the button, and tighten the included metal nut from the back.

7. What is the current rating?
This switch is rated for 5A DC / 5A AC current.

8. Can this be used outdoors?
Yes, with its IP65 rating, it is suitable for outdoor and marine environments.

9. Are silver contacts better than copper?
Yes, silver contacts provide better conductivity and resist oxidation, ensuring a longer life.

10. How quickly can you ship?
We offer fast global shipping, typically within 3-7 business days for standard items.
