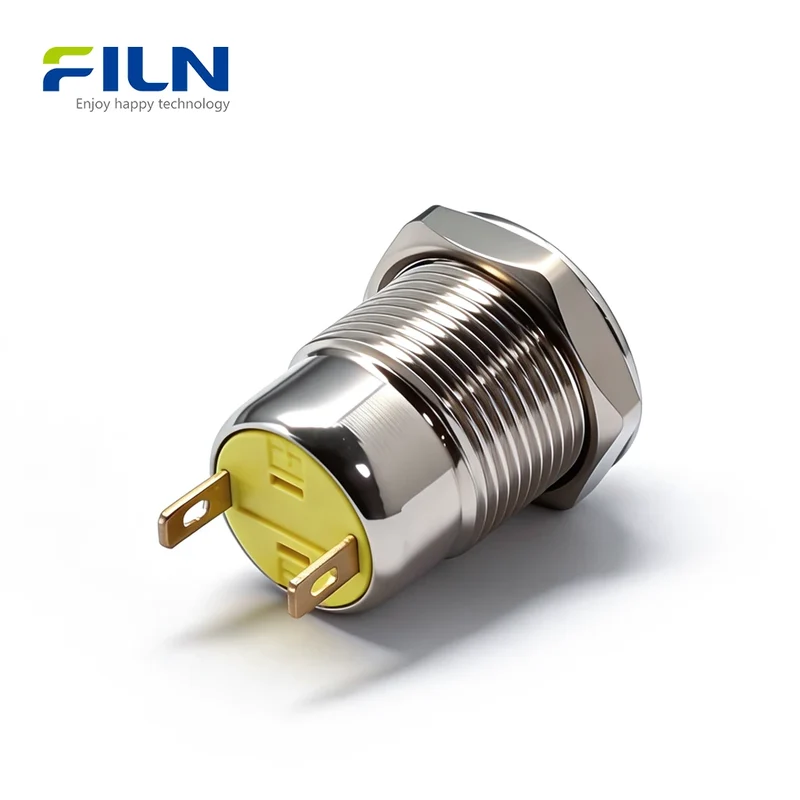

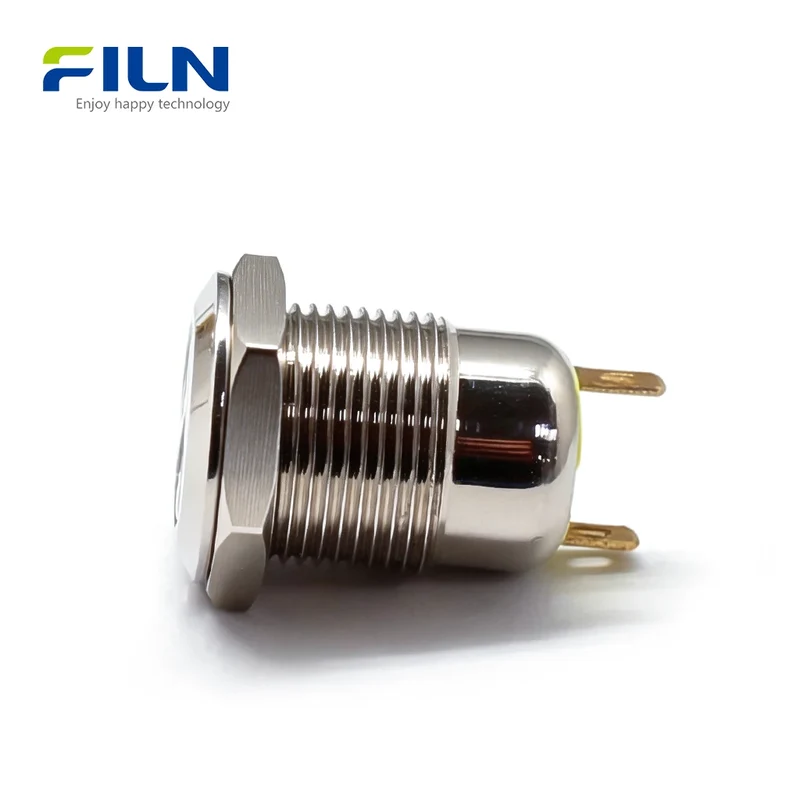

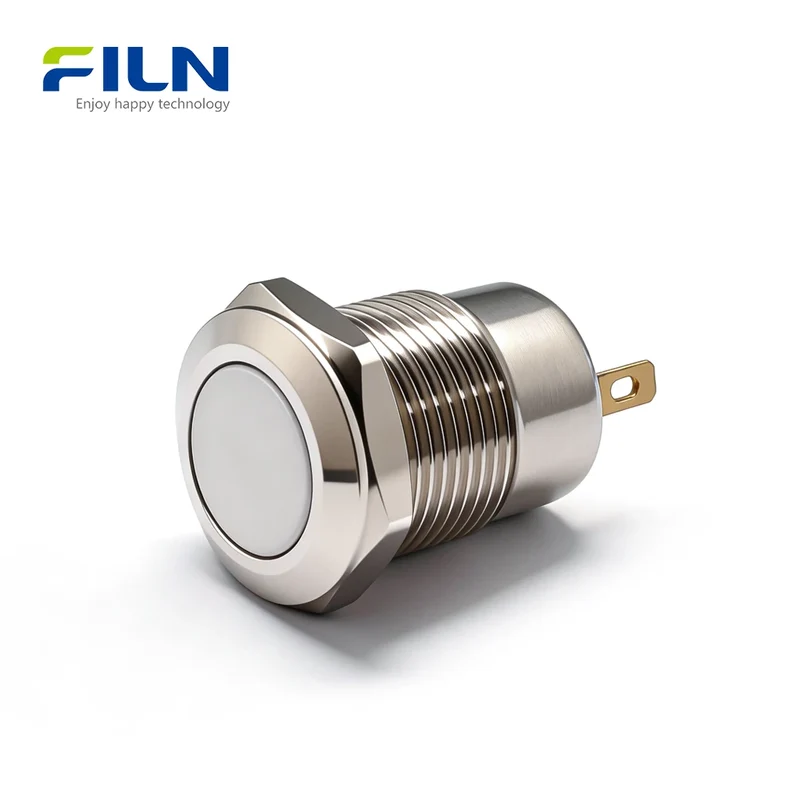

12mm 2 Pin Push Button Switch Stainless Steel Momentary/Latching FILN

Product Overview

The 12mm 2 pin push button switch (Model: FLM12-FJ-1) is a high-performance industrial control component manufactured by FILN. This 12mm metal push button switch features a robust stainless steel construction, offering superior durability compared to plastic alternatives. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, it ensures safety and reliability across various environments. Designed for momentary action, this mini round metal button switch is perfect for industrial control panels, CNC machines, and marine systems. Its 2 pin momentary switch terminal design allows for rapid installation and stable electrical conductivity, making it an essential corrosion resistant 2 pin switch for modern automation.

Quick Specifications

Model Number	FLM12-FJ-1
Mounting Hole Size	12mm (0.47 inch)
Switch Function	Momentary/Latching
LED Color	Non-Illuminated (No Light)
Button Shape	Flat Head
Terminal Type	2-Pin Pin Terminal (2.8x0.5mm)

Performance Parameters

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)
Insulation Resistance	≥ 1000MΩ
Contact Resistance	< 50mΩ
Certifications	ISO9001, CE, UL, RoHS, REACH

Component Materials

Button Actuator	304 Stainless Steel / 6063 Aluminum Alloy
Shell/Body	H59 Brass / 304 Stainless Steel
Terminals	H62 Copper Alloy
Base	PA66+GF20% Flame Retardant Nylon
Contacts	Silver Contact AgCdO12
Sealing	SIL Silicone (IP65)

General Characteristics

Operating Temperature	-25°C to +85°C
Protection Level	IP65 Waterproof, IK08 Vandal-proof
Mechanical Life	500,000 Cycles
Electrical Life	100,000 Cycles (3A) / 50,000 Cycles (5A)

Terminal Design Comparison

Terminal Type	Installation Speed	Reliability	Best Use Case
Pin Terminal (2 Pin)	Fast (Plug-in/Solder)	High	Mass Production / PCBs
Screw Terminal	Slow (Manual)	Medium	On-site Maintenance
Pre-wired Leads	Instant	Highest (Sealed)	Underwater/Tight Spaces

Key Features

• Exceptional Protection: Rated IP65 and IK08, this switch resists dust, water, and physical impact, ideal for harsh outdoor or industrial environments.
• High Electrical Load: Unlike standard 12mm switches rated at 2A, the FLM12-FJ-1 handles up to 5A 250V AC/DC, reducing the need for intermediate relays.
• Premium Material Options: Available in 304 Stainless Steel for medical and marine applications where rust resistance is critical.
• Compact Short-Body Design: Total length of only ~26.5mm makes it perfect for space-constrained control panels and handheld devices.

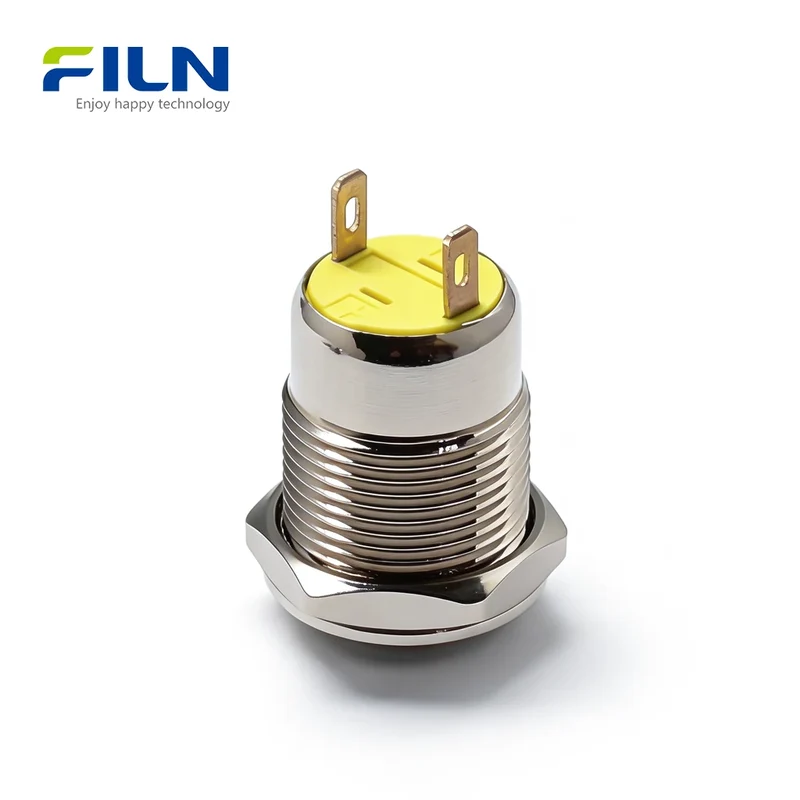

• Efficient 2-Pin Terminal: Standard 2.8mm pins support both soldering and quick-connect wire harnesses for high-efficiency assembly.

Applications

Industrial control panels CNC machines Automation equipment Electrical cabinets Marine systems Medical devices

Installation Guide

1. Panel Preparation: Drill a precise 12mm diameter hole in your mounting surface.
2. Insert Switch: Place the button actuator through the hole from the front side of the panel.
3. Secure Nut: Slide the metal hex nut from the back and tighten it against the panel thread.
4. Wiring: Connect your circuit to the two pin terminals using either soldering or 2.8mm connectors.

Wiring Guide (Normally Open Logic)

The 2-pin momentary switch operates on a simple Normally Open (NO) logic. The circuit completes only when the button is held down.

Wiring Logic: Power (+) connects to Pin 1; Device (+) connects to Pin 2.

• Idle State: Circuit Disconnected (Device OFF).
• Pressed State: Circuit Connected (Device ON).

Industry Knowledge

1. What is a 12mm metal push button switch?

A 12mm metal push button switch is a compact electrical component used to control the flow of current in a circuit. In industrial settings, these switches are favored for their durability and "vandal-proof" nature. They are panel-mounted and provide a tactile response to the user, ensuring clear operation feedback. Being "momentary" means they only maintain their state while actively being pressed.

2. What is the difference between latching and momentary?

Feature	Momentary (This Model)	Latching (Push-Lock)
Action	Springs back after release	Stays depressed/locked
State Reset	Automatic	Requires second press
Common Use	Horns, Doorbells, PC Start	Light switches, Power Mains

Factory Direct Supply - FILN

• ✅ No Minimum Order Quantity (MOQ)
• ✅ Fast Global Lead Time (3-7 days)
• ✅ Custom Voltage & Wire Lengths
• ✅ CE / RoHS / UL Certified Quality

Get Free Samples

FILN Official Website: www.filn.com
Contact Us: [email protected]

Frequently Asked Questions

1. What material is used for the FLM12-FJ-1?
We use high-grade 304 stainless steel for the shell to ensure it is a corrosion resistant 2 pin switch.

2. Does the switch click when pressed?
Yes, it provides a distinct tactile click to confirm the 12mm metal push button switch has been activated.

3. Can I get this with pre-soldered wires?
Yes, FILN offers wire length customization and connector customization for all push button switches.

4. What is the difference between 2-pin and 3-pin?
A 2-pin switch is a basic ON/OFF (Normally Open), while a 3-pin offers both Normally Open and Normally Closed options.

5. Is this button suitable for automotive use?
Yes, it is widely used as a car horn or starter button due to its 5A current rating and durability.

6. How long will this switch last?
It has a mechanical life of 500,000 cycles, ensuring years of trouble-free operation in industrial environments.

7. Do you provide a gasket for the 12mm mounting?

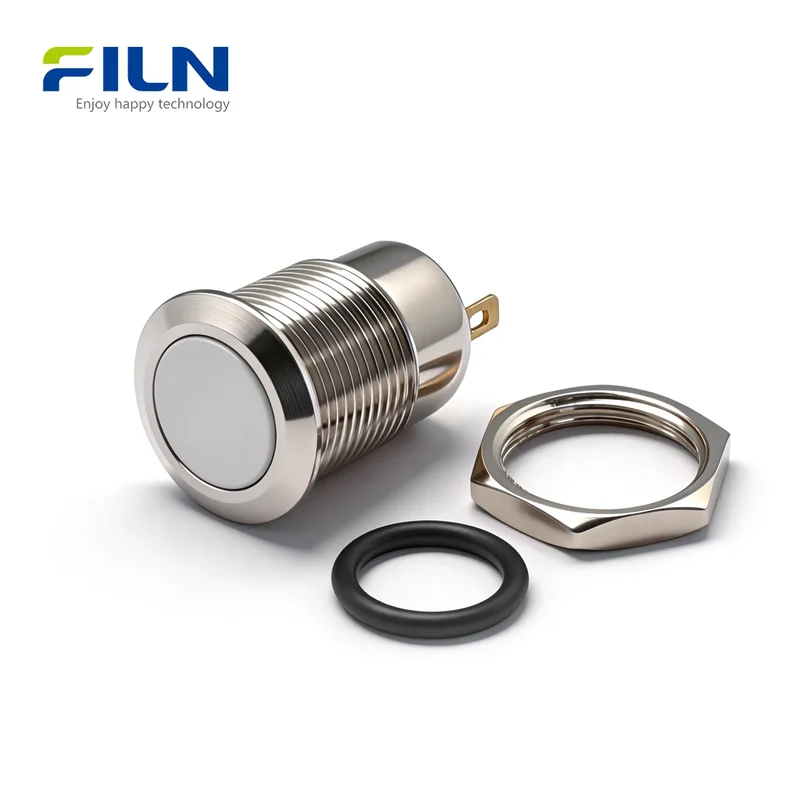

Yes, every switch includes a SIL silicone waterproof ring and a metal hex nut for secure installation.

8. Can I use this for outdoor marine panels?
Yes, the stainless steel body and IP65 rating protect it from salt spray and moisture.

9. Are free samples available?
Yes, industrial buyers can contact us at [email protected] for free product samples.

10. What certifications does FILN have?
Our factory is ISO9001 certified, and products carry CE, UL, VDE, and RoHS marks.
