12 Volt Switch Push Button 28mm Stainless Steel Momentary Latching 5-Pin LED FILN

Button Switch DrawingPRODUCT OVERVIEW

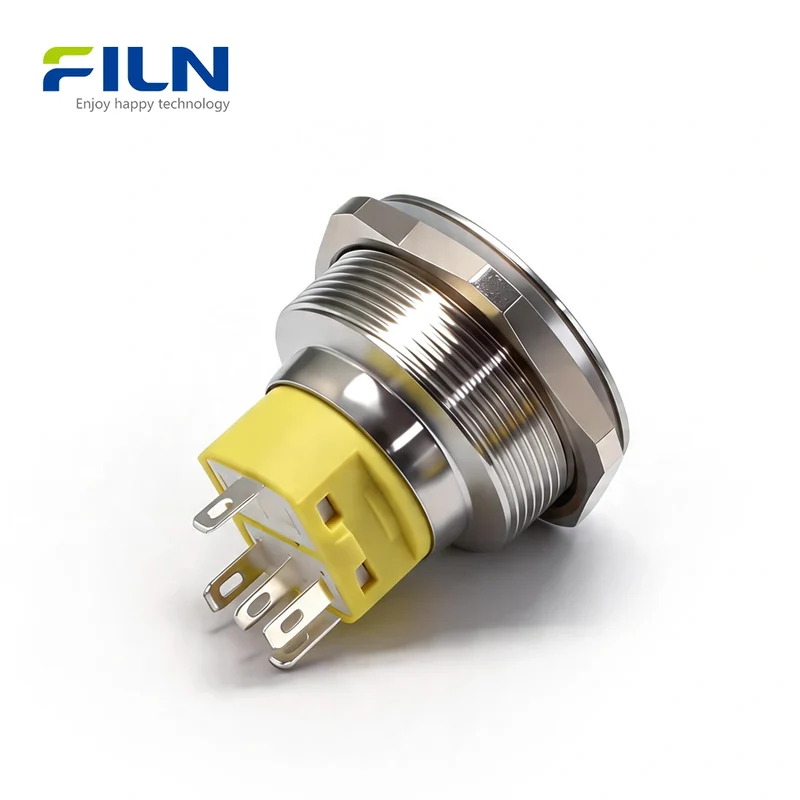

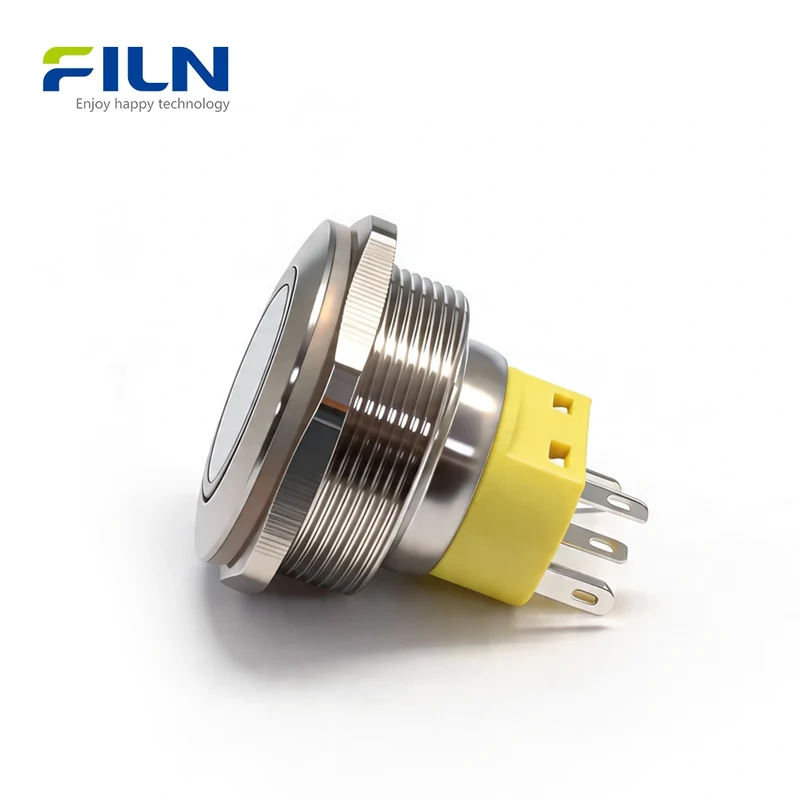

The 12 volt switch push button (Model: FLM28-FJ-1-E) is a premium 28mm industrial-grade control solution manufactured by FILN. Crafted with a high-strength stainless steel shell, this switch is designed for durability in harsh environments. It features an elegant ring LED indicator available in R/G/Y/B/W and custom bi-color/tri-color options, significantly enhancing visibility in dark workspaces. With ISO9001, CE, VDE, RoHS, SGS, UL, and IP65 certifications, it is ideal for industrial control panels, CNC machines, and marine systems. Whether you need a 28mm momentary push button switch for reset functions or a latching push button for power control, this 5-pin terminal switch offers unmatched reliability and "plug-and-play" convenience.

🛒 View All Professional FILN Push Button Switches →

QUICK SPECIFICATIONS

Attribute	Details
Model Number	FLM28-FJ-1-E
Mounting Size	28mm (1.1 inch)
Operation Type	Momentary / Latching (Optional)
LED Color	R/G/Y/B/W / Bi-color / Tri-color
Button Head Style	Flat Head
Terminal Type	5-Pin Solder/Plug-in Terminal

PERFORMANCE PARAMETERS

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)
Insulation Voltage	1800V
Contact Resistance	< 50mΩ
LED Voltage	3V - 220V (Standard 12V-24V)
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL, IP65

COMPONENT MATERIALS

Button Actuator	304 Stainless Steel / 6063 Aluminum
Housing Shell	H59 Brass / 304 Stainless Steel
Light Lens	PC Plastic
Terminals	H62 Copper Alloy
Contact Material	Silver Contact AgCdO12
Sealing	SIL Silicone (Waterproof)

KEY FEATURES & ADVANTAGES

• High Protection (IP65 & IK08): Built for outdoor and high-vibration industrial machinery.
• 5A High Current Rating: Direct control of high-power devices without extra relays.
• Premium Silver Contacts: Ensures low contact resistance (< 50mΩ) and long electrical life.

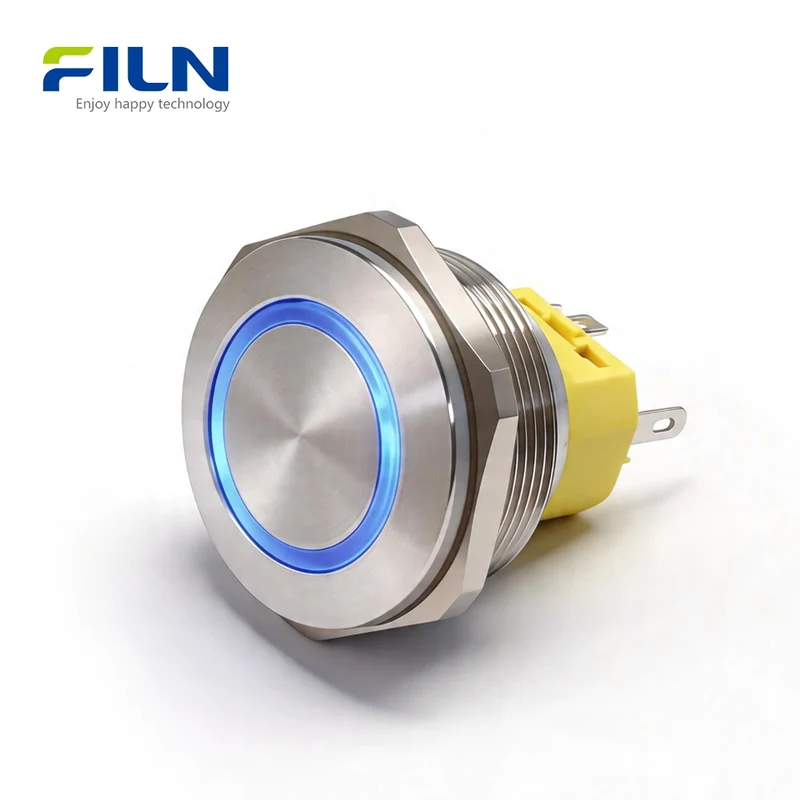

• Ring LED Visual Feedback: Provides clear status indication in total darkness.

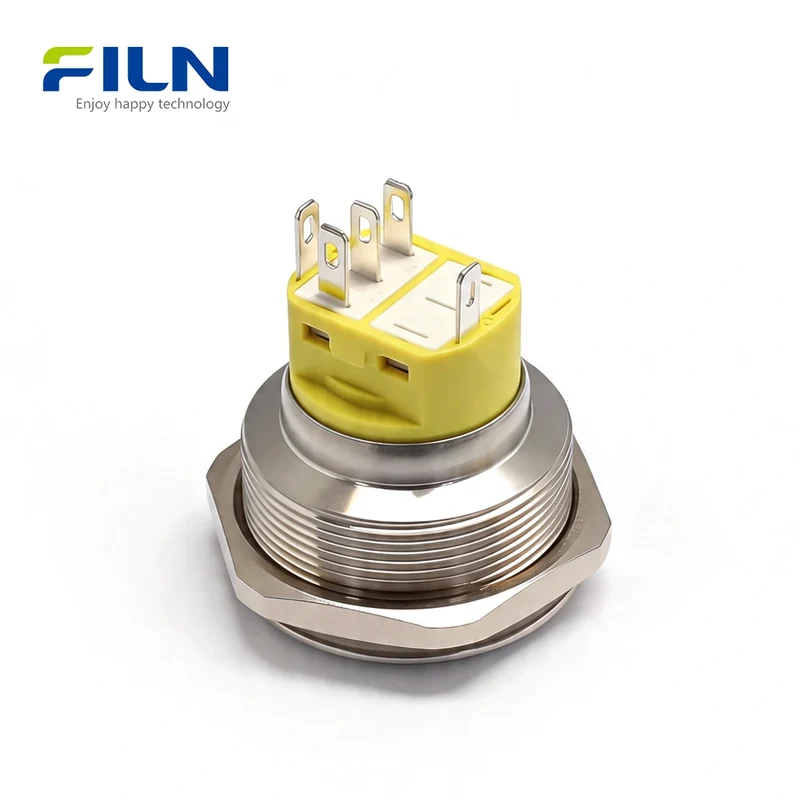

• Compact 5-Pin Design: Features C, NO, NC, and LED +/- pins for maximum wiring flexibility.

💡 Pro Tip: This switch can be paired with our custom wire harness for faster installation. Buy Matching Wiring Socket Adapter Here

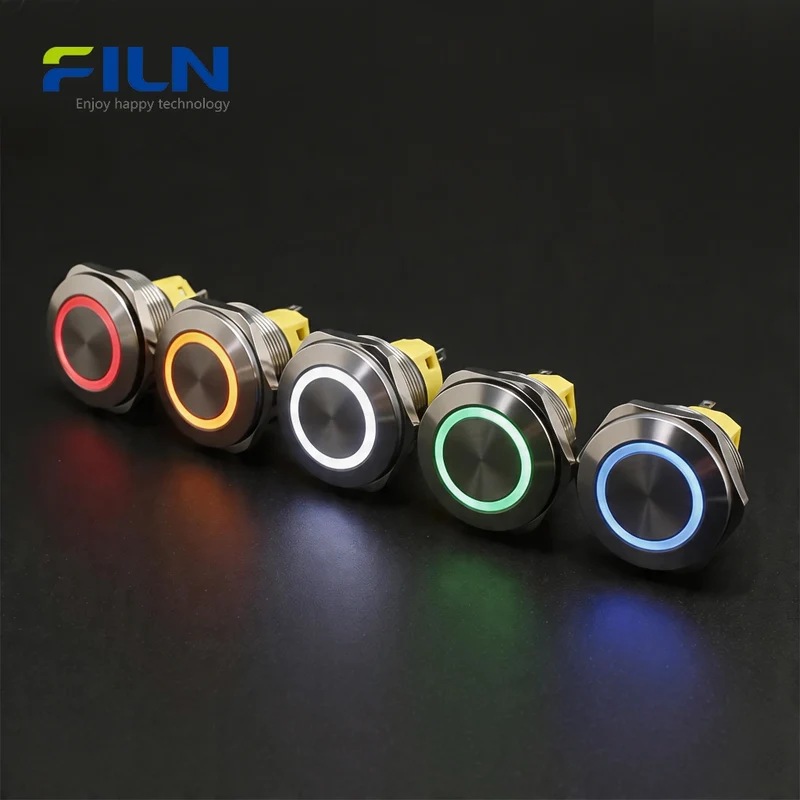

LED COLOR INDICATOR GUIDE

Choosing the right color for your 12v led ring light switch helps in intuitive machine operation:

• RED: Danger/Stop/Emergency.
• GREEN: Ready/Start/Normal Operation.
• BLUE: Specific function/Manual mode.
• YELLOW/ORANGE: Warning/Standby.
• WHITE: General Illumination/Backlight.

APPLICATIONS

Widely used in high-power circuits and aesthetic control panels:

✔ Industrial Control Panels	✔ Marine Navigation Systems
✔ CNC Machines & Robotics	✔ Medical Imaging Equipment

INSTALLATION STEPS

1. Drill a 28mm hole in the mounting panel.
2. Insert the button from the front of the panel.

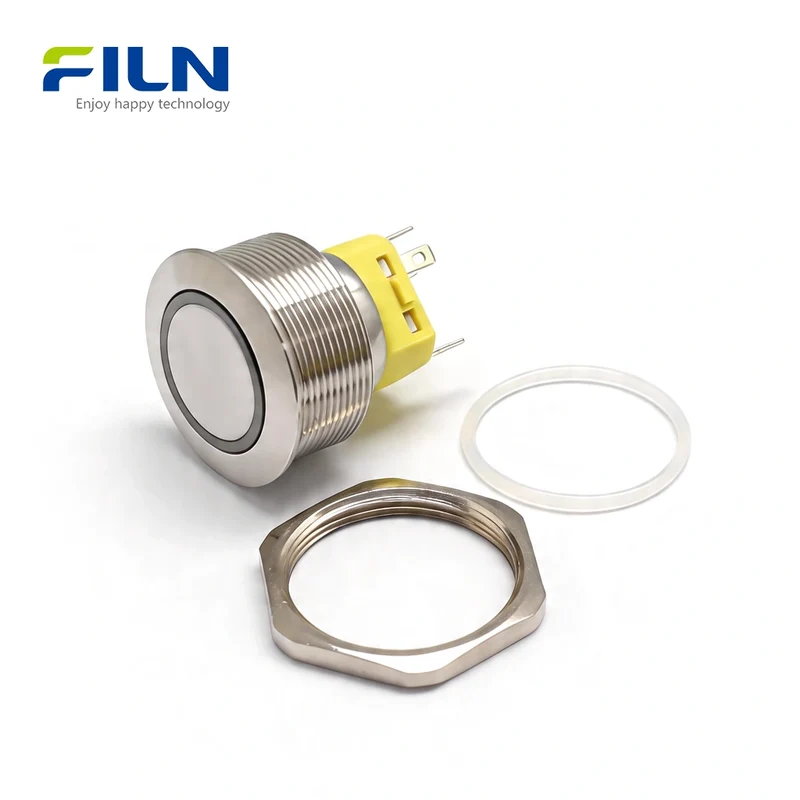

3. Secure the switch from the back using the provided metal hex nut.
4. Connect the 5 pins (C, NO, NC, LED+, LED-) according to your circuit logic.

COMPARISON: PIN VS SCREW VS PRE-WIRED

Terminal Type	Wiring Convenience	Installation Speed	Durability
5-Pin Terminal	High (Plug or Solder)	Fastest	Excellent
Screw Terminal	Medium	Slow	Good
Pre-wired	Fixed Length	Medium	Standard

5 Pin Push Button Switch Wiring Diagram

A 5-PIN switch offers maximum flexibility, featuring C (Common), NO (Normally Open), NC (Normally Closed), and two dedicated LED pins (+ / -). This allows for four distinct control modes.

1. Normal OFF, Sync LED (NO Connection)

Logic: Both the device and the LED are OFF by default. Pressing the button turns ON the device and the LED simultaneously.

• Application: Standard start switches where the light indicates the system is running.
• State: Static (LED Out, Device Off) → Pressed (LED On, Device On).

2. Normal ON, Sync LED (NC Connection)

Logic: Both the device and the LED are ON by default. Pressing the button turns OFF both the device and the LED.

• Application: Stop buttons or emergency cut-off switches.
• State: Static (LED On, Device On) → Pressed (LED Out, Device Stop).

3. Normal OFF, Constant LED (NO Connection)

Logic: The LED stays ON constantly as a backlight. The device only turns ON when the button is pressed.

• Application: Power switches in dark environments or access control buttons.
• State: Static (LED On, Device Off) → Pressed (LED On, Device On).

4. Normal ON, Constant LED (NC Connection)

Logic: The LED stays ON constantly. The device is ON by default and turns OFF when the button is pressed.

• Application: Monitoring systems or security alarms that require constant power indication.
• State: Static (LED On, Device On) → Pressed (LED On, Device Stop).

Mode	LED Behavior	Device (Idle)
NO Sync	Lights up when pressed	OFF
NC Sync	Turns off when pressed	ON
Constant	Always ON (Backlight)	User Choice

INDUSTRY KNOWLEDGE

What is a 12 Volt Switch Push Button?

In industrial automation, a heavy-duty metal push button serves as the primary human-machine interface (HMI). A 12V specific model is tailored for low-voltage systems found in modern control cabinets and automotive electronics. It controls the "break" or "make" of an electrical circuit safely and efficiently.

Momentary vs. Latching Function

Function	Logic	Example Use
Momentary	Springs back after release	PC Power, Doorbell, Reset
Latching	Stays in place until pressed again	Machine ON/OFF, Light Switch

FACTORY DIRECT SUPPLY - FILN

• No MOQ: Small orders and samples accepted.
• Fast Delivery: Global shipping from our China factory.
• Customization: Voltage, Wire length, and Connectors available.

Get Free Sample Now →

Official Website: www.filn.com

Contact Us: [email protected]

FREQUENTLY ASKED QUESTIONS (FAQ)

Q1: Is this 12v switch push button waterproof?
Yes, it has an IP65 rating, making it splash-proof and dust-tight.

Q2: Can I use this 28mm switch for 220V?
Yes, FILN supports custom voltages from 3V to 220V for the LED and up to 250V for the contacts.

Q3: What is the benefit of the 5-pin design?
It provides both NO (Normally Open) and NC (Normally Closed) options along with separate LED power terminals.

Q4: Do you offer the momentary push button switch 28mm version?
Yes, we provide both momentary (spring back) and latching (stay down) functions.

Q5: Can the LED stay on even when the button is not pressed?
Yes, by wiring the LED terminals directly to the power source.

Q6: Is stainless steel better than aluminum?
Stainless steel offers superior corrosion resistance, ideal for marine or medical use.

Q7: Can I get a pre-wired harness?
Yes, we offer matching 5-wire sockets for quick installation.

Q8: What is the mechanical life of this switch?
It is rated for 500,000 mechanical cycles.

Q9: Is there a 12-volt switch push button with bi-color LEDs?
Yes, we can customize Red/Green or other bi-color combinations.

Q10: Are FILN products UL certified?
Yes, our switches carry UL, CE, and VDE certifications for international safety standards.
