12 Volt Push Button Switch 12mm 304 Stainless Steel 4-PIN LED Ring Button Switch FILN

Button Switch Drawing

Product Overview

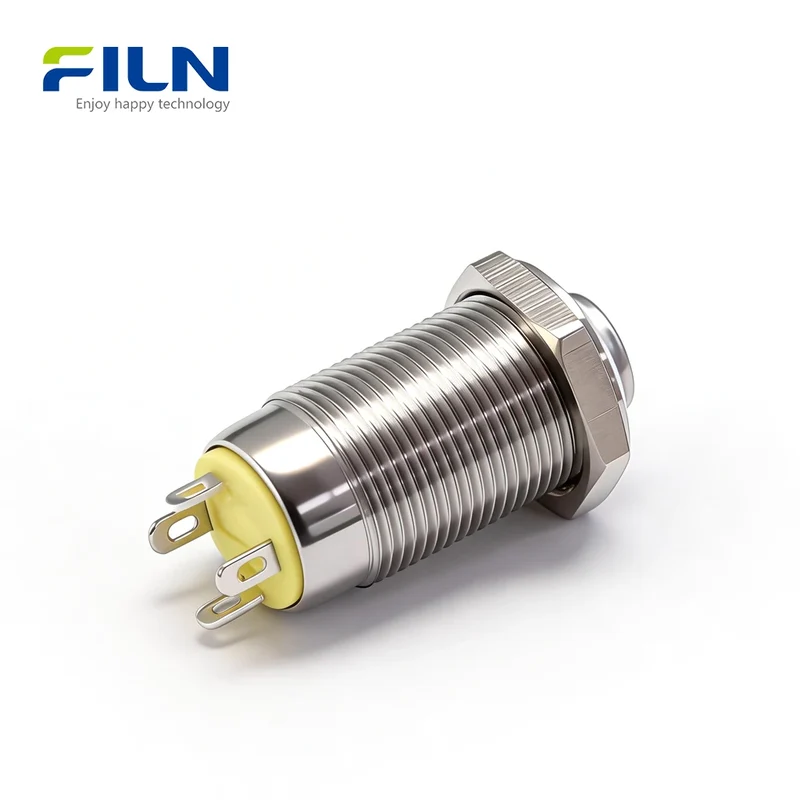

The 12 volt push button switch (Model: FLM12-HJ-1-E) is a high-performance industrial control solution engineered by FILN. This 12mm waterproof metal switch is crafted from premium 304 Stainless Steel, offering exceptional resistance to corrosion and mechanical impact. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it ensures safety and reliability in demanding environments. Featuring a 4 pin LED push button design with a brilliant ring light, this switch is ideal for industrial control panels, marine systems, and automation equipment. Its compact high head design and pin terminal connection provide a perfect balance of aesthetics and functionality for global B2B procurement.

Quick Specifications

Model Number	FLM12-HJ-1-E
Mounting Diameter	12mm (0.47 inch)
Operation Function	Latching / Momentary (Customizable)

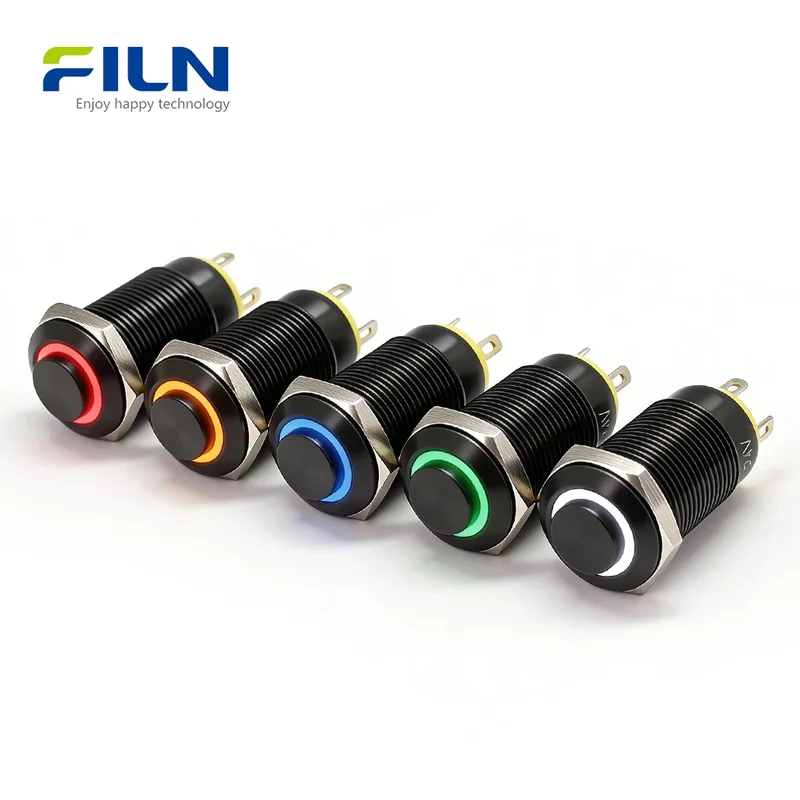

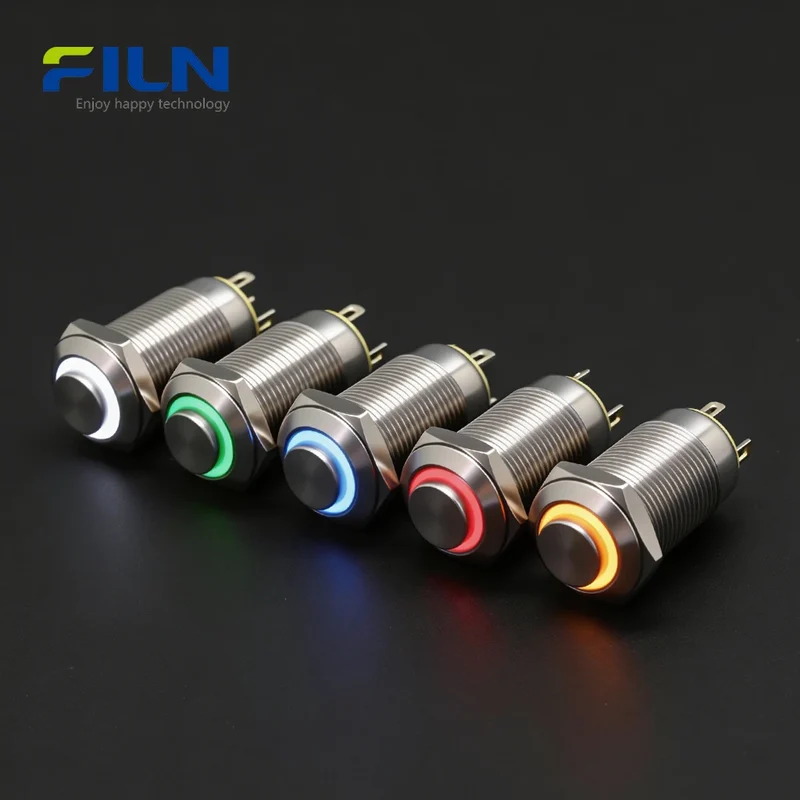

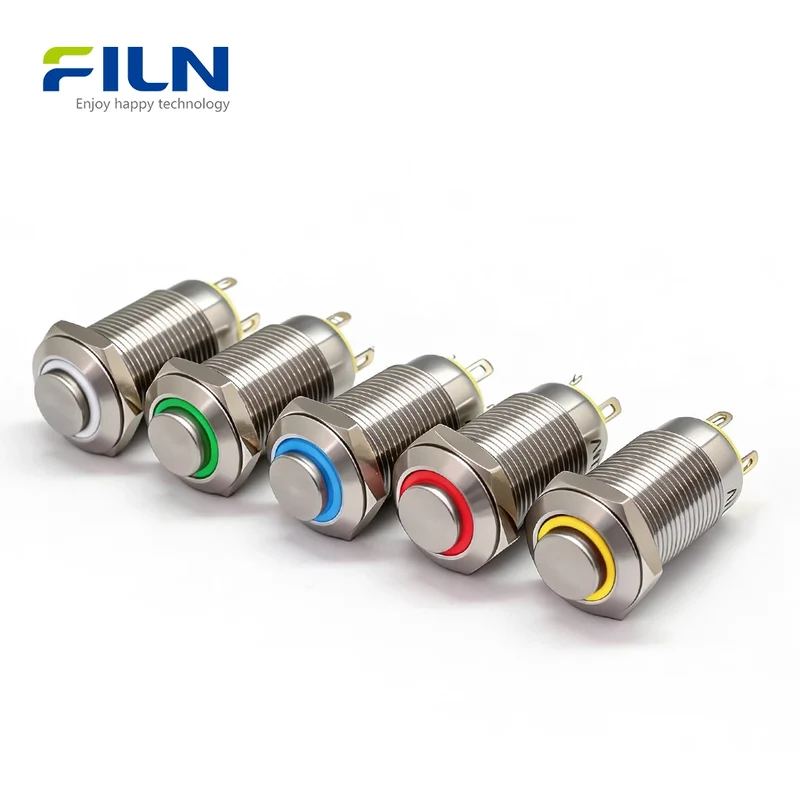

LED Color Options	R/G/Y/B/W (Dual/Tri-color support)

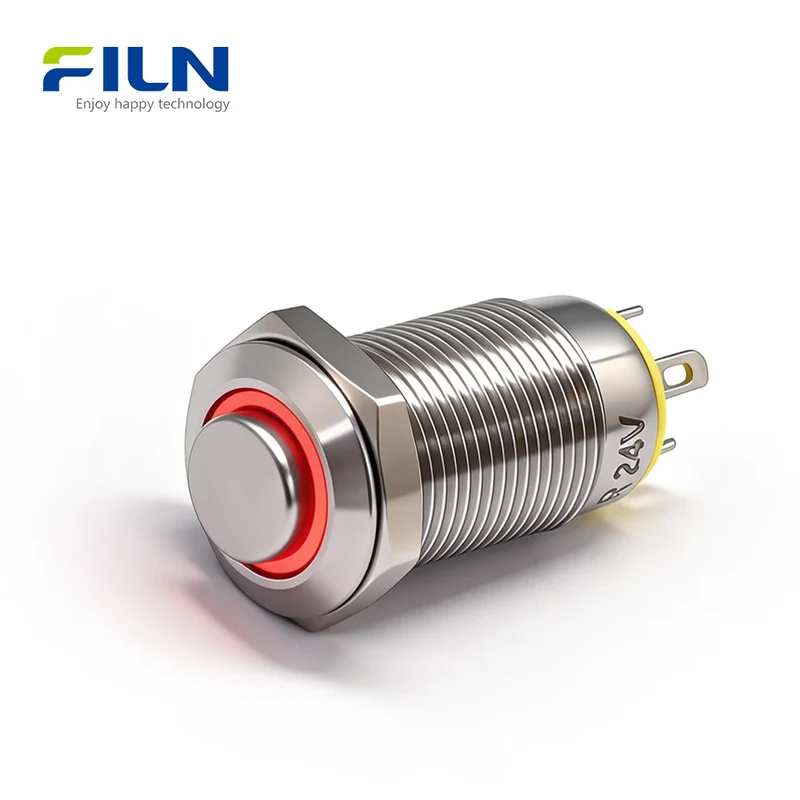

Button Shape	High Head (Round with Ring LED)
Termination Style	4-PIN Terminal (Pin type)

Performance Parameters

Rated Voltage	36V DC / 250V AC
Rated Current	5A DC / 5A AC
Rated Power	180W (DC) / 1250W (AC)
Insulation Resistance	≥ 1000MΩ
Dielectric Strength	1800V
Contact Resistance	< 50mΩ
LED Voltage	12V - 24V (Support 110V-220V)
Certifications	CE, UL, RoHS, VDE, ISO9001

Component Materials

Button	304 Stainless Steel / 6063 Aluminum Alloy
Housing Shell	H59 Brass / 304 Stainless Steel
Light Guide	PC Plastic
Pins	H62 Copper Alloy
Base	PA66+GF20% Flame Retardant Nylon
Contacts	Silver Alloy AgCdO12
Waterproof Ring	Silicone (SIL)

Environment & LED Specification

Operating Temp	-25°C to +85°C
Protection Level	IP65, IK08
Mechanical Life	500,000 cycles
LED Intensity	1000 mcd
Color Temperature	8400K (White)

Key Features

• Superior Durability: Rated IP65 and IK08, this 12mm waterproof metal switch handles harsh outdoor and industrial environments with ease.
• High Load Capacity: Unlike standard 2A switches, our model supports 5A 250V AC/DC, allowing for direct device control.
• Premium Contacts: Silver alloy contacts (AgCdO12) ensure low contact resistance (< 50mΩ) and long-term electrical stability.
• Visual Feedback: The elegant LED ring design supports 3V to 220V, making it a globally versatile status indicator.
• Space-Saving Design: The short-body, 4-pin design is ideal for compact panels and handheld devices.

Applications

Industrial Control CNC Machines Automation Marine Systems Medical Devices Electrical Cabinets

Installation Steps

1. Drill a 12mm diameter hole in the mounting panel.
2. Insert the switch from the front side of the panel.
3. Secure the switch from the back using the provided metal hex nut.
4. Connect the wiring to the 4-pin terminals (Switch contacts and LED pins).

4-PIN LED Wiring Guide

A 4-PIN switch consists of two parts: Switch Contacts and LED Terminals. Below are the two standard ways to wire the LED indicator.

Method 1: LED Synchronized with Device

Logic: The LED only turns ON when the button is pressed and the device is active.

• Connect LED (+) to the Output side of the switch.
• Connect LED (-) to Power Negative.

Method 2: LED Always ON (Backlight Mode)

Logic: The LED stays ON constantly to help locate the switch in the dark.

• Connect LED (+) directly to Power Positive.
• Connect LED (-) to Power Negative.

Industry Knowledge

What is a 12 Volt Push Button Switch?

A 12 volt push button switch is a specialized electrical component used to control low-voltage DC circuits. In industrial settings, these switches act as the interface between the user and the machine, managing everything from simple power resets to complex automation sequences. The 12mm size refers to the mounting hole diameter, making it one of the most popular sizes for compact control boards where space is at a premium.

Latching vs. Momentary: Which do you need?

Feature	Momentary	Latching
Action	Springs back after release	Stays in place (On/Off)
Typical Use	Car Horns, Door Bells, PC Power	Main Power, Light Switches

FILN Factory Direct Advantage

As a leading manufacturer, FILN provides professional customization for all push button needs.

• ✅ No MOQ: Small orders and samples are welcome.
• ✅ Fast Delivery: Global shipping with short lead times.
• ✅ Full Customization: Custom wire length, voltage (3V-220V), and laser etching.

Get Free Sample

Website: www.filn.com
Email: [email protected]

Frequently Asked Questions

Q1: What does the LED color signify?
A: Red is often for Emergency/Stop, Green for Start, Blue for Info, Yellow for Caution, and White for general lighting. Q2: Is this 12v push button switch waterproof?
A: Yes, it is rated IP65, meaning it is protected against dust and low-pressure water jets. Q3: Can I use this with 220V AC?
A: The switch contact can handle 250V AC. Ensure you select the 220V LED version for the indicator. Q4: Why choose stainless steel over plastic?
A: Stainless steel offers superior durability, IK08 impact resistance, and a professional industrial aesthetic. Q5: What is the benefit of a 4-pin design?
A: It separates the LED circuit from the switch circuit, allowing for more flexible wiring (Sync or Backlight modes). Q6: How long is the service life?
A: It has a mechanical life of 500,000 cycles and an electrical life of up to 100,000 cycles. Q7: Can I get a pre-wired version?
A: Yes, FILN offers custom wire length and connector assembly services. Q8: What is the "High Head" design for?
A: The high head makes the button easier to locate and press, especially if the operator is wearing gloves. Q9: Is the LED dimmable?
A: Yes, the LED can be dimmed using external PWM controllers or resistors. Q10: Does it come with the mounting nut?

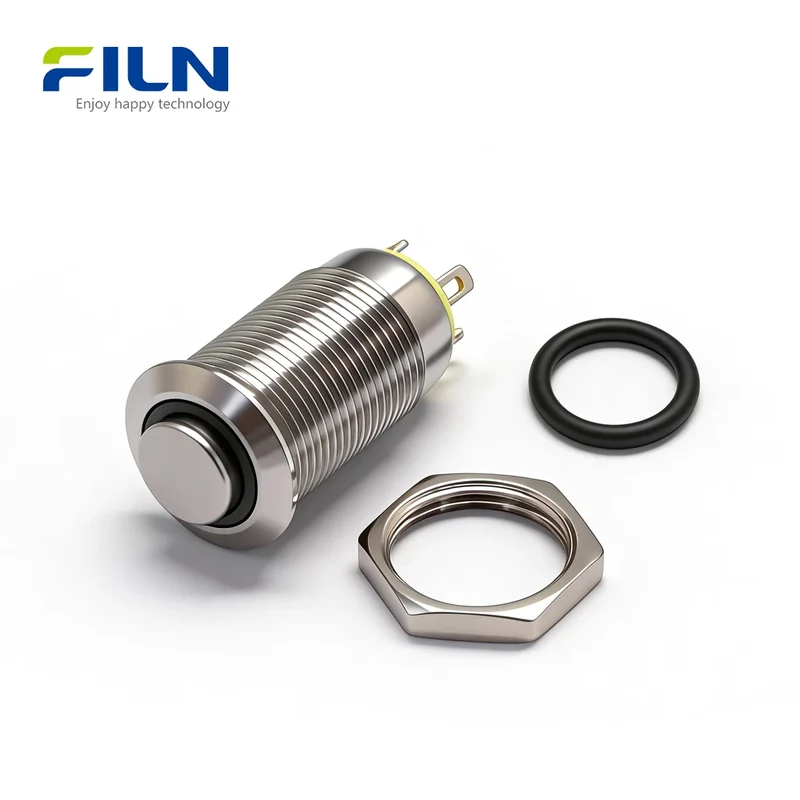

A: Yes, each switch includes a metal hex nut and a waterproof rubber O-ring.
