Waterproof Junction Boxes Electrical with Toggle Switch 12mm SPST SPDT ON-OFF/ON-OFF-ON FILN

Junction Box Drawing

What are Waterproof Junction Boxes Electrical?

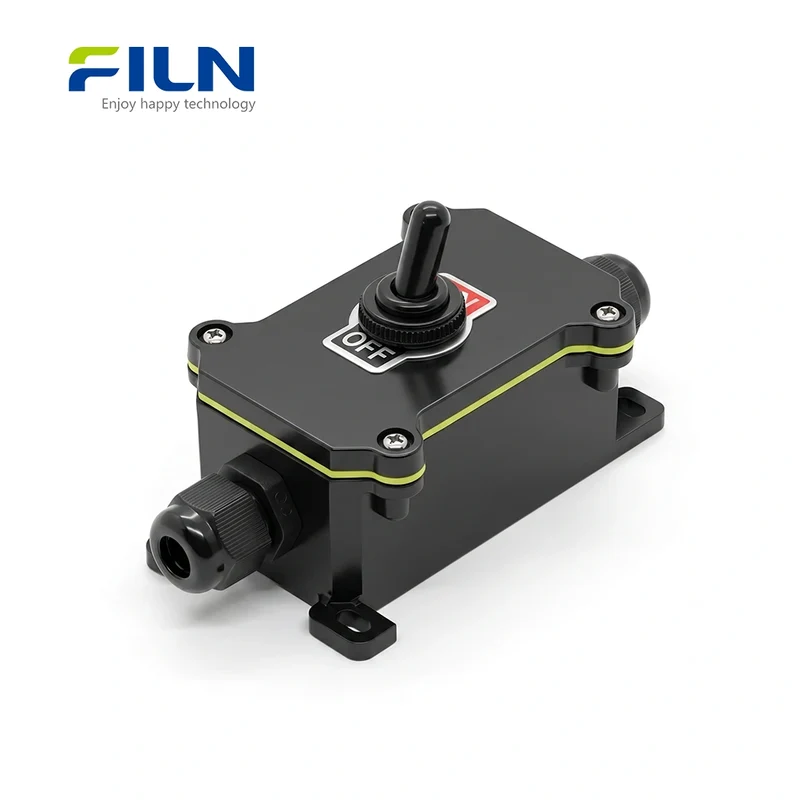

Waterproof junction boxes electrical are specialized protective enclosures designed to house wiring connections and control switches, such as toggle switches or rocker switches, shielding them from environmental hazards. These units ensure circuit integrity by preventing the ingress of moisture, dust, and corrosive agents. The WB5-2T-D1021 model specifically integrates a durable ABS enclosure with a high-performance toggle switch, providing a centralized control point for industrial and outdoor electrical systems.

Product Overview

The waterproof junction boxes electrical series by FILN represents the pinnacle of industrial control safety. Featuring the WB5-2T-D1021 model, this assembly includes a 12mm installation space optimized for a high-cycle toggle switch. Engineered for heavy-duty industrial equipment, marine power distribution, and outdoor lighting systems, these boxes carry elite certifications including ISO9001, CE, VDE, RoHS, SGS, UL, and an IP65 waterproof rating. The integration of screw terminal rocker switch components allows for secure, vibration-resistant wiring. This industrial waterproof enclosure serves industries ranging from renewable energy to agricultural automation, ensuring seamless ON-OFF or ON-OFF-ON functionality in the most demanding climates.

VIEW ALL WATERPROOF JUNCTION BOX PRODUCTS >

Quick Specifications

Specification Item	Details
Junction Box Model	WB5-2T-D1021

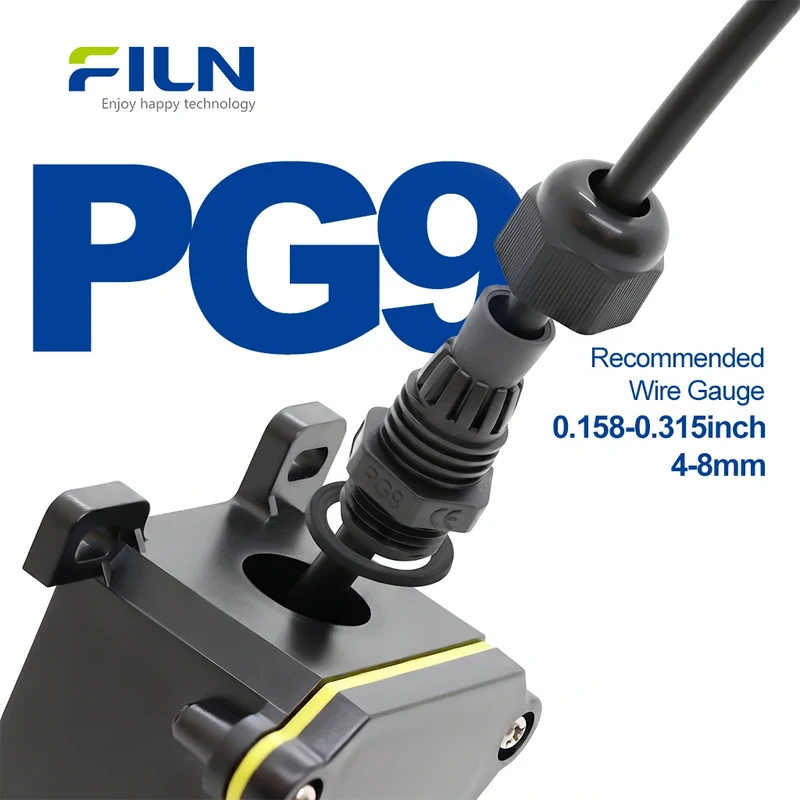

Waterproof Connector Type	PG9
Wiring Configuration	Single-in, Single-out / Line-in, Line-out
Installation Size	12mm / 0.47 inch
Switch Functions	ON-OFF / ON-OFF-ON (SPST / SPDT)
LED Indicator Color	Non-illuminated

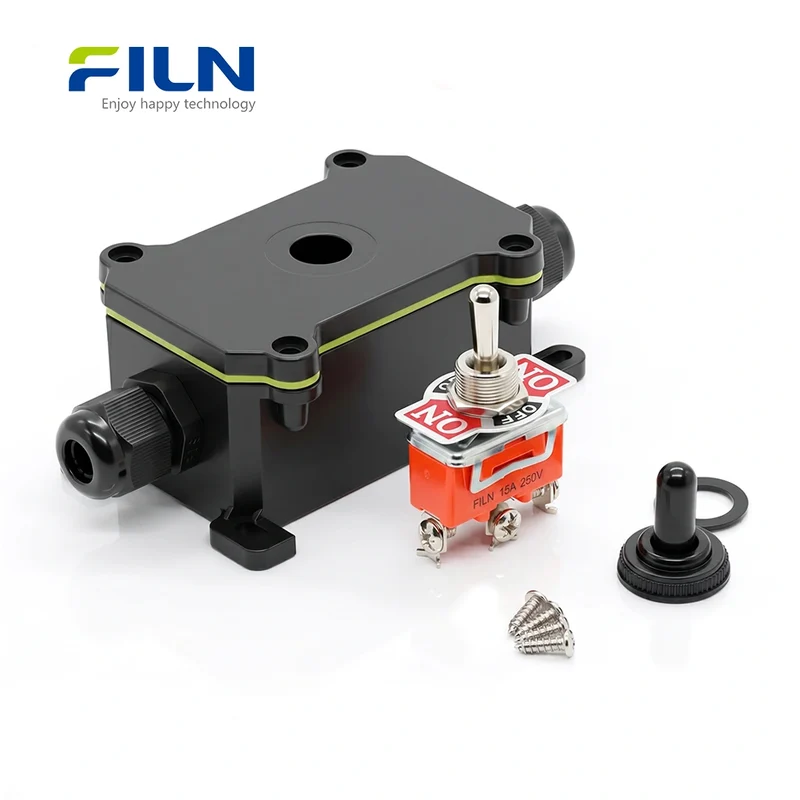

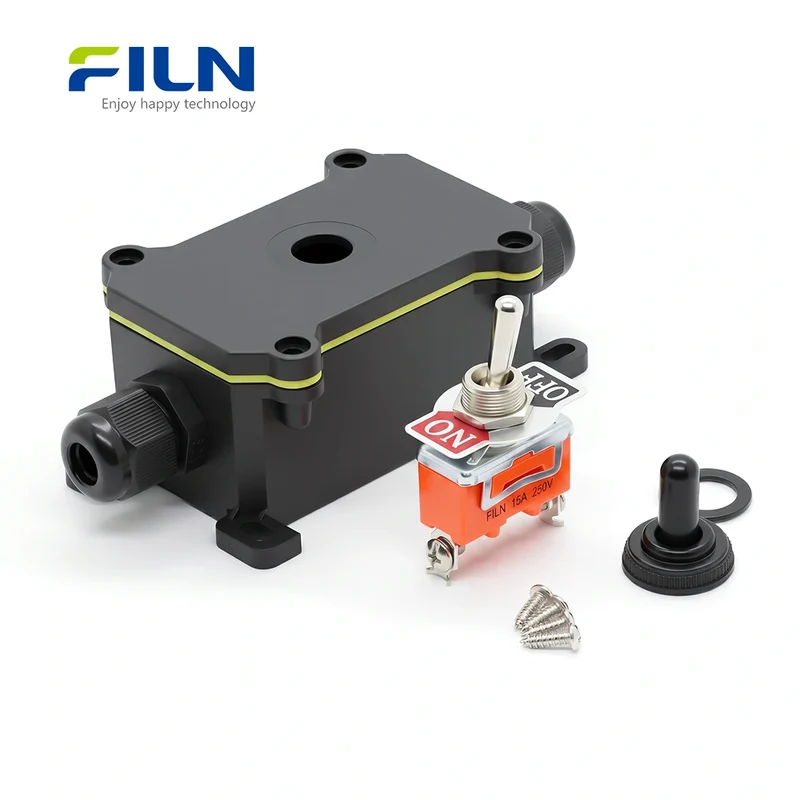

Switch Head Style	Toggle Actuator with Waterproof Cap

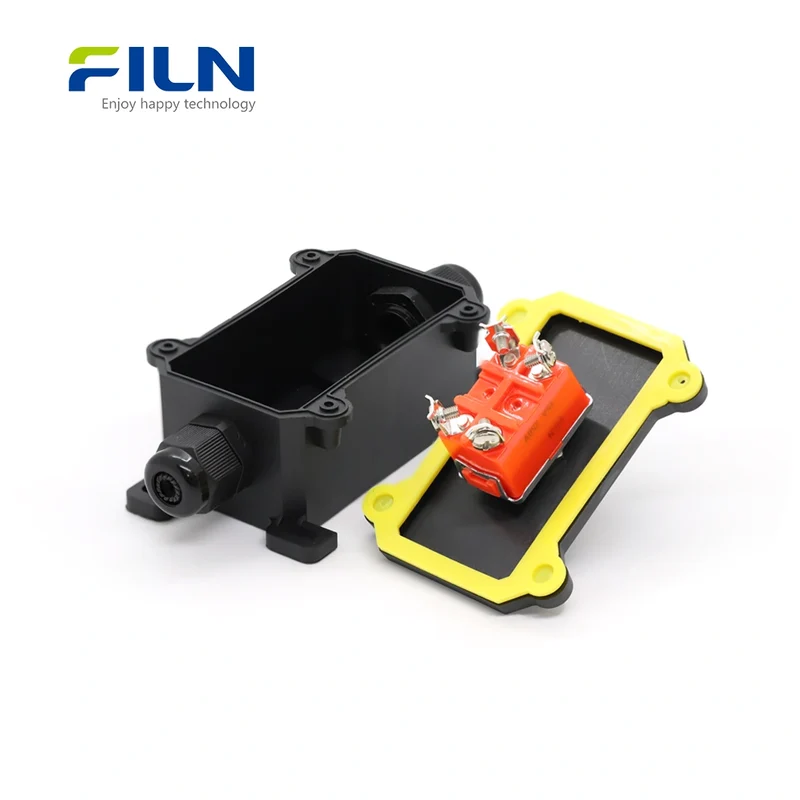

Terminal Type	2PIN / 3PIN / 4PIN / 6PIN Screw Terminals

Industrial Applications

The waterproof junction boxes electrical system is a critical component in various sectors:

1. Outdoor Lighting: Ideal for landscape fountains, garden spotlights, and pool pumps requiring IP65 protection.
2. Marine & RV: Bilge pump controls and 12V distribution in high-salt, high-humidity environments.
3. Industrial Machinery: Emergency stops or power triggers for high-pressure washers and conveyor systems.
4. Agriculture: Greenhouse ventilation and automated irrigation solenoid controls.

Industry Knowledge: SPST vs. SPDT

Understanding the mechanical logic of switches is vital for industrial waterproof enclosure selection:

• SPST (Single Pole Single Throw): A simple ON-OFF switch that controls one circuit. It has 2 terminals.
• SPDT (Single Pole Double Throw): A changeover switch that can connect a common terminal to one of two other terminals. This is ideal for alternating between two different loads (e.g., ON-OFF-ON configuration).

FILN Factory Direct Supply

Partner with FILN for direct access to manufacturing excellence. We offer:

• NO MOQ: Small batch orders welcome.
• Fast Delivery: Global logistics optimization.
• Certification: UL, CE, RoHS, VDE.
• Customization: Voltage, Wire Length, Connectors.

REQUEST FREE SAMPLES

FILN Official Website: www.filn.com
Contact Email: [email protected]

Frequently Asked Questions

Q1: What is a waterproof junction box with a toggle switch?
A1: It is a protective electrical enclosure that houses a toggle switch, designed to provide water and dust resistance for electrical control in harsh environments.

Q2: How do 4-pin KCD1 switches work with lighting?
A2: The 4-pin design typically uses two pins for the main circuit and two pins for the LED indicator, allowing for illuminated status feedback.

Q3: What is the benefit of the WB5-2T-D1021 model?
A3: This model offers a compact 12mm installation footprint with high-amp capacity (30A), making it perfect for industrial power applications.

Q4: Can I use this for SPDT wiring?
A4: Yes, we provide toggle switches in both SPST (Single Pole Single Throw) and SPDT (Single Pole Double Throw) to match your circuit design.

Q5: What is the maximum current rating?
A5: These switches are rated up to 30A 250VAC, suitable for heavy-duty industrial loads.
