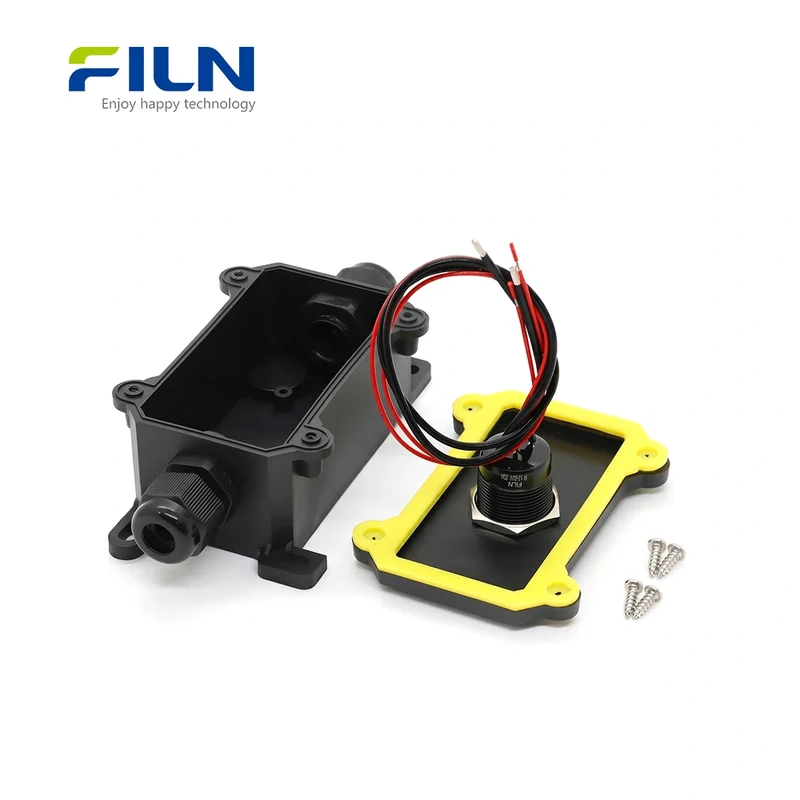

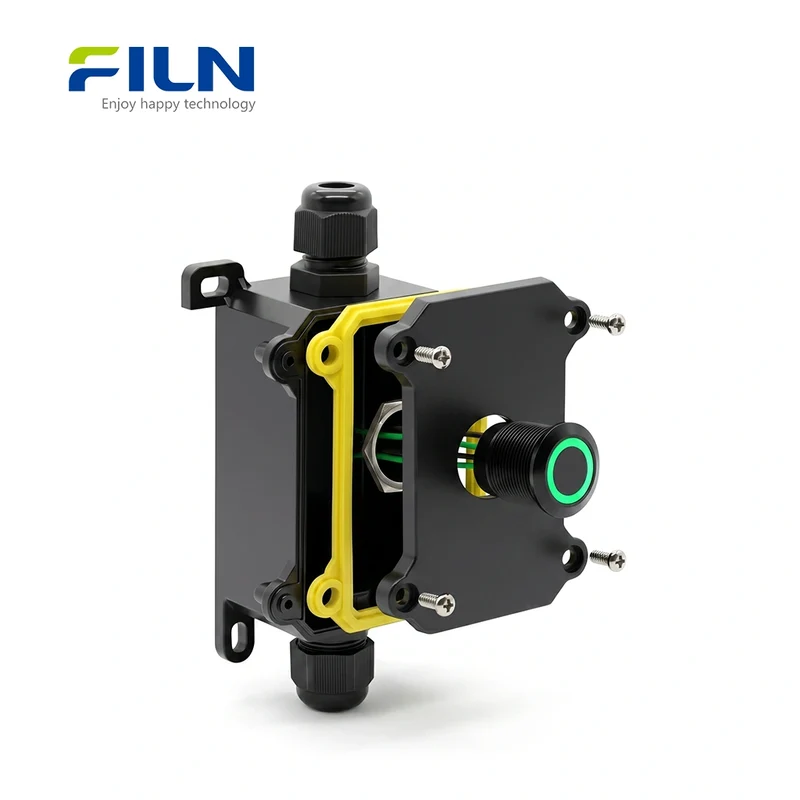

Junction Boxes Electrical with 20A Metal Push Button Switch Waterproof IP65 FILN Factory Custom

Junction Box Drawing

What are Junction Boxes Electrical with Rocker Switches?

Junction boxes electrical are protective enclosures designed to house wiring connections and control interfaces, shielding them from environmental hazards such as moisture, dust, and physical impact. When integrated with a rocker switch or metal push button, these units serve as centralized control points for industrial and outdoor machinery. The WB1-2T-FLM19 model specifically combines a rugged black polymer housing with a high-performance 19mm metal button, offering a localized power management solution that ensures both electrical safety and operational durability in demanding environments.

Product Overview

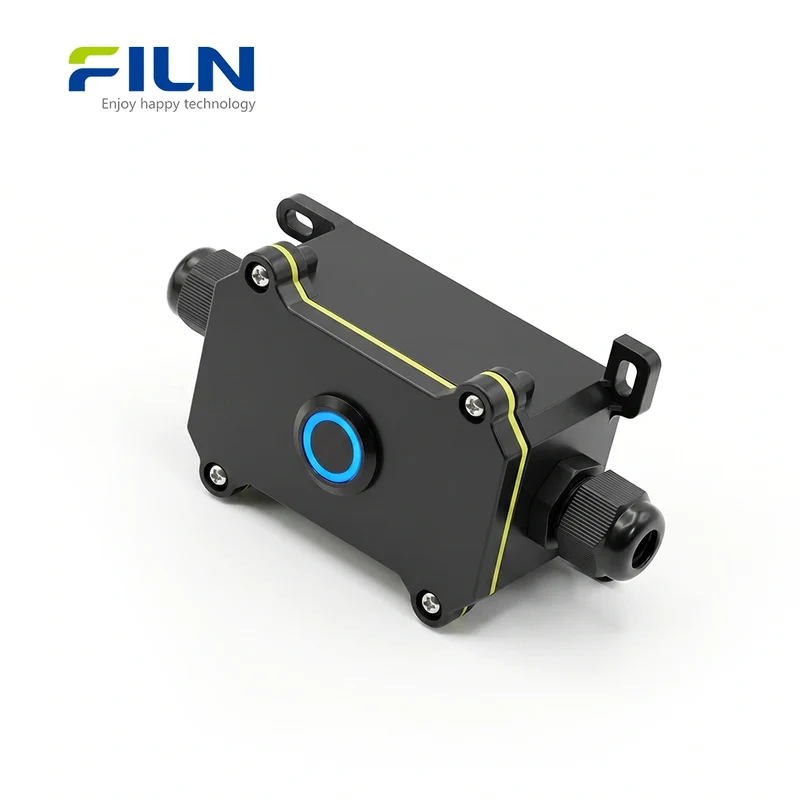

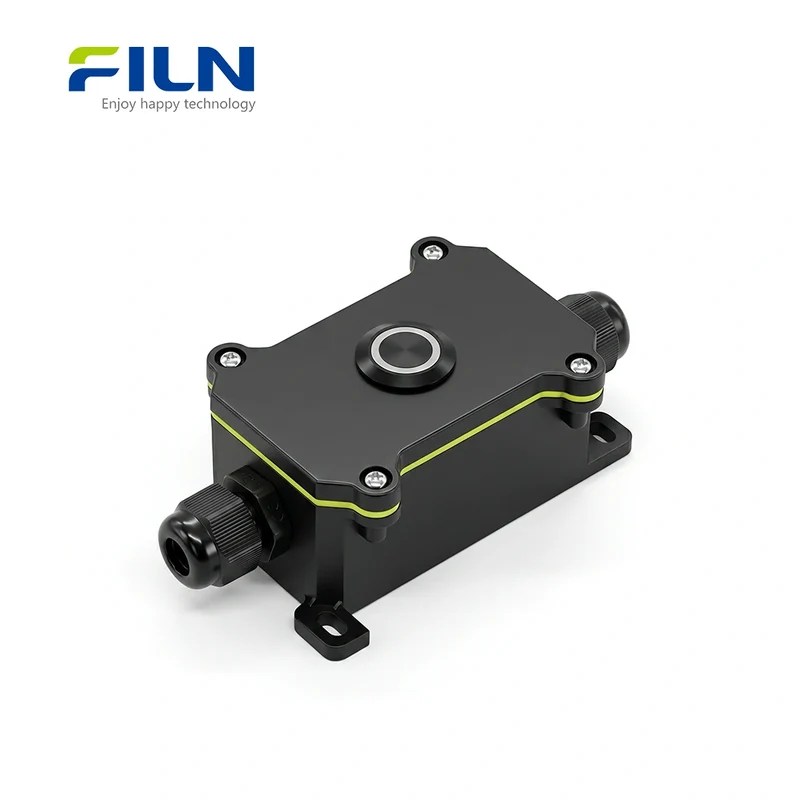

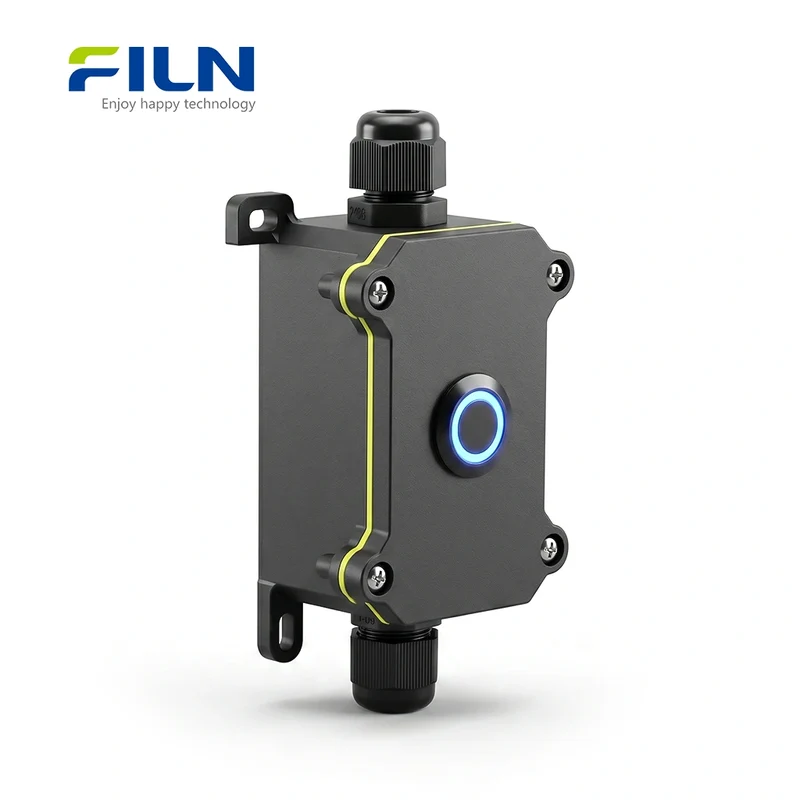

The WB1-2T-FLM19 is a premium waterproof junction box with switch designed by FILN for high-current industrial applications. This unit features a 19mm metal rocker switch (push-button style) capable of handling up to 20A. Certified with ISO9001, CE, VDE, RoHS, SGS, UL, and IP65, it provides a safe enclosure for momentary metal button control boxes and latching illuminated switch boxes. Whether used in outdoor lighting, marine power distribution, or industrial machinery, this black waterproof junction box 12v/220v offers superior protection. The bright LED ring illumination (available in R/G/Y/B/W) ensures high visibility in dark or complex industrial settings

 View All Waterproof Junction Box Collections →

QUICK SPECIFICATIONS

Model Number	WB1-2T-FLM19

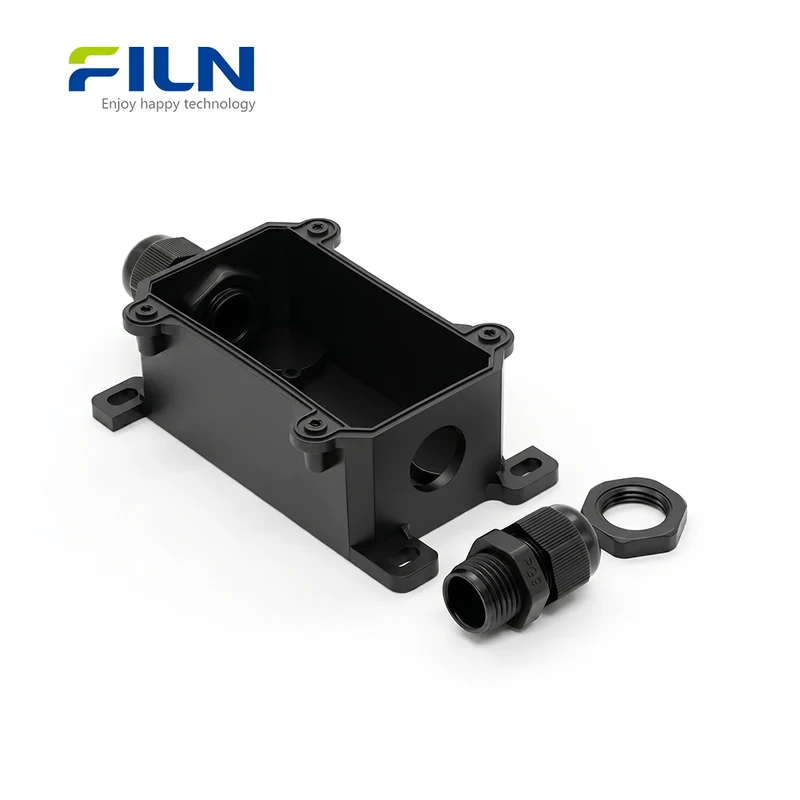

Waterproof Connector	PG9
Wiring Configuration	Line-in / Line-out (L-in, L-out)
Mounting Hole Size	19mm (0.75 inch)
Function	Momentary / Latching (Selectable)

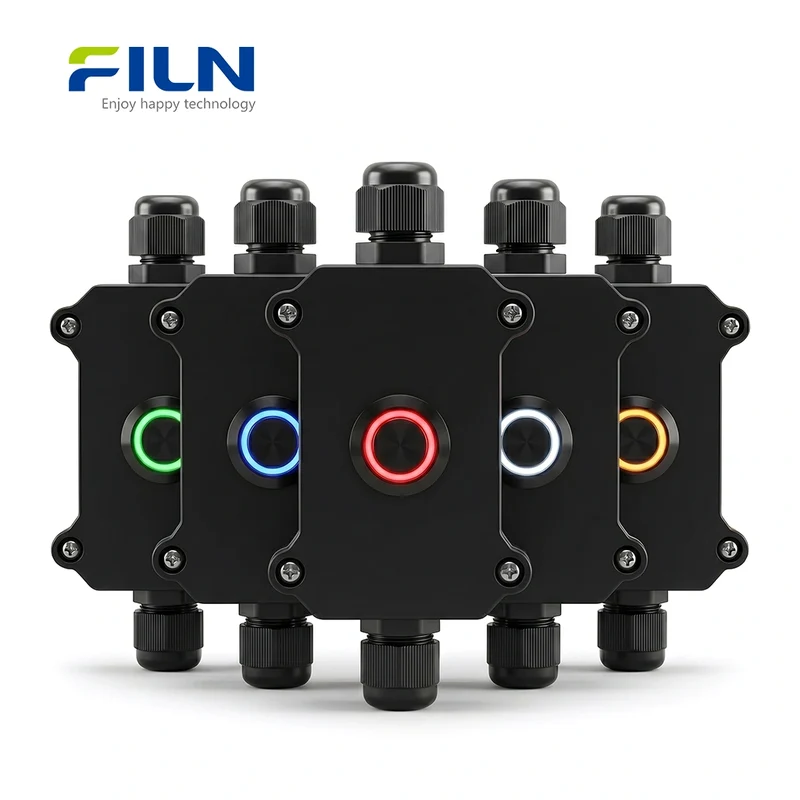

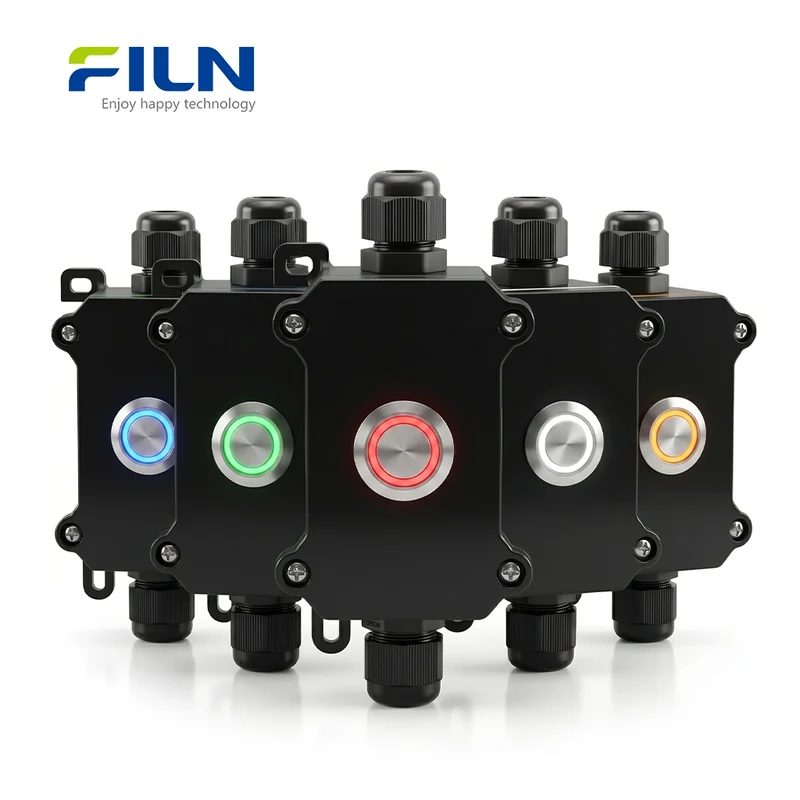

LED Color	R/G/Y/B/W (Custom bi-color/tri-color available)
Button Shape	Flat Head
Terminal Type	Pre-wired (4PIN with leads)

PERFORMANCE PARAMETERS

Rated Voltage	36V DC / 250V AC
Rated Current	20A (High Current version available) / 5A Standard
Rated Power	180W (DC) / 1250W (AC)
Insulation Resistance	≥ 1000MΩ
Contact Resistance	< 50mΩ
Certifications	ISO9001, CE, VDE, RoHS, SGS, UL, IP65

COMPONENT MATERIALS

Actuator (Button)	304 Stainless Steel / Black Aluminum Alloy
Body Housing	H59 Brass / 304 Stainless Steel
Contact Material	Silver Contact (AgCdO12)
Base	PA66+GF20% Flame Retardant Nylon
Waterproof Ring	SIL Silicone

GENERAL CHARACTERISTICS

Operating Temperature	-25°C to +85°C
Protection Level	IP65, IK08
Mechanical Life	500,000 Cycles
Electrical Life	100,000 Cycles (3A) / 50,000 Cycles (5A/20A)

LED SPECIFICATIONS

LED Voltage	12V-24V / 110V-220V (Customizable)
Luminous Flux	4.8 lm
Color Temperature	8400K (White)
Forward Current	20mA (Typical)

KEY FEATURES

• Superior Protection: IP65 and IK08 ratings ensure the switch survives harsh outdoor and industrial environments.
• High Load Capacity: Supports up to 20A current, allowing direct control of high-power devices without extra relays.
• Premium Materials: 304 Stainless Steel housing offers extreme corrosion resistance for medical and marine use.
• Intuitive LED Design: The ring-lit LED provides clear status feedback even in low-light environments.

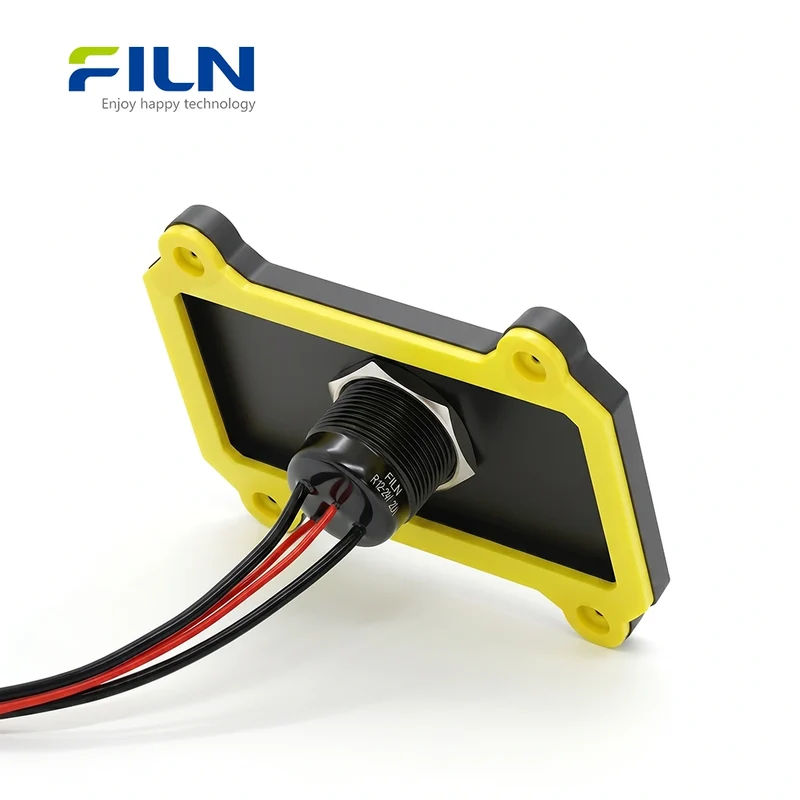

• Compact Pre-wired Structure: Features a short-body design (26.5mm) with a 4PIN wire harness for fast installation.

Industrial Applications

• Outdoor Lighting & Landscaping: IP65 protection for fountain pumps and yard spotlights.
• RV & Marine Equipment: Corrosion-resistant housing for bilge pumps and 12V distribution.
• Industrial Machinery: Emergency stop or start boxes for high-pressure washers and conveyors.
• Agriculture: Control units for greenhouse ventilation and irrigation solenoids.

INSTALLATION GUIDE

1. Prepare the junction box panel by ensuring the 19mm hole is pre-drilled.
2. Insert the metal push button switch through the front of the panel.
3. Secure the switch from the back using the provided hex nut.
4. Connect the 4PIN wire harness to your power source and load.
5. Assemble the waterproof junction box to complete the installation.

4 Pin Push Button Switch Wiring Diagram

A 4-PIN switch consists of two parts: Switch Contacts (to control the device) and LED Terminals (marked with + and -). Below are two ways to wire the LED indicator.

• Horizontal Pins: The switch mechanism (Power In / Load Out).
• Vertical Pins (+ / -): The LED indicator light terminals.

Method 1: LED Synchronized with Device (On when Active)

Logic: The button light only turns ON when the device is running. It serves as a "Status Indicator."

• Wiring: Connect LED (+) to the Output side of the switch. LED (-) to Power Negative.
• Applications: Power start buttons, car fog lights, industrial machinery.
• Benefit: Saves power; provides visual feedback that the system is active.

Figure 1: LED turns ON only when button is pressed

Method 2: LED Always ON (Backlight Mode)

Logic: The button light stays ON constantly as long as there is power, regardless of the button position.

• Wiring: Connect LED (+) directly to the Power Positive. LED (-) to Power Negative.
• Applications: Dark environments, hallway switches, standby power indicators.
• Benefit: Allows you to find the switch easily in total darkness.

Figure 2: LED stays ON constantly (Backlight)

Mode	LED Status (Idle)	LED Status (Pressed)
Sync (Status)	OFF	ON
Always ON (Backlight)	ON	ON

INDUSTRY KNOWLEDGE

What is a Junction Box Electrical System?

A junction box is an enclosure housing electrical connections, designed to protect them from weather and accidental contact. In our configuration, combining a waterproof-junction-box-with-switch provides a ready-to-use control station that prevents short circuits caused by moisture or dust ingress.

Momentary vs. Latching: Which do you need?

Feature	Momentary (Pulse)	Latching (Maintain)
Action	Springs back when released	Stays in place when pressed
Common Use	Horns, Doorbells, PC Reset	Light Switches, Main Power

Explore Professional Enclosures

Looking for more protection? Check out our full range of waterproof solutions.

View All Waterproof Junction Boxes

FACTORY DIRECT SUPPLY

• ✅ No MOQ: Support for small projects and prototypes.
• ✅ Fast Lead Time: Global shipping within 3-7 days.
• ✅ Full Customization: Voltage, wire length, and connectors.

Request Free Samples

Website: www.filn.com
Email: [email protected]

FREQUENTLY ASKED QUESTIONS

1. Does the WB1-2T-FLM19 support 110V AC LED power?
Yes, we can customize the internal resistor for 3V to 220V applications.

2. Is the 19mm metal push button switch salt-spray tested?
Our 304 stainless steel versions pass rigorous salt-spray tests for marine use.

3. Can I get a pre-wired-metal-button with a specific connector?
Yes, we offer customization for terminal connectors to match your equipment.

4. What is the difference between silver and copper contacts?
We use AgCdO12 silver contacts for superior anti-arcing and 20A high-current capacity.

5. Is the KCD1 rocker switch compatible with this box?
This specific model is for 19mm round buttons, but we offer custom KCD1 rocker switch enclosures.

6. How many pins does this 12v-led-ring-switch have?
It comes as a 4PIN pre-wired assembly (2 for switch, 2 for LED).

7. Is it an industrial-control-button-20a?
Yes, it is designed for heavy industrial loads up to 20A.

8. Does it include the waterproof gasket?
Yes, every 19mm metal-push-button-switch includes a silicone O-ring.

9. Can I use this for momentary-push-button-wiring?
Yes, we provide both momentary and latching versions.

10. How do I install it in the junction boxes electrical?
Simply insert through the 19mm hole and tighten the rear metal nut.
